digital frequency meter 50hz

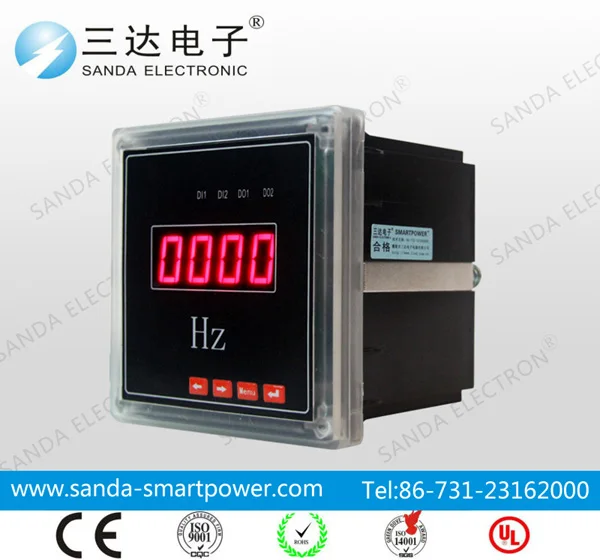

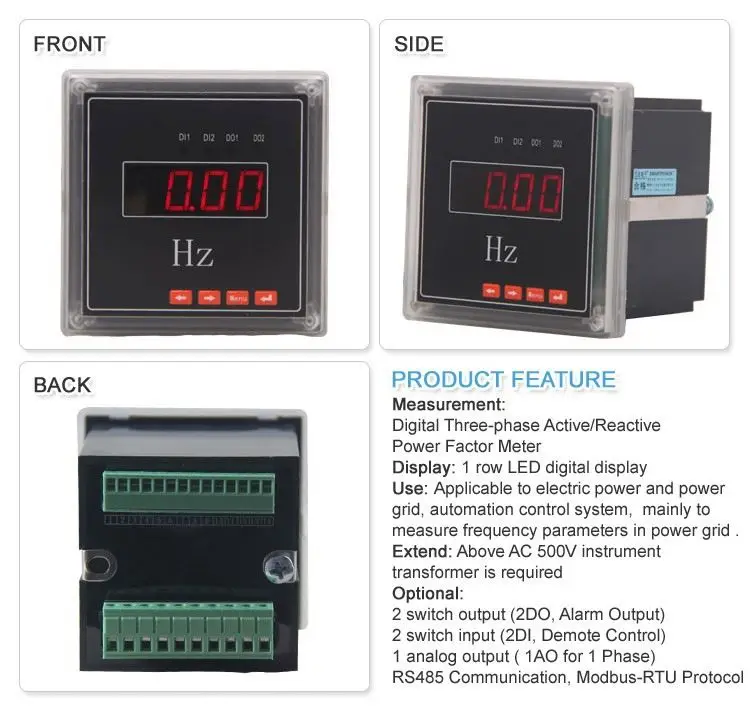

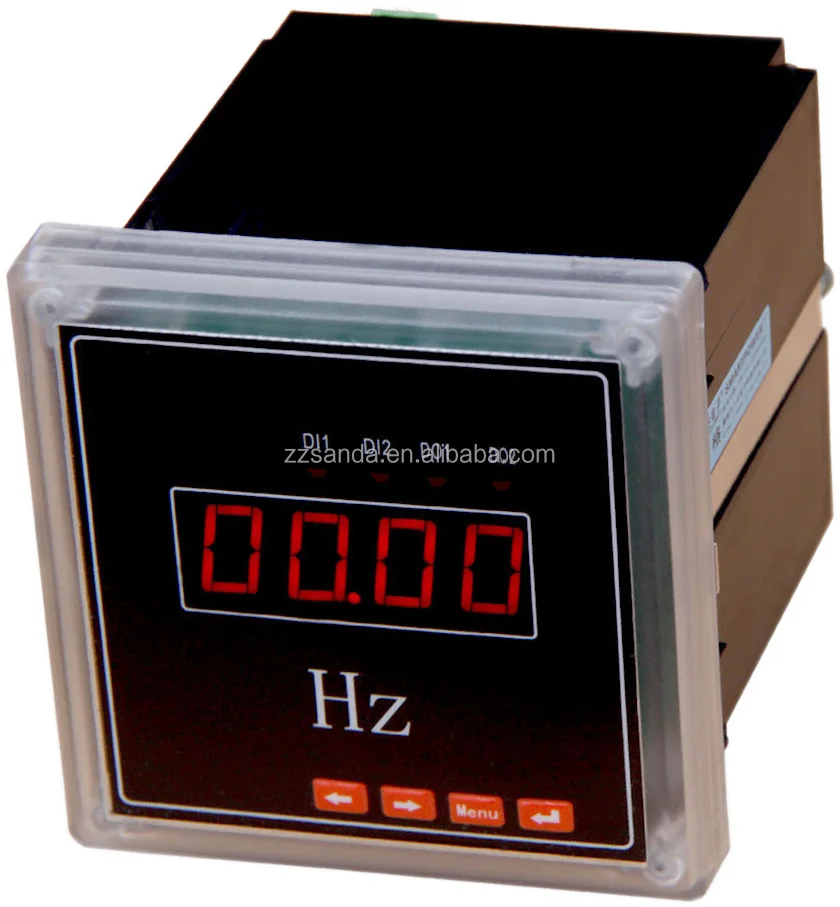

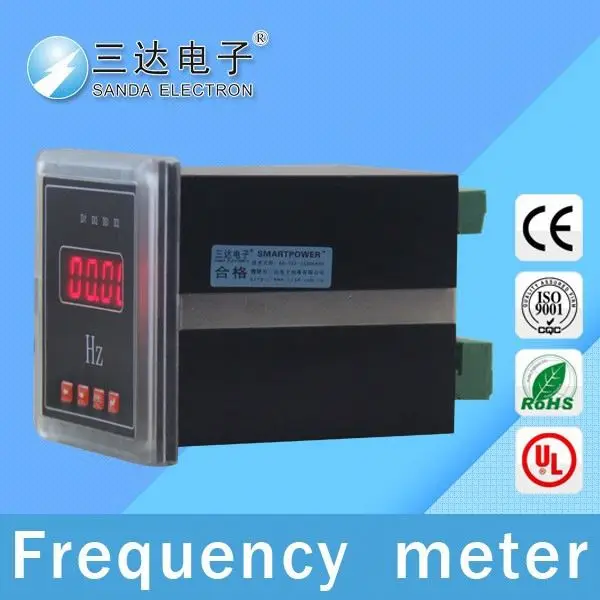

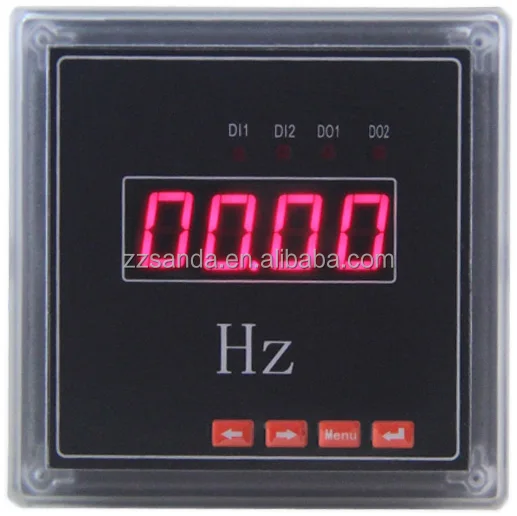

Intelligent Digital frequency meter is suitable for measuring and displaying electrical parameters of frequency in power grid. It can set the rate through the panel, It’s a new design meter with advantages of high accuracy, good stability, and resistance to vibration etc, and it can communicate with different PLC and industrial computers in the network.







1.Mounting Dimensions & Wiring Diagram.



How to install it safely and choose sizes accurately? More details for your reference below….





Model Name	Shell size (mm)		Installing size(mm)
	A	B	C	D	E
SD994F-1K1	160	80	95	151	76
SD994F-2K1	120	120	90	107	107
SD994F-3K1	80	80	95	76	76
SD994F-5K1	96	48	88	92	44
SD994F-9K1	96	96	90	91	91
….	Above Models for reference only, More products please consult customer service for details .





Technical Parameters

Please note that the parameters provided below are for guidance only. OEM /ODM are acceptable.Welcome to share your opinion with us.





Function	Parameter
Input measure-ment display	Voltage	Rated value	AC25~500V
		Overload	Last:1.2 times,instantaneous:10 times/10 seconds
		Power consumption	<1VA
		Impedance	>500kΩ
		Accuracy	Accuracy class 0.5 by RMS measure
	Current	Rated value	AC0~5A
		Overload	Last:1.2 times,instantaneous:10 times/10 seconds
		Power consumption	<0.4VA(per phase)
		Impedance	>2mΩ
		Accuracy	Accuracy class 0.5 by RMS measure
	Power	Working range	AC/DC 86~270V
		Power consumption	≤5VA
	Environment	Work environment	-10~55°C
		Sorage environment	-20~75°C
	Security	Pressure	Input/Power>2kv,input/output>2kv,power/output>1kv
		Insulation	Input, output, power on the chassis>50MΩ



1. How to ensure Intelligent Digital frequency meter’s safety and stability?



To ensure products’ perfect performance, advanced raw materials are imported from abroad.

To ensure high effective production, high-tech production lines are applied to reach lead time.
To provide customer with high quality reliable products, QC check is always your safe guard.
                        Take Sanda, enjoy safer electricity.







Factory direct supply, all goods can be customized.

OEM/ODM is available.

Welcome to share your idea with us.

 2. Application Fields.



Intelligent Digital frequency meter is widely used in chemical industry, cement industry, metallurgy industry, construction industry, and power industry. Up to now, we have bid for many engineering projects. Certified quality guards safe usage.





3. Sales Network



4.    Packaging &Shipping



Export Package	1 pc/inner box, 40pcs/carton.
Shipping Time	After payment done, goods will be shipped to you within 30 days.
Delivery Method	1. Shipment  by Sea, by Air or Courier (DHL/FEDEX/TNT/UPS/EMS/CHINA POST MAIL)  2. As per clients request.



4. Company information



About SANDA

Zhuzhou Sanda Electronic Manufacturing Co. Ltd., located in Zhuzhou, China mainland, is a professional manufacturer integrated with R&D, design, manufacturing, sales and service. We’ve been engaged in field of digital meters for about 15 years.



Our products include ammeter, voltmeter, power meter, frequency meter, DIN rail energy meter, multifunctional power meter, intelligent temperature and humidity controller, current transformer, intelligent monitoring device such as dry-type transformer temperature controller, switch status indicator ,switch cabinet intelligent operation display device, intelligent protection device such as intelligent computer integrated protection device ,current transformer over voltage protector 3-phases combined protector, etc. With international certifications such as UL, CE, ISO etc, our products are sold to all over the world and winning the trust of customers.



We promise that we’ll provide the fastest lead-time, competitive price & high-level service to customers, thus support customer to fulfill their market strategy!









10. Why Us

• Production line

We have an advanced complete production line which ensured large quantity production.

•  Lead time

Once order confirmed, goods would be packed and delivered directly from our ware house.

•   Warranty

All goods have 1 year warranty, and goods repair expenses are totally free.

•   Online services

Please feel free to contact us. Our sales team will provide you with 24 hours better pre-sale and after-sale service.

•   Effective management

Production processes are followed JIT management. We have standard management combined with high-tech procedures to ensure an effective production.

•   Competitive price

All goods are supplied directly from factory. We can quote our clients with competitive price.

•   OEM/ODM

With 15 years experiences in this field, we can provide customers with professional suggestion to boost sustainable development.
