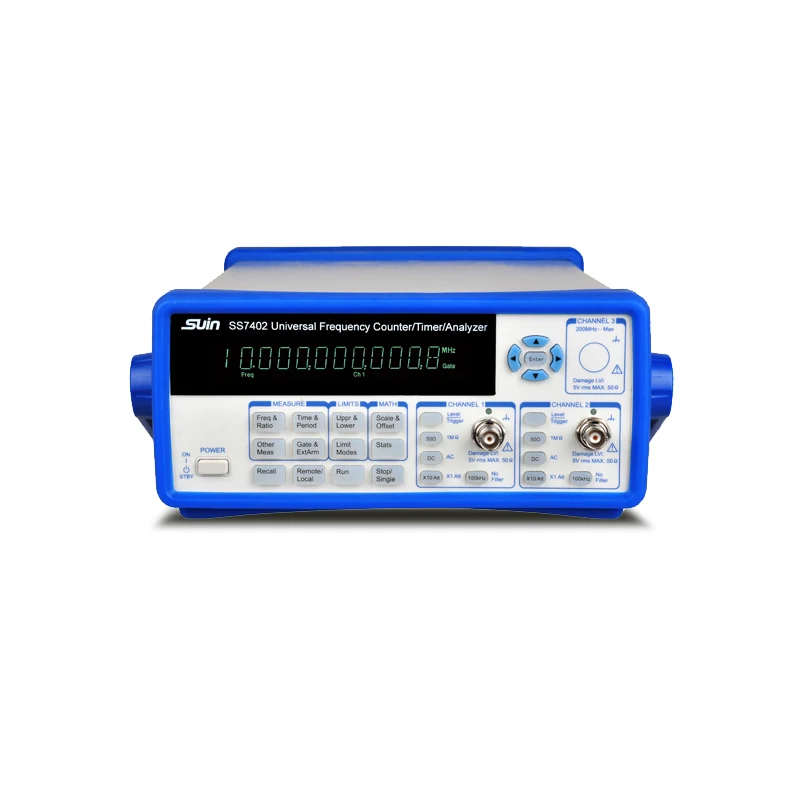

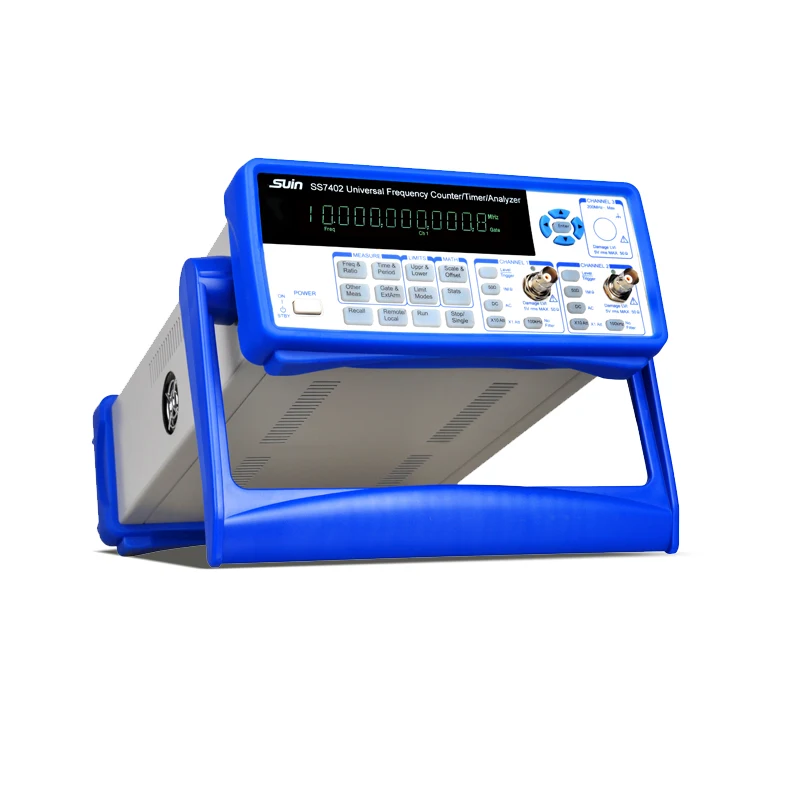

Suin SS7000 серии три канала 200 МГц цифровой универсальный

Suin SS7000 серии три канала 200 МГц цифровой универсальный

Категория: Frequency Meters >>>
Поставщик: Shijiazhuang,Suin,Instruments,Co.,Ltd.

Цена:*

Количество:

Описание и отзывы

Трекер стоимости

Месяц	Минимальная цена	Макс. стоимость
Sep-16-2025	0.99 $*	0.18 $*
Aug-16-2025	0.87 $*	0.77 $*
Jul-16-2025	0.9 $*	0.33 $*
Jun-16-2025	0.82 $*	0.38 $*
May-16-2025	0.27 $*	0.59 $*
Apr-16-2025	0.39 $*	0.67 $*
Mar-16-2025	0.41 $*	0.81 $*
Feb-16-2025	0.21 $*	0.68 $*
Jan-16-2025	0.67 $*	0.63 $*

Характеристики

Product Description

Features

Minimum measuring resolution 11 digits/s
Time resolution 25ps(typical)
Maximum frequency's measurement can reach to 40GHz (options)
Measures Frequency, Period, Duty Cycle, Frequency Ratio, Totalize, Phase Difference, Pulse Width, Time Interval and DCV.
Utility statistics functions of multi-average, maximum, minimum, PPM, standard deviation and Allan Variance for frequency measurement
Stores 15 group status
High-stability crystal oscillator is optional

Specification

		SS7200A	SS7300	SS7400	SS7402
Measuring Functions
Frequency Range			CH 1: 0.001Hz ~ 200MHz,
				CH 2: 0.001Hz ~ 200MHz
				CH 3: 3GHz/6.5GHz/12.4GHz/16GHz/20GHz/26.5GHz(option)
Display Resolution			8 digits/s	10 digits/s	11 digits/s	11 digits/s
Period			5ns ~ 1000s
Time Interval Range			10ns ~ 10000s 1ns ~ 10000s
Resolution			2.5ns	500 ps	150ps	25 ps
Pulse Width			30ns ~ 5000s			1ns ~ 10000s
Duty Cycle			1% ~ 99%
Totalize			0 ~ 1×10¹³
Phase Difference			1° ~ 359°
Input
Dynamic Range			50mVrms ~ 1.0Vrms (Sine), 150mVPP ~ 4.5VPP(Pulse)
Input Impedance			1MΩ//35pF or 50Ω
Input Attenuation			×1 or ×10
Trigger Level			-5.000V ~ +5.000V
Other Functions
Frequency Ratio			√
Up/Low Limit			"Limit" light on shows the result out of range, off shows within range
Statistics Calculation			Multi-average, Max.,Min., PPM, SD, Allan Variance
Standard Time Base
Accuracy			5×10^-8
Daily Aging			1×10^-8/day
Optional Time Base
Accuracy			5×10^-8
Daily Aging			5×10^-10/day
Channel Options
			Frequency Range			Dynamic Range
3.0GHz			100MHz~3GHz			A.-27dBm~+19dBm(100MHz~2.6GHz)
			100MHz~3GHz					-15dBm~+19dBm(2.6GHz~3.0GHz)
				100MHz~3GHz			B.-27dBm~+19dBm
6.5GHz			200MHz~6.5GHz			-15dBm~+13dBm
12.4GHz			6.5GHz~12.4GHz			-15dBm~+10dBm
16.0GHz			6.5GHz~16GHz			-15dBm~+10dBm
20.0GHz			200MHz~20GHz			-10dBm~+10dBm(200MHz~350MHz)
								-15dBm~+10dBm(350MHz~18GHz)
								-10dBm~+10dBm(18GHz~20GHz)
26.5GHz			10GHz~26.5GHz			-20dBm~+10dBm(10GHz~20GHz)
								-15dBm~+10dBm(20GHz~24GHz)
								-10dBm~+10dBm(24GHz~26.5GHz)
40GHz			18GHz-40GHz			-29dBm ~ +15dBm (18GHz~20GHz)
								-20dBm ~ +15dBm (20GHz~28GHz)
								-29dBm ~ +10dBm (28GHz~37GHz)
								-20dBm ~ +13dBm (37GHz~40GHz)
General Characteristics

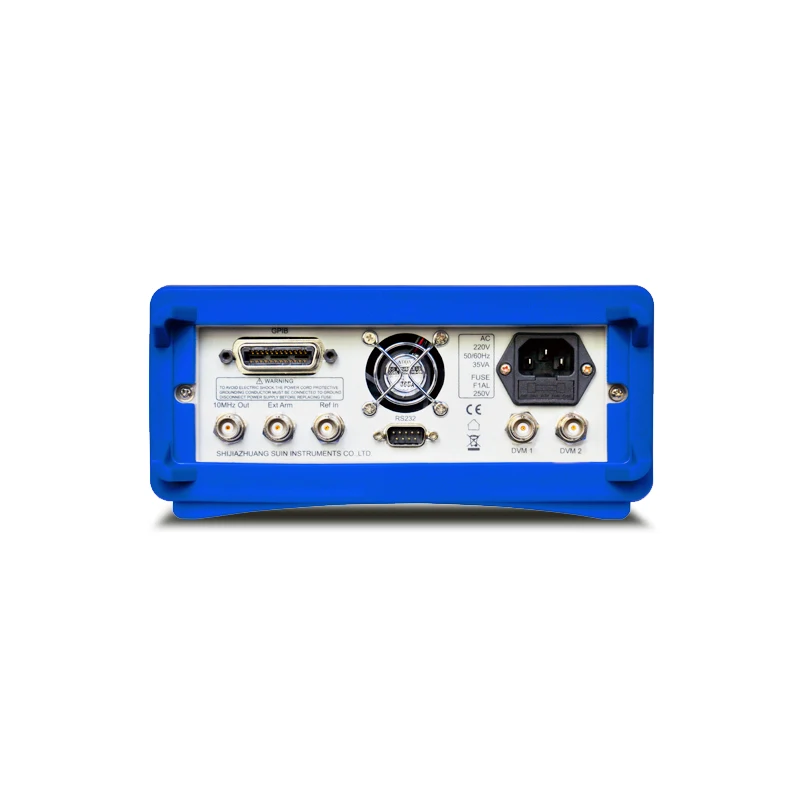

Interface	Standard	USB, RS-232			USB, RS-232		RS-232, GPIB
Interface		Optional	GPIB			GPIB	GPIB	○
Power			AC 220V(10%) or AC110V(10%),50HZ(5%) or 60Hz(5%)
Power				AC 220V(1±10%) ,50Hz(1±5%) <70VA(for SS7402)
Dimension			256×106×386mm
Weight			3.7kg	3.7kg	4.2kg	5.2kg

Packing & Delivery

Company Profile

SUIN Instruments Co., Ltd is a high-tech company and concentrates on R&D, production, test, sales and service of test & measurement instruments, electrical products, application software, etc. It already won below titles depending on the super technical advantage: High-tech Enterprises in Hebei Province, Hebei Industrial Design Center, Hebei Academician Workstation, Shijiazhuang Industrial Design Center, Engineering Research Center of Shijiazhuang electrical test instrument, Shijiazhuang Enterprise Technical Center, China's Key Enterprises in electronics instruments industry.
Suin is located in Luquan optical valley park, provincial capital Shijiazhuang of Hebei in China and covers an area of 12,000 square meters. Because of good base, test equipments and SMT production line to develop digital electronic instruments, the yearly capacity can reach to 30,000 sets in total. Also, Suin built modern training base covering area of 2000 square meter and up to 300 people could be accommodated at the same time to carry out the theoretical study and practical operation.
Suin major product includes Signal Generator, DMM, Spectrum Analyzer, Frequency Counter, Power Quality Analyzer, Dual Mixer Time Difference System, Programmable DC Power Supply, etc., which are sold well both in domestic and oversea market.

Quality Control

Exhibition

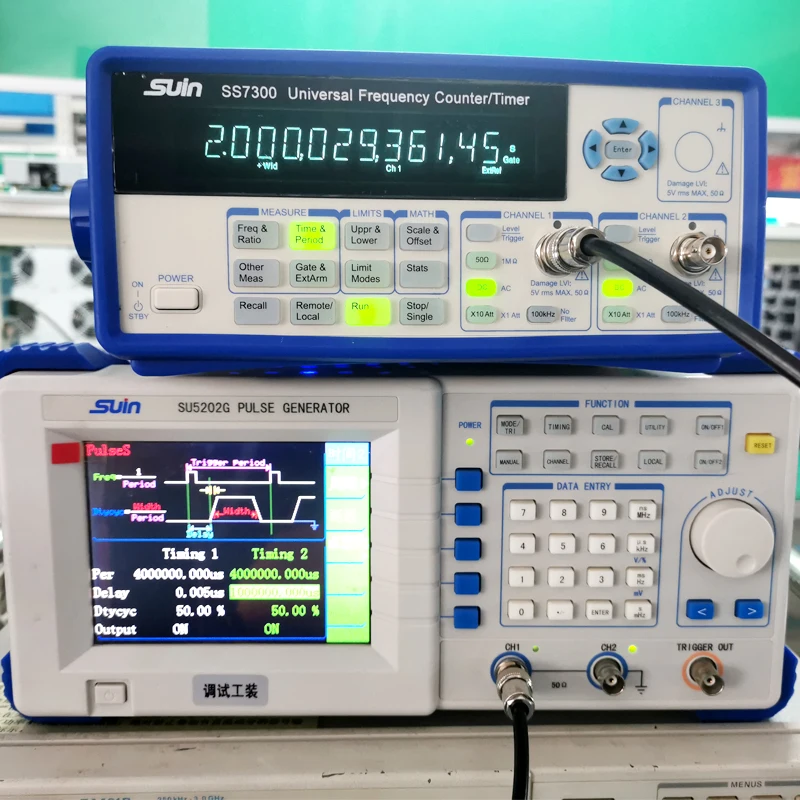

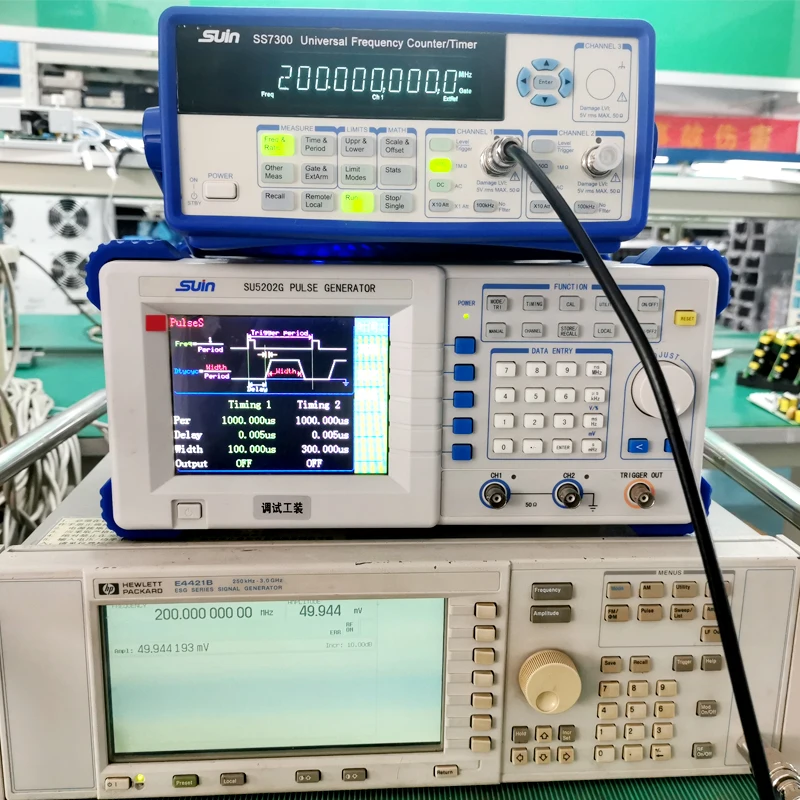

Customer Photos
