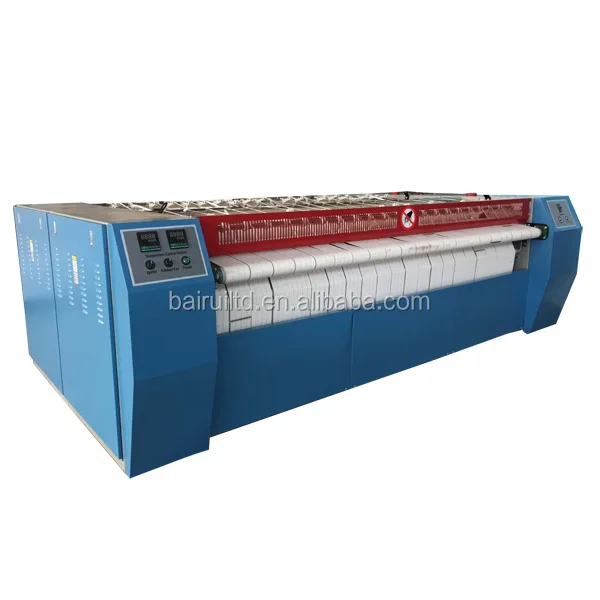

Flatwork Ironer Machine:

1.Adopt  electric heating--directly heating type, suitable for environment with no steam supply.

2.Effective ironing area utilization rate more than 3/4 ,save more energy.

3.Equipped with TV overload protection,Emergency stop button and other safety protection devices, more safe to use.

4.Adopt inverter control ironing speed, ensure good ironing effect.

5.Using motor, reducer and Chain transmission. Simple structure, easy maintenance.

SWF series electric heating ironing machine parameters( single roller)

Customizing range: ironing width 1500-3300mm ,roller number 1-4.roller diameter 380-800mm



Technical Parameter:



Model	SWF1800IZ/ID	SWF2500IZ/ID	SWF 2800IZ/ID	SWF 2800IIZ/IID	SWF 3000IIZ/IID
Ironing Size (mm)	1800	2500	2800	2800	3000
Roller Size (mm)	φ800×1800	φ800×2500	φ800×2800	φ800×2800	φ800×3000
Roller Qty.	1	1	1	2	2
Steam Pressure	0.4~0.6	0.4~0.6	0.4~0.6	0.4~0.6	0.4~0.6
Ironing Speed (r/min)	0~7	0~7	0~7	0~12	0~12
Steam Inlet (inch)	1"	1"	1.25"	1.25"	1.5"
Steam consumption (kg/h)	50	70	80	150	180
Motor Power (KW)	0.75	0.75	1.5	1.5	1.5
Electric Heating (KW)	18	24	30	60	72
Overall Dimension (mm)	3000x1400x1260	3700x1400x1260	4000x1400x1260	4000x2300x1260	4200x1400x1260
Power Supply (v)	220v/ 380v	220v/380v	220v/380v	220v/380v	220v/380v
Weight (kg)	1400	1800	2000	2200	2400

Production:
