Автоматический антисептик для рук кормления 2 полость выдувания ПЭТ банка make-выдувная


Поделиться:


Цена:14 500,00 $*

Количество:



Описание и отзывы


Трекер стоимости

Месяц Минимальная цена Макс. стоимость
Sep-17-2025 17255.75 $* 18118.8 $*
Aug-17-2025 17110.85 $* 17966.89 $*
Jul-17-2025 14355.56 $* 15073.23 $*
Jun-17-2025 16820.76 $* 17661.91 $*
May-17-2025 14645.1 $* 15377.21 $*
Apr-17-2025 16530.21 $* 17357.26 $*
Mar-17-2025 16385.4 $* 17204.31 $*
Feb-17-2025 16240.71 $* 17052.61 $*
Jan-17-2025 16095.79 $* 16900.20 $*

Характеристики


Detailed Images
Product Description

Product Application

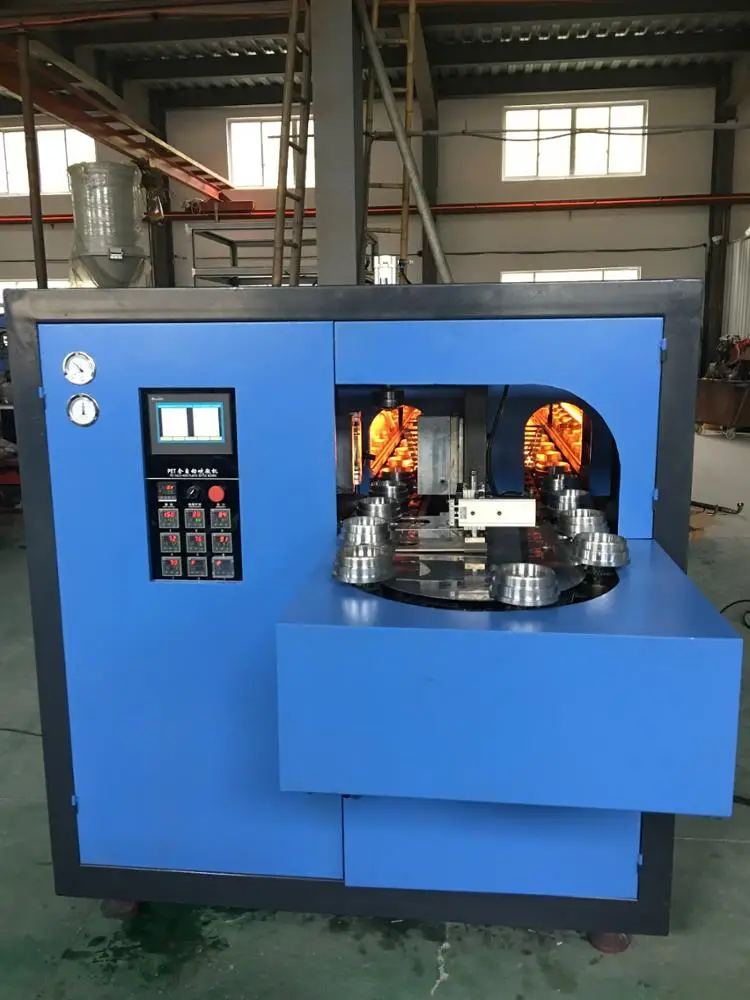

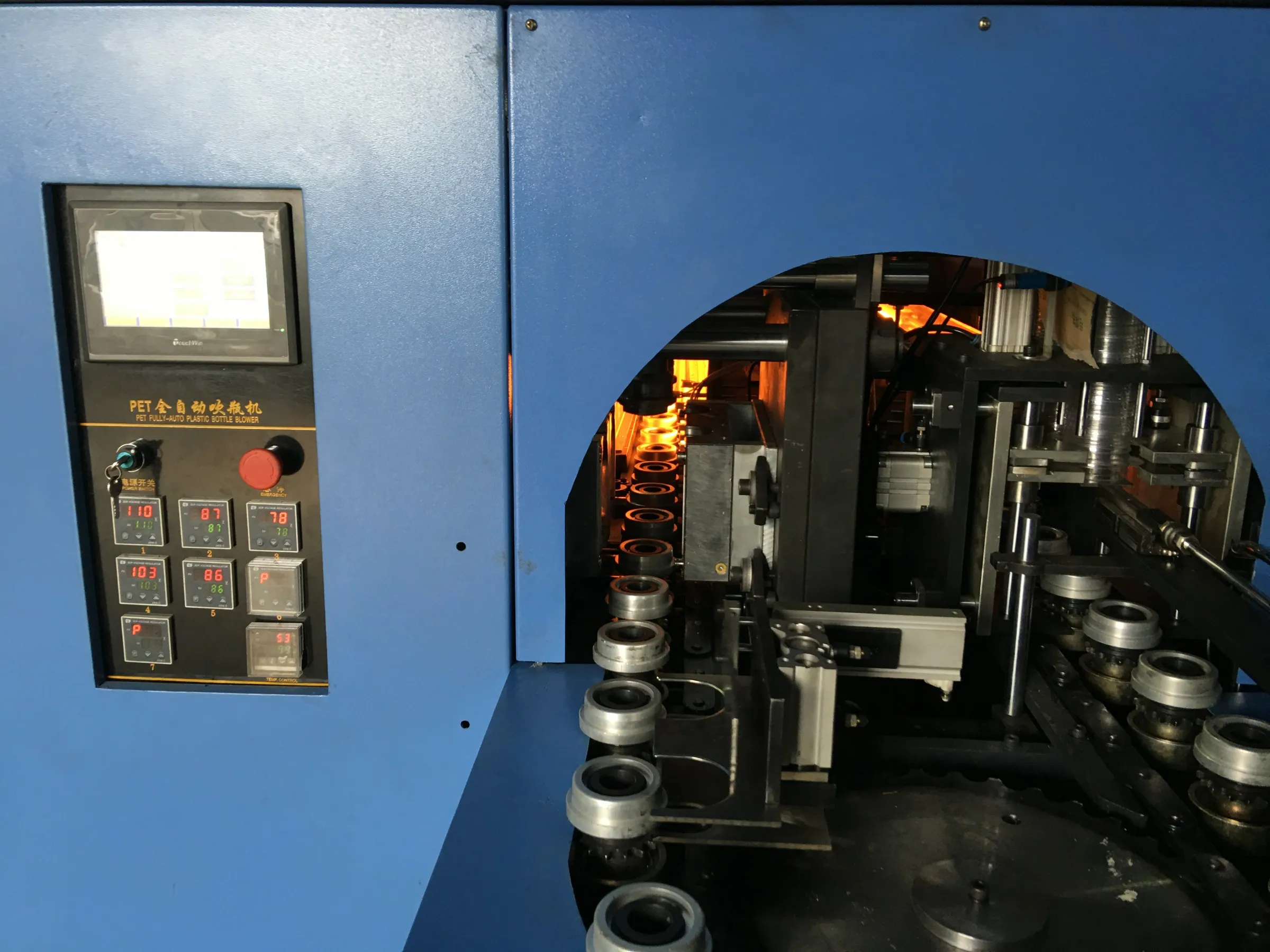

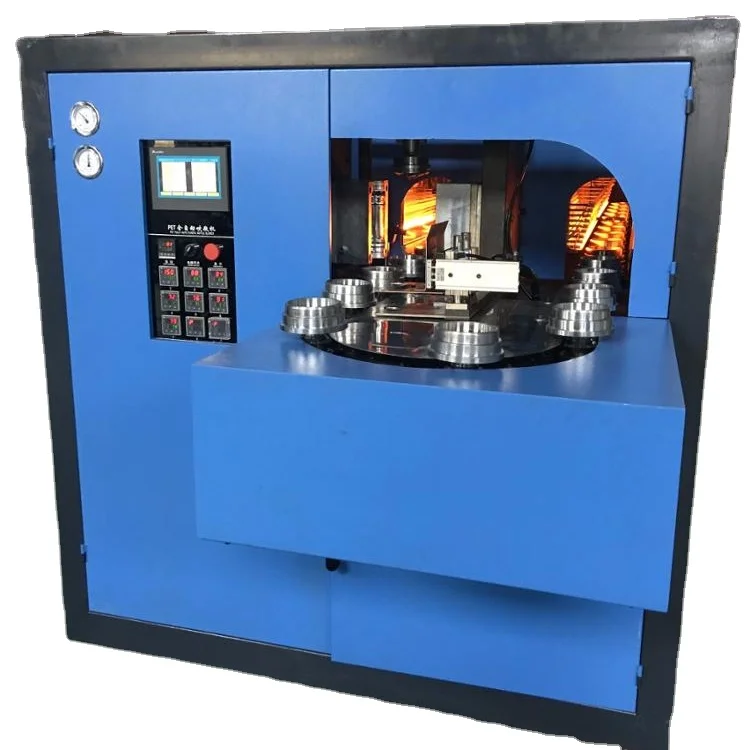

automatic jar make machine is specialized in blowing big neck jar bottle with max neck 50-90mm,from 100ml-2L,


blowing machine for jar is special designed with preheater and blowing unit in one machine, manually put jar preform,automatic blowing,automatic bottle take out,


pet jar blow machine the Jar preform need to be manual put on the preform holder or the preform can be loaded by our designed automatic loading unit,which can load big quantity of jar preform in short time and save cost of labor,

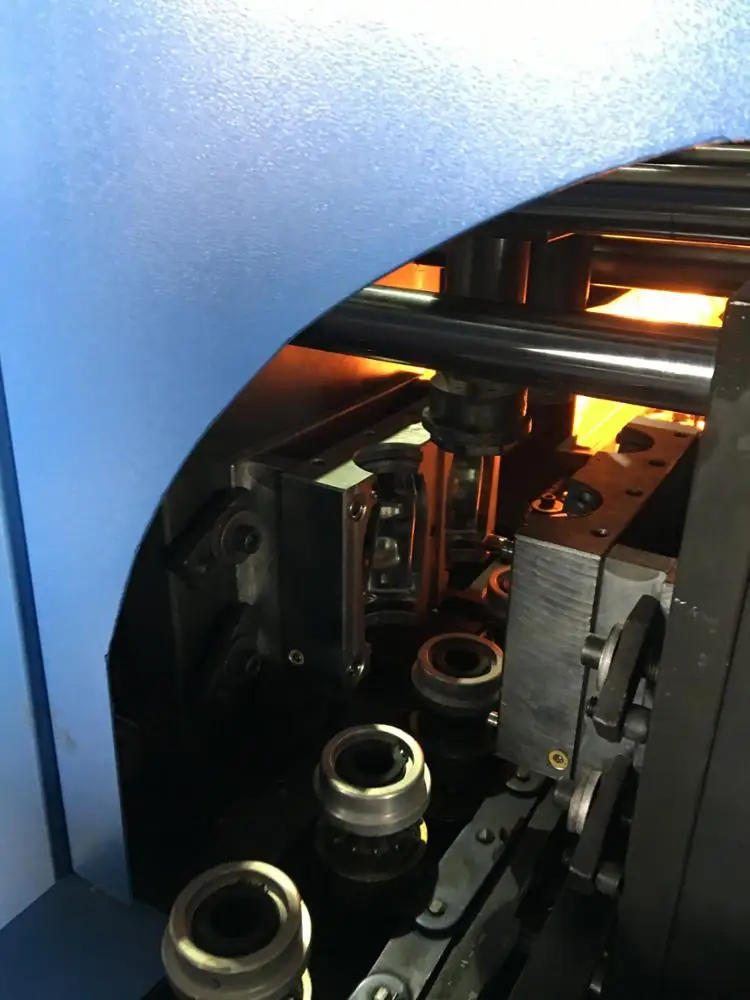

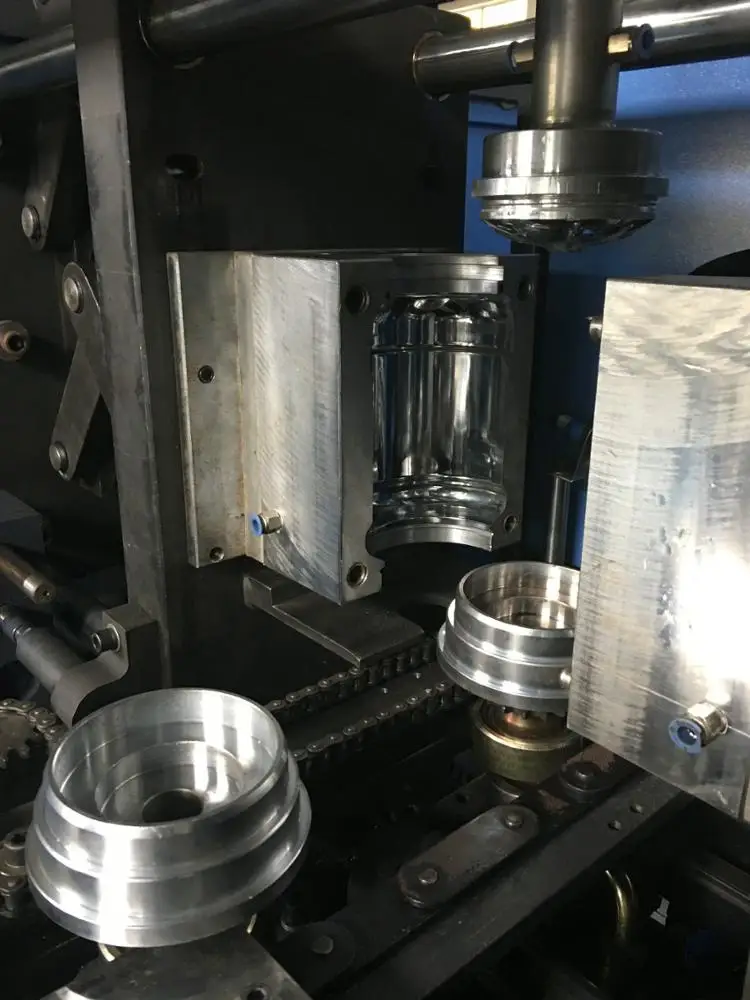

jar preform is automatic transmit by servo motor to the heating oven, then heated preform automatic transmit into blow mould for blowing, the final jar will be drop down to packing bags or cartons,or by mechnical hand to bottle jar conveyor for inline working with jar filling machine,



Main Specification
\t
MODEL
\t
Unit
\t
ZA-2000JAR
\t
Container
\t
Max.container volume
\t
ml
\t
2000
\t
Max. neck diameter
\t
mm
\t
90
\t
Max. container diameter
\t
mm
\t
120
\t
Max. container height
\t
mm
\t
250
\t
Number of cavities
\t

\t
2
\t
Theoretical output
\t
BPH
\t
1200
\t
Electricity
\t
Installed power
\t
Kw
\t
36
\t
Max. heating power
\t
Kw
\t
34
\t
Compressed Air system
\t
Operation pressure
\t
Mpa
\t
0.7
\t
Low pressure Air consuming
\t
M3 /min
\t
2.0
\t
Blowing pressure
\t
Mpa
\t
3.5
\t
High pressure Air consuming
\t
M3 /min
\t
2.0-2.4
\t
Chilled water
\t
Pressure
\t
Mpa
\t
0.3-0.5
\t
Temperature
\t
\t
10-12
\t
Flow rate
\t
L/min
\t
30
\t
Machine size and weight
\t
Size(L*W*H)
\t
m
\t
3.4x1.5x1.9
\t
Weight
\t
 Kg
\t
3500
Components List
\t
S/N
\t
Main Components Name
\t
Brand
\t
1
\t
PLC
\t
XINJE,CANADA
\t
2
\t
TOUCH SCREEN
\t
XINJE,CANADA
\t
3
\t
STRETCHING PISTON(CYLINDER)
\t
FESTO,GERMAN
\t
4
\t
CLAMPING SERVO MOTOR
\t
XINJE,CANADA
\t
5
\t
PREFORM TRANSMISSION SERVO MOTOR
\t
XINJE CANADA
\t
6
\t
ACTION VALVE
\t
FESTO,GERMAN
\t
7
\t
PROXIMITY SENSOR
\t
OMRON,JAPAN
\t
8
\t
PHOTOELECTRIC SWITCH
\t
OMRON,JAPAN
\t
9
\t
FILTER
\t
CKD,JAPAN
\t
10
\t
CONTACTOR
\t
SCHNEIDER,FRANCE
\t
11
\t
POWER SUPPLIER
\t
MEANWELL,TAIWAN
Accessory machines

Shangair brand High Pressure Air compressor

High pressure Air Tank

Air Cooling Dryer With two Air Filters

Water Chiller Air Cooling Type
