Автоматическая машина для нанесения полиэфирной

Prices are for reference only. Different price depending on different specification. Pls contact us for more information.

Working Principle

FDY PP multifilament or other filament like POY polyester yarn through the air nozzle after drawing, make the yarn open the twist through the air, The dispersed filament form a ring on their surface and are fixed to the surface of the filament. The finished product is obtained by heat setting and oil winding.

When the filament enters the nozzle at low overfeed rate, the running direction of the hot gas flows along the tow to disperse it. The tow is fixed under the effect of deformation and heat setting in the nozzle. The design of the nozzle should reduce the gas consumption and improve the intertwining effect. The Y type design can make the yarn knot stable and the length of the yarn is consistent. The jet deformed wire is not a yarn with loose ends of the fiber, but an irregular loop and a twisted filament produced by a mechanical method. The filament is formed by the filament winding and heat treatment of its adjacent filament.

Main Features

1) Application for polypropylene yarn and polyester yarn

2) High output 300m/min

3) High pressure double crank to control the die opening and closing.

4) Running in a high automatization and intellectualization,no pollution

5) Apply a linker to connect with the air conveyor ,which can directly inline with filling machine .

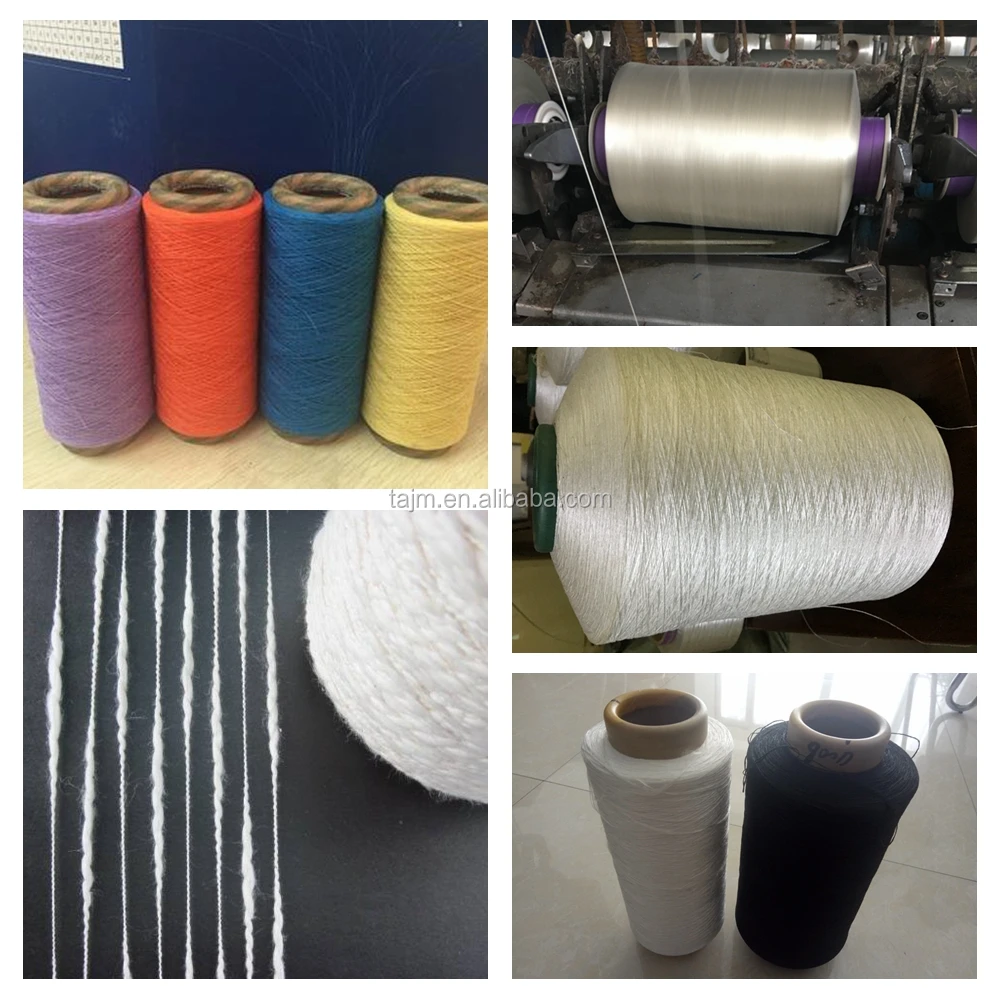

Polypropylene/Polyester/Nylon air textured yarn is widely used for making bedding, sportswear, socks, underwear, car interiors, bags, carpets, sofas, tapestries, etc.
