Стальная машина для полировки квадратных труб для алюминиевых труб
US $46000-$50000
Автоматическая полировальная машина для металлических столовых приборов с непрерывным вибратором удочка полировщик латунь
- Категория: Станок для полировки металла >>>
- Поставщик: Huzhou,Zhenxi,Hengda,Grinding,Material,Factory
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Sep-15-2025 | 2023.88 $* | 2124.8 $* |
| Aug-15-2025 | 2006.16 $* | 2106.49 $* |
| Jul-15-2025 | 1683.26 $* | 1767.33 $* |
| Jun-15-2025 | 1972.12 $* | 2071.91 $* |
| May-15-2025 | 1717.91 $* | 1803.26 $* |
| Apr-15-2025 | 1938.0 $* | 2035.61 $* |
| Mar-15-2025 | 1921.2 $* | 2017.28 $* |
| Feb-15-2025 | 1904.17 $* | 1999.96 $* |
| Jan-15-2025 | 1887.66 $* | 1981.8 $* |
Характеристики
Products Description
ZDPA Vibratory Finishing Machine Feature
•Large loading capacity for large batch processing
•Wide application range
•Easy to operate
•Manually separate polishing media and products
•PU lining for longer machine life
•Timing settings
•Timing settings
Application
Suitable for polishing metal, aluminum, brass, copper, stainless steel, and iron workpieces such as machined parts, injection molding parts, stamping parts, and die casting parts.

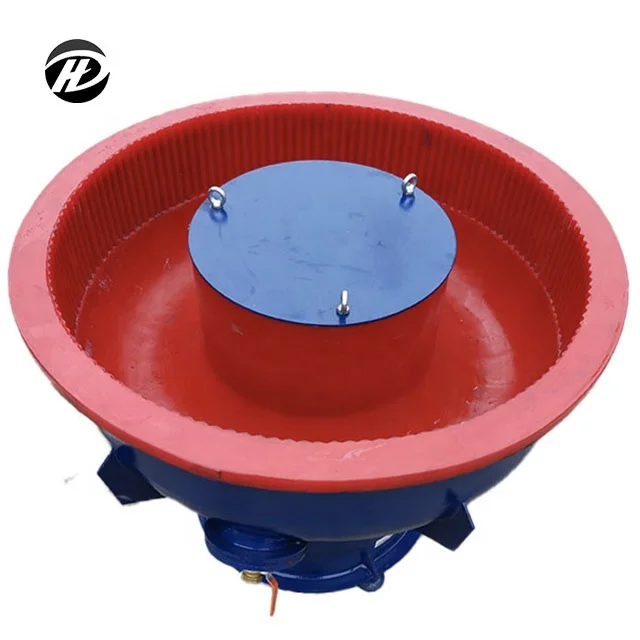

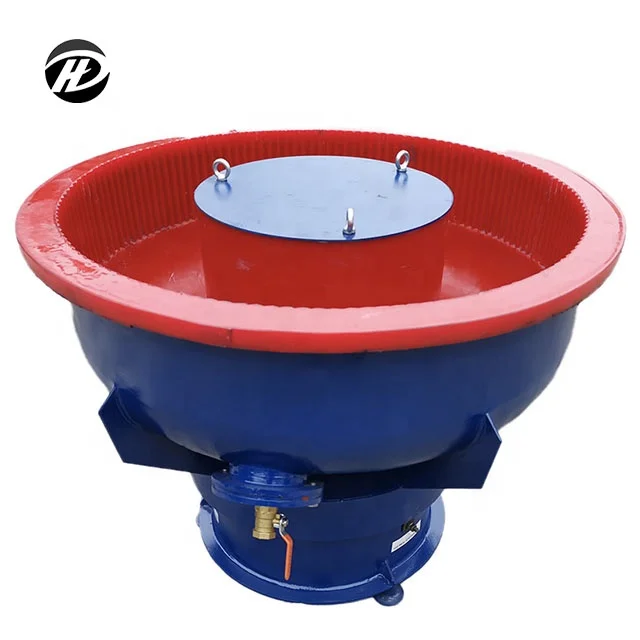

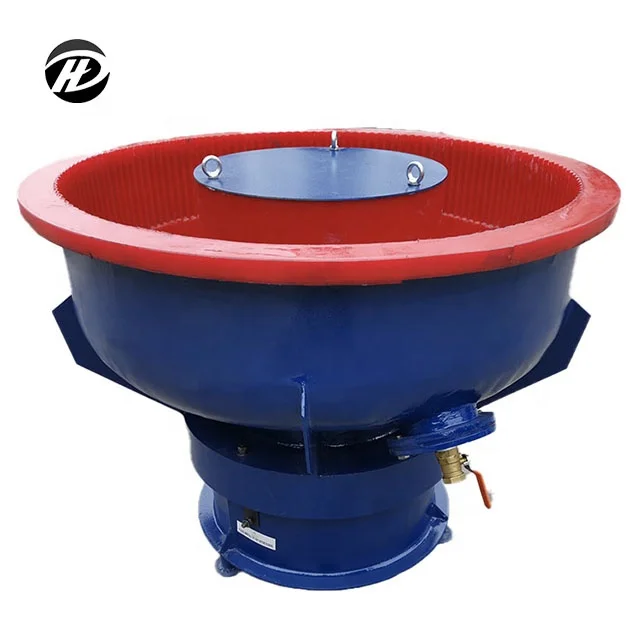

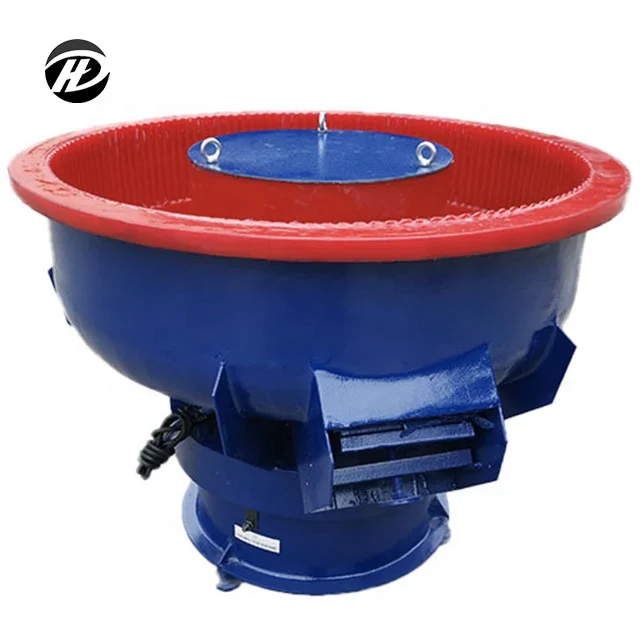

Details Images
Engineering Drawings
Product Paramenters
Mode | Total Volume（L） | Max Overall Dimension A(mm) | Motor Installation Tube C(mm) | Process Bowl Width ΦD(mm) | Tunnel Depth H2(mm) | Machine Height H1(mm) | Motor (kw) | Weight (kg) |
ZDPA30 | 30 | 500 | 80 | 165 | 190 | 620 | 0.55 | 50 |
ZDPA60 | 60 | 640 | 140 | 200 | 240 | 700 | 0.75 | 85 |
ZDPA80 | 80 | 780 | 200 | 220 | 250 | 700 | 1.1 | 100 |
ZDPA150 | 150 | 1030 | 450 | 230 | 300 | 810 | 1.5/2.2 | 250 |
ZDPA200 | 200 | 1180 | 520 | 280 | 340 | 850 | 2.2/3.0 | 300 |
ZDPA300 | 300 | 1340 | 610 | 290 | 360 | 910 | 3.7/5.0 | 500 |
ZDPA400 | 400 | 1450 | 610 | 340 | 400 | 910 | 3.7/5.0 | 600 |
ZDPA600 | 600 | 1850 | 910 | 400 | 480 | 1150 | 5.5/7.5 | 1200 |
ZDPA900 | 900 | 1950 | 610 | 560 | 550 | 1350 | 9.0 | 1800 |
ZDPA1200 | 1200 | 2150 | 860 | 550 | 560 | 1400 | 11.0 | 2300 |
ZDPA1500 | 1500 | 2340 | 860 | 640 | 650 | 1450 | 15.0 | 3100 |
Recommend Products
Company Profile
Huzhou Zhenxi Hengda Grinding Material Factory
Since 1990, Hengda has been producing various kinds of polishing equipment. Over the years, hengda has been committed to the research, development and application of surface finishing and corrosion protection of various parts and components.
Hengda adopts international advanced surface finishing, cleaning, strengthening corrosion prevention and other advanced technologies, and carries out technical exchanges and cooperation with domestic and foreign counterparts to learn from each other. Hengda combined with the different needs of users, efforts to explore and develop the production of polishing machines, sorting equipment, drying machines, polishing media and chemical liquids. The products sold well at home and abroad.
Hengda has accumulated rich processing experience and technology, and formed a new technical advantage. We can also design and customize the corresponding non-standard products according to the needs of users.
Hengda has a strict management, excellent technology and good service team. We will do our best to serve you sincerely in every detail and create value for you.
Hengda has a strict management, excellent technology and good service team. We will do our best to serve you sincerely in every detail and create value for you.
We look forward to working with you.
