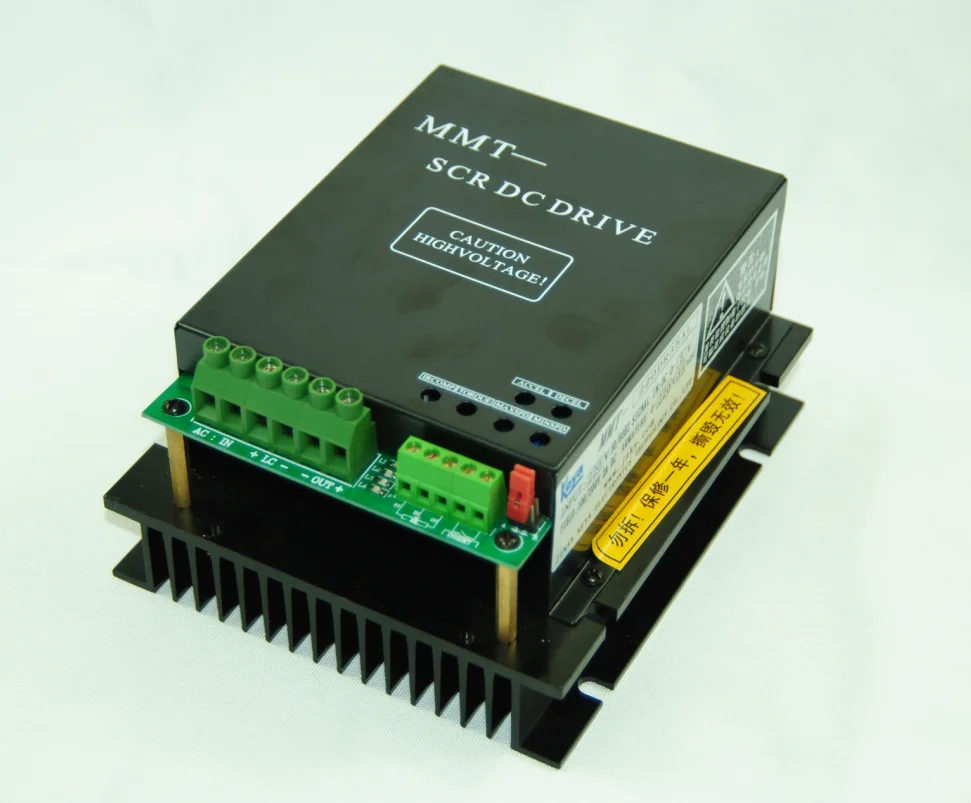

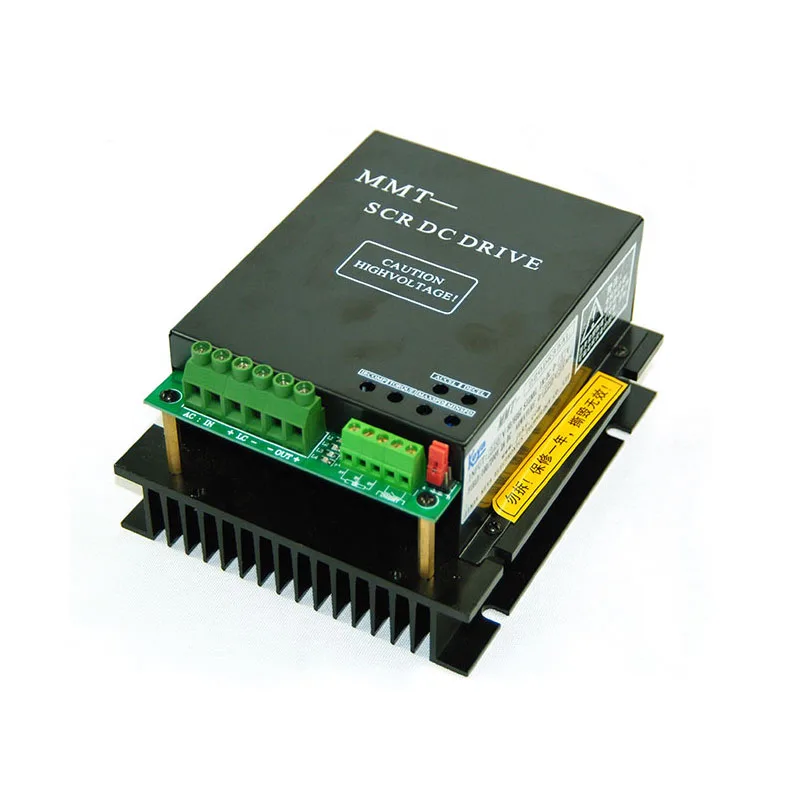

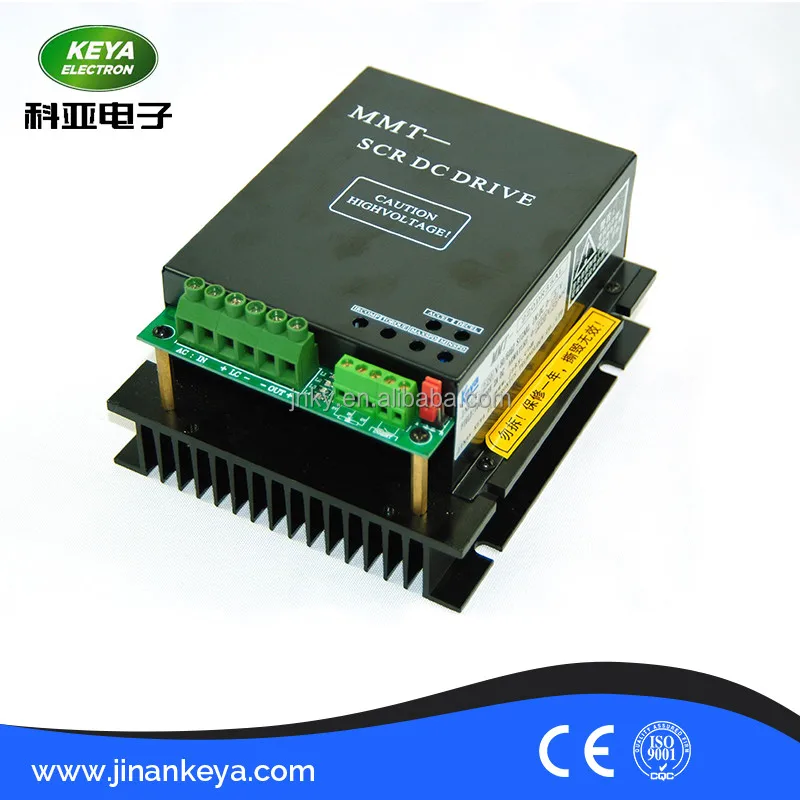

scr controller high power 1.5hp 90v 110vdc motor speed controller



Model: 110DR35AL



Product Description



1. SMT technology, small size

2. Applicable to permanent-magnet, separate excitation DC motor and DC torque motor

3. Dual closed loop PI adjustment (Current and Voltage)

4. Current setting and current limiting protection

5. The speed control mode and expansive force control mode are selectable.

6. Large torque for low-speed start-up.

7. Quick stop function

8. Upper limit and Low limit can be set up to different need

9. ACCEL and DECEL function

10. Standard signal interface0 — 5V or 10K potentiometer (if you need 0-10V, please notify)

11. Can realize remote start and stop, Fine following performance; immediate dynamic response

12. A wide speed-regulating range (0 - max).

13. Strong mechanical features, static voltage error 1%

14. a rapid dynamic response process

15. automatic and smooth transition process during acceleration or deceleration

16. good excavator features, can automatically overload current limit on the current settings

17. high reliability, compact structure and highly cost - effective





Specification for 110DR15AL
Input voltage range	AC110V
Max output current	35A
Output voltage	0-90V   0-110V (please notify in advance)
Operating mode	Speed mode, Torque mode
Control ways	0-5V, Potentiometer
Protection	Abnormalitise like over current, overheating, over voltage, less voltage and short circuit will start the protection function.
Temperature protection	When the temperature is 70℃, the controller will reduce output by overheating protection and stop output.
Working Temperature	-10℃ --  +60℃
Ambient humidity	Relative humidity less than 80RH
Size	L*W*H = 154*135*85 mm
Weight	1250g

Product Overview

scr controller high power 1.5hp 90v 110vdc motor speed controller



Related products



Model	Input voltage	Output voltage	Continue current	Max current	Controller mode
220DR15AL	AC 220V	0-90V, 0-110V, 0-160V, 0-180V, 0-220V	8A	15A	Poti, 0-5V
220DR20AL	AC 220V	0-90V, 0-110V, 0-160V, 0-180V, 0-220V	10A	20A	Poti, 0-5V
220DR35AL	AC 220V	0-90V, 0-110V, 0-160V, 0-180V, 0-220V	18A	35A	Poti, 0-5V



Producing





scr controller high power 1.5hp 90v 110vdc motor speed controller

Certification



Company information



Jinan Keya Electron Science and Technology Co., Ltd, founded in 2001, has been trading in the research &development, manufacturing and sales of DC Servo motor and Servo control system for 15 years. Company set technology, talent, management and other resources advantages, to effectively integrate, has maintained a healthy, stable and rapid growth.

The company has adopted ISO9001:2008 quality management system certification, products through the CE certification. More than 3000 large and medium-sized domestic equipment manufacturers designated as supporting products, and exported to the United States, Europe, Southeast Asia and other countries.



Our Service



We devote ourself to Research & Development, welcome Costom-made products, if you need some unusual products, let's have further communication.



Delivery time: 1-3 working days after receive the payment

scr controller high power 1.5hp 90v 110vdc motor speed controller



Products Application Cases Display







FAQ

 1.    Q: What are your main products?

      A: We produce various kinds of dc motor & controller.

2.    Q: How long have you been in this field?

      A: More than 15 years in this field.

3.    Q: Do you have your own R&D team?

      A: Yes. R&D is our core competitiveness, continuous innovation is just what we are seeking for all       the time. Some of our engineers have more than 20years experience in the industry, and we also         cooperate with colleges, scientific research institutions and large enterprises.

4.    Q: How soon can you deliver the goods?

      A: That depends on the exact model you order. For regular products, usually we will prepare some units in stock, we can deliver them within 3 working days.

5.    Q: Can you make the product according to customer’s requirements?

      A: Yes, welcome costom-made products.

6.    Q: What is your payment term?

      A: You can pay by TT, Paypal, Western Union.
