Европейская Высокоэффективная монокристаллическая солнечная панель лучшая pv модуль
- Категория: Solar Energy Products >>>
- Поставщик: Guangzhou,Felicity,Solar,Technology,Company,Limited
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Sep-16-2025 | 79.34 $* | 83.60 $* |
| Aug-16-2025 | 78.44 $* | 82.21 $* |
| Jul-16-2025 | 65.47 $* | 68.41 $* |
| Jun-16-2025 | 77.4 $* | 81.68 $* |
| May-16-2025 | 67.42 $* | 70.35 $* |
| Apr-16-2025 | 75.75 $* | 79.9 $* |
| Mar-16-2025 | 75.47 $* | 79.63 $* |
| Feb-16-2025 | 74.39 $* | 78.13 $* |
| Jan-16-2025 | 73.3 $* | 77.15 $* |
Характеристики
Product Introduction
A polycrystalline solar module is made from a block of silicon that has multiple crystals. These panels are square in shape, and may have a surface that looks some what like a mosaic. This mix of different crystals makes the polycrystalline module a good performing type of cell. Polycrystalline solar panels historically have been a popular choice.
Efficient polycrystalline modules are suitable for residential, public application areas,
and can be widely used in the roof and ground electric power station projects.
Applying the most advanced module manufacturing technology with high output power.
The maximum conversion rate is up to 16.39%.
Using anti-reflection glass, not only increases the absorptionof light, but also strengthens its
self-cleaning function when the modules are in the water environment, which can effectively
reduce the power loss caused by dust.
Excellent low-light electricity generation performance.
Modules with strong compression capability, able to withstand 2400 Pa wind pressure and 5400
Pa snow load.
Product Parameters
| Cells type: POLY | FL-P100 | FL-P150 | FL-P200 | FL-P250 | FL-P300 |
| Peak Power(PMP) | 100W | 150W | 200W | 250W | 300W |
| Tolerance | ± 3% | ||||
| Maximum power current(IMP) | 5.56A | 8.33A | 5.56A | 8.34A | 8.34A |
| Maximum power voltage(VMP) | 18V | 18V | 36V | 30V | 36V |
| Short-Circuit Current(ISC) | 5.89A | 8.83A | 5.89A | 8.83A | 8.83A |
| Open-Circuit Voltage(VOC) | 21.6V | 21.6V | 43.2V | 36V | 43.2V |
| Maximum System Voltage | 1000VDC | ||||
| F.F | 73% | ||||
| Module eff. | 16.8% | 16.8% | 16.8% | 16.7% | 16.9% |
| All technical data at standard test condition:AM=1.5, E=1000W/m², Tc=25℃ | |||||
| Cells type: MONO | FL-M100 | FL-M150 | FL-M200 | FL-M250 | FL-M300 |
| Peak Power(PMP) | 100W | 150W | 200W | 250W | 300W |
| Tolerance | ± 3% | ||||
| Maximum power current(IMP) | 5.55A | 8.33A | 5.56A | 8.34A | 8.34A |
| Maximum power voltage(VMP) | 18V | 18V | 36V | 30V | 36V |
| Short-Circuit Current(ISC) | 5.89A | 8.83A | 5.89A | 8.83A | 8.83A |
| Open-Circuit Voltage(VOC) | 21.6V | 21.6V | 43.2V | 36V | 43.2V |
| Maximum System Voltage | 1000VDC | ||||
| F.F | 73% | ||||
| Module eff. | 17.6% | 17.3% | 17.8% | 17.5% | 17.8% |
All technical data at standard test condition:AM=1.5, E=1000W/m², Tc=25℃ | |||||

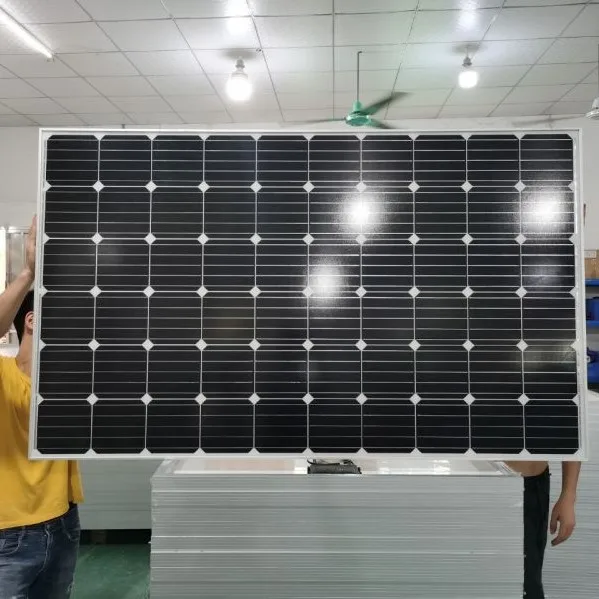

Details Show
Produce Process

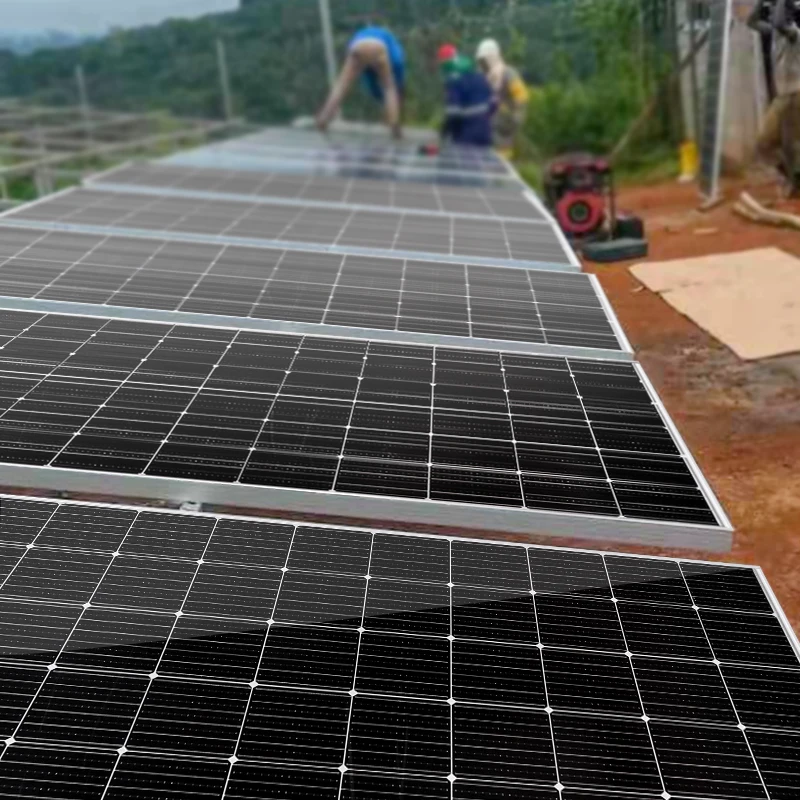

Application Case
Felicitysolar has did many successfully solar project in the past. In Africa,Mid East, Southeast Asia, South America, Oceania, our solar panel has widely usage on solar plant, home solar power system, solar street light, solar pumps, recreational vehicle, etc.
Packaging & Shipping
Shipping
INTERNATIONAL AIR MAIL
Payment
Fast Delivery
Different amount of time will be required for different
FAQ
Q: How about the performance of your solar panel?
A: We use A class solar cells which made in Taiwan, and good material. It's enough power and good performance.
Q: How about the conversion rate of the solar panel?
A: The poly solar panel is about 16.8%, the mono solar panel is about 17.6%.
Q: Can we customize the size of the solar panel?
A: Yes, we accept customized order, but the quantity needs to reach at least 100 pieces.
Q: What kind of certificate of the solar panel you have?
A: We have CE, SGS, ROHS, SONCAP, etc.
