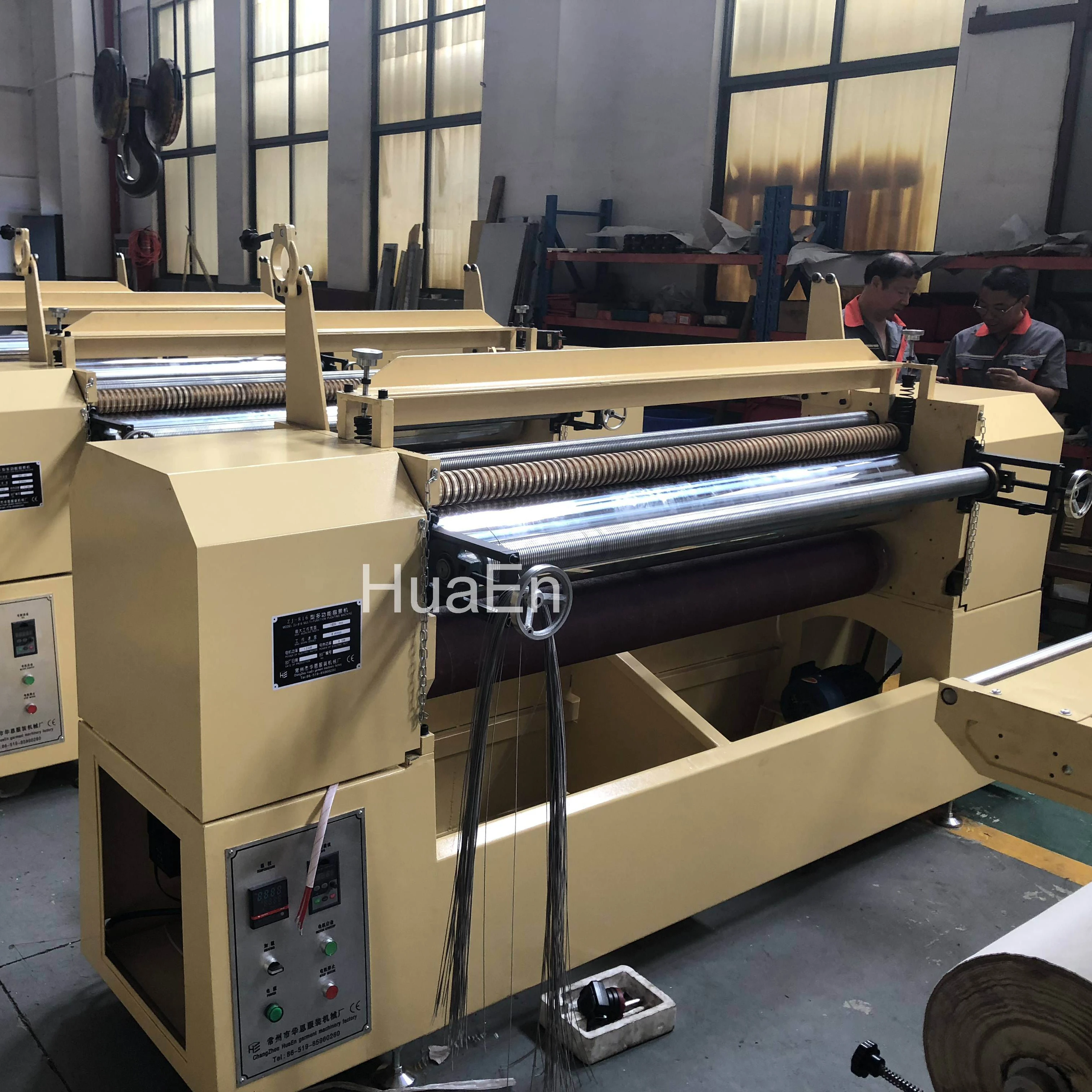

1. ZJ816 velvet plisse machine working principle
This velvet plisse machine is working by heating rollers and steel wire/springs. Shape is set up by heating. Pleating speed is regulated by VFD (variable frequency driver). The steel wire is disassembled and adjusted individually. The tension device is needless. We use a roller dedicated to stretch the whole steel net. The wire is made of stainless steel 304, it removed or bring closer individually to pleat differently. Diameter of steel wire is same. Fabric thickness decides the temperature and tension of steel wires. Gear size is an key factor to produce the shrinking degree of pleat pattern.
Pleated fabric, textile, drapery is usually used for decorating skirt, shirt, dress, pajamas and adornments.

ZJ-816

Max. Press width: 1600mm

Operation screen: optional

Pleating speed: VFD control

Max press speed: 200m/h

Motor power: 1.1kW

Heating power: 10kW

Size: 2600*1450*1650mm

Packing size: 2700*1550*1850mm

Net weight: 1000kgs

Gross weight: 1250kgs

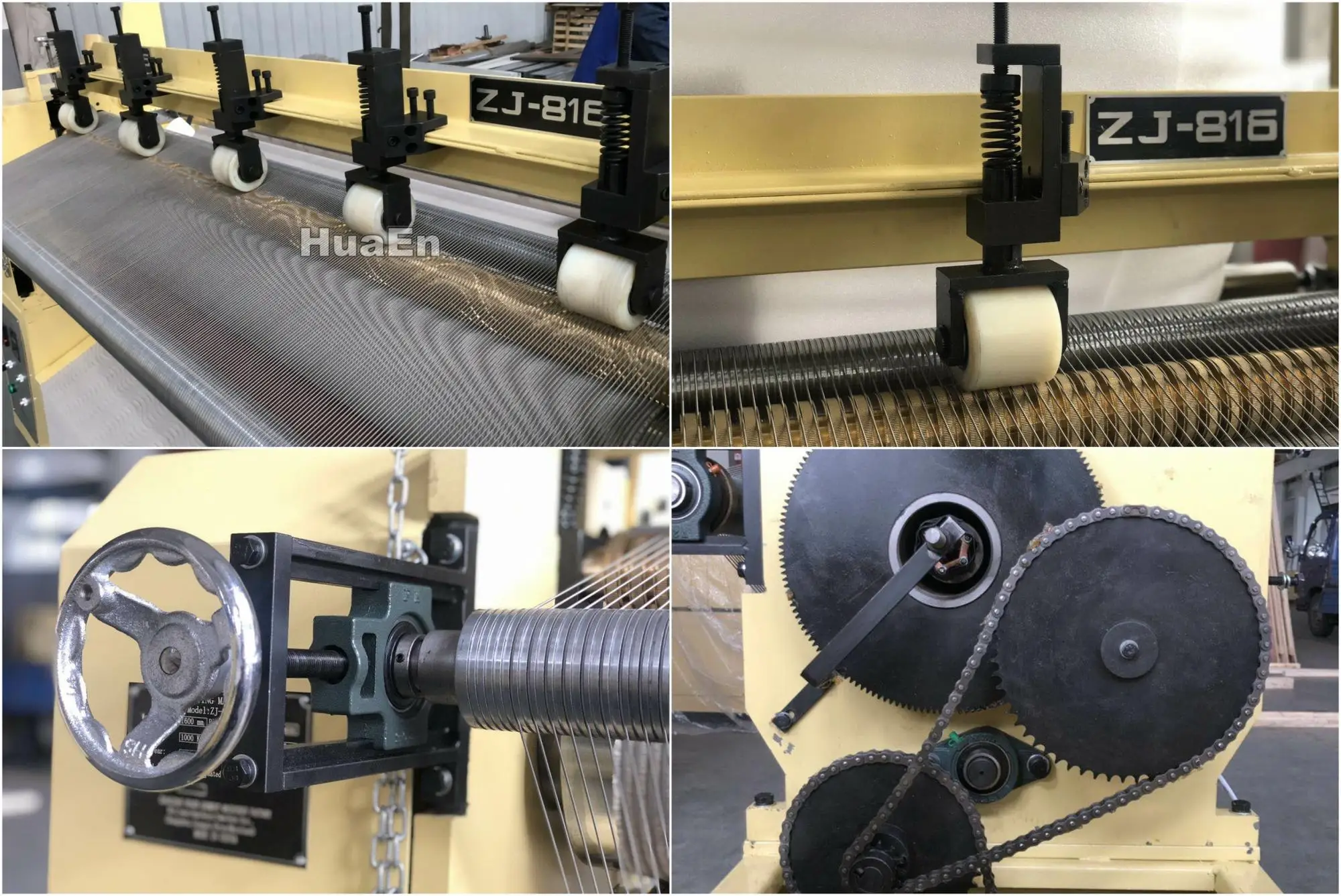

2. ZJ816 velvet plisse machine details and spare part

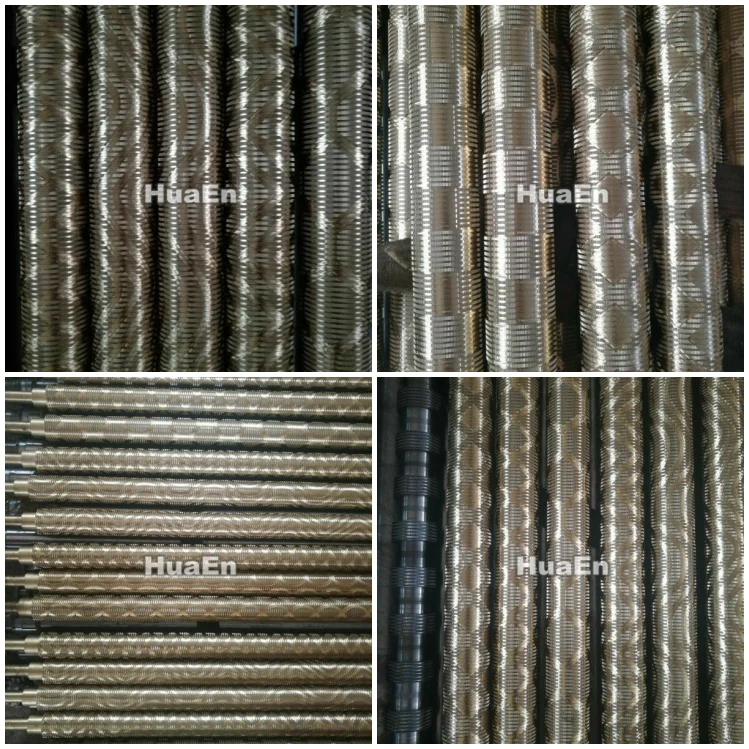

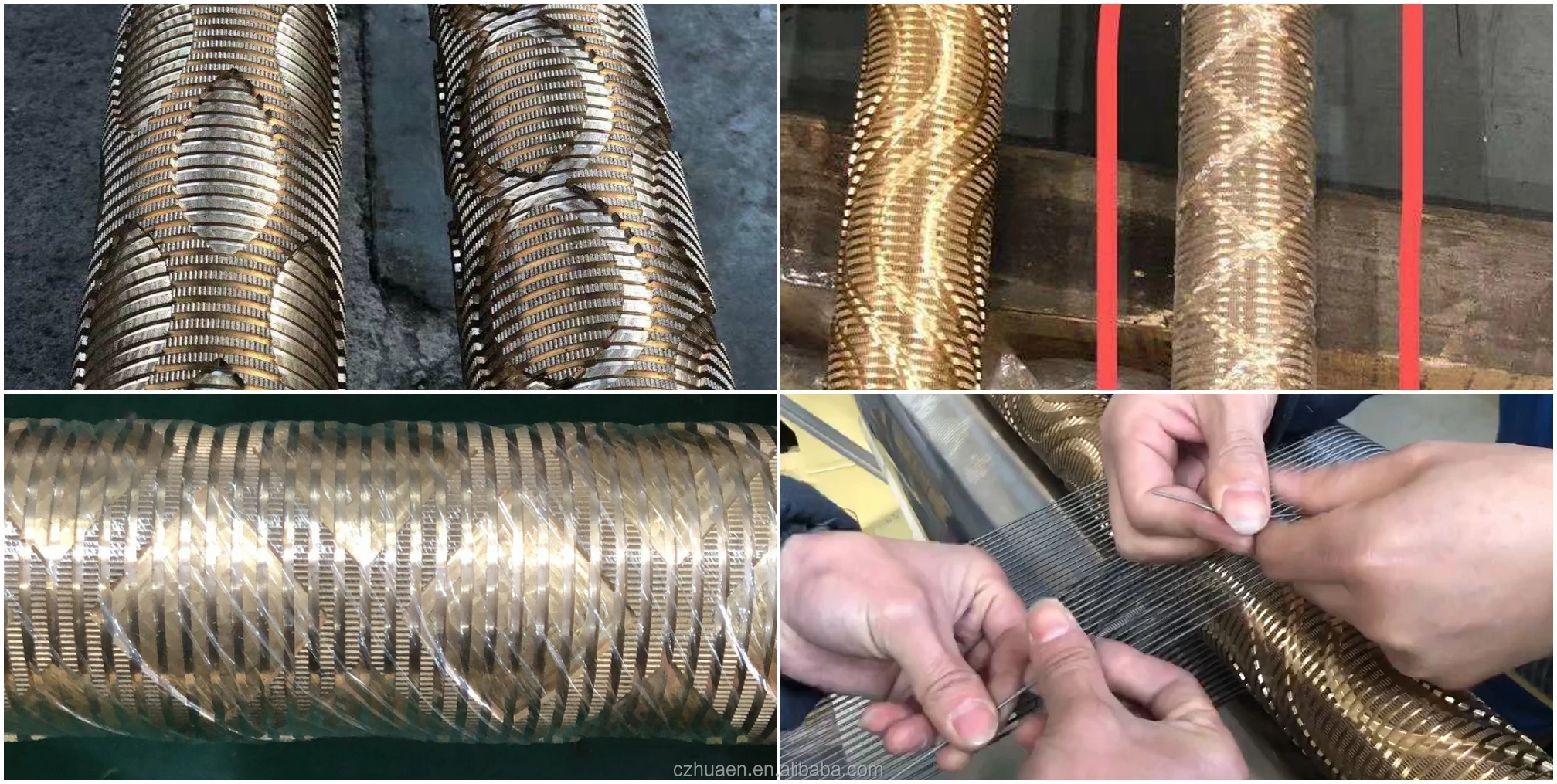

Rollers shape is designed according to your requirement. We have custom made over 10 various profiled roller/cylinder











3. Pleat pattern from ZJ816 velvet plisse machine

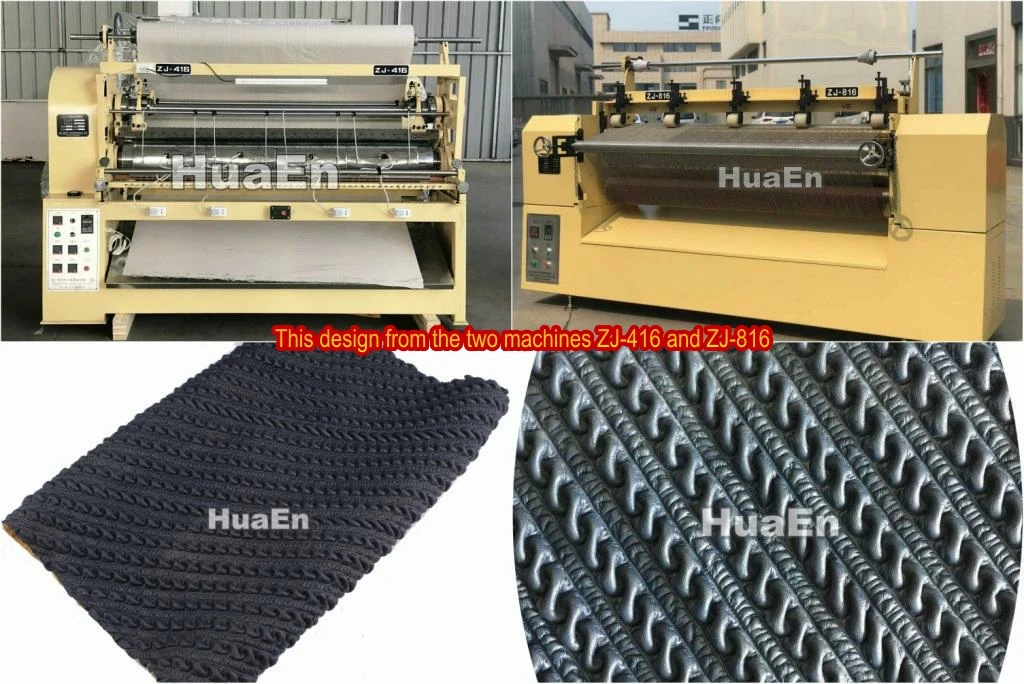

4. Pleat pattern from ZJ-416 tiny pleat machine and ZJ816 velvet plisse machine

The below pattern (black and twisted) is pleated first by ZJ-416 and then by ZJ-816. Similarly, there is numberless pleat patterns worked out by designer’s mind.

5. Pleat pattern from ZJ-217 fantasy pleating machine and ZJ-816 ZJ816 velvet plisse machine.

6. FAQ
Q. What is the delivery time of your machine?
A: In general, lead time is 7-10 days, customized machine will be 20-30 days
Q. Can the machine be customized per our requirement, such as put on our logo?
A: Surely our machine can be done as required. Put on your logo is doable too.
Q. As the shipping period will take long time, how can you make sure the machine won’t be broken?
A: Our machine is packed in ply-wood case.
Q. May I know which payment will be accepted by your company?
A: So far 30% deposit paid by T/T, balance paid by T/T before loading container.
Q. About the after-sale service, how can you solve the problems occurred of your overseas customer in time?
A: The warranty of our machine is normally 12 months. During this period, we will arrange the international express immediately, to make sure the replace parts to be delivered as soon as possible



7. Packing

Machine is packed well in ply-wooden case. Case size is adjusted to fit container width. 1 piece of 20ft container is able for 4 sets of ZJ-816 machines.
