Yixin Technology Semi-automatic puncher for can lid makig machine

Yixin Technology Semi-automatic puncher for can lid makig machine

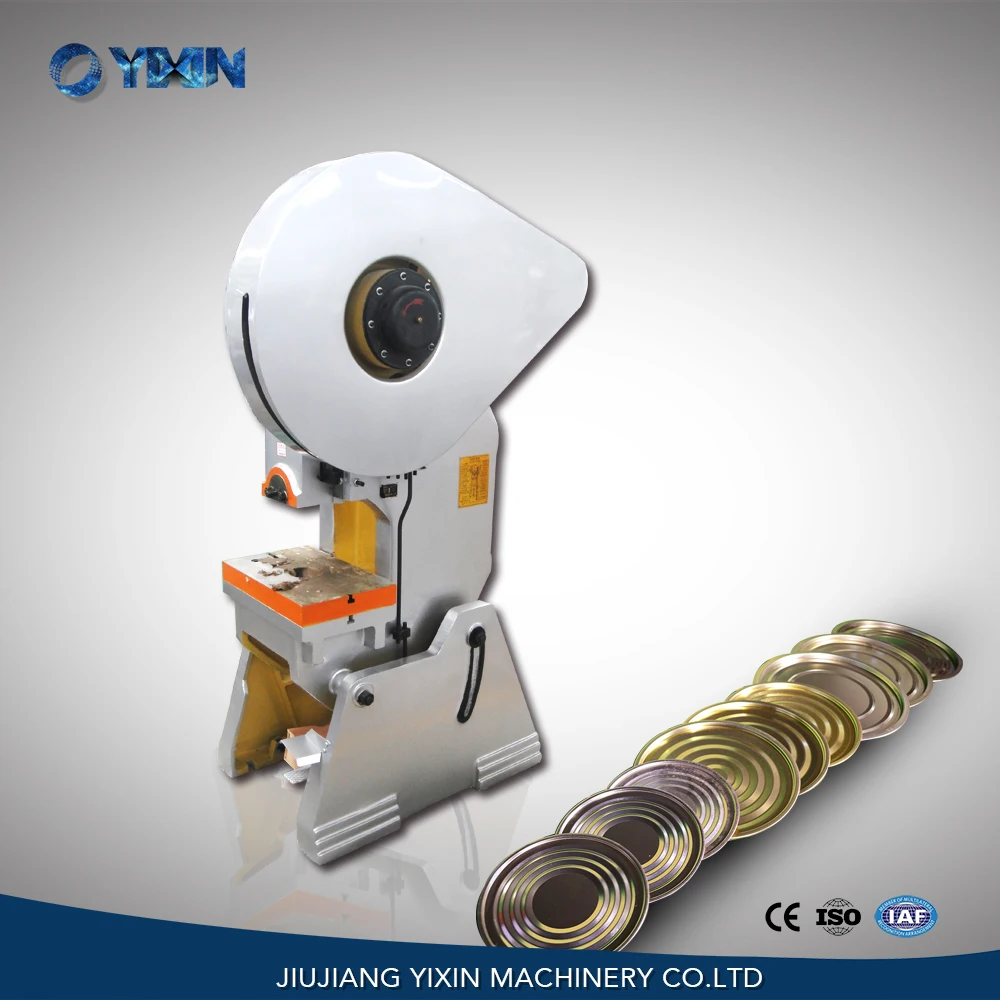

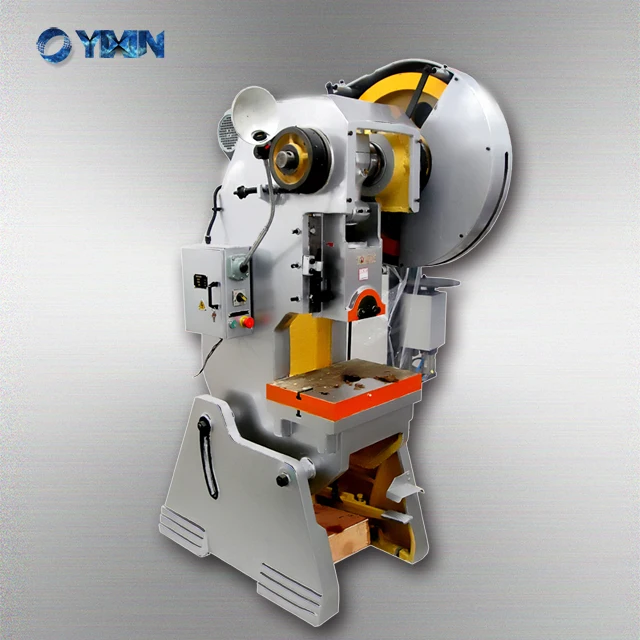

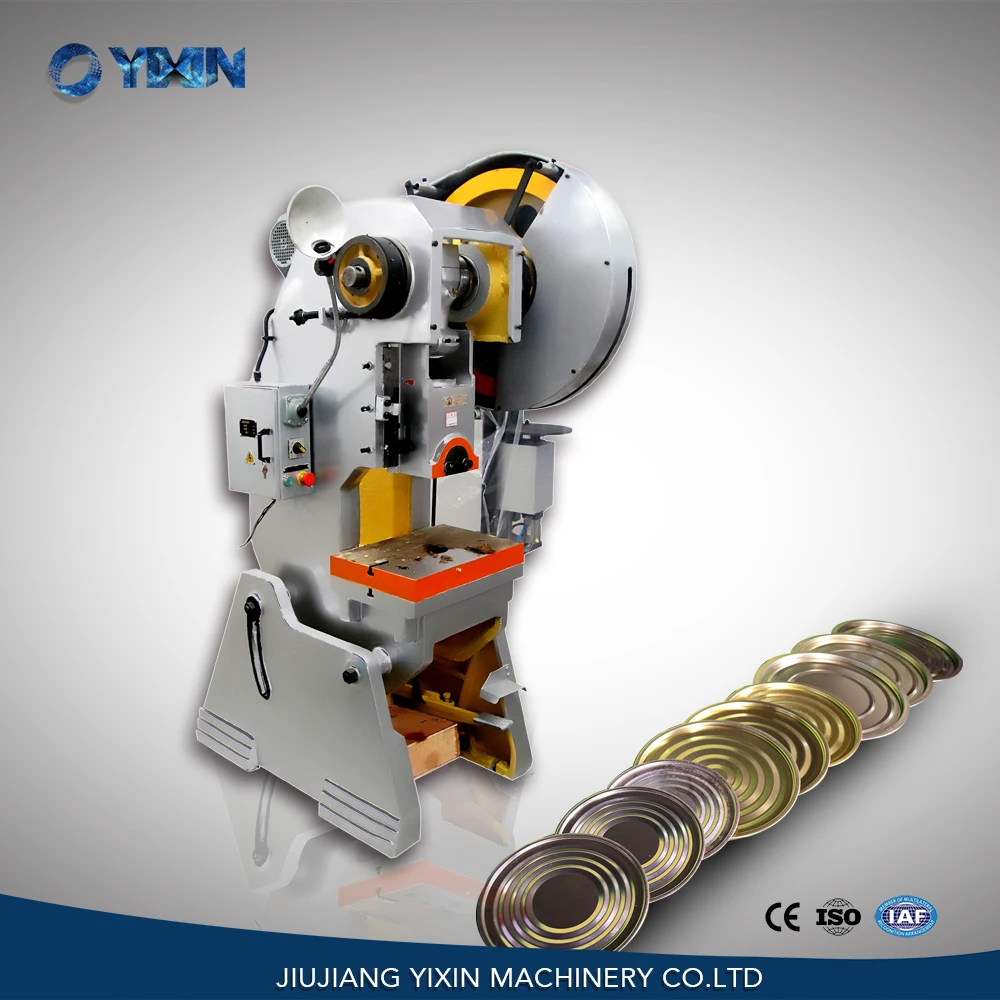

J23 series model D press with travel adjustable
Model	J23-16D
Nominal force  (kN)	160
Stroke under nominal force  (mm)	2
Slide block stroke  (mm)	0-70
Number of stroke (min-¹)	125
Max die set height  (mm)	170
Die set height adjustable  (mm)	30
Distance from slide block center to the frame  (mm)	170
Worktable dimension(F.B×L.R)  (mm)	320×480
Dimensions of workable hole  (mm)	φ100
Thickness of bloster  (mm)	60
Hole dimensions in bed(Diameter×F.B×L.R)  (mm)	φ210×160×240
Dimension of side block bottom surface(F.B×L.R)  (mm)	180×200
Size of the handle hole  (mm)	φ40×60
Max.tilting angle of body	25°
Distance between coclumns of body  (mm)	220
Motor type/power	Y2-100L-6/1.5kw
Outline dimension  (mm)	1150×900×1910
Net/Gross weight  (kg)	1080/1405

Automatic Tin Can Making Machine 0.1L-26L round tin making machine production line

0.2-7 Liter round can production line, 2-6 Liter Rectangular can production line, 9-22 Liter Round Drum can line, 10-20 Liter Square Can Line, 18-25 Liter Conical Can Line etc.
1) For oil can, paint can, food can, glue cans
2) 30-65 cans/min
3) Use Schneider, Siemens, Mitsubishi and Chint electric parts



Fully Automatic Tin Can Making Line of Conical Round Tin Can Making Machinery

 Can types: 18-26L Conical Round Cans, 18-25L Round Drum Cans

Can dimensions: Diameters 200-300mm; Heights 300-490mm

Production capacity: 30 cans/minute, 1800 cans/hour, 20000 cans/day



FULLY AUTOMATIC TIN CAN LINE of Conical Round Tin Can Making Machinery Including below items:

Can inside powder coating machine, Auto Rounding & Welding Machine, Can outside Lacquering & Drying Machine

Can body stander, Can expender, Can bottom Flanging & top pre-curling, Can top Curling, Can beading, can body reverser, Can bottom lid feeding & seaming,







Material of Seaming roller: Cr12Mn



Automatically parts brand:AirTAC



Servo motor:Made in Taiwan



color:sliver



Operator Manual & Instruction   PDF / Printed paper provided
