HM-ZD6418E Автоматическая жесткая коробка для духов делая


Поделиться:


Цена:1,00 $*

Количество:



Описание и отзывы


Трекер стоимости

Месяц Минимальная цена Макс. стоимость
Aug-19-2025 1.94 $* 1.88 $*
Jul-19-2025 1.57 $* 1.1 $*
Jun-19-2025 1.44 $* 1.38 $*
May-19-2025 1.17 $* 1.37 $*
Apr-19-2025 1.45 $* 1.96 $*
Mar-19-2025 1.6 $* 1.93 $*
Feb-19-2025 1.35 $* 1.92 $*
Jan-19-2025 1.48 $* 1.20 $*

Характеристики



Product Description


Description

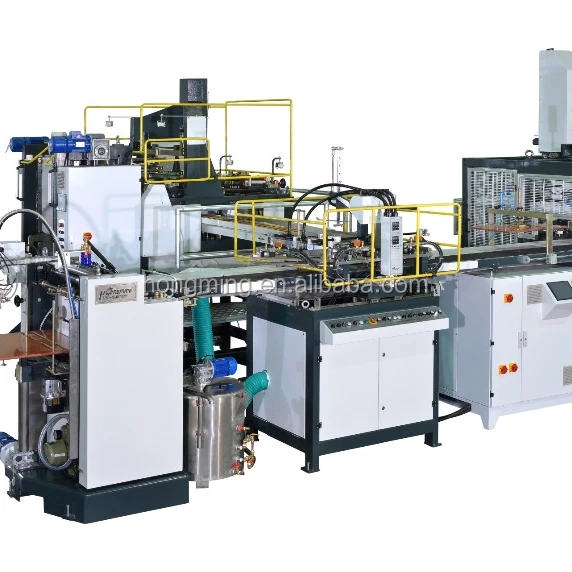

HM-ZD6418E / HM-ZD6418C Automatic Rigid Box Machine is suitable to make various big size premium boxes’mass production, such as shoe boxes, mobile phone boxes, jewelry boxes, wine boxes, slanting boxes(option), slip case boxes (option), and clamshell boxes (option), etc. The wrapped box's max height is 190mm (C) and 130mm (E), with max folding-in depth being 100mm.

HM-ZD6418E / HM-ZD6418C adopts PLC and man-machine control, electric eye tracing system, hydraulic rectifying system, and can automatically feed cover paper, feed greyboard, paste four corners, spot greyboard, lift box, fold corner edges and wrap box.

The feeder, the gluer and the conveyor are driven by servo which has continuously variable transmission and enjoys high accuracy, easy adjusting, and highefficiency. Double color conveyor can avoid changing to other color belt, which is Hongming's patent. The spottingunit adopts Switzerland micro throttle valve, high accuracy lead-screw (c) or square tooth lead-screw (E) for rectifying, enhancing the spotting accuracy to±0.02mm. The forming unit employs THK linear slider and virtual electronic cam driving system, guaranteeing the stable quality and fluent movement.






Main Features and Function


1. Suit to all kinds of rigid boxes in mass production;
2. Parameter adopts computer digital setting;
3. Auto error stop and display;
4. Automatic feed paper and greyboard;
5. 24-hours control for glue pre-heating;
6. Wrapper can input 300 product formulas;
7. Corner pasting part with independent man-machine control and heating system;
8. Adopt YASKAWA servo control system;
9. Spotter by electric eye tracing system and hydraulic pneumatic rectifying system to spot correctly (spotting accuracy ±0.2mm);
10. Wrapper can automatic lift and wrap box;
11. Automatic control system for glue viscosity (optional).


Specification


Model
HM-ZD6418E
HM-ZD6418C (Higher Version)
Length size of Greyboard
124-820mm
124-820mm
Width size of Greyboard
92-580mm
92-680mm
Greyboard Thickness
1-3mm
1-3mm
Length size of Cover paper
180-850mm
180-950mm
Width size of Cover paper
95-610mm
95-710mm
Cover paper Thickness
80-160gsm
80-160gsm
Finished Box's Length Size
100-600mm
100-600mm
Finished Box's Width Size
50-400mm
50-400mm
Finished Box's Height Size
12-130mm
12-190mm
Paper Corner Edge
10-125mm
10-125mm
Cover Paper Folding-in Depth
15-100mm
15-100mm
Paper Pile Height Max.
750mm
700mm
Greyboard Pile Height Max.
850mm
850mm
Glue Tank Volume
40L
40L
Air Supply
460L/min, 0.8MPa
460L/min, 0.8MPa
Speed
≤30pcs/min
≤30pcs/min
Total Power/Voltage
32kW/AC380V
32kW/AC380V
Power Consumption
8kW/h
8kW/h
Net Weight
6500kg
6500kg
Machine Dimension
6800*4500*3300mm
7000*4530*3300mm


Product application






















Company Profile








Guangdong Hongming Intelligent Joint Stock Co., Ltd (Formerly Dongguan Hongming Machinery Co., Ltd) is the leading professional manufacturer who makes automatic rigid box making machines and hardcover books making machines in china. It was established in 1999.

Our main machines include the automatic rigid box making machines, the semi-auto rigid box making machines, and the hardcover books making machines. These machines are widely used to make mobile phone boxes, cosmetic boxes, wine boxes, shoe boxes, chocolate boxes, etc.

Now we have a modern factory covering 35000 square meters which is equipped with advanced CNC processing center, casting machining center, and painting center. Furthermore, we have a R&D team with more than 20 people. With all of these, we are qualified to manufacture high quality and high precision machine with CE certificate.

During the past 20 years, we lead the market by providing the automatic rigid box making machines and the semi-auto rigid box making machines to both domestic and international markets. Many oversea countries, such as USA, UAE, India, Malaysia, Vietnam, Thailand, Russia, Poland, Great Britain, Spain, Portugal, Turkey, Brazil, Mexico, Saudi Arab, Egypt, Indonesia, etc, have purchased our machines for mass production on boxes and book cases.

Today, we are dedicated to supply all our customers with the whole solution in high quality machines, the rigid box making and services through our constant efforts.


Packing & Delivery




Hongming's Exhibition




FAQ


1. who are we?
We are based in Guangdong, China, start from 2002,sell to Domestic Market(81.00%),Southeast Asia(6.00%),South Asia(5.00%),Central America(0.80%),Eastern Asia(0.80%),Mid East(0.80%),North America(0.80%),Northern Europe(0.45%),South America(0.27%),Southern Europe(0.15%),Oceania(0.01%). There are total about 301-500 people in our office.

2. how can we guarantee quality?
Always a pre-production sample before mass production;
Always final Inspection before shipment;

3.what can you buy from us?
Automatic Rigid Box Machine,Packaging Machine,set-up boxes machines,case maker/hardcover making machines,luxury box making machines

4. why should you buy from us not from other suppliers?
Have own R&D Team, can customize machine according to customer's rigid box's requirements.
In package machine industry for 21years experience

5. what services can we provide?
Accepted Delivery Terms: FOB,CFR,CIF,EXW;
Accepted Payment Currency:USD,EUR,CNY;
Accepted Payment Type: T/T,L/C;
Language Spoken:English,Chinese,Spanish
