Мини-электрический блок управления гусеничный робот Электрический демонстрация для научного образования использование

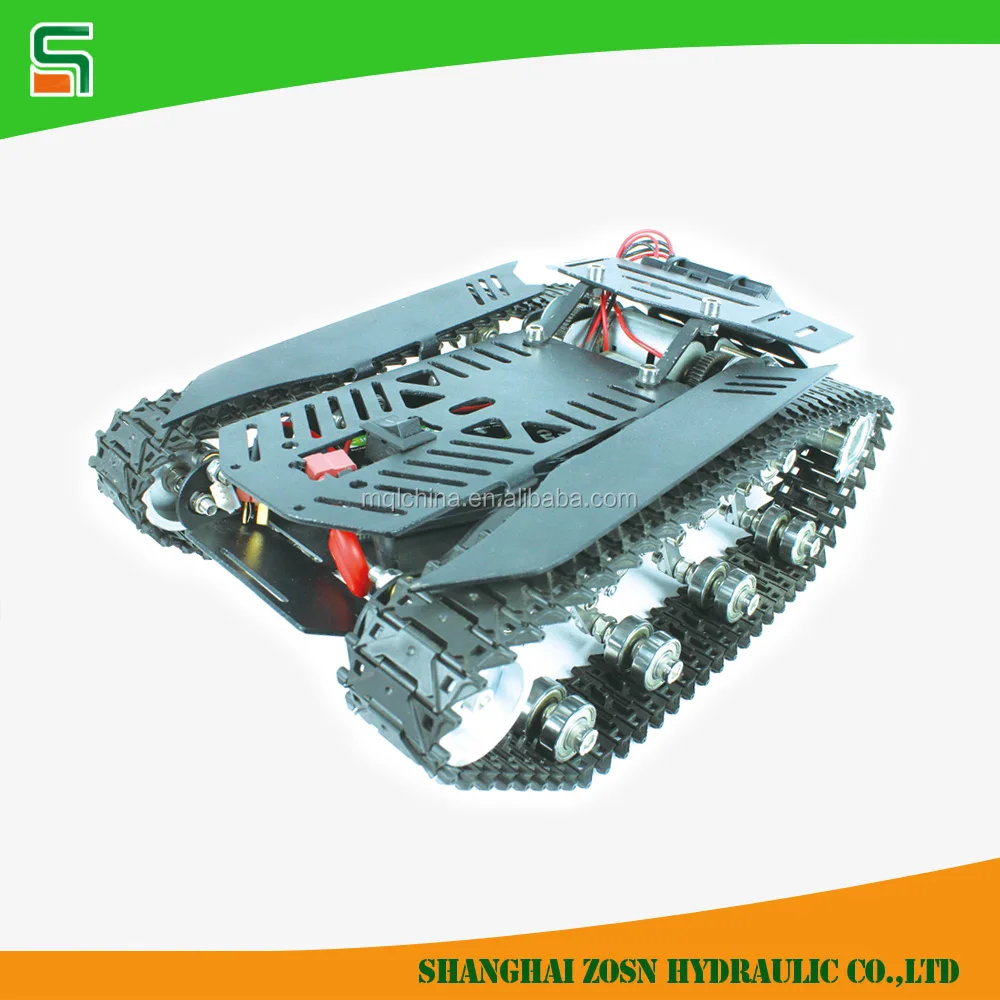

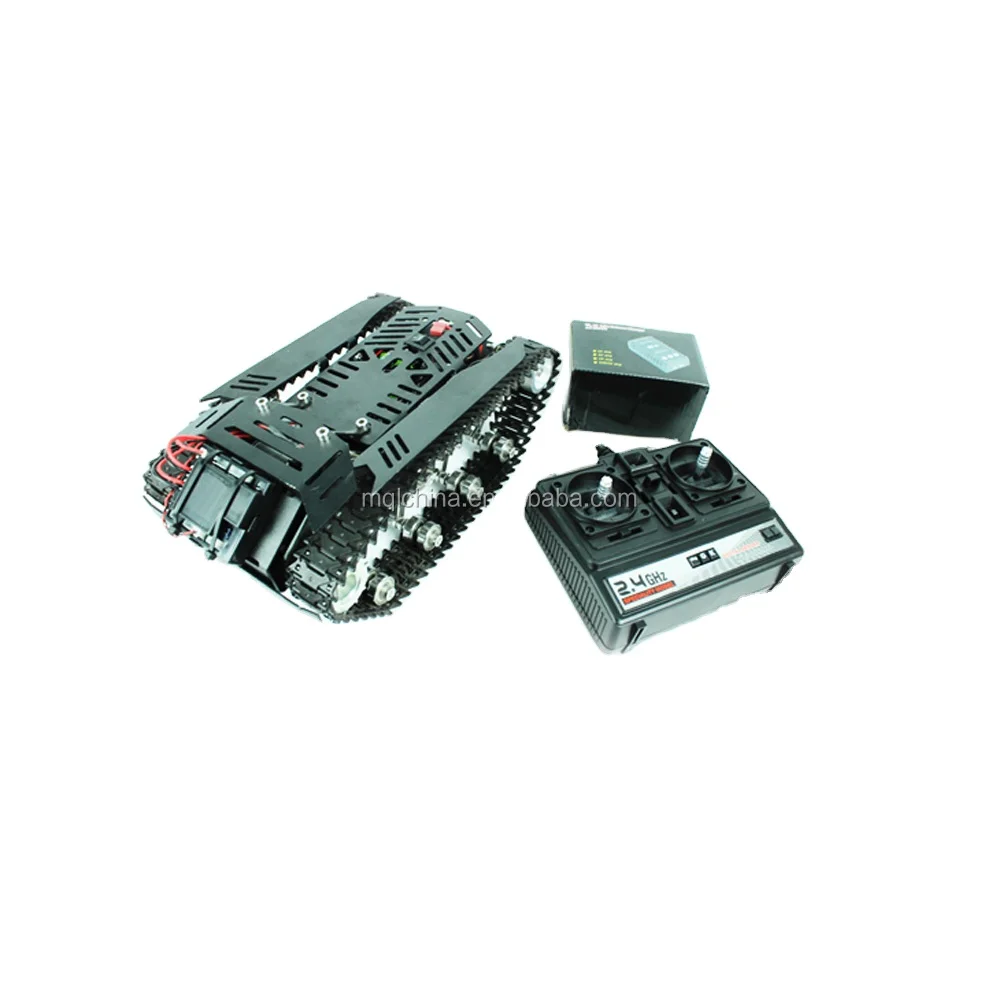

WT-200 Educational use demonstration movable robot platform

WT-200 is designed for educational porpose in colleges. Equipped with 8 groups independent suspension wheels and multiple mounting board, it is convenient for customers to add various devices, like monitoring system, robot arm system, exploration system, etc.

Technical Parameters

Dimensions: 290*190*110mm

Tracked width: 40mm

Self weight: 2.2-2.95kg

Rated load: up to 4kg

Gear ratio: 1:40

Motor: 24V DC Brushless motor

Body material: 304SS plate

Voltage: 6V

Output power: 18.6W*2

Battery life: optional （can be customized）

WT-500 Educational use small size tracked robot chassis

WT series is pursing excellent shock absorption performance all the time. WT 500 is equipped with more suspension wheels, has larger mounting space and load capacity. Customers can have further development easily.

Komodo-02

Komodo-02 has Christie suspention system and Matilda    4-wheel balance system, which has better shock absorption and terrain capacity. Carrying 100kg load, k-02 can reach any rough area, even across 45 degree stairs. Komodo-02 has a strong application ability, it can be developed as detective vehivle, rescue vehicle, service vehicle, etc.

JC-600 Middle size tracked robot chassis

With 10 pieces of dampers and specially designed tread, JC chassis are born for superior stationarity and strong grip power. The unique designed structure made the JC cahssis have bigger inner space, which provide great advantages to have a further develop for cruising ability.
