Product Description

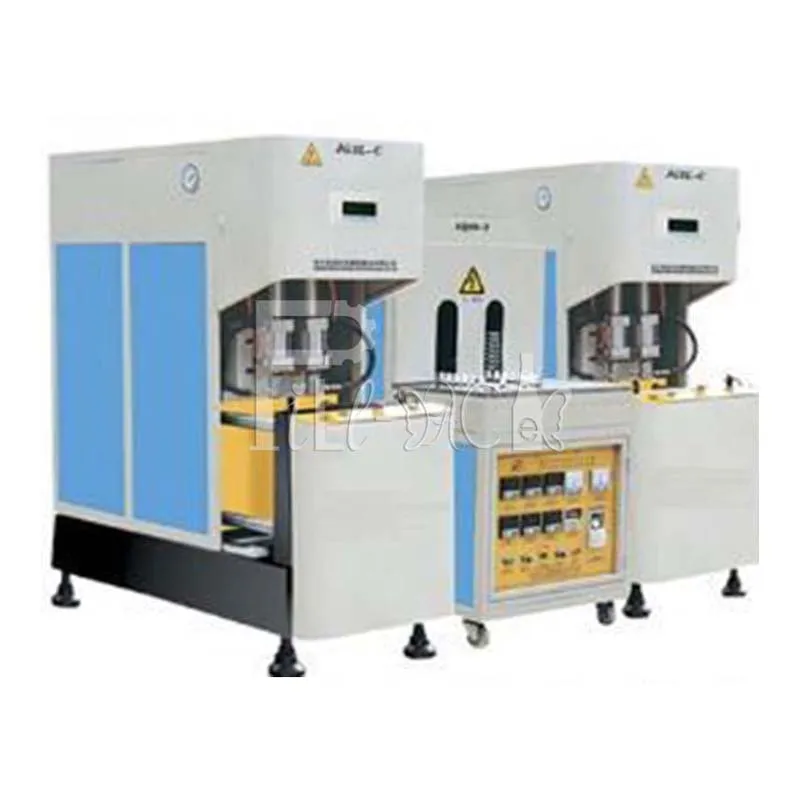

1000ML Bottle production line/plastic bottle making line/system with 2400BPH capacity

FP-1200B Semi-Automatic Bottle production line is suitable for producing PET plastic containers and bottles from 10-2000ml. It is widely used to produce the carbonated bottle, mineral water, carbonated drink bottle, pesticide bottle, oil bottle cosmetics, wide-mouth bottle etc.

●Adopting double crank to adjust mould, heavy locking mould, stable and fast, Adopt infrared oven to heat the perform, the perform rotated and heated equally.
●The air system has been divided into two parts: pneumatic action part and bottle blow part to meet the different requirements for the action and blow. It can provide sufficient and steady high pressure for blowing large irregular shaped bottles.
●The machineis also equipped with muffler and oiling system to lubricate the mechanical part of the machine.
●The machine can be operated in the step-by-step mode and the semi-auto mode.
●The machine is small with low investment, easy and safe to operate.

\t Main parameter
\t Model	\t FP-1200B
\t Container	\t Product material	\t PET
	\t Volume	\t 0.1L-2L
	\t Theoretical output	\t 2400BPH
	\t Preform length	\t 15-350mm
	\t Preform inner diameter	\t ø5-38mm
\t Moulding	\t Max.mould plate Dimenstion (LxW)	\t 350x380mm
	\t Max.mould thickness	\t 180mm
	\t Clamping force	\t 45
	\t Mould opening stroke	\t 16
\t Machine size and weight	\t Main machine (L×W×H)	\t 16006001610mm
	\t Main machine weight	\t 500
	\t Heater(LxWxH)	\t 18706301450mm
	\t Heater weight	\t 250Kg
	\t Power	\t 17.5kw

600-7200bph capacity 15-80kw heating power Blower equipment

Blower equipment

One year warranty two years guarantee Blower machine automatic for jar

Blower machine

Air compressor aia chiller for PET molding line

PET molding line

Detailed Images

\t Air compressor	\t Unit	\t 1.2M³/30KG
\t Volume	\t M³	\t 1.2
\t Pressure	\t Kg	\t 30
\t Speed	\t r/min	\t 800
\t Power	\t KW	\t 15
\t Overall Dimension	\t mm	\t 18808501050
\t Weight	\t kg	\t 580

\t Refining-Filter	\t Unit	\t 2.0M3/30kg
\t Flow Capacity	\t NM3/Min	\t 2
\t Max.work pressure	\t Mpa	\t 3.0
\t Inlet Temp	\t ℃	\t ≤50
\t Overall Dimension	\t mm	\t 750350350
\t Weight	\t kg	\t 20

Our Service

1.installation&commissioning

After the equipment arrived at the customer's site. the customer is responsible for unpacking and arranging the equipment according to the placement drawing;Our technician will do equipment set up and commissioning,buyer should offer necessary help if needed

2.Training

We are responsible for offering the technical training to user.Through training,users' technical staff can grasp and the skill of operation and maintenance proficiently.The buyer also can send staff to our company for learning.

3.Quality assurance

The warranty period is 12 months after acceptance chech of the production line.if there is any different between the furnished equipment in the customer's factory and the equipment concerned in the contract.

Packing & Delivery

1. the Bottle production line is packed by wooden case.
2. The delivery date of Bottle production line is within 30 days after payment.

FAQ

1.Why do you choose our factory?
There are many foreign guests cooperate with our company.We have enough experience and fund to provide you the high-quality products with the best price.

2.How long can you delivery?
About 30 days after we received the deposit(30%T/T in advance,70%T/T before shipment.)

3.How about your after-sale service?
One year repair for free Seller responsible for arrange engineer for installation and guide the workers of buyer how to operate and necessary repair,and give buyer a turnkey project.

4.How long can you finished the installation?
About 10-15 days.If the water and electricity is ready.If you have any questions,please do not hasitate to contact me.
