Формовочная машина для выдувания пластиковых бутылок
US $20000-$50000
1200BPH / 2400BPH semi auto mineral water bottle blowing machine equipment line plant
- Категория: Stretch Blow Moulding Machines >>>
- Поставщик: Zhangjiagang,City,Fillpack,Machinery,Co.,Ltd.
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Sep-19-2025 | 0.48 $* | 0.88 $* |
| Aug-19-2025 | 0.55 $* | 0.97 $* |
| Jul-19-2025 | 0.62 $* | 0.13 $* |
| Jun-19-2025 | 0.90 $* | 0.1 $* |
| May-19-2025 | 0.7 $* | 0.69 $* |
| Apr-19-2025 | 0.44 $* | 0.94 $* |
| Mar-19-2025 | 0.68 $* | 0.61 $* |
| Feb-19-2025 | 0.47 $* | 0.70 $* |
| Jan-19-2025 | 0.41 $* | 0.11 $* |
Характеристики
Product Description
Semi auto mineral water stretch bottle blower / blowing machine / equipment / line / plant / system
1+1 PET bottle blow molding machine
>>>Product Introduction：
FP-1200 semi-automatic bottle blow molding machine is suitable for producing PET plastic containers and bottles from 10-2000ml. It is widely used to produce the carbonated bottle ,mineral water, carbonated drink bottle, pesticide bottle oil bottle cosmetics, wide-mouth bottle etc.
>>>Product Features：
● Adopting double crank to adjust mould ,heavy locking mould, stable and fast ,Adopt infrared oven to heat the perform ,the perform rotated and heated equally.
● The air system has been divided into two parts: pneumatic action part and bottle blow part to meet the different requirements for the action and blow .It can provide sufficient and steady high pressure for blowing large irregular shaped bottles.
● The machine is also equipped with muffler and oiling system to lubricate the mechanical part of the machine.
● The machine can be operated in the step-by-step mode and the semi-auto mode.
● The machine is small with low investment, easy and safe to operate.
>>>Technical Paramters：
Container | Product material | PET,PP,PE |
Volume | 0.1-2L | |
Theoretical output | 800-1000BPH | |
Preform length | 15-350mm | |
Preform inner diameter | Φ5-38mm | |
Moulding | Max.mould plate Dimenstion | 350×380mm |
Max.mould thickness | 180mm | |
Clamping force | 45KN | |
Mould opening stroke | 16 | |
Machine size and weight | Main machine | 160×60×161cm/500Kg |
Heate | 187×63×145cm/250Kg | |
Power | 17.5kw |
>>>Flow and Auxiliary machines：
HP Air Compressor → Air Tank → Air Filter → Air Dryer → Air Filter → Chiller → LP Air Compressor → Automatic Bottle Blowing Machine
1. Auxiliary Machine
To operate this PET blowing machine, it also need some auxiliary machines. such as air compressor, air filter, air dryer, chiller and so on. we will equip the auxiliary machine according to your need.
2. Bottle Preform
If you need, we can also help you find the bottle preform in china.
3. PET Bottle Mold
Our PET blowing machine can produce various shape bottles. we can according to your need to design your own bottle and make mold for you.
4. Preform & Cap Molds
We also can provide you with preform mold and cap mold according to your demand.

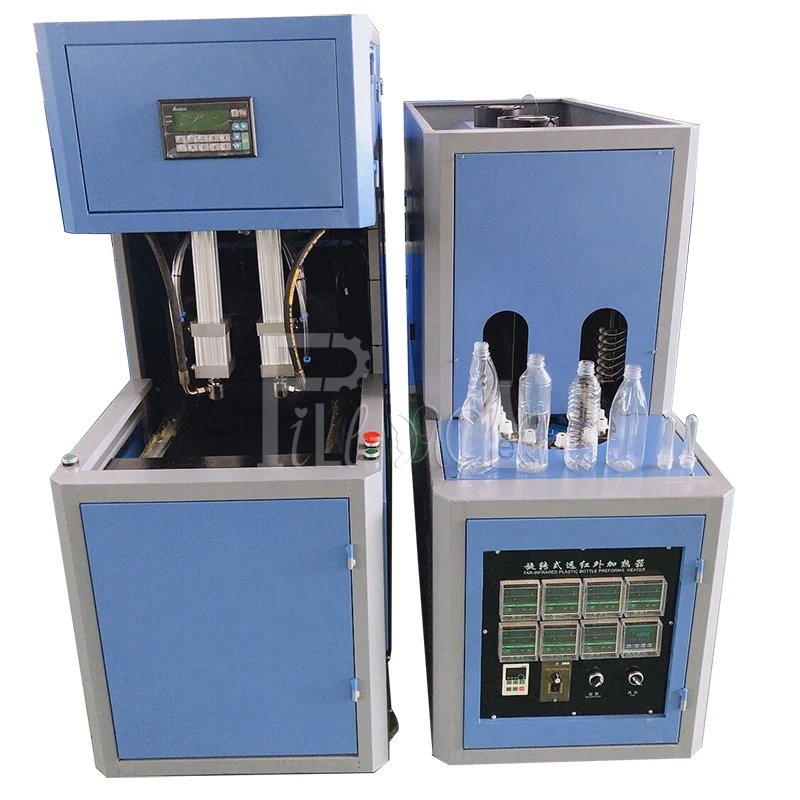

Detailed Images
Packing & Delivery
1. the Molder machine is packed by wooden case.
2. The delivery date of Molder machine is within 15 days after payment.
Related Products
500ml / 1L / 2L PET drinking water 3 in 1 monoblock manufacturing equipment / plant / machine / system / line
1L monoblock manufacturing machine
bucket / barrel / gallon bottle water rinser filler capper equipment / plant / machine / system / line
Barrel filling machine
Mineral Drinking / Drinkable water UF / Hollow fibre ultra filtration equipment / plant / machine / system / line
Water filtration equipment
Our Service
Customer's service:
1. FILL-PACK company can provide turn-key project for you, only you have any idea to start beverage factory plant.
2. FILL-PACK company have professional design team, our engineer can draw bottle samples and flow chart ofworkshop for you .
3. FILL-PACK company give you the best quotation for all kinds of beverage production, only you can tell me whichkind of drink you want to product, what is your capacity(how many bottles one hour) what is you bottle material, pet or glass,etc
After service:
1. We send the engineers to help installing, commissioning and training, the engineers start from our factory area.
2. We supply below necessary documents with the machine:
a. Machine layout
b. Electricity diagram
c. Machine certificate
d. General manual book/maintenance book
3. After one year guarantee, the seller provides payable spare parts and technician's VISITING maintenance service.
Company Information
ZhangJiaGang City FILL-PACK Machinery Co.,Ltd. is loacated in Zhangjiagang city which is famous for beverage machinery producer collection. Intergrated the industry advantange and its own development in R&D, production, sales, after sales service, FILL-PACK is ready to serve more and more customers with our full range products and satified service.
FILL-PACK product is very critical in the choice of raw materials and spare parts. Korea 304 /316 stainless steel plate, ABB, SEW motors, Siemens, Mitsubishi, OMRON electrical control components, FESTO CAMOZZ the control valve, as well as international precision machining center for the fine quality of the machine foundation.
LET'S FILL & PACK FOR YOU A BRIGHT FUTURE!!!
Processing Workshop
We are the supplier who can design and manufacture for all kinds beverage production plant(pure drinking water, mineral water, carbonated drinks, juice, tea and beer, etc.)
Company Culture and sample holder
