Формовочная машина для выдувания пластиковых бутылок
US $20000-$50000
Продвинутый блок производства флаконов с сенсорным экраном
- Категория: Stretch Blow Moulding Machines >>>
- Поставщик: Zhangjiagang,City,Fillpack,Machinery,Co.,Ltd.
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Sep-18-2025 | 0.36 $* | 0.56 $* |
| Aug-18-2025 | 0.2 $* | 0.80 $* |
| Jul-18-2025 | 0.7 $* | 0.43 $* |
| Jun-18-2025 | 0.54 $* | 0.8 $* |
| May-18-2025 | 0.50 $* | 0.25 $* |
| Apr-18-2025 | 0.52 $* | 0.39 $* |
| Mar-18-2025 | 0.54 $* | 0.25 $* |
| Feb-18-2025 | 0.78 $* | 0.83 $* |
| Jan-18-2025 | 0.29 $* | 0.58 $* |
Характеристики
Product Description
Advanced PLC control touch screen Bottle producing unit
This Series Bottle producing unit can produce all kinds of PET plastic bottles,water bottles,carbonated drink bottles,Hot juice,edible oil and other packing container,output from 60BPH to 90BPH,volume from 20L-25L.
This machine adopting the PLC control with counting function and time-control precision to 0.01second on a very beautiful panel;The infrared heater make sure it can used for different wall thickness preform completely and keep the whole position of preform body soften equally;The cooling system ensure the bottle neck part and inner temperature of heating to keep the bottle roundness perfect.
Specification of the Bottle producing unit
1.Adopting double crank to adjust mould ,heavy locking mould, stable and fast ,Adopt infrared oven to heat the perform ,the perform rotated and heated equally.
2.The air system has been divided into two parts: pneumatic action part and bottle blow part to meet the different requirements for the action and blow .It can provide sufficient and steady high pressure for blowing large irregular shaped bottles.
3.The Bottle producing unit is also equipped with muffler and oiling system to lubricate the mechanical part of the machine.
4.The Bottle producing unit can be operated in the step-by-step mode and the semi-auto mode.
5.The Bottle producing unit is small with low investment, easy and safe to operate .
Features of the Bottle producing unit
This Bottle producing unit is a latest blow molding machine developed by PMG. All the components of this semi automatic blow molding machine are controlled by computer and pneumatic transmission. It is of high precision of time delay, reliable operation, strong resistance against disturbance, easy time setting and long service life. It has a digital automatic temperature adjusting instrument and carries out two operation modes: single action and semi-automation. This Bottle producing unit adopts far infrared heating oven, which fast and equally heats the bottles. Electro thermal lamps are controlled by bicolor LED digital controlled silicon.
1.Adopt special electronic controlling circuit for heating; high efficiency in simultaneous controlling one lamp or more; lower power consumption.
2.Adopt the theory of heat transfer and feedback while designing the shape and thikness of preform.
3.The preform will be heated evenly, not be influenced by outside environment.
4.Cooling system with cold air cycle ensures same heat exposure of internal and external surface of the bottles.
5.The air exhaust system designed by CAD can guarantee the deviation of heating furance temperature +/-1 degree.
6.Air circuit system consists of movement and blowing so as to meet the needs of different air pressure, also to provide stable high pressure for blowing different shapes of big capacity bottles.
7.The system is equipped with silencer, connecting rod and articulated refueling devices.
8.Two modes of operation: semi-automatic mode and automatic mode.
9.Small size, low investment. one person enough to operate, simple and safe.
| ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||

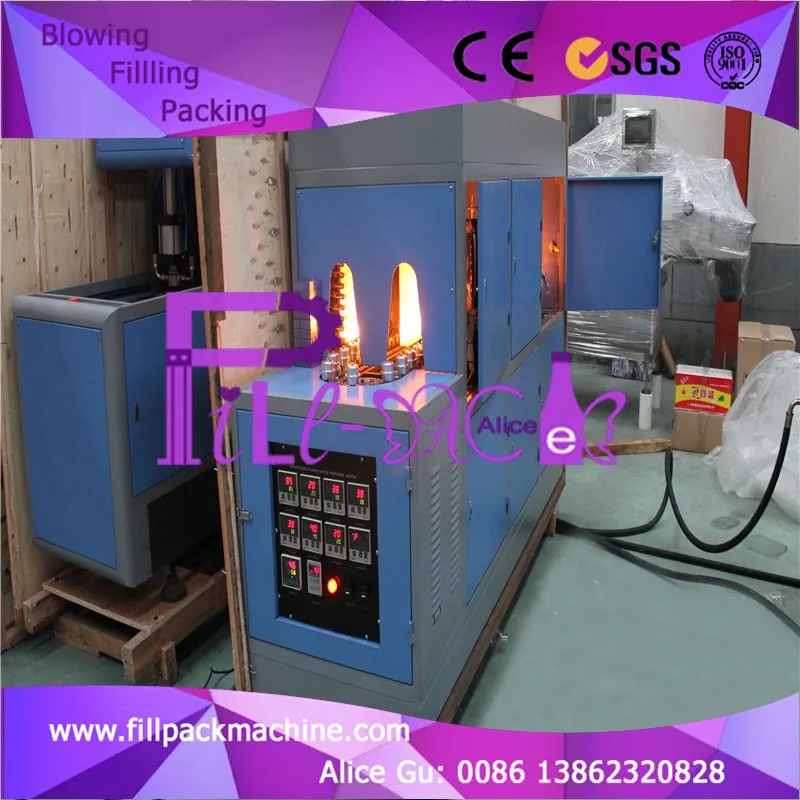

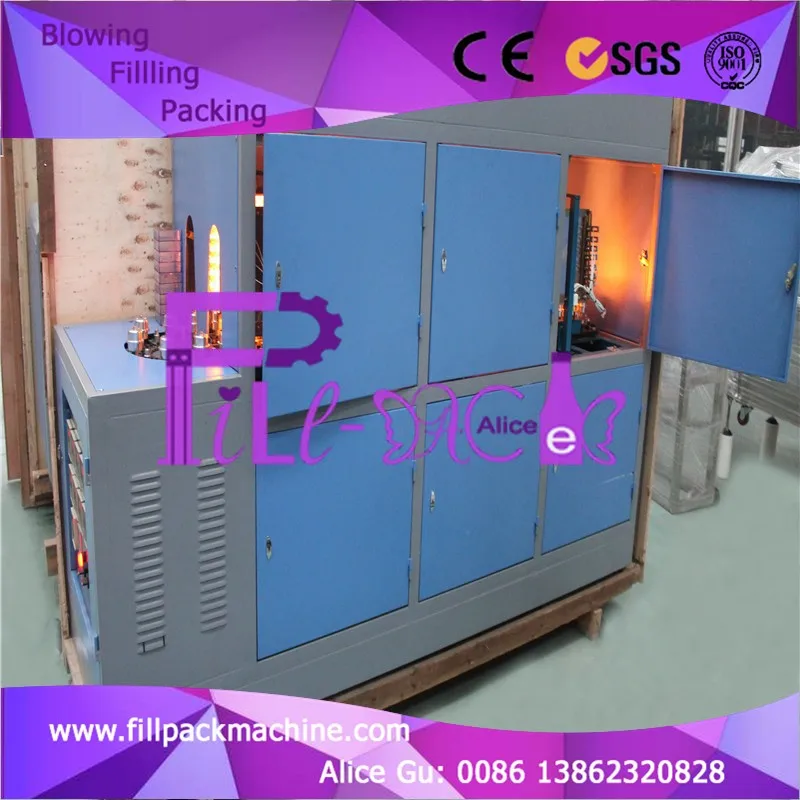

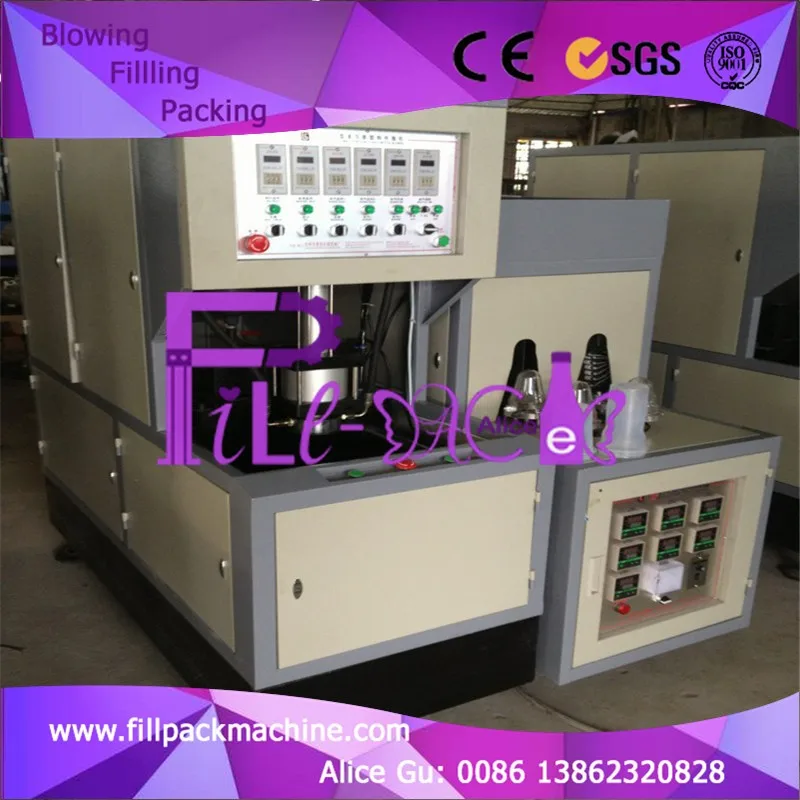

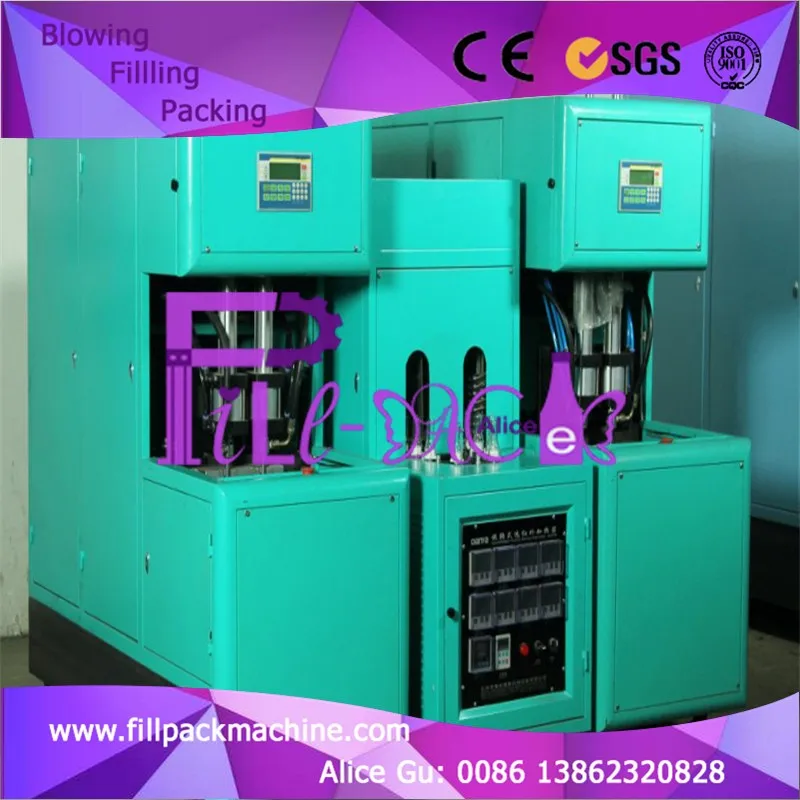

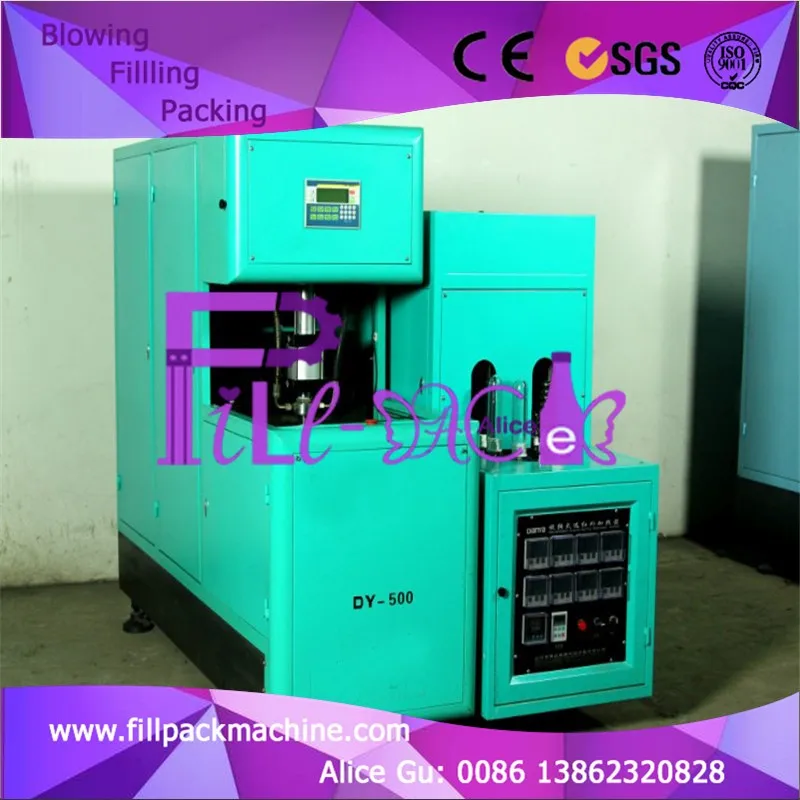

detailed drawing
| Advanced PLC control touch screen Bottle producing unitAdvanced PLC control touch screen Bottle producing unit |
Packaging & Shipping
Our Services
1. Installation & adjustment
After the equipment are arrived at the customer's site, the customer is responsible for unpacking and arranging the equipment according to the placement drawing; and does under our install-adjust technicians' guidance. Costs of the staff are decided at last.
2. Training
1). We are responsible for offering the technical training to user. The training content includes the structure and maintenance of the equipment, control and operation of the equipment. Through training, users'technical staff can grasp and the skill of operation and maintenance proficiently, and deal with the general troubles in time. We will appoint qualified technical staff for the guidance.
2). The buyer can send staff to our company for learning.
3. Quality assurance
1). We guarantee the goods offered are brand-new, not used, with latest design and suitable material made, and we guarantee the specification of the equipment is consonance with the contract.
2). We guarantee the line achieve product technical performance indicators within 5 days after feeding operation through the correct guidance of the installation and commissioning.
3). We are responsible for the fault and damage of the production line caused by our design, technology, manufacture, installation, adjustment and material defect etc. that all belong to our responsibility.
4). The warranty period is 12 months after acceptance check of the production line. If there is any different between the furnished equipment in the customer's factory and the equipment concerned in the contract, the users have the right to pass the inspection book to the legal department to claim for compensation to our company within goods warranty period.
4. Warranty
Offer 12 months maintenance period to the problem that caused by our design, manufacture and the material quality, and offer the relevant parts and effective service for free for above reason. We will offer a widely and favorable technical support, after service all the time after guarantee period.
Company Information
ZhangJiaGang City FILL-PACK Machinery Co.,Ltd. is loacated in Zhangjiagang city which is famous for beverage machinery producer collection. Intergrated the industry advantange and its own development in R&D, production, sales, after sales service, FILL-PACK is ready to serve more and more customers with our full range products and satified service.
FILL-PACK product is very critical in the choice of raw materials and spare parts. Korea 304 \\ 316 stainless steel plate, ABB, SEW motors, Siemens, Mitsubishi, OMRON electrical control components, FESTO CAMOZZ the control valve, as well as international precision machining center for the fine quality of the machine foundation.
At present we produce: production lines for mineral water, pure water, fruit juice, tea drink, milk drink and carbonated drink with capacity 1000-20000bottles/hour; production lines for vinegar, soy sauce and wine 1000-20000bottles/hour; 3-5 gallon barreled water with capacity 80-1200 barrels per hour and various water treatment plants; We provide separate machinery or turnkey project.
Our product pass quality inspection executed by Bureau of Quality and Technical Supervision every year. Our factory is in accordance with ISO9001: 2000 certification system standards and we gain CE certificate for exportation to Euro countries. Our machineries are sold to more than 30 cities in China and over cross to American, Spanish, Hungary, middle east and African countries.
We help to set up your factory as our own home with our pure heart, we do to service, we learn to support!
FAQ
Q1: How to get your suitable machine or production line?
A1: Find our products through Zhangjiagang City FILLPACK machine Co., Ltd. in Google, Bing, Yahoo, Alibaba.com etc
Inquiry: Contact us by email, phone call, fax, Instant Messenger (Trade manager, MSN, Skype, WhatsApp) and let us know your inquiry.
Discussion: Specify the items you desire, confirm specification; OEM/ODM consultation.
Q2: Are you a trading company or a manufactory?
A2: We are the manufacture of water/beverage packing machine and water treatment equipment over 15years.We just not only sell machines, we sell our brand and service. After-sales service, 10 professional sale person with 10 after sale specialist.
Q3: Do you have technical support after we purchased your machines?
A3: We will arrange our professional technical to go aboard to your factory, they will help you and teach you how to install and maintenance the machines which you purchased. Or help you to fix machine when it has problems.
Q4: If I buy your machines, can you offer us wear-out spare parts?
A4: We provide our high quality machine 2 years guarantee , and we will also offer you 2 years wear-out spare parts for free. Once your machines broken or doesn't work within 2 years and you can't solve it, firstly, we will try to help you to find problems from your words description by phone or other communication tolls. Secondly, if the phone solutions still not work, our engineers will go to your factory to solve it. Meanwhile, they will teach you the related experiences for fixing.
