Электрическая цепная таль из нержавеющей стали на 2 тонны для
- Категория: >>>
- Поставщик: SHANGHAI,MAXLOAD,CRANES,&,HOISTS,CO.,LTD
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Sep-18-2025 | 0.75 $* | 0.53 $* |
| Aug-18-2025 | 0.11 $* | 0.82 $* |
| Jul-18-2025 | 0.64 $* | 0.5 $* |
| Jun-18-2025 | 0.10 $* | 0.97 $* |
| May-18-2025 | 0.99 $* | 0.58 $* |
| Apr-18-2025 | 0.30 $* | 0.33 $* |
| Mar-18-2025 | 0.92 $* | 0.16 $* |
| Feb-18-2025 | 0.53 $* | 0.31 $* |
| Jan-18-2025 | 0.18 $* | 0.70 $* |
Характеристики
Welcome to Shanghai Maxloadc&hc&hc&h Cranes & Hoists Co.,Ltd
Product Description

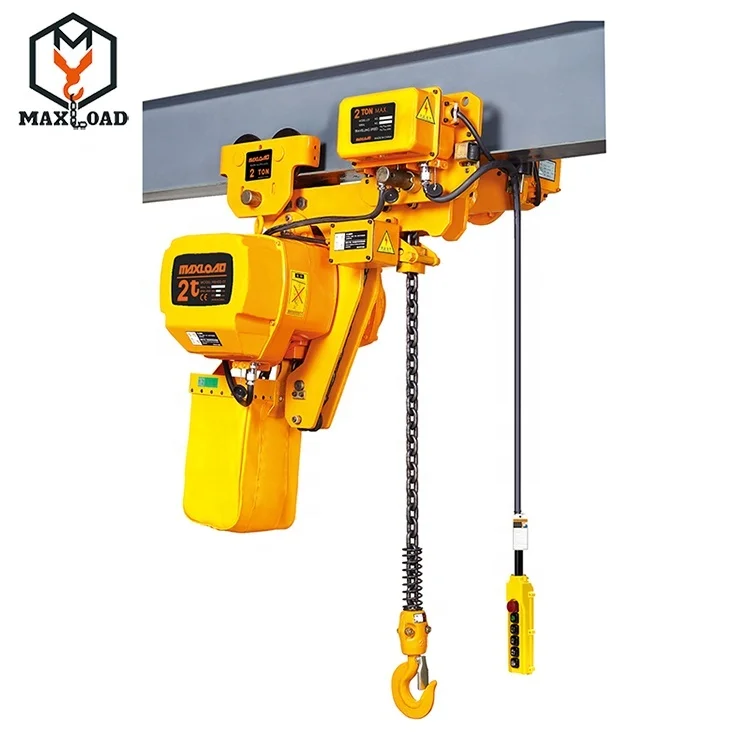

Stainless Steel 2 ton Electric Chain Hoist For Sale
Maxloadc&hc&hc&h Electric Chain hoist is typical of unique optimal structure in shortening the distance between the machine body and the beam tracks, applicable to operations in side low buildings, especially suitable for use in temporarily erected plant buildings or on the sites where expansion of effective hoisting spaces inside the buildings is required the Most important parts of the Machine is Chain and brake system.
| Model | Capacity (kg) | Test Load (kg) | Standard Lifting Height (m) | Lifting Motor | Travelling Motor | Load Chain | Voltage (v) | Net Weight (kg) | |||||
| Lifting Speed(m/min) | Output (kw) | Travelling Speed(m/min) | Output (kw) | Diameter (mm) | Falls | ||||||||
| 50Hz | 60Hz | 50Hz | 60Hz | ||||||||||
| HHBB0.5-01SL | 500kg | 750kg | 3m | 7.2 | 8.6 | 0.75 | 20(10) | 24(12) | 0.4 | Ø 6.3 | 1 | 3(phase) 220-440(v) 50/60(hz) | 111 |
| HHBB01-01SL | 1000kg | 1250kg | 6.8 | 8.2 | 1.5 | Ø 7.1 | 1 | 128 | |||||
| HHBB01-02SL | 3.6 | 4.3 | 0.75 | Ø 6.3 | 2 | 118 | |||||||
| HHBB02-01SL | 2000kg | 2500kg | 6.6 | 7.9 | 0.75 | Ø 10.0 | 1 | 207 | |||||
| HHBB02-02SL | 3.4 | 4.1 | 1.5 | Ø 7.1 | 2 | 151 | |||||||
| HHBB03-01SL | 3000kg | 3750kg | 5.4 | 6.5 | 3 | Ø 11.2 | 1 | 231 | |||||
| HHBB03-02SL | 3.4 | 4.1 | 3 | Ø 10.0 | 2 | 247 | |||||||
| HHBB03-03SL | 2.2 | 2.6 | 1.5 | Ø 7.1 | 3 | 208 | |||||||
| HHBB05-02SL | 5000kg | 6250kg | 2.7 | 3.4 | 3 | 0.75 | Ø 11.2 | 2 | 284 | ||||
| HHBB7.5-03SL | 7500kg | 9375kg | 1.8 | 2.2 | 3 | 10 | 12 | Ø 11.2 | 4 | 321 | |||
| HHBB10-04SL | 10000kg | 12500kg | 2.7 | 3.2 | 3.0*2 | Ø 11.2 | 4 | 689 | |||||
Dimensional Drawing:
| Model | Capacity (kg) | H | A | B | D | TL | BL | K | M | N | W | U | R | T |
| HHBB0.5-01SL | 500kg | 440 | 460 | 230 | / | 31 | 35 | 25 | 52 | 17 | 585 | 400 | 142 | 231 |
| HHBB01-01SL | 1000kg | 480 | 520 | 260 | 31 | 40 | 31 | 56 | 22 | 630 | 445 | |||
| HHBB01-02SL | 410 | 460 | 230 | 31 | 40 | 31 | 50 | 24 | 595 | 410 | ||||
| HHBB02-01SL | 2000kg | 570 | 615 | 295 | 31 | 47 | 38 | 66 | 30 | 720 | 505 | |||
| HHBB02-02SL | 535 | 520 | 260 | 31 | 47 | 38 | 56 | 30 | 665 | 445 | ||||
| HHBB03-01SL | 3000kg | 640 | 615 | 295 | 36 | 58 | 47 | 73 | 36 | 775 | 526 | |||
| HHBB03-02SL | 685 | 615 | 295 | 36 | 58 | 47 | 66 | 36 | 750 | 503 | ||||
| HHBB03-03SL | 900 | 520 | 260 | 43 | 65 | 65 | 77 | 50 | 1024 | 740 | ||||
| HHBB05-02SL | 5000kg | 740 | 615 | 295 | 43 | 60 | 48 | 73 | 43 | 825 | 541 | |||
| HHBB7.5-03SL | 7500kg | 890 | 615 | 295 | 43 | 85 | 80 | 73 | 55 | 1020 | 730 | |||
| HHBB10-04SL | 10000kg | 880 | 630 | 315 | 1640 | 54 | 85 | 80 | 85 | 55 | 926 | 630 |
Product Category
Product Details
| Main components | |
| Shell | 1.The Maxloadc&hc&hc&h Electric Chain Hoist is made of light aluminum alloy shell, light but hard. |
| 2.with cooling fin, easy and quick Bring the Heat out. | |
| Side Magnetic Break Device | 1.Side Magnetic Braking Device, Ensure lock the hoist. |
| 2.Mechanical brake, Dual braking system, much more safety. | |
| Limit Switch | with up & down Limit Switch, to prohibit the chains from exceeding for safety. |
| Chain | G80 Chain, Original imported from Japan. Anti-Rust and Anti-corrosion. |
| Electromagnetic Contactor | 1.with Schneider Electric (TESSIC), can be used safely under high frequency. |
| 2.Can be installed Variable-Vrequency Drive (VFD Electric) Can be suitable for Single Phase Power supply. | |
| Gear | The gear made of alloy steel, Through the heat treatment. |
| Inverse Phase Sequence Protecting Device | It is special electrical installation which controls the circuit not to work in case of wiring error in the power supply. |
Related Products
Company Information
Shanghai Maxloadc&hc&hc&h Cranes & Hoists Co., Ltd. is a professional Cranes and Hoists Manufacturer in Shanghai China.Maxloadc&hc&hc&h company specialized in design, manufacture, sales and service of lifting machinery such as Electric Chain Hoist, Electric Wire Rope Hoist Gear Motor and Other Heavy Duty Lifting Machinery.
The Maxloadc&hc&hc&h company obtained advanced Germany & Japan technology to developed series Europe type Electric wire rope hoist and Japan type Electric chain hoist. Besides excellent performance and fashionable appearance, all the products are adopted modularization design, conform to FEM /ISO Standard and Quality Test Standard.
The Maxloadc&hc&hc&h Company Completely passed ISO, CE, SGS, TUV, GS and other quality test certificates, The Maxloadc&hc&hc&h Company sales term has export the products to South and North America, Middle East, Southeast Asia, Europe, Australia and all over the World.
Packaging & Shipping
Packaging Details:
Plywood Case(Composite Material Box)
Delivery Time:
5-7 Days after receipt of the deposit
Payment Terms:
30%(T/T) as deposit, the Rest 70%(T/T) Before Shipm
Welcome to send us an inquiry, we will provide you with more accurate product information.
FAQ
