Машина для впрыска пенополиуретановой пены высокого давления стеновых и кровельных изоляционных панелей т.

Машина для впрыска пенополиуретановой пены высокого давления стеновых и кровельных изоляционных панелей т.

Категория: Оборудование для пенопласта >>>
Поставщик: Platinum,Overseas,Trade,Inc.

Цена:13 000,00 $*

Количество:

Описание и отзывы

Трекер стоимости

Месяц	Минимальная цена	Макс. стоимость
Sep-17-2025	15470.7 $*	16244.72 $*
Aug-17-2025	15340.3 $*	16107.74 $*
Jul-17-2025	12870.49 $*	13514.77 $*
Jun-17-2025	15080.54 $*	15834.83 $*
May-17-2025	13130.12 $*	13787.56 $*
Apr-17-2025	14820.88 $*	15561.81 $*
Mar-17-2025	14690.85 $*	15425.90 $*
Feb-17-2025	14560.51 $*	15288.21 $*
Jan-17-2025	14430.83 $*	15152.29 $*

Характеристики

Trade Capacity

Product Description

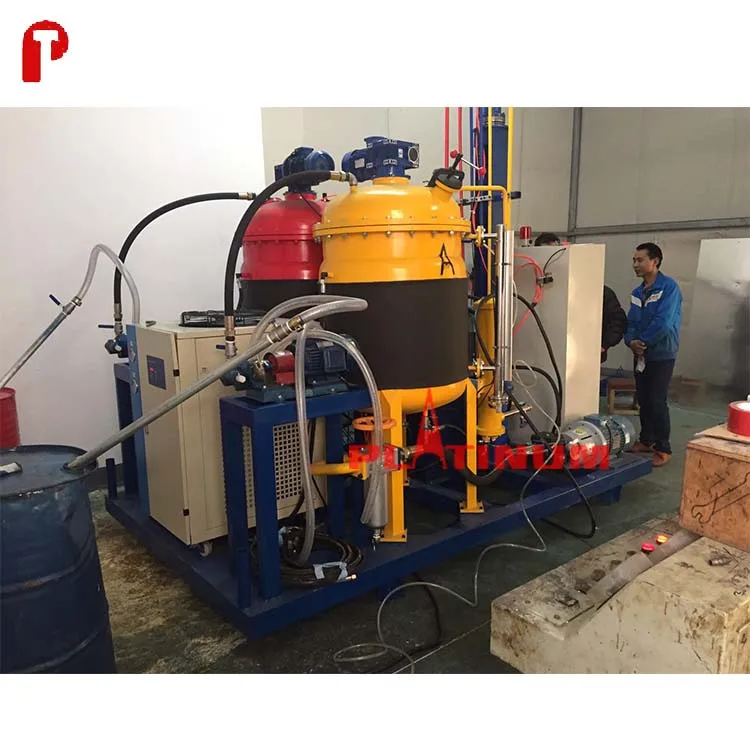

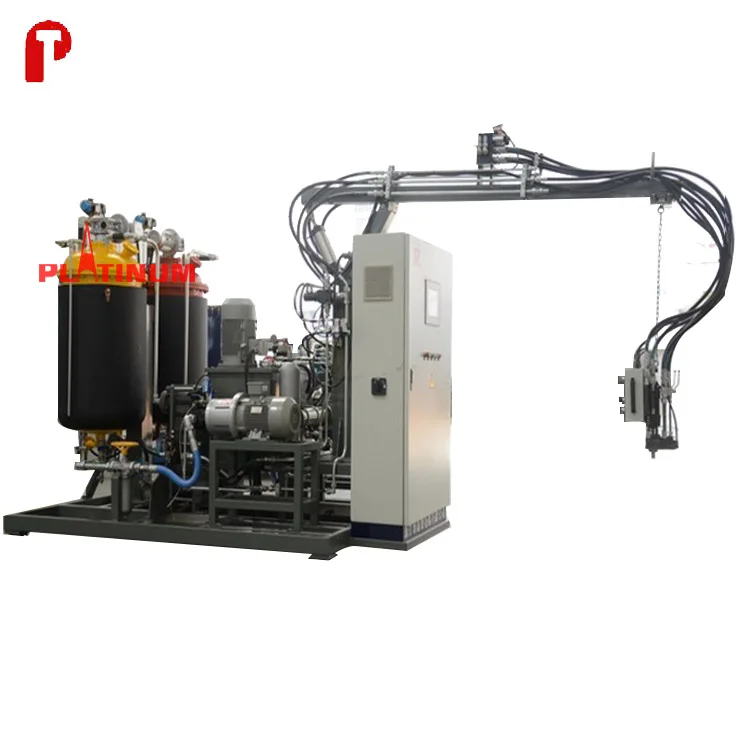

Polyurethane foam injection machine

The polyurethane foam injection machine is special designed for buoy hollow injection work.

This machine is controlled by PLC, high accuracy, simple operation, convenient maintenance. When pre-set first injection is finished, the alarming relay will give alarms.

Aplication

Low pressuere polyurethane machine is widely used in refrigerators, freezers, disinfection cabinet, water heater, air condition, ice machine, solar, footwear, toys, building wall insulation, thermal insulation, roof insulation, cold proof, pipeline, automotive interiors, insulation materials, furniture, crafts and sports equipment.

Example of case: 1.automotive interiors

Example of case: 2.buoy

Detailed Spec

No.	Description	Data
1	Injection capacity	10~80kg/min
2	Capacity of the tank	250L (two) can be customized
3	Mixing ratio range	1:5~5:1 (adjustable)
4	Mixing type	Mechanical mixing head
5	Injection pressure	10~15Mpa (adjustable)
6	Cleaning type	Automatic cleaning with MC solution
7	Motor power	380V, 50HZ, 3 phase, can be customized
8	Material consumption	Normal
9	Metering pumps	Normal
10	Application	Soft / rigid foam product

Detailed Images

Material tank

Two-sandwich heating tank, plus insulation, heating quickly, low energy consumption.
Material of the tank: SS304
Size of feeding flange: φ150
Capacity: 250L
Quantity: 2

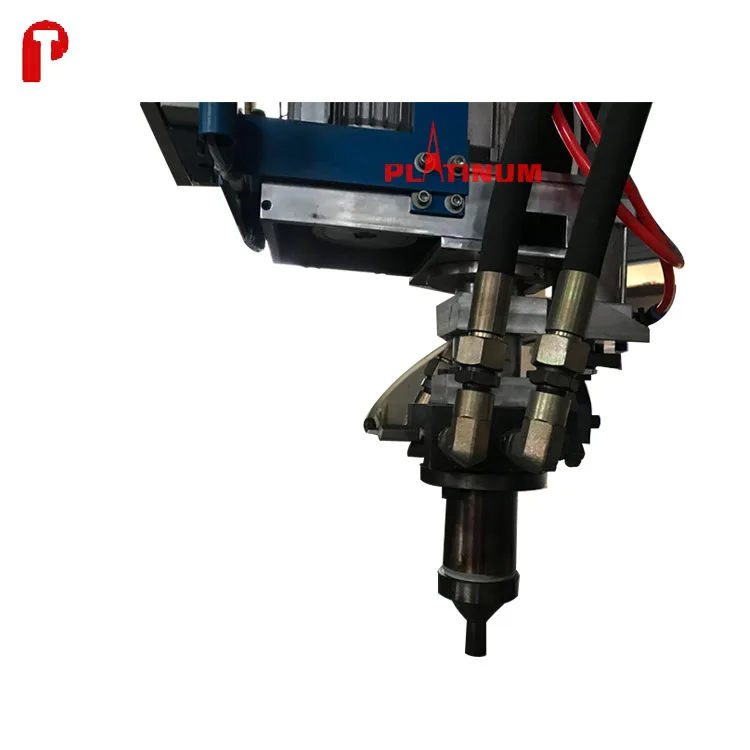

Mixing head

The mixing head adopts floating mechanical seals, and its high shear mixing screw head, which can mix two materials with better performance.

Title goes here.

Material of pipe A:
Tetrafluoroethylene tube anti-corrosion.
To avoid reaction between material and pipes.
Material of pipe B:

High density resin,
which can withstand pressure of 8 MPa.

Packing&Shipping

Packing
Size	3600mm x 1250mm x 2300mm
about Weight	1350kg
Packing details	The normal package is wooden box(Size: LWH). If export to european countries,the wooden box will be fumigated.If container is too tigher,we will use pe film for packing or pack it according to customers special request.
