Product Description

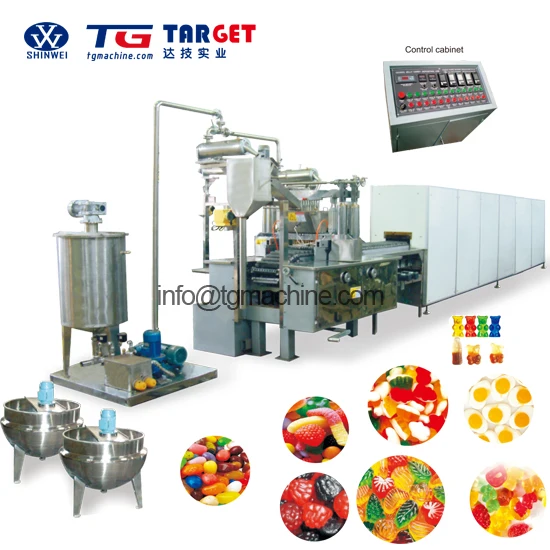

Jelly/gummy Candy machine/Jelly/gummy Candy manufacturing machine
QQ(JelIy) candy processing line is an advanced and continuous plant for making different sizes of jelly candies
(QQ candies).It is an ideal equipment which can produce out good quality products with the saving of both the
manpower and the space occupied. This depositing line consists of jacket dissolving cooker, gear pump,
storage strainer, storage tank, discharging pump, color & flavor jigger, color & flavor mixer, depositor, cooling
tunnel,electric control cabinet, etc.
The processing line is an advanced and continuous plant for making different sizes of gelatintype soft candies
(QQ candies) . It is an ideal equipment which can produce out good quality products with the saving of both
themanpower and the space occupied.With the sanitary structure design, on one hand it can produce one or
two colors candy;on the other hand, it can automatically blend the essence pigment and fermenting liquid in
accurate quantity ratio. Highdegree automation ensures of stable production and saves time and labor force
and occupations to serve the purpose of reducing the cost.
Specifications
Jelly/gummy Candy machine/Jelly/gummy Candy manufacturing machine
Model | GD150Q | GD300Q
| GD450Q
| GD600Q
|
Production capacity ( kg/h) | 150 | 300 | 450 | 600 |
Rated depositing times(n/min) | 45~55 | 45~55 | 45~55 | 45~55 |
Weight of each candies(g):
|
2g~.6g 1.5g~6g |
2g~6g 1.5g~6g |
2g~6g 1.5g~6g |
2g~6g 1.5g~6g |
Electric power needed | 16kw/380V | 26kw/380V | 32kw/380V | 36kw/380V |
MAX candy weight | As per candy size | |||
Conditions needed for the cooling system: 1.Room temperature(℃) 2.Humidity (%) |
20~25 55 |
20~25 55 |
20~25 55 |
20~25 55 |
Length of the whole line (m) | 18m | 20m | 20m | 20m |
Gross weight ( Kgs) | 3000kg | 4500kg | 5000kg | 6000kg |
FLOW CHART:
Sugar and gelatin dissolving→ mixing→ cooling→ transporting→ depositing → cooling → de-moulding→following disposalà packing
MAIN EQUIPMENT LIST:
ITEM NO. | EQUIPMENT | SPECIFICATION | UNIT | QTY |
1 | Fixed COOKER | 200 L | PCS | 2 |
2 | GEAR PUMP 1’’ |
| PCS | 1 |
3 | COOLING TANK | 300L | SET | 1 |
4 | TRANSPORTING PUMP |
| SET | 1 |
5 | COLOR AND FLAVOR MIXING SYSTEM | 200L | PCS | 2 |
6 | JELLY CANY DEPOSITOR | 300KGS/H | PCS | 1 |
7 | COOLING TUNNEL |
| SET | 1 |
8 | MOULD | GDQ300:520pcs | SET | 1 |
9 | ELECTRICAL CABINET |
| SET | 1 |
10 | DRYING ROOM SYSTEM | 72Kw | Set | 1 |
11 | Turnover tray | 600x 600 x 30mm | Pcs | 800 |
12 | Turnover Cart | 700x700x1800mm | set | 16 |
13 | Oil sprayer | 1800x1250x1800mm | set | 1 |
14 | Sugar coater | 3800x1250x1800mm | set | 1 |
Certifications
