Крафт-бумага трубопрокатный станок

Описание и отзывы

Трекер стоимости

Характеристики

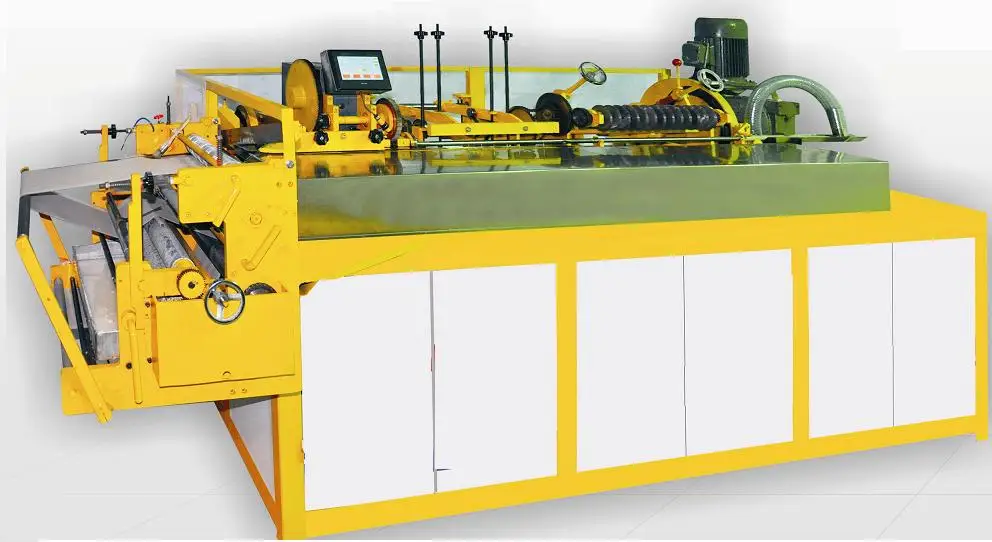

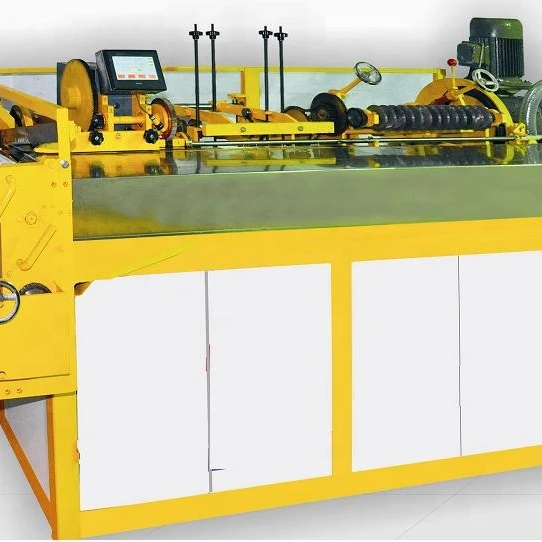

High capacity tube making machine

1  ID range: 8--30mm
2  length(max): 520mm
3  power capacity:  3.5Kw 3 phase
4  production capacity: 40pcs/min
5 paper request:  <450gsm
6  100% edge sealing
7  no water, no air compressor
8  easy to operation and maintenance
9  reduce paper wasting, tail tube no more than 5mm

roller paper weight:about 300kgs

packed wooded  case size: front parts:3.4*1.25*1.32M,back parts1.7*0.92*0.96M

Summary

This machine manufacture Straight line paper tub, it use corrugated paper, kraft paper and coated paper,  all can roll into parallel tube. It is widely used in the production of  iron and steel, chemical, textile, paper and other industries for fireworks.





technical parameter:



Machine size	Total  power	Production  capacity	Paper tube specifications
6000MM*1200MM	3.5KW	40P/MIN	8MM-30MM
