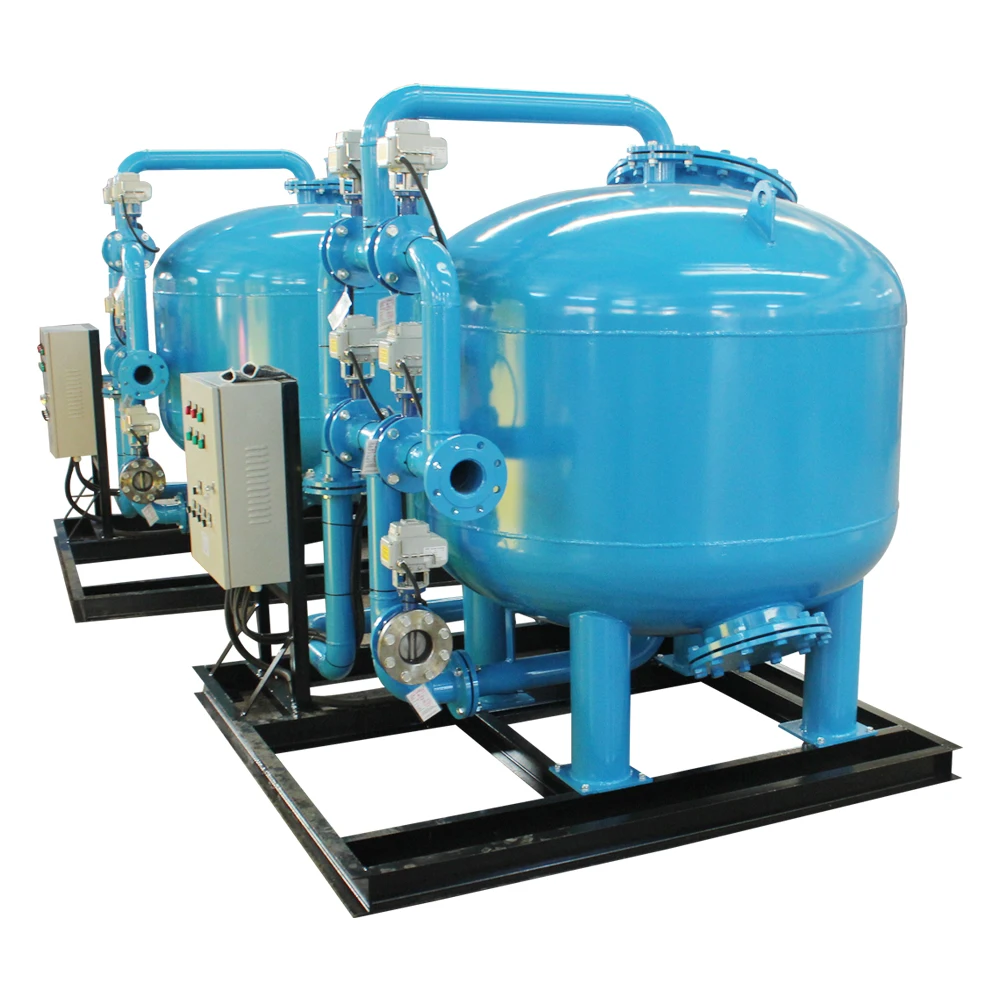

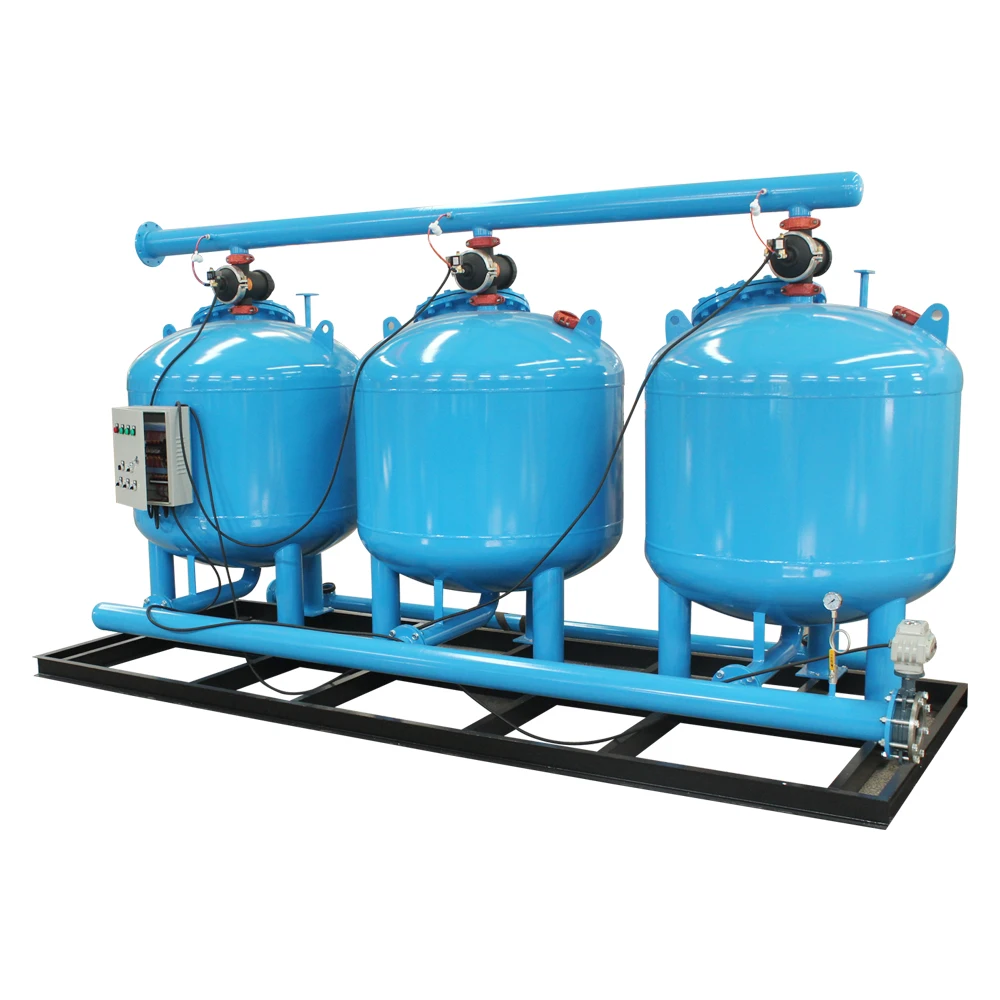

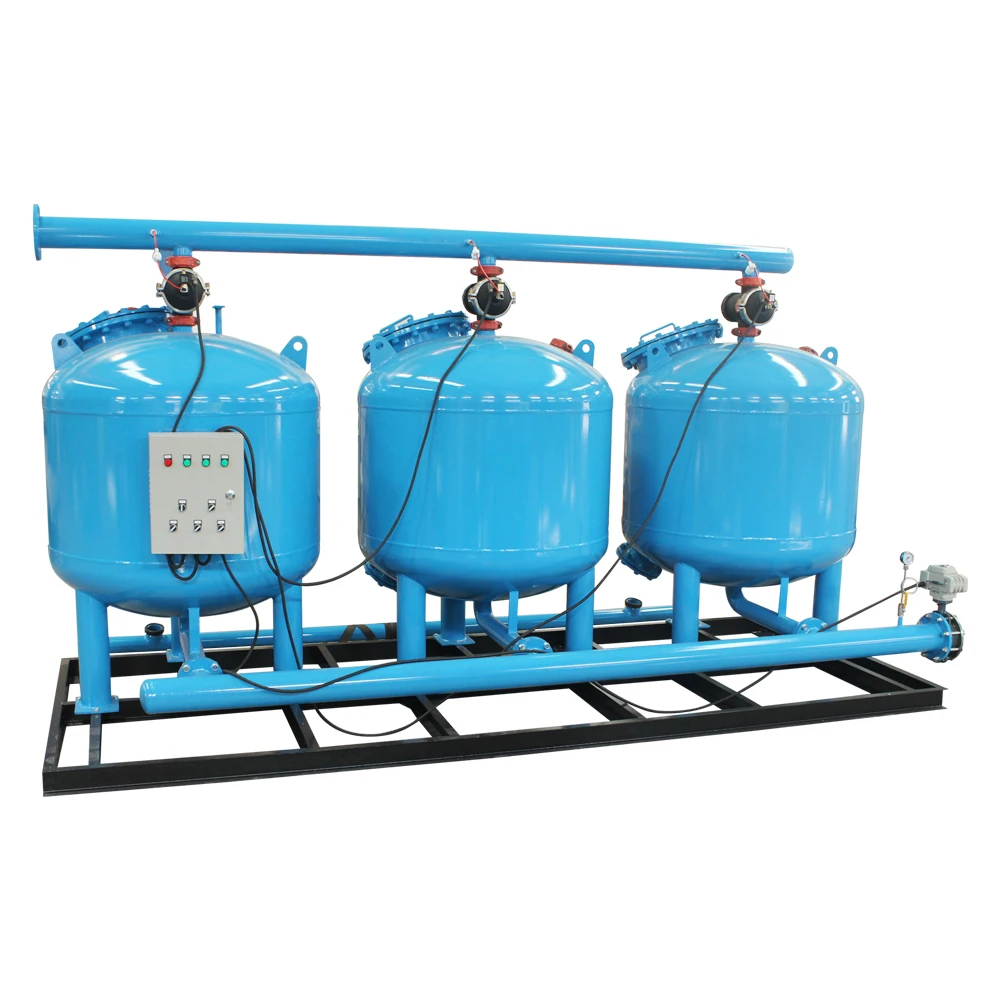

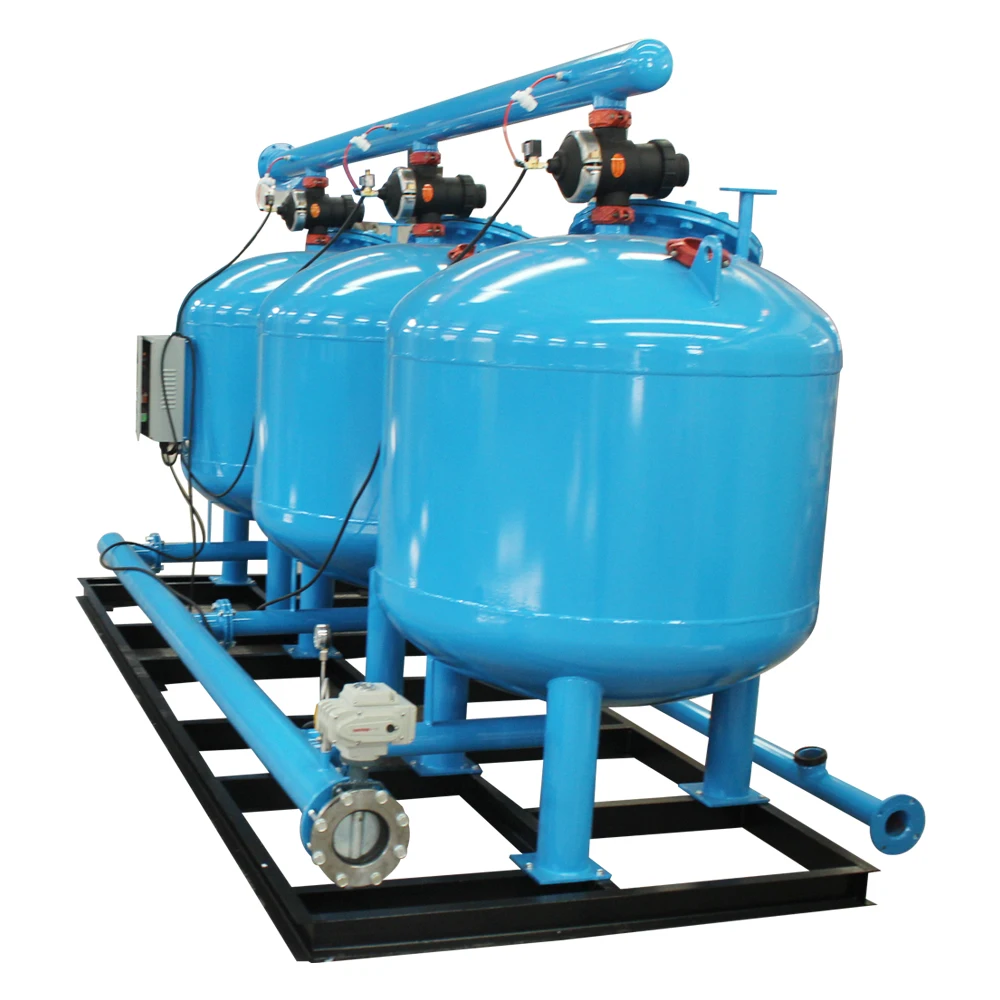

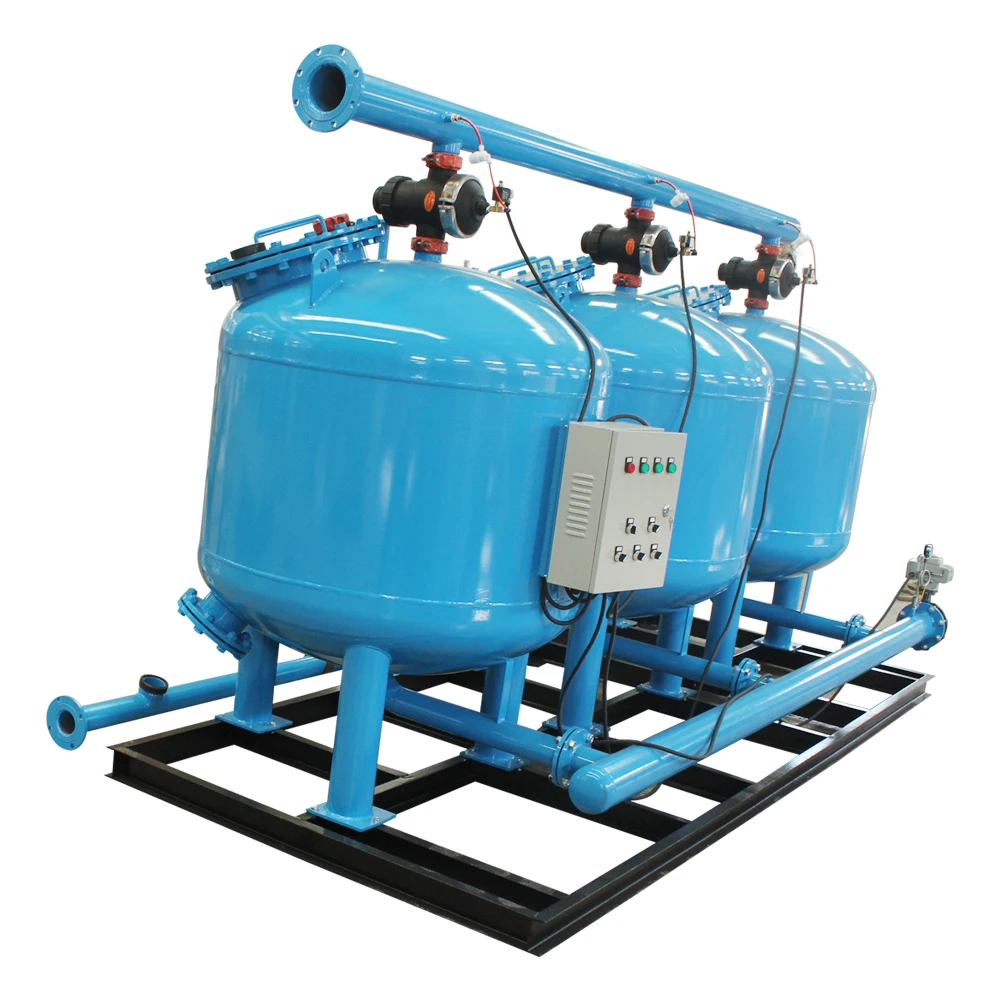

Automatic Quartz Sand Filter Water Treatment Machine



Functions:
1. To reduce suspended solids (turbidity). Otherwise, as the system is running, suspended solids increases, which will exacerbate the deposition and other problems.
2. Degreasing. Especially the oily turbid circulation, such as steel rolling and continuous casting, has high oil content and is easy for breeding microorganism and blocking the nozzles.

1. Manual or automatic control is available;
2. Water distributor is simple, uniform and reliable;
3. Finished water collector has high strength and long service life;
4. Easy to install. Only connect the inlet and outlet to the waste pipe when installing;
5. Less water consumption in backwash: A homogeneous filter is used, so that backwash cycle is extended and the total backwash water volume is greatly reduced;
6. High backwash efficiency: An advanced water collector is used, ensuring efficient backwash effect.



Introduction

Bypass filter works as a bypass filtration equipment for closed industrial circulating water ,which is used to filter the circulating chilled water, the control modes is setted for manual backwash and automatic backwash system. The system generally backwash once every three to seven days in the circulating process, effectively improving the quality of chilled water and ensuring excellent and stable water quality after intervention to longterm running. the filter itself will consumpt little water for working. It is widely used in the cleaning for all sources of industrial and commercial chilled water circulation system as well as refrigerant water and heat medium water systems of central air conditioning, improving the stability of equipment operation. the bypass filters could also be welded and installed in parallel at main return pipes depending on the conditions of circulation system and the pipe diameter ,it should be determined based on the retaining water output of parallel circulating water.then the sewage water is discharged into the sewage network.

By-pass filter for chilled water as a by-pass filtering equipment of closed industrial circulating water is used to filter the circulating chilled water and its control modes consist of manual backwash and automatic backwash. The system is generally backwashed once every three to seven days in the circulating process, effectively improving the quality of chilled water and ensuring excellent and stable water quality after intervention to long-term running. The device has small water consumption and is widely used in the cleaning of all types of industrial and commercial chilled water circulation system as well as refrigerant water and heat medium water systems of central air conditioning, improving the stability of equipment operation. Users may weld and conned in parallel the by-pass filters in main return pipes depending on the conditions of circulation system and the pipe diameter should be determined based on the retaining water yield of parallel circulating water. The sewage water is then discharged into the sewerage network.











Sewage through the water inlet to the dielectric layer, then a majority of the contaminants trapped in the medium surface, fine dirt and other floating organic matter trapped in the medium layer.



When the impurity in the water and suspended matter reaches a certain amount of time, the filter system through the differential pressure control device for real time detect the pressure difference between inlet and outlet. When the pressure reaches the certain value, the electric control PLC send signals to the three way solenoid valve of control system.



The three way electromagnetic valve through a water automatic control corresponding to the filtering unit three way valve, closing the inlet channel and at the same time to open the discharge channel, because the discharge channel less pressure, other filtration unit of water in water under pressure from the outlet of the filter unit to enter, and continued to scour the filtration unit of the dielectric layer, thereby achieve cleaning the medium effect, after rinsing wastewater under the action of water pressure by the filtering unit of the sewage outfall into the sewage pipe,then complete a sewage process.



This kind of filter can also be used for timing control of sewage, when time reaches the set time timing controller, electric control box issued a clean signal to the three electromagnetic valve, the discharge process as above.



By-pass filtration is used to reduce the turbidity of the water circulation system, exactly, to reduce slime and prevent its deposition in the heat exchanger, so that the effect of agent will be better.




Flow filter flow is designed according to 5% to 10% of the total circulation volume (the by-pass filter flow of the cooling water is designed by 10 % of the circulation volume and the by-pass filter flow of chilled water is designed by 5% of the circulation volume) and the filtration rate is designed by 20 — 3Smih according to water quality of the system. Specific to corrosive suspended solids of the circulating water system as well as the control, our technical support team has designed a variety of manual/automatic by-pass filtrating equipment in line with customer demand.



• Water treating, Raw water treating , Recycle water , Chilling water treat, Soft water treat


• Agricultural irrigation ,such as Farms Water , Golf Water Filtration , Orchards and Groves Water Filtration , Vineyard Water Filtration  etc .


• Papermaking factory


• Steel and  lron plant


• Petroleum Chemistry
