MSTM-1080 автоматическая машина для зачистки

Категория: Оборудование для производства кабеля >>>
Поставщик: Ruian,Mosun,Machinery,Co.,Ltd.

Цена:*

Количество:

Описание и отзывы

Трекер стоимости

Месяц	Минимальная цена	Макс. стоимость
Sep-19-2025	0.85 $*	0.91 $*
Aug-19-2025	0.81 $*	0.11 $*
Jul-19-2025	0.36 $*	0.83 $*
Jun-19-2025	0.43 $*	0.79 $*
May-19-2025	0.7 $*	0.63 $*
Apr-19-2025	0.56 $*	0.27 $*
Mar-19-2025	0.42 $*	0.75 $*
Feb-19-2025	0.60 $*	0.28 $*
Jan-19-2025	0.76 $*	0.66 $*

Характеристики

MSTM-1080 Automatic paper stripping machine for Die cutting creasing Paper Card

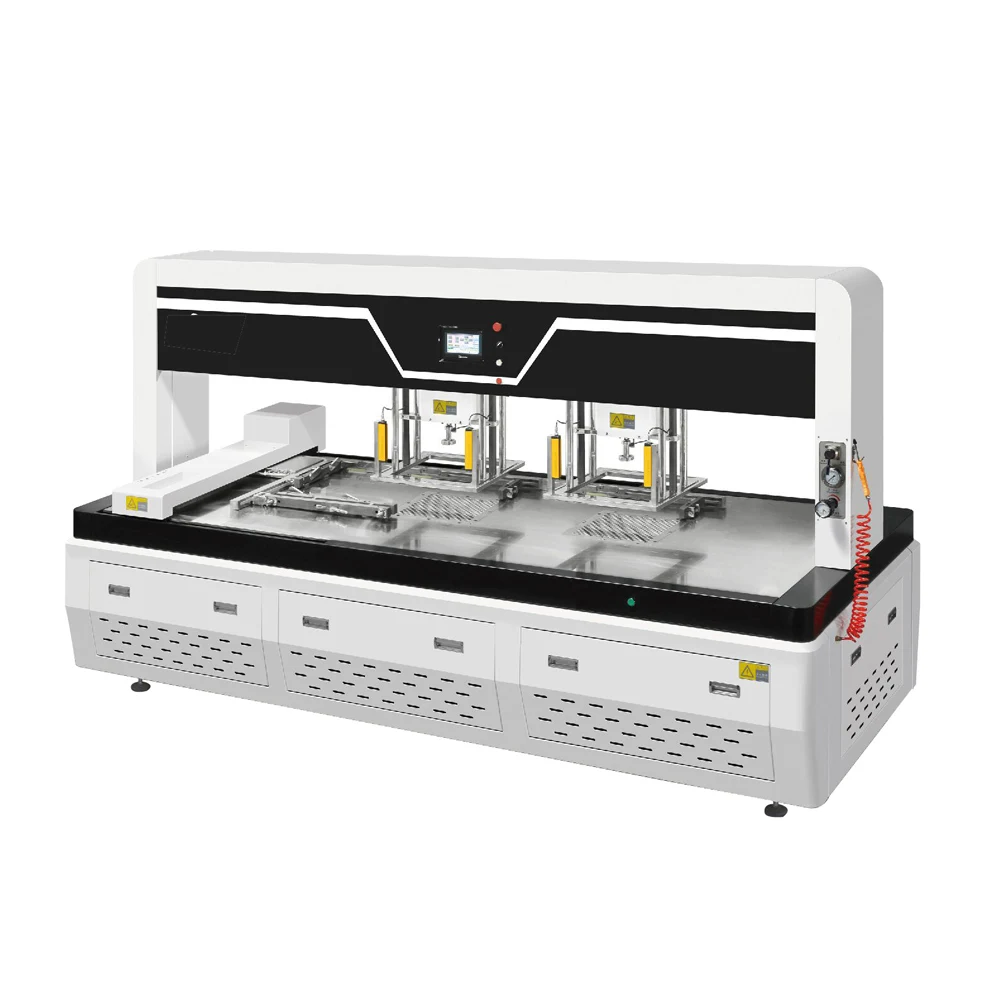

Product Appearance

TM-920

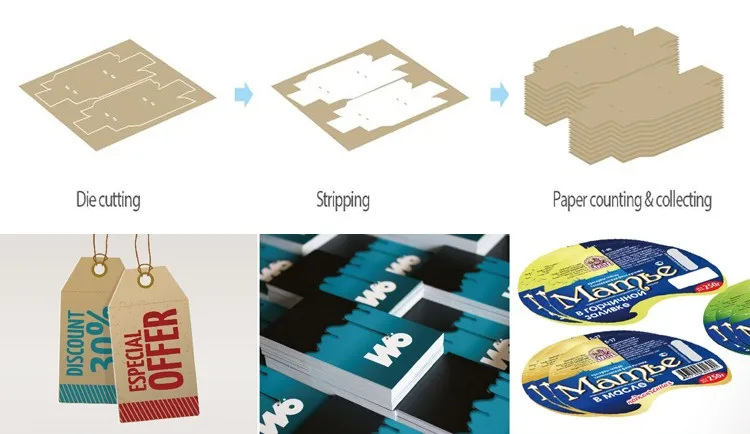

Machine Processing:

Product Description

Usage:

MSTM-780/920/1080 Semi-automatic Stripping Machine belongs to post printing machine, after processing of paper creasing and die cutting, good partner of the semi-automatic die cutting machine and roll paper flat die cutting machine. It is suitable for printing, packaging decoration and plastic industries in production.

MODEL	TM-920	TM-1080
Max sheet size(mm)	920*650mm	1080*780mm
Min sheet size(mm)	550*280mm	600*400mm
Max pile height(mm)	100mm	100mm
Min pile height(mm)	40	40
Bench height(mm)	850	850
Max stripping size(mm)	360*360mm	550*550mm
Min stripping size(mm)	30*30mm	30*30mm
Stripping speed(times/min)	25	25
Powder voltage(V)	360-420	360-420
Max pressure(bar)	80	90
Frequency(Hz)	50/60	50/60
Max consumption power(kw)	3.75kw	5.5kw
Insurance electric current(A)	10	10
Air consumption(L/min)	2	2
Air compression(bar)	4-7	4-7
Input power(phase)	3P	3P
Machine weight(kg)	2000kg	2400kg
Machine dimension(mm)	330015601900mm	375018001900mm

Main Features:

1.Automatic marking machine Replace manual disassembly, Save manpower.Improve product quality and enterprise benefit.
2.For automatic die cutting and semi-automatic cutting all kinds of cardboard, trademarks (tag), plastic film and other small packages automatically remove the edge and take this product of professional equipment.
3.The machine adopts the latest hydraulic cylinder system, high precision wire rod guide rail and modern program controller, which can guarantee the machine is durable and safe operation.
4.Table chrome, thimble automatic locking, convenient customer palette.

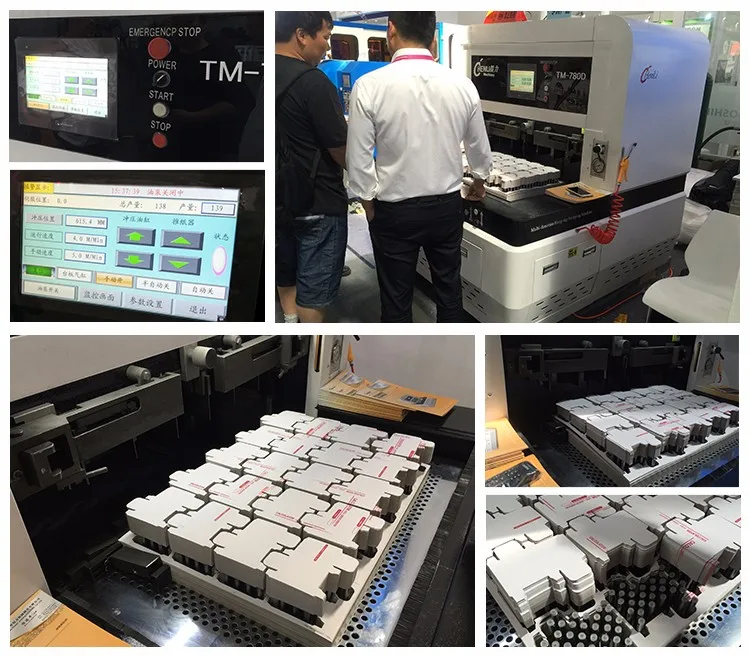

Detailed Images

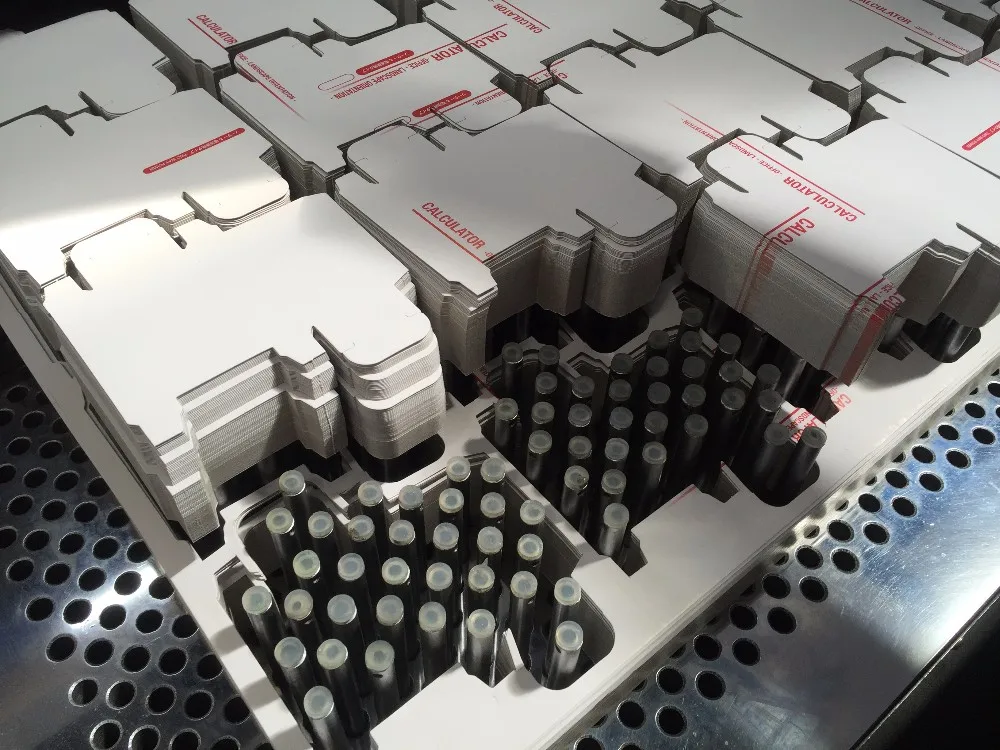

details

Samples

MSTM-780 X07

Packing & Delivery

shiping 750

Certifications

Pre-Sales Service:

* Inquiry and consulting support.
* Sample testing support.
* View our Factory.

After-Sales Service

* Training how to install the machine, training how to use the machine.
* Engineers available to service machinery overseas.

Warranty:

Machines are new (or unused) and the guarantee period will be given thirteen months from shipment date. During this period, the seller will provide free maintenance and free spare parts that caused by the machine's quality, but the buyer must pay the courier cost. Parts damaged because of mishandling and consumable parts are not covered by any warranty
