Industrial Furnace
Для промышленного использования экономия энергии цена по прейскуранту завода-изготовителя передовые для манипуляции металлолома промышленная плавильная печь стали железа

Для промышленного использования экономия энергии цена по прейскуранту завода-изготовителя передовые для манипуляции металлолома промышленная плавильная печь стали железа

Цена:8 500,00 $ - 9 000,00 $*

Количество:

Industrial Used Saving Energy Factory Price Advanced Scrap Metal Industrial Melting Furnace for Steel Iron (JLZ-25)

i_20140506_061059576

Product Description

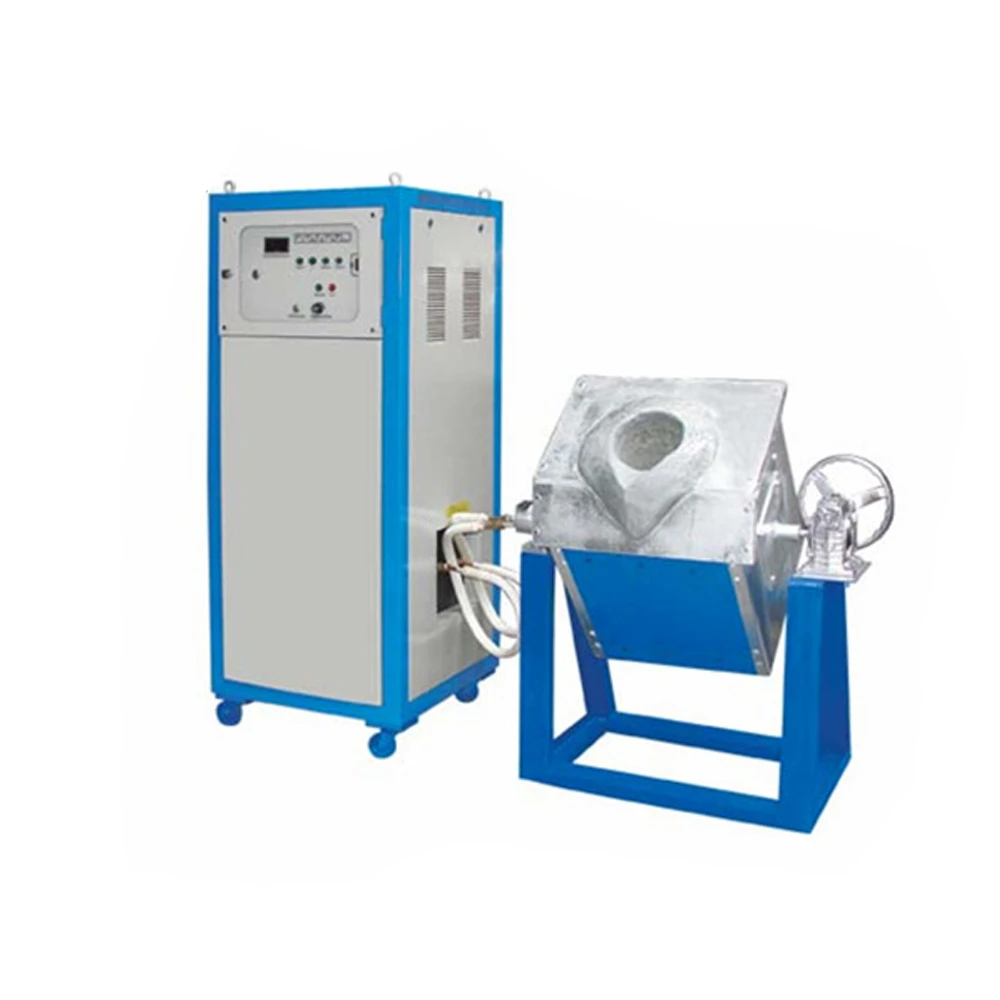

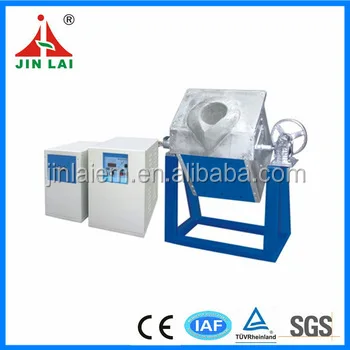

Main parts of the melting furnace system

1. M.F Induction Heating Power.

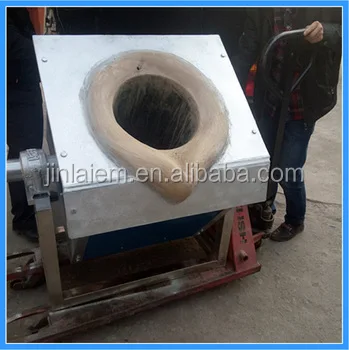

2. Tilting type Melting Furnace.
Characteristics of M.F Melting Furnace

Melting the Maximum quantity by the recommend machine according to above table the melting time is 50-60 minutes, the first melting when the furnace is cold ,and it will take about 20-30mins for the later melting after the furance is already hot.

Suitable for melting of steel, iron, cooper, bronze, gold, silver and aluminum, stannum, magnesium, stainless steel.

Main Technical Data

Model			JLZ-25KW
Input power desire			3 phase 380V 50/60HZ
Oscillate power max			25KW
Input current			5-45A
Output voltage			70-550V
Oscillate frequency			1-20KHZ
Cooling water desire	Furnace + induction heater		≥0.2MPa ≥6L/Min
	Induction heater		≥0.2MPa ≥3L/Min
Duty cycle			100% 40°C
Heating Speed			First cool furnace: 50-60mins Second heated furnace: 20-30mins
Dimension		Heating power	Generator: 560350550mm, Transformer: 550300420mm
		furnace	1000650840mm
Net weight			180kg
Cable length			2-6(Meters)
Capacity			5KG

List of Accessories In the Package

Item	Name of machine or parts	Specification	Amount
1	JLZ-25KW Generator	-	1 pc
2	JLZ-25KW transformer	-	1 pc
3	5KG tilting type melting furnace		1 set
4	Foot pedal	3 core	1 pc
5	Connect cable	-	1 set
6	Instruction Manual	-	1 pc
7	Product catalog	-	2 sets

Melting Ability

(Melting speed: the first cool furnace 50-60mins/furnace, the second heated furnace 20-30mins/furnace)
