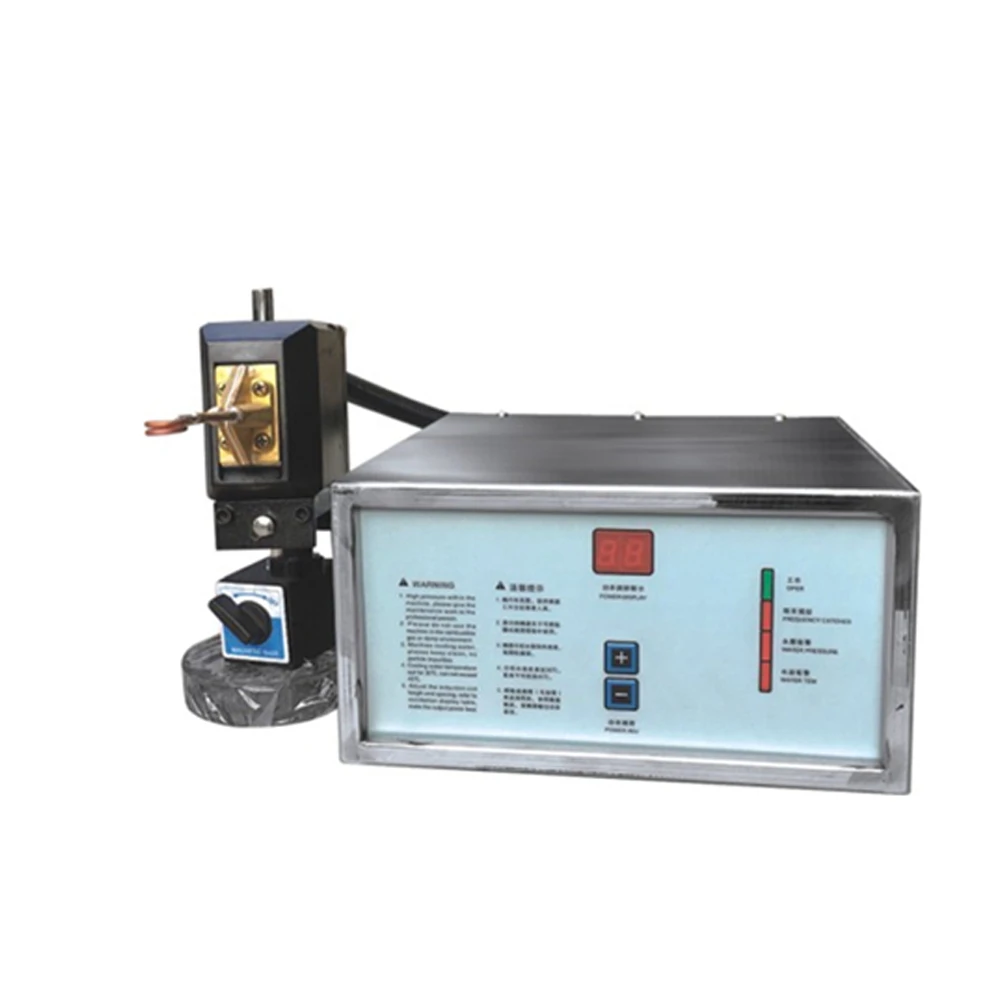

Low Price Portable Induction Carbide Saw Blade Brazing Machine Welding Machine Soldering Machine (JLCG-3)

Main Feature

• 1. Ultrahigh series: high frequency, able to heat Φ 0.1mm work-piece.


• 2. Small size, light weight, low failure rate and conservation of energy. (which can save the power by 70% as compared with glass-ceramic vacuum tube high frequency heating machine)


• 3. It can ensure the solid welding point which is pleasing and delicate in appearance, integral geometric configuration, perfect surface grain, complete crystal structure of internal metal part, limited annealing range and elimination of obvious weld knot.


• 4. About ten types fault protection and display of over-current, over-voltage, water shortage and phase missing can provide higher reliability and durability.


• 5. It is applied to the welding of coupler and inserts used in metal glass manufacturing as well as electric appliance and electronics industries, non-contact welding of internal parts of small-size relays, high-pressure refrigerating parts, headwear decorations, metal ornamental articles an art wares.

Low Price Portable Induction Carbide Saw Blade Brazing Machine Welding Machine Soldering Machine (JLCG-3)

Technical Parameters

Low Price Portable Induction Carbide Saw Blade Brazing Machine Welding Machine Soldering Machine (JLCG-3)

Heating Principle:

    The principle of high frequency induction heating is that apply high frequency alernating current to a conduct that is curled to  cyclic (normally copper tube) to produce flux, then put the metal to this area to make the flux to run through it, and eddy current will be generated in the deriction of self-capturing with flux(rotary current), the induced current then generates heat under  the influence of the eddy current, so this heating method is called induction heating. hence, metal and other objects under heated can be heated without contact. at this moment, the character of the eddy current relies in that the induction heating on the object nearby the coil is outwardly strong but inwardly weak. with this principle. this heating body can be concentratedly heated where needed to achieve instantly effect, thereby the production output and work capacity are both improved.

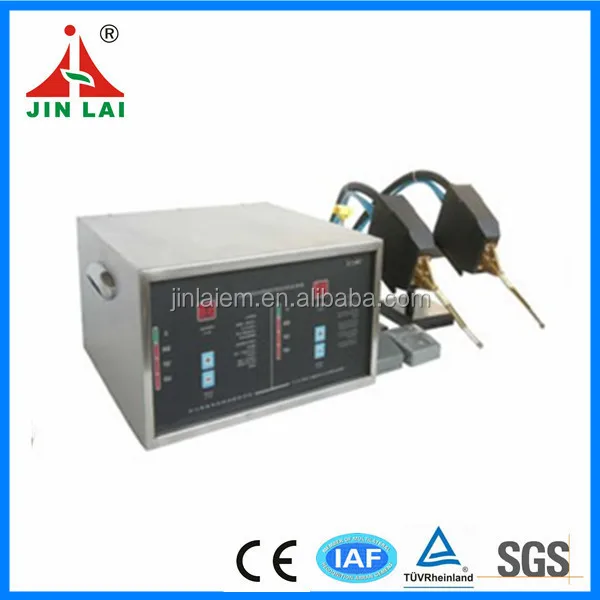

JLCG-3KW Generator Outside :

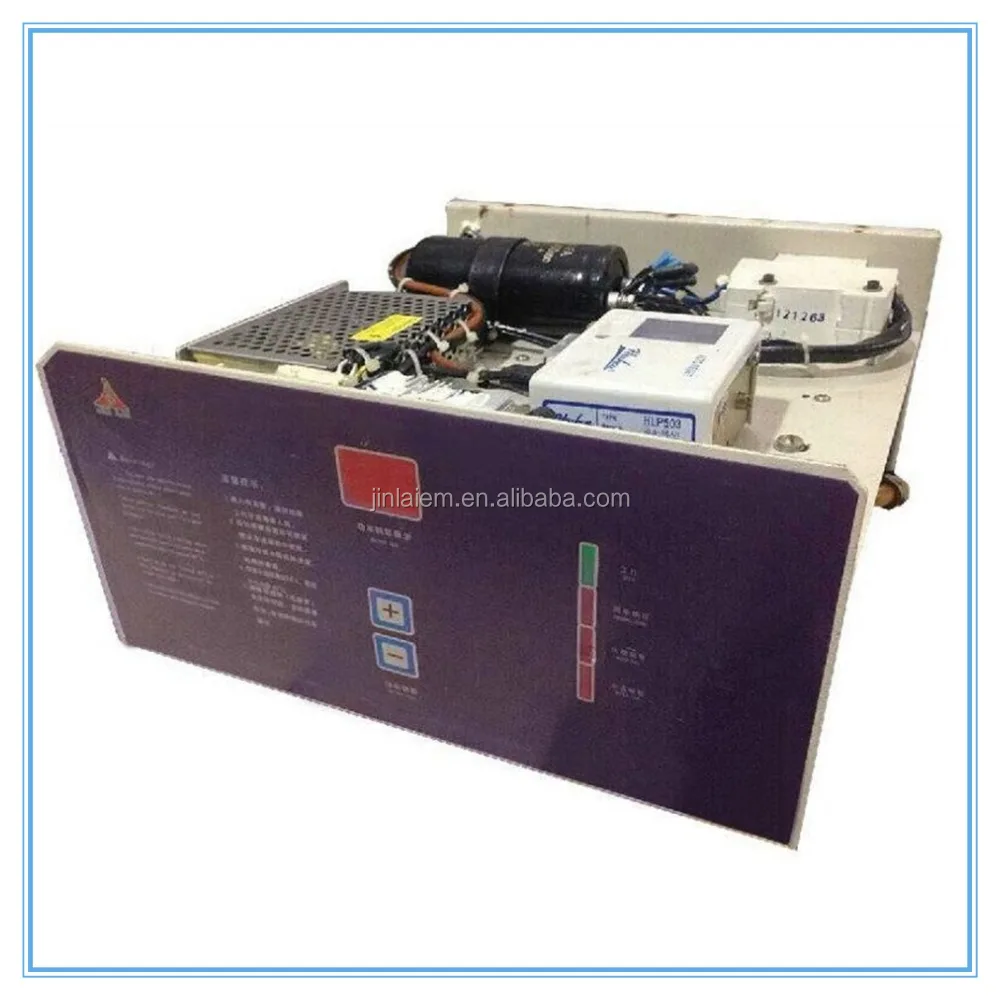

JLCG-3KW Generator Inside :

JLCG-3KW Face-plate :

Main Parts Introduction

• 1. Germany SIEMENS INFINEON IGBT Module. ( 40-60KHZ oscillation frequency, fast response time, superhigh stability, almost spatter-free welding )


• 2. Japan Nichicon electrolytic capacitor. ( filter capacitor )


• 3. Imported transistor integrated block.


• 4. All water pipe use thermostability, High pressure resistance best quality material.


• 5. Main card, signal circuit, drive circuit board,control circuit board and components are adopted:Toshiba, Hitachi,Motorola, China's top manufacturers.


• 6. International advanced all-solid-state semiconductor power devices.


• 7.Technical advantage:perfect control, alarm display circuit, getting full automatic tracking frequency, continuous adjustable power, safe dependable protection,clear and accuracy data display and etc.


• 8. Superiority Advantages: fast heating, wide application, small size, easy installation, simple operation, low power consumption, high efficiency.

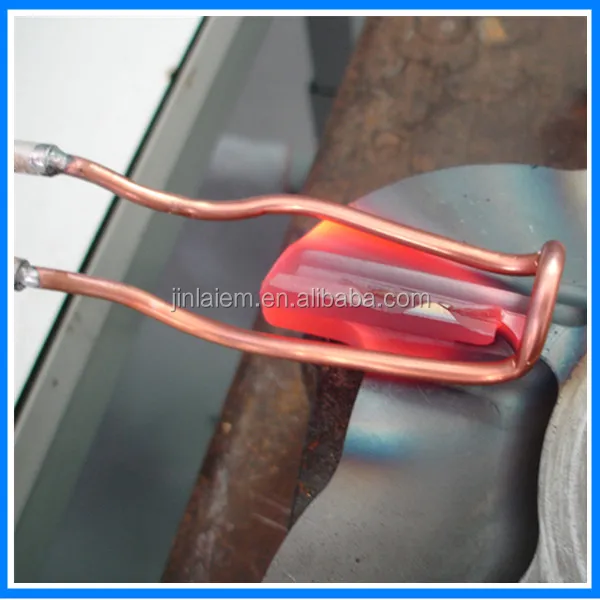

Application: Induction Brazing Welding Machine for Carbide Saw Blade

JLCG-3KW Applications :

• 1. Brazing materials: copper and brass brazing, tungsten steel and stainless steel brazing, iron and copper brazing, aluminum and copper brazing and other metal brazing.


• 2. Glasses welding, fishing tool welding, hardware appliances welding.

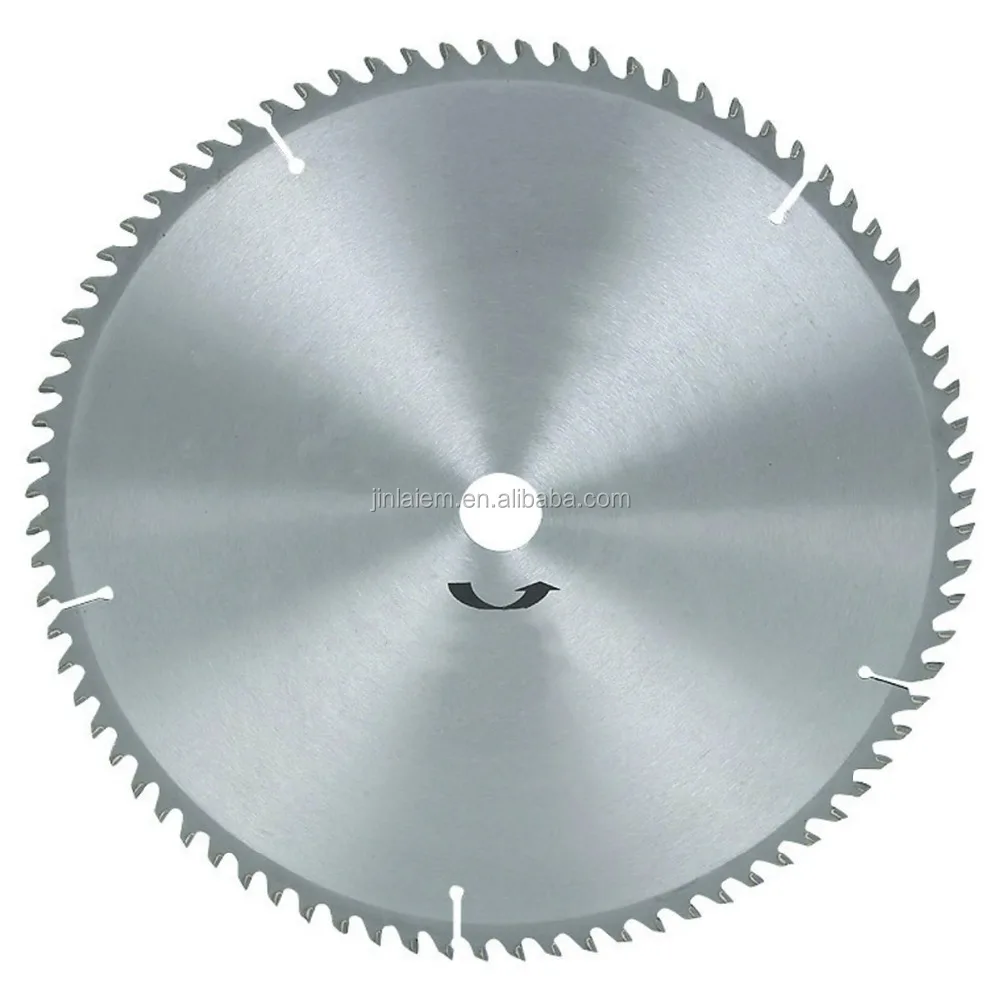

• 3. Carbide saw and saw-tooth welding, carbide blade welding.


• 4. Jewelry, watches welding.


• 5. Electronic industry: motor rotor hot-cooperate, electrode silver soldering and tin soldering.


• 6. Metal implants, bulbs fight electrode.


• 7. Band accessory soldering, golf head, pipe welding.


• 8. Communication equipment soldering, copper coaxial cable connector soldering etc.

Packing List

Company Profile:

       Dongguan Jinlai Electromechanical Device Co.,ltd. founded in 1996,

which is engaged in R&D, production and sale of solid Induction heating machine

professionally.Several senior experts of induction heating equipment gathered

here, who initiate the induction heating machines with environmental protection

and highly effective energy conservation, positively and diligently.

Pre-sale service:

• 1. recommend the most suitable machine for customers, according to their requirements.


• 2. Inquiry and consulting support.


• 3. Sample testing support.


• 4. View our Factory.

In-sale service:

• 1. Strictly manufacture the machine, according to relevant technical standards.


• 2. Take run test, according to relevant equipment test run regulations.


• 3. Strictly check up the machine, before delivery


• 4. Delivery on time.

After-sale service:

• 1. 12 months warranty period


• 2. Within one year free warranty, any fault caused by non-artificial reason, any quality problems such as design, manufacture, or procedure occurs, Jinlai shall provide replacement parts after detecting the faults.


• 3. If any big quality problems occurs out of the guarantee period, Jinlai will send maintenance


• 4. technician to provide visiting service after checking with the customer and charge for a favorable price.


• 5. Jinlai will provide a lifetime favorable price to the buyer with the materials and spare parts used in system operation, equipment maintenance.


• 6. The above mentioned are only basic after-sale service requirements, we will make more promises related to quality assurance and operation guarantee mechanism.
