Машина для измельчения


Поделиться:


Цена:*

Количество:



Описание и отзывы


Трекер стоимости

Месяц Минимальная цена Макс. стоимость
Sep-15-2025 0.29 $* 0.54 $*
Aug-15-2025 0.41 $* 0.99 $*
Jul-15-2025 0.15 $* 0.3 $*
Jun-15-2025 0.3 $* 0.76 $*
May-15-2025 0.29 $* 0.91 $*
Apr-15-2025 0.18 $* 0.87 $*
Mar-15-2025 0.2 $* 0.82 $*
Feb-15-2025 0.67 $* 0.38 $*
Jan-15-2025 0.7 $* 0.81 $*

Характеристики



Product Description




Technical Parameter


Model
WF-100
WF-200
WF-300
WF-400
WF-500
production capacity(kg/h)
15-100
30-300
50-500
100-800
150-1000
spindle speed(r/min)
500
500
500
500
500
feeding size(mm)
≤50
≤50
≤100
≤150
≤200
crushing fineness(mesh)
0.5-20
0.5-20
0.5-20
0.5-20
0.5-20
total power(kw)
2.2
3
4
5.5
7.5
overall dimensions(mm)
550*380*1000
600x400x1000
700x500x1100
800x780x1300
850x840x1450
weight(kg)
170
220
300
380
490


Details Images




WORKING PRINCIPLE

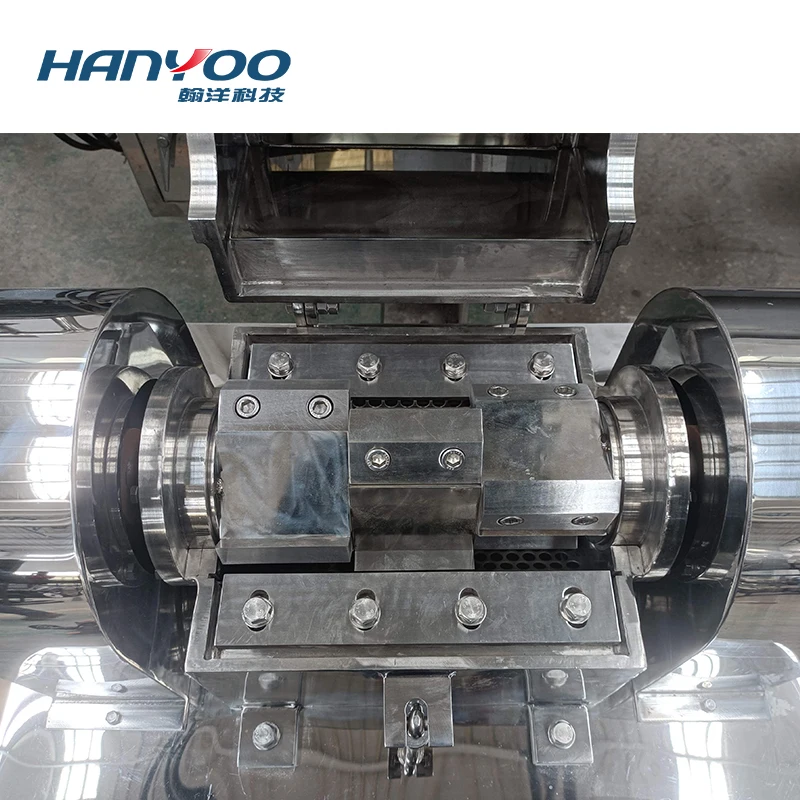

This machine is a horizontal tilting structure, consisting of a base, motor, upper and lower covers of the crushing chamber, main shaft, feeding hopper, and discharge hopper. The feeding hopper and cover can tilt at a certain angle to facilitate the removal of stored materials and repair in the crushing chamber. The material enters the crushing chamber from the hopper and undergoes impact and shear through the relative motion between the rotating knife and the fixed knife to obtain crushing. After the centrifugal action of rotation, the material automatically flows to the outlet. If the user needs to change the discharge size, they can change the discharge size by replacing the corresponding specifications of the screen at the discharge port at the bottom of the machine.




Company Overview




why choose us
Jiangsu Hanyoo Pharmatech Co.,Ltd.is a high technology enterprise which has strong research,production, sales and service team.We are specialized in providing the first class packaging solution and packaging equipment for food,pills,cosmetics electronics industrials.More than 20 years R&D experience in the automation equipment researching and production.
The main products of our company are blister packaging machines, counting machines,cartoning machines, granulator, coating machine, blending machine etc.We have a number of inventions patented technology,with leading R&D team, with a variety of high-precision processing equipment and quality testing team to make assurance of product quality . We also have a pre-sale consulting packaging solution consulting, and worker training service, which strive to provide star service.The company passed SGS and IS9001:2016 certification, the products passed through the EU CE certification. We also have import and export right.
Now, with the efforts of all staff in Hanyoo, our products sold to more than 30 provinces in China and exported to over than 100 countries in the world such as,The United States,Canada,Russia,Britain,Germany,Spain,Malaysia, Indonesia,Thailand,India, Brazil and other dozens of countries and regions,and we won good reputation and credibility.






Packaging & Shipping




FAQ



Q1: Where is your factory? How can I visit your factory?
A1: Our factory is located in Nanjing China. We are warmly welcome you to visit the production base if you have a travel plan.

Q2: How can I know your machine is designed for my product?
A2: If you don't mind, you can send us material sample and we test it on the machine. During that time, we will take video and clear ,pictures for your reference. If possible, we even can hold video conversation online with you.

Q3: How can I trust you for the first transaction?
A3: Please note that our above business licenses and certificates. And if you don't trust us, we can use Alibaba Trade Assurance service. it will protect your money during the whole transaction.

Q4: How about the after service and guarantee period?
A4: We make the warranty of 12 months from the machine's arrival in buyer's facility. With a professional team of
experienced technicians, we can serve abroad and do the best after-sale service to assure the machine's perfect operation.

Q5: How can we contact you?
A5: Please find the contact information on this page, Please click to send us inquiry!
