Jindex планшетный роутер режущий станок резак шаблона пластиковая доска ПВХ акрил фрезерный
- Категория: Paper Production Machinery >>>
- Поставщик: Shenzhen,Jindex,Stock,Co.,Ltd.
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Sep-16-2025 | 0.90 $* | 0.43 $* |
| Aug-16-2025 | 0.83 $* | 0.24 $* |
| Jul-16-2025 | 0.82 $* | 0.98 $* |
| Jun-16-2025 | 0.50 $* | 0.80 $* |
| May-16-2025 | 0.87 $* | 0.99 $* |
| Apr-16-2025 | 0.56 $* | 0.62 $* |
| Mar-16-2025 | 0.35 $* | 0.49 $* |
| Feb-16-2025 | 0.56 $* | 0.55 $* |
| Jan-16-2025 | 0.37 $* | 0.48 $* |
Характеристики
Configuration B: Engraved head+pen head+knife head

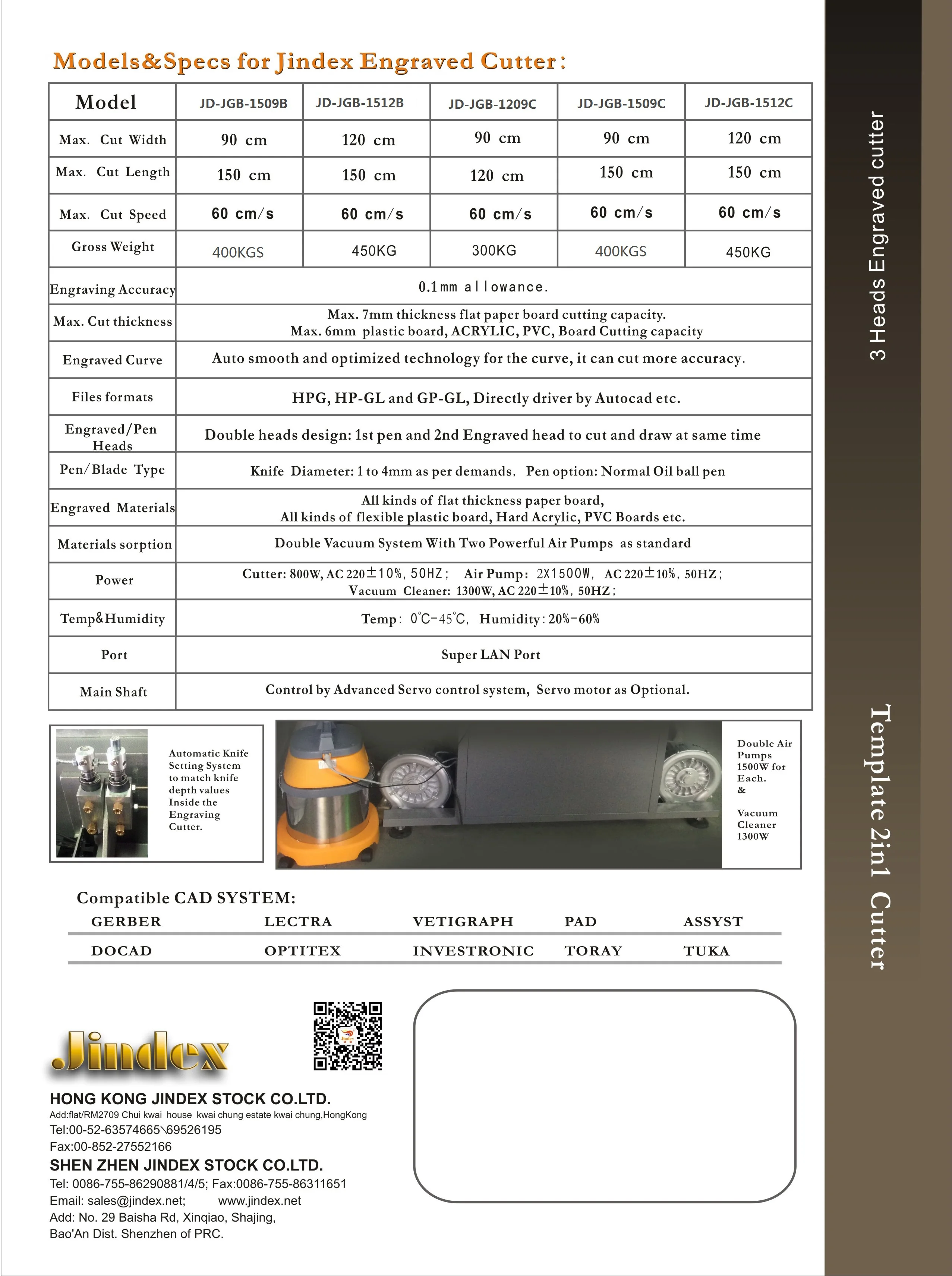

Technical information/model | JD-JGB-1209B |
Cutting area | 120*90 CM |
Max Cut Speed | 60 cm/s |
Gross Weight | 350KG |
Cutting Accuracy | 0.1 mm |
Port | Super LAN Port |
Max. Cut Thickness | Max.7 MM thickness flat paper board cutting capacity. Max.6 MM plastic board, ACRYLIC, PVC,Board Cutting Capacity. |
Cut Curve | Auto Smooth And Optimized technology for the curve, it can cut more accuracy |
Files Formats | HP-GL and GP-GL , Directly driver by autocad etc. |

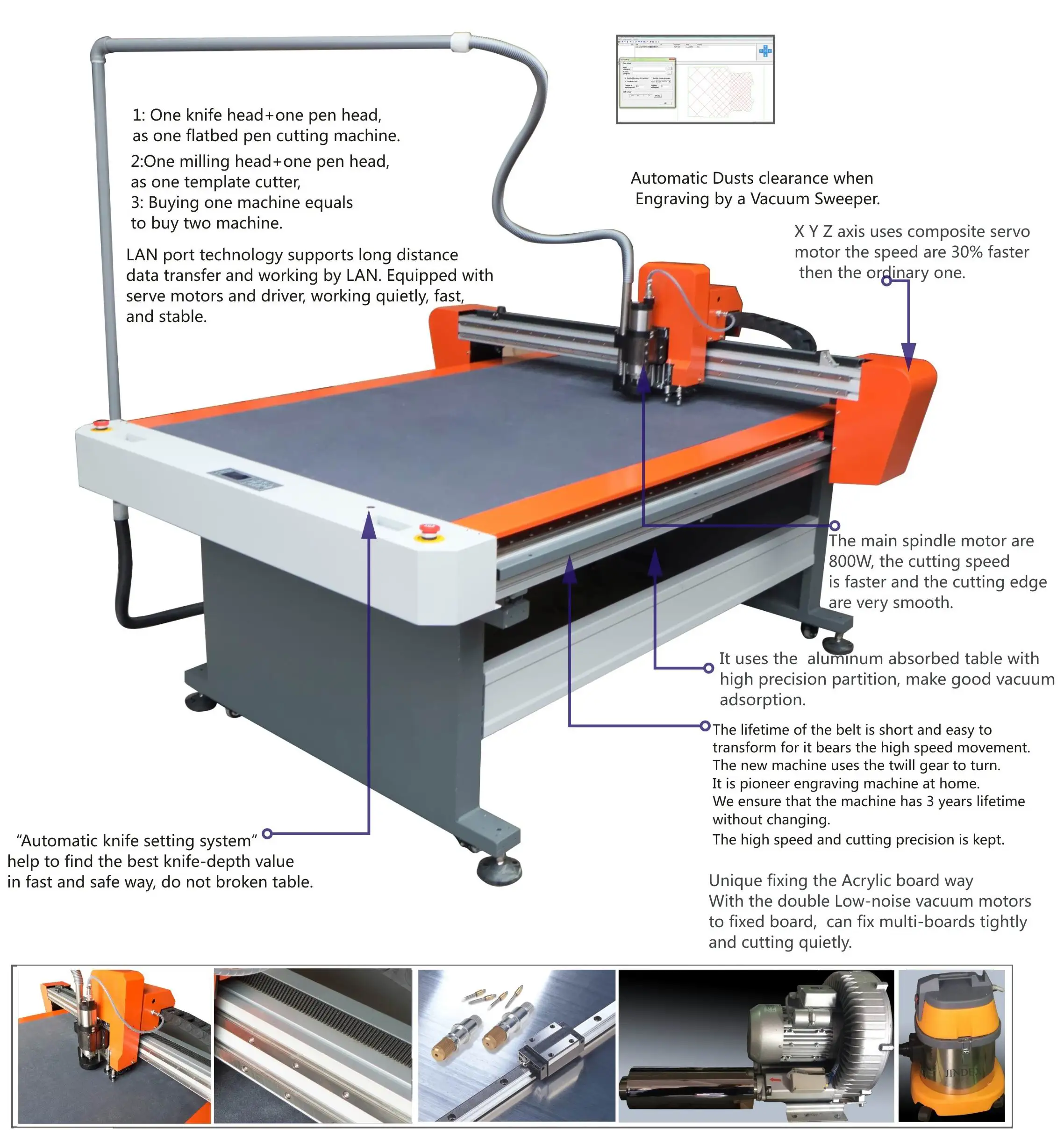

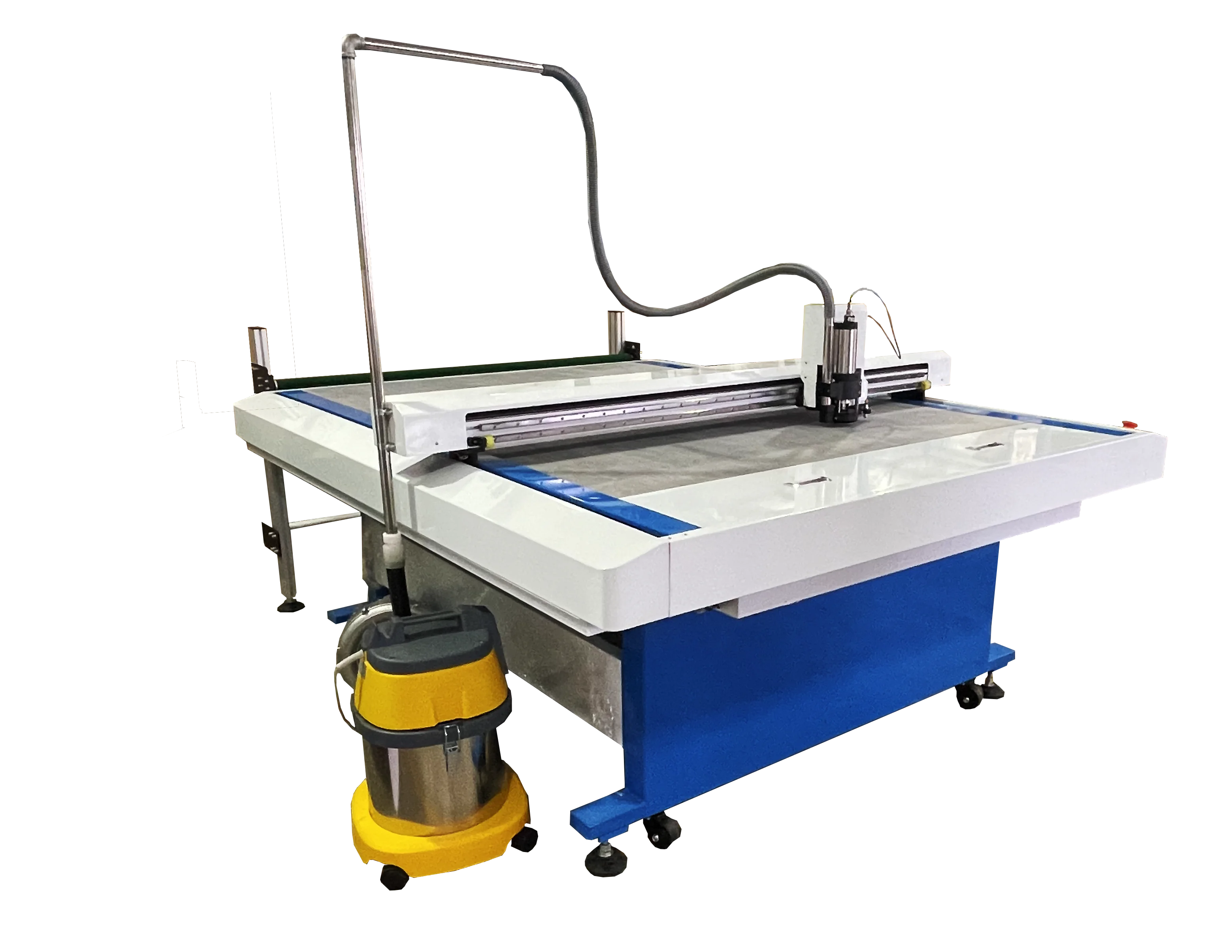

Jindex Smart Flatbed Template Cutter
Engraved/Pen Heads | Configuration A: Engraved head+ pen head ， Configuration B: Engraved head+pen head+knife head， Configuration C: Engraved head+pen head+knife head+paper feeding stand |
Knife Diameter | 1 to 4mm as per demands, Pen option: Normal Oil ball pen |
Cut Materials | All kinds of flat thickness paper board, All kinds of flexible plastic board, Hard Acrylic, PVC Boards etc. |
Materials sorption | Double Vacuum System With Two Powerful Air Pumps as standard |
Supply | Cutter：800W AC 220±10%，50HZ； Air Pump：2x1.5KW AC 220±10%； Vacuum Cleaner：1.3KW，AC 220V |
Temp&Humidity | Temp 0℃ 45℃ Humidity：20% 60%RH |
Main Shaft | Control by Advanced Servo control system, Servo motor as Optional. |

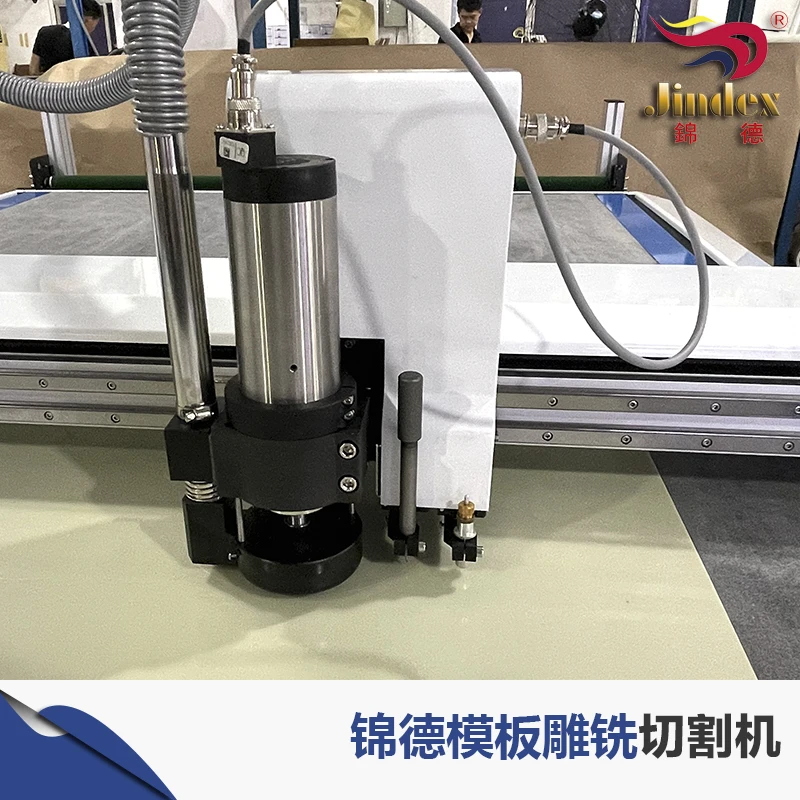

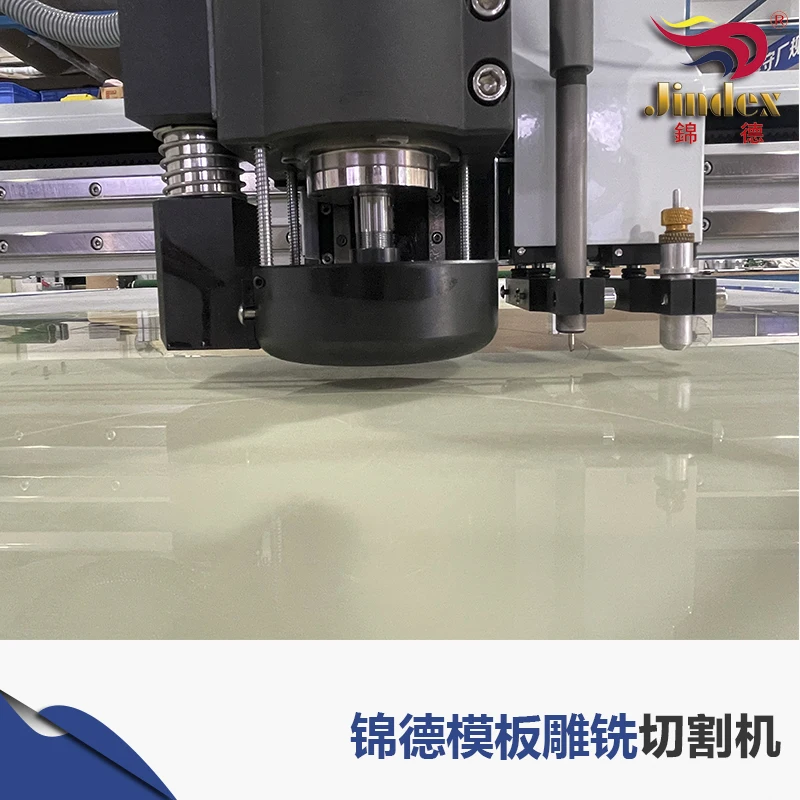

Engraving & cut & pen
High precision linear guide rail
Double suction vacuum pump static intensity
Powerful vacuum cleaner
2.“Automatic knife setting system”help to find best knife-depth value as change to new or different knife in a second fully automatically
3.Net mouth technology to support the long distance data transmission and network engraving and milling, equipped with servo motors and drives, work quiet, fast and stable.
4.Professional Template design cutting software allow scanning engraving all kind of shape gaps
We Will Pack Machine By Carton Or Wooden .
We Will Ship Machine By Sea After Receiving Payment 7-14 Working Days.
If You Need More Quickly, Also Can Ship By Air. But Will Cost More Expensive.
If Small Goods Or Documents , We Can Ship By DHL.
More Quantity Need Consultation .
Shen Zhen Jindex Stock Co., Ltd. as high-technology company in professional R&D, manufacturer, sales and after service in CAD/CAM fields, that’s globally advanced and smart auto cutting machine manufacturer with full production lines for soft material and sales in 60 different countries oversea.
Jindex senior R&D and production people have nearly 20 years experience in the high-tech CAD/CAM industry. It has created a high-quality service team to serve nearly 10,000 customers at home and abroad after nearly ten years of development. Thanks to the praise of customers, we will work harder!worldwide.
Satisfactory Service
Comprehensive technicalguidance
Diversifiedservice forms
24 hours free technical support
4S service network all over the country.
Everystaff gets a professional training
