3 в 1 токарный станок сверлильный комбинированный многоцелевой мини-станок


Поделиться:


Цена:480,00 $*

Количество:



Описание и отзывы


Трекер стоимости

Месяц Минимальная цена Макс. стоимость
Sep-15-2025 571.95 $* 600.90 $*
Aug-15-2025 566.89 $* 594.60 $*
Jul-15-2025 475.38 $* 499.65 $*
Jun-15-2025 557.93 $* 585.86 $*
May-15-2025 485.1 $* 509.75 $*
Apr-15-2025 547.9 $* 574.92 $*
Mar-15-2025 542.12 $* 569.95 $*
Feb-15-2025 538.89 $* 565.83 $*
Jan-15-2025 533.13 $* 560.30 $*

Характеристики



HOME




Product Description



product-description_01

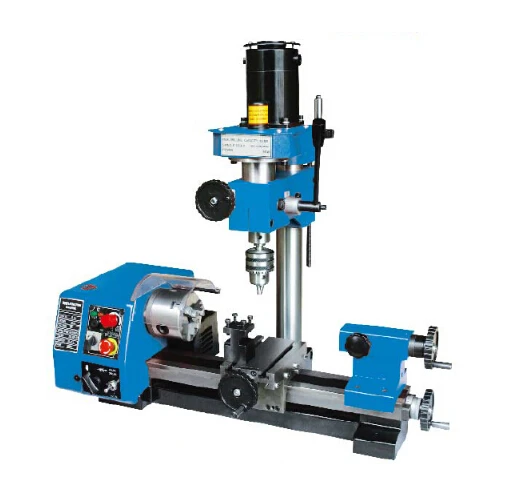

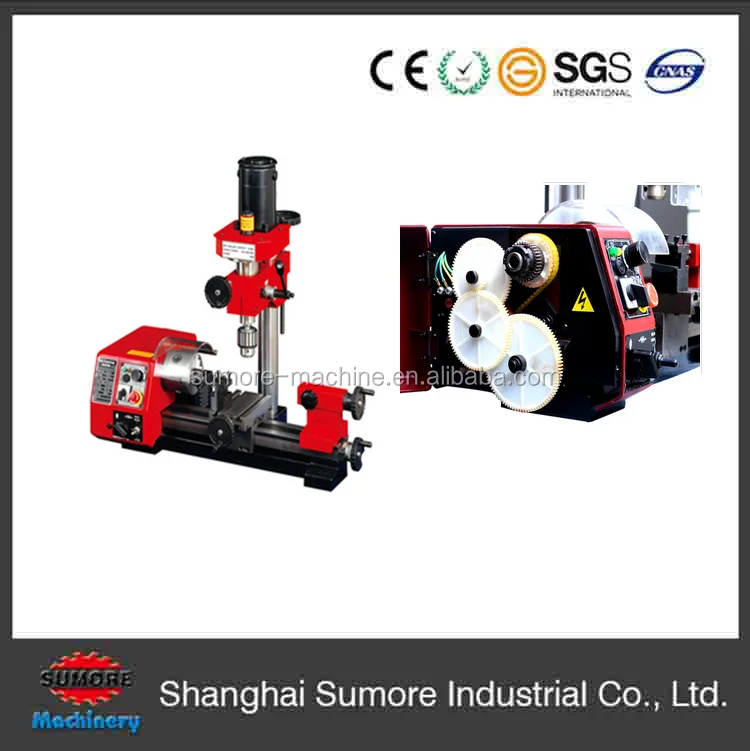

SP2301 Multi-purpose machine belongs to one of our most economic manual Multi-purpose machine. It is new condition not used Multi-purpose machine. And it is small in size and delicate in design. This Multi-purpose machine is made in China, but have very high quality. The main features are as below:


1. Chuck guard is with automatic power off.
2. Belt drive
3.Gear drive is available.
4. Brushless motor is available.
5. Widely used, simple to operate, and a wide range of processing. After high frequency quenching process and precision grinding of high-quality cast iron bed.
6. Good quality and reasonable factory price.
7. Made in China, supplier from Shanghai China.
8. Good after sale service.
9. Power supply could be customized 110v/220V.
10. All machines have to pass the checklist of the machine precision before shipment


sp2301 (2).jpg



  •    ·Mass production of a variety of small parts and high-speed machining of                  complex parts, diversity processing;

  •     Complex process can be done in one time

  •     Function: cutting ,drilling,Milling etc

  •    Small in size and delicate in design

  •     High Precision for Model Engineering

  •    Easy Operation & Convenient Reparations

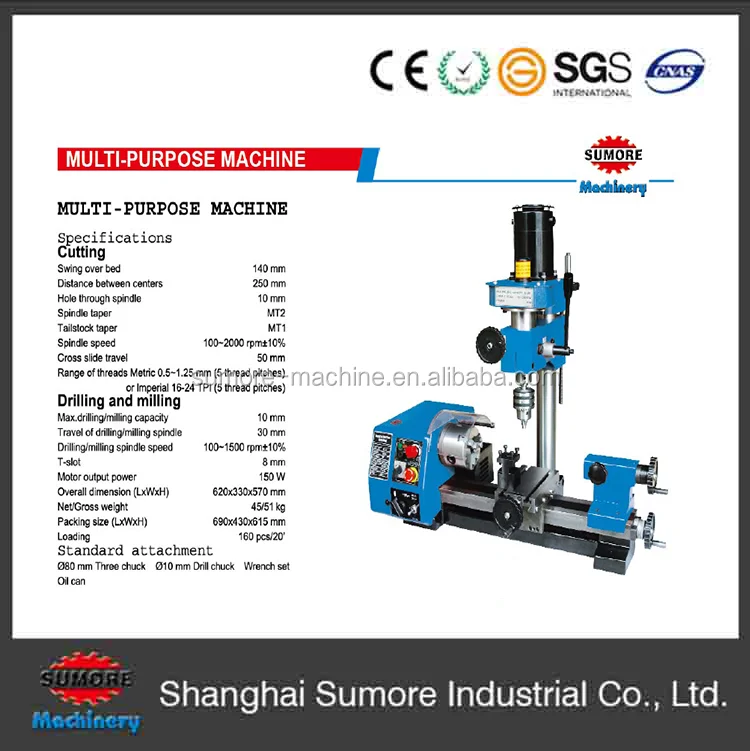

Technical Data



















































































































ModelSP2301

Turning
Swing over Bed140 mm
Distance Between Centers250 mm
Spindle Bore10 mm
Spindle TaperMT2
Range of Spindle Speeds100 - 2,000 rpm
Tailstock Quill Travel50 mm
Tailstock Quill TaperMT1
Range of Imperial Threads16 - 24 TPI
Range of Metric Threads0.5 - 1.25 mm

Drilling & Milling
Drilling Capacity10 mm
End Milling Capacity10 mm
Spindle Speed Range100 - 1,500 rpm
Spindle Travel30 mm
T-slot Width8 mm

Whole Machine
Motor Power150 w
Power SupplyCustomerized
Overall Dimension (LxWxH)620 x 330 x 570 mm
Packing Size (LxWxH)690 x 430 x 615 mm
Net Weight45 kg
Gross Weight51kg

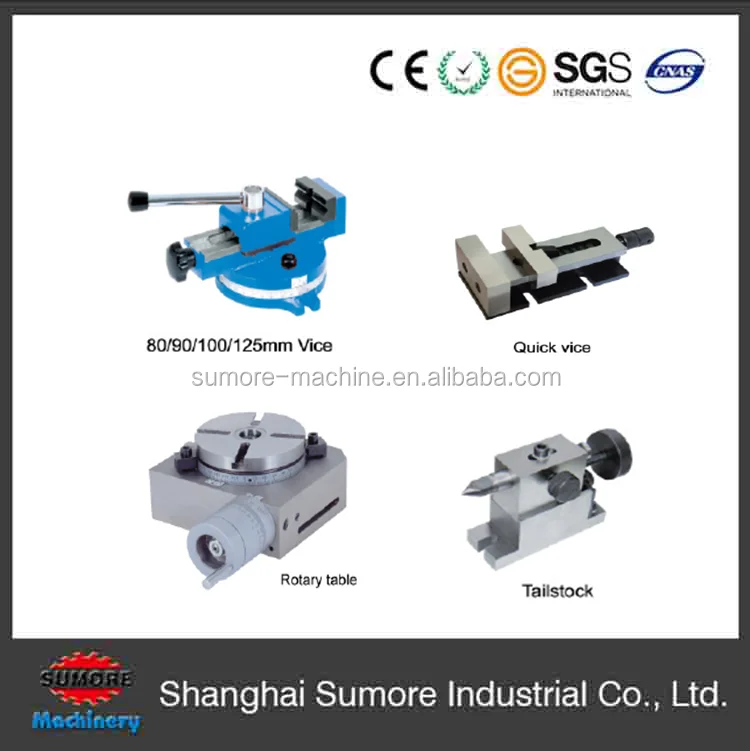

Accessories




































































Standard Accessories



Optional Accessories



3-jaw chuck

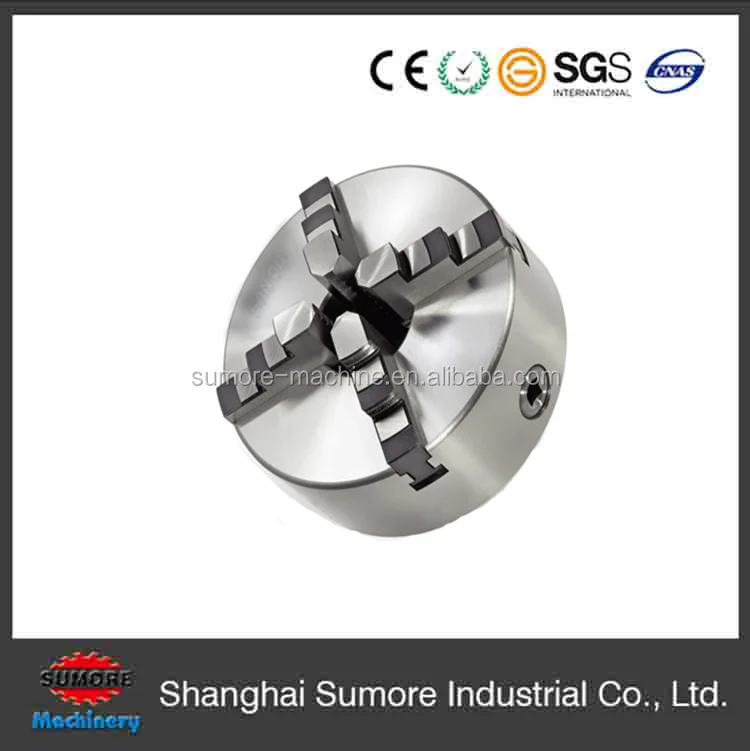

4-jaw Chuck



Dead Center



Face Plate



Cutting Tools



Face Plate Clamping Kit



Change Gear Set

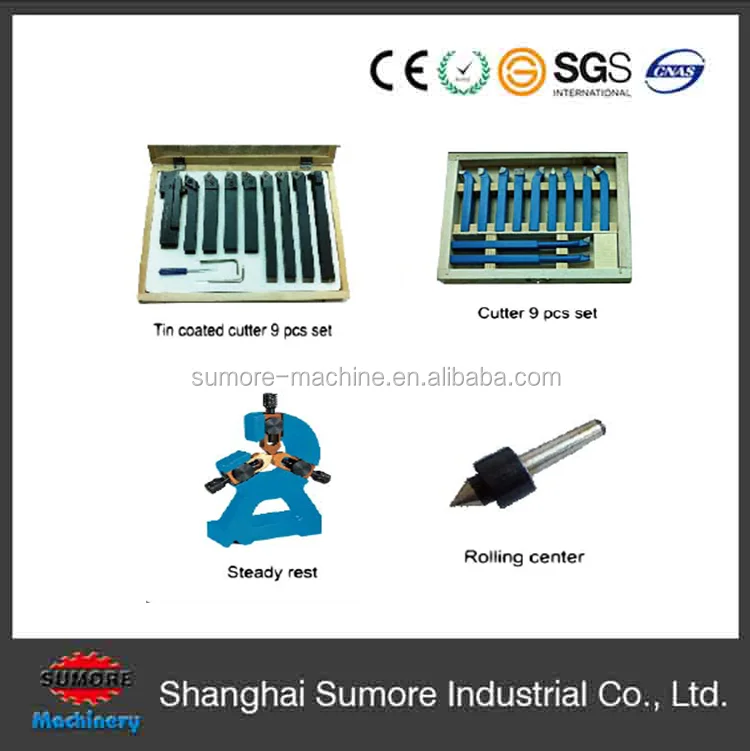

TiN Coated Cutting Tools & Replaceable Tips



Splash Guard



Steady Rest



Chuck Safety Guard



Follow Rest



Stand



Drill Chuck and Drill Arbor



Oil Tray



Live Center



Oil Gun



Quick Change Tool Post



Manual & Parts List



Clutch for Feed Rod




Lead Screw Guard


 Digital Readout Cutting Depth
 Coolant System
 Work Light




 tips banner 2.jpg


QQ20151214131332











Packaging & Shipping























Package

1 set/polywood case  (aluminum strips strengthen)


Minimum Order Quantity (MOQ)1 sets
Full Container Loading Quantity (FCL)120 sets/20’GP  (unitary; customerized packing available)
Delivery Time25 calendar days after receiving of advance / full payment






Illustrative Image Only





multi-purpos machine
