Полностью автоматический сварочный аппарат

Категория: Other Welding Equipment >>>
Поставщик: Shanghai,Oceana,Construction,Machinery,Co.,Ltd.

Цена:*

Количество:

Описание и отзывы

Трекер стоимости

Месяц	Минимальная цена	Макс. стоимость
Sep-15-2025	0.93 $*	0.51 $*
Aug-15-2025	0.56 $*	0.4 $*
Jul-15-2025	0.20 $*	0.85 $*
Jun-15-2025	0.90 $*	0.36 $*
May-15-2025	0.19 $*	0.30 $*
Apr-15-2025	0.91 $*	0.23 $*
Mar-15-2025	0.98 $*	0.53 $*
Feb-15-2025	0.51 $*	0.9 $*
Jan-15-2025	0.39 $*	0.51 $*

Характеристики

about us

Company Introduction

Professional / Focus / Reliable

Shanghai Oceana Construction Machinery Co.,Ltd ,We have our own manufacturing factory and also the export company----Oceana Trading&Service(Shanghai) Limited; we are specialized in Concrete Precast machinery.

Whole production line equipments of Concrete pipes, concrete piles, cement blocks, and concrete electric poles are supplied by our company.

We provide you a coordinated-process service of Designing, Manufacturing, Installing& Commissioning, and Programming for your factory layout, worker training. Our Machines have been sold well to Egypt, India, Vietnam, Algeria, Nigeria, and South Africa, Mexico, Australia and other countries and regions.

Besides, we also help all our customers find and sourcing what you want to buy from China. Our company insists on the principle of honesty and credibility, reliable quality, perfect service, and competitive price, we sincerely try our best to be your best business partner!

We devote ourselves to provide the best solution of the concrete pipe /poles/ pile production line! welcome you visit us.

Product Description

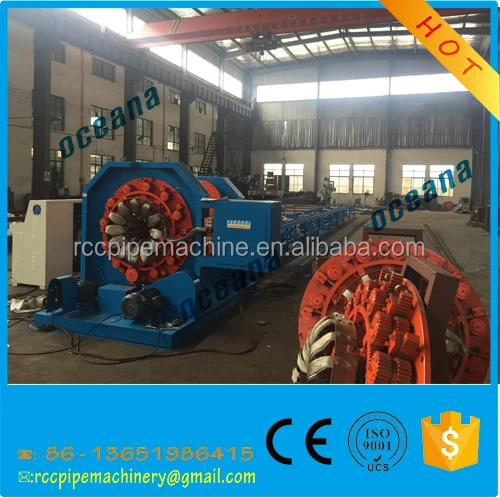

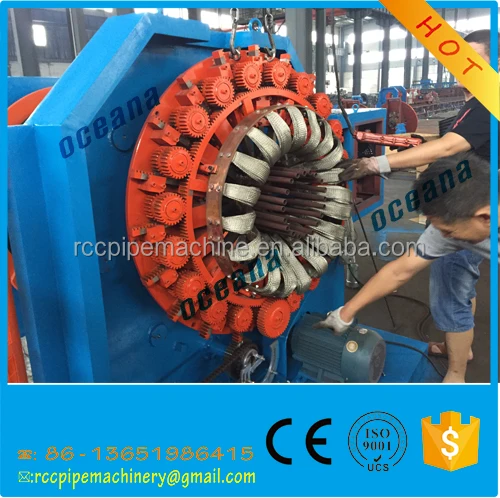

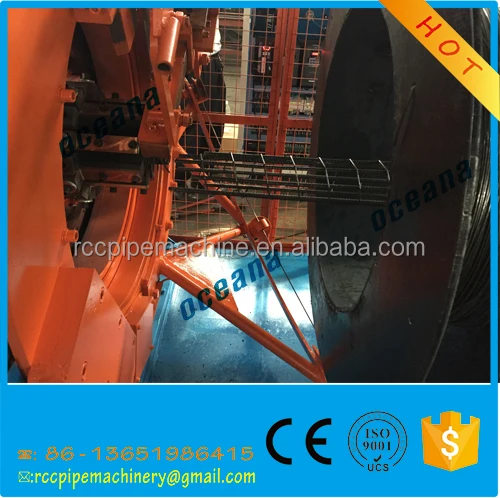

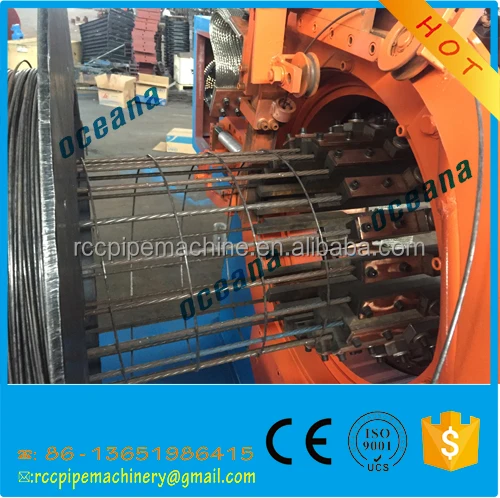

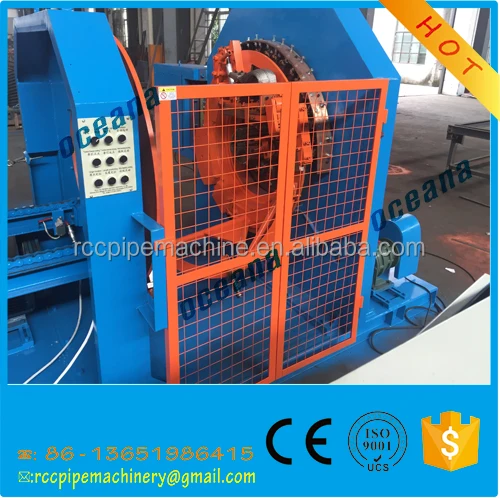

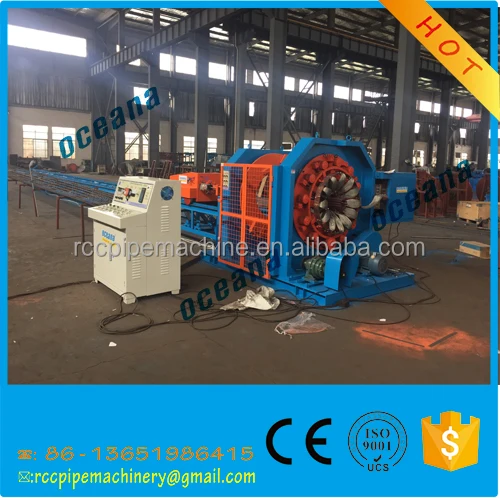

CNC automatic Concrete reinforcing pile cage welding machine 300-600mm

Brief Introduction:

Full -automatic pile cage welding machine is the most necessary equipment for the pre-stressed concrete piles production line. This machine are widely applied for the precast, pre-stressed piles technology cage forming. And it is the ideal machine for the PHC piles in the foundation of sea port, river port, bridge, high floor building and the factory shed. The price is the only the 20% of western machines.

1. Machine Model:

GZGH300-600AC, GZGH500-800AC , GZGH800-1200AC

2. Machine Composition:

1) Pneumatic support frame by mechanical driving system;

2) Main machine welder and steel bar supplying system;

3) Finished cage end frame conveying system;

4) Special electric control cabinet system.

1410526430595_hz-fileserver-upload-08_3054927

Technical Parameters

1. Technical data details:

Parameter Items	GZGH300-600AC	GZGH500-800AC	GZGH800-1200AC
1)cage diameter	300-600mm	500-800mm	800-1200mm
2)Length	7-12m	7-15m	7-15m
3) steel bar no.	6,7,10(customizable)	7,10,12(customizable)	10,12,14(customizable)
4)steel bar	7-13mm	7-13mm	7-13mm
5)cage pitch	30-120mm	30-120mm	30-120mm
6)motor	3*2.2kw	3*3kw	3*5kw
7)transformer	200KVA	250KVA	300KVA
8)Speed	0-60 rpm	0-60 rpm	0-60 rpm
9)cooling	Air cooling	Air cooling	Air cooling
10) Power	415V,50HZ	415V,50HZ	415V,50HZ

Features:

Our machine use the machine and man interface, the cage length, pitch, close winding can be reset into the Micro-computer. Easy to learn and operate;
The main machine use the oil immersed gear wheel driving system,
Adopt the high AC welding technology, make the electric circuit simple, low failure rate, and welding spot is more solid, also save electricity;
Variable frequency speed control system, longer using life;
Steel Spiral wire rolling tray, more fast and convenient.

Customer
