Лидер продаж прочное качество оборудование для бурения скважин на глубине 200
- Категория: Mine Drilling Rig >>>
- Поставщик: Zhengzhou,Kaishan,Mechanical,&,Electrical,Equipment,Co.,Ltd.
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Sep-18-2025 | 60690.8 $* | 63725.2 $* |
| Aug-18-2025 | 60180.30 $* | 63189.53 $* |
| Jul-18-2025 | 50490.48 $* | 53015.66 $* |
| Jun-18-2025 | 59160.96 $* | 62118.48 $* |
| May-18-2025 | 51510.52 $* | 54086.64 $* |
| Apr-18-2025 | 58140.18 $* | 61047.39 $* |
| Mar-18-2025 | 57630.26 $* | 60512.98 $* |
| Feb-18-2025 | 57120.96 $* | 59976.51 $* |
| Jan-18-2025 | 56610.48 $* | 59441.94 $* |
Характеристики
Hot Selling and Durable Quality 200M Depth Truck Mounted Water Borewell Drill Equipment for Civil Well Project
Product Shows

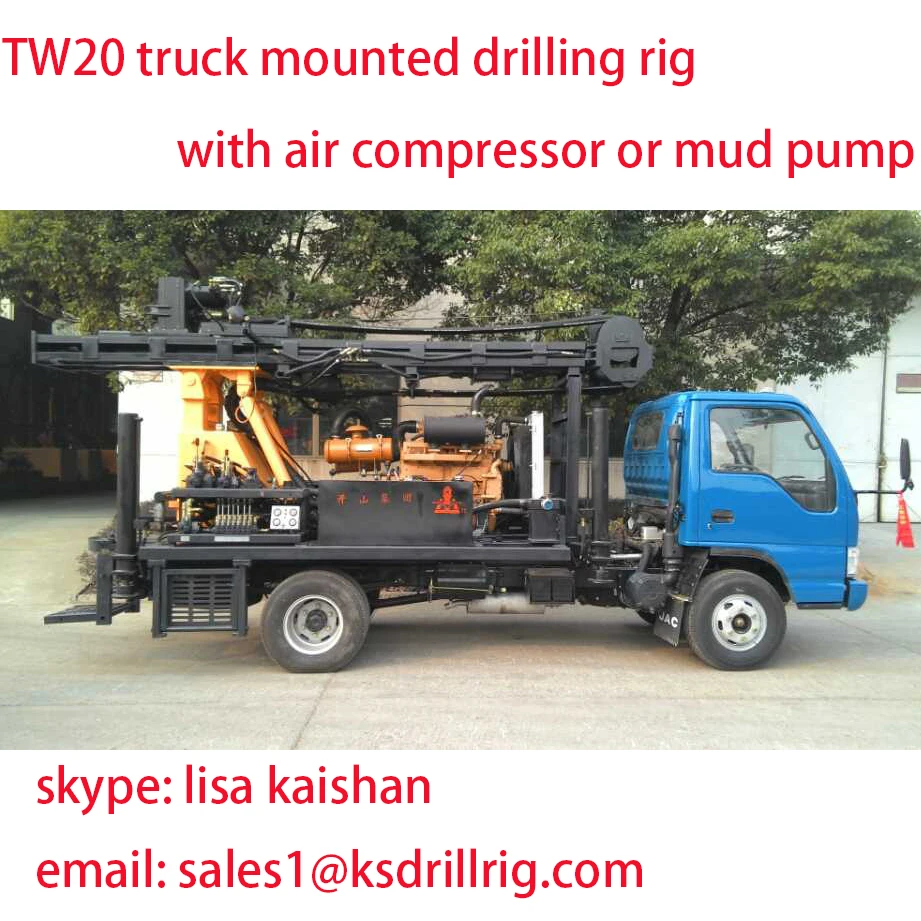

1.Picture of used truck mounted water well drilling rig KW20
Technology
KW20 truck-mounted well drilling machine | |
| Whole weight of the drilling rig | 10000 KGS |
| Dimension of the drilling rig | Working: 7900*2500*7000mm |
| Transporting:8500*2450*3500mm | |
| Technical parameter of the KW20 water well drilling equipment | |
| Stroke of hydraulic leg cylinder | 1000mm (max 1500mm) |
| Drilling depth | 200m |
| Hole diameter | 4~10inch (Down the hole drilling) 4~20inch (Mud drilling) |
| Working pressure | 1.05~2.46Mpa |
| Air consumption | 16~30m3/min |
| Drilling rod | 89mm diameter, 3000mm long Thread API 2 3/8 |
| Stroke of feeding hydraulic cylinder | 1750mm |
| Feeding force | 30000N |
| Lifting force | 70000N |
| Rotating speed | 50rpm(slow), 100rpm(quick) |
| Rotating torque | 3200N.m |
| Diesel Engine of the KW20 water well drilling rig | |
| Model | YC6B125-K10, |
| Rated power | 92KW/2200RPM |
| Peak torque | 330N.m/1500rpm |
| Displacement | 3.9L |
| Bore | 102mm |
| Stroke | 120mm |
| Aspiration | Turbocharged |
| Technical parameter of 4*4 Truck undercarriage | |
| Model | Dongfeng, EQ1093F6D |
| Color | Blue |
| Fuel | Diesel oil |
| Diesel engine | Cummins EQB160-20 5880ml/118KW |
| Dimension | 7060*2470*2475mm |
| Wheelbase | 3950mm |
| Front wheel base / Back wheel base | 1810/1800mm |
| Approach angle / departure angle | 42.5/26 º |
| Front overhang / rear overhang | 1065/1895 |
| Max working speed | 94km/h |
| Axle NO. | 2 |
| Tyre Spec and NO. | 9.00-20 |
| Mud pump | |
| Model | BW-250 |
| Stroke | 100mm |
| Bore | 80mm/65mm |
| Pump speed(s.p.m) | 200 116 72 42/ 200 116 72 42 |
| Output volume (l.p.m) | 250 145 90 52 / 116 96 60 35 |
| Discharge pressure (Mpa) | 2.5 4.5 6.0 6.0 / 4.0 6.0 7.0 7.0 |
| Input power/speed (kw/r.p.m) | 15/1500 |
| Inside diameter of suction hose (mm) | 76 |
| Inside diameter of discharge (mm) | 51 |

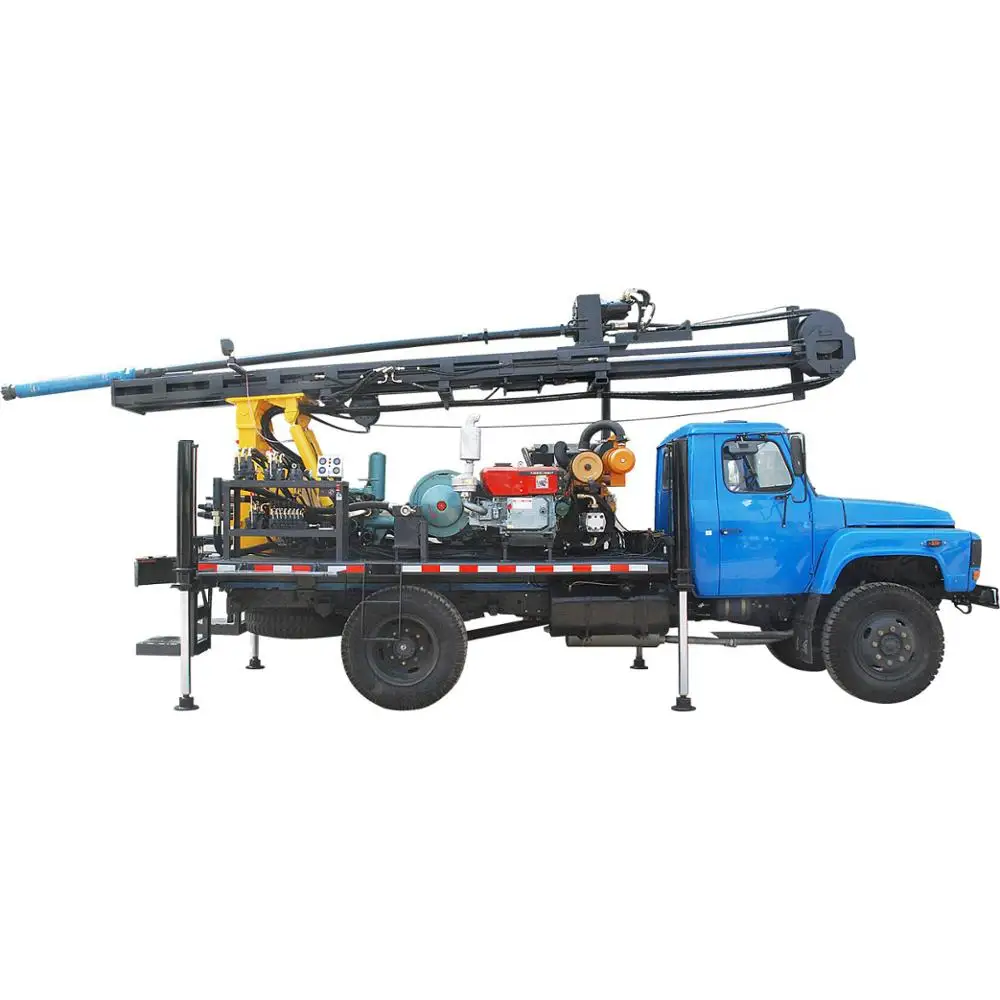

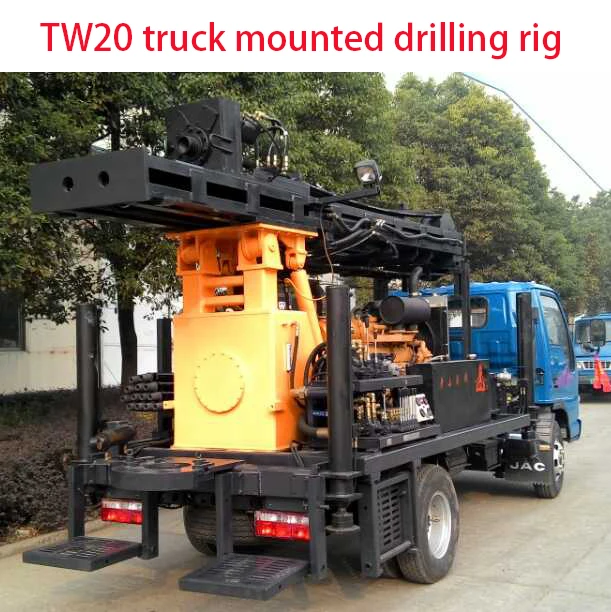

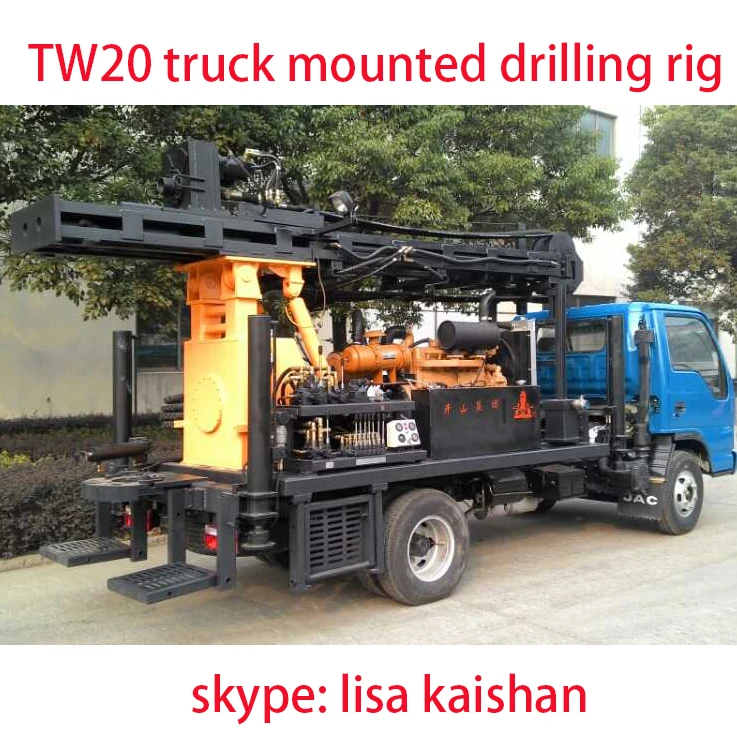

Products Pictures
KW20 is a kind of high efficiency and poly-function drilling machinery. mount on a 4 wheel drive truck (can be also mount on 6*2, 6*4 truck), with mud pump.
It is mainly used for drilling well, agricultural irrigative well, geothermal well system and other well drilling, especially for coteau and projects which takes water from underground.
This truck drill which is equipped with big torque hydraulic pump and big dia. Hydraulic cylinder, uses new hydraulic technical.
KW20 adopt 4*4 truck, excellent cross-country ability. unattached design, Combined localizer, suit for different diameter rod and hammer. Hydraulic winch system, reduce the labour intensity when install and break the drilling rod.
KW Series truck mounted water well drilling rig is a highly versatile drilling equipment, which is mainly applied to drill wells, irrigation wells, ground source heat pump wells and other uses of the borehole, especially for mountain and rock formations of the water works. The rig can be performed on different strata Chuanzao work, maximum drilling diameter of up to 300mm. The rig using new hydraulic technology, supporting high torque hydraulic motor revolution and promote large-diameter hydraulic cylinders, hydraulic systems of plants to provide power for the engine, two connection of compressed air filter and air intake design, prolong engine life. The unique pump design for easy maintenance and reduce maintenance costs. Centralized control of the hydraulic console for easy operation. The series rig excavator crawler chassis, off-road performance is strong. Independent module design, can be easily mounted on the truck rigs, and increase their mobility. Two steps forward speed rotation and soil and rock formations to meet the needs of different Chuanzao. Modular locator, according to different types of pipe and the impactor to be adjusted replacement pallet, to ensure the centering positioning accuracy and reliability. Winch mechanism to facilitate lifting the drill pipe and the impactor, reduce labor intensity.
Company show
1.About us
We are located in Zhengzhou City, Henan Province, the Central area of China with convenient transportation access.
All of our products comply with international quality standards and are greatly appreciated in a variety of different markets throughout the world.We now have over 100 employees, an annual sales figure that exceeds USD 10 million and are currently exporting 45% of our production worldwide.
About Kai Shan Group:
1- Established in 1956 ,Specialized in truck mounted water well drilling rig line more than 50 years.
2- National Free-inspection Product.
3-Have advanced machining centers, automatic production line shape and heat treatment equipment setc 500 sets from the United Kingdom,United States,Japan,Germany etc.
4-Exported to Asia/South America/Mongolia/ Russia/ South-Africa etc . Have global customers.
5-Has got ISO900:2008 and many quality system certificates.
Hot Selling and Durable Quality 200M Depth Truck Mounted Water Borewell Drill Equipment for Civil Well Project
2.Certifications
3.The Exchanges
4. Our Market
20%North America
20%Southeast Asia
20%Mid East
20%Eastern Asia
Contact Information:
Dear Sir/Madam,
If you are interested in this type used truck mounted water well drilling rig,pls feel free to contact me, thanks
