Automatic heat tunnel shrink wrap machine



Consist of : 1. PM-1800 steam heat shrink tunnel

                      2.PM-1200 steam generator

                      3.Conveyor( 4m,with plastic belt)



Attention:

**1**The open size of the tunnel usually to be 33cm height and 12cm wide. other size are also available.

**2**There are several kinds of belt, width are different. 82mm, 102mm,114mm,152mm,175mm.

**3** The voltage of factory setting is 3 Phases,380V,50Hz. Other power requirements are also availabel, please tell us your demands.

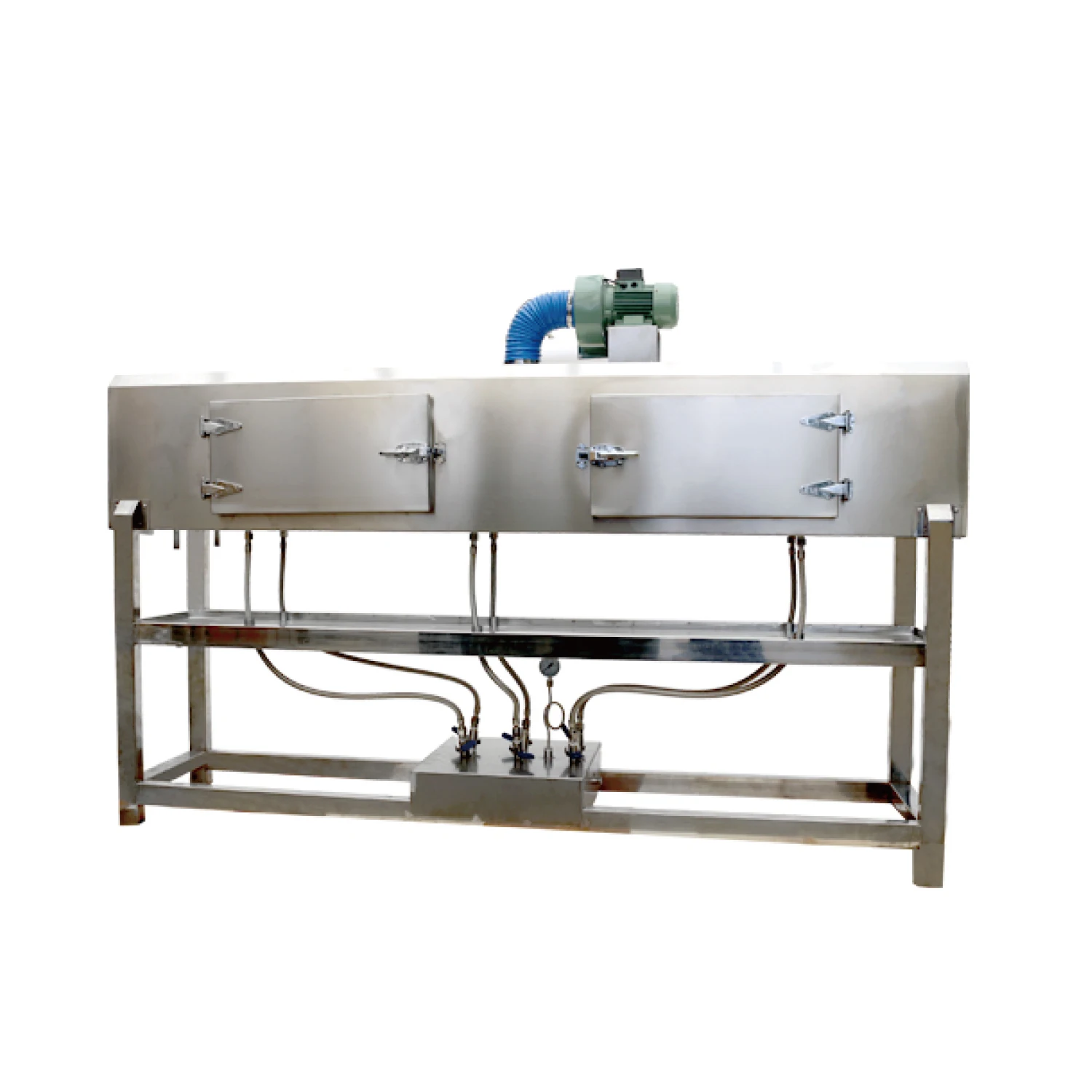

Features of  PM-1800 Steam Heating Shrinking Oven

1. PM-1800 Steam Heating Shrink Tunnel can be applied to different and irregular bottle types, e.g. round bottles, square and flat bottles.

2. It adopts a seamless tube, the distribution of low-pressure of steam drum and spouting method of steam are unified.

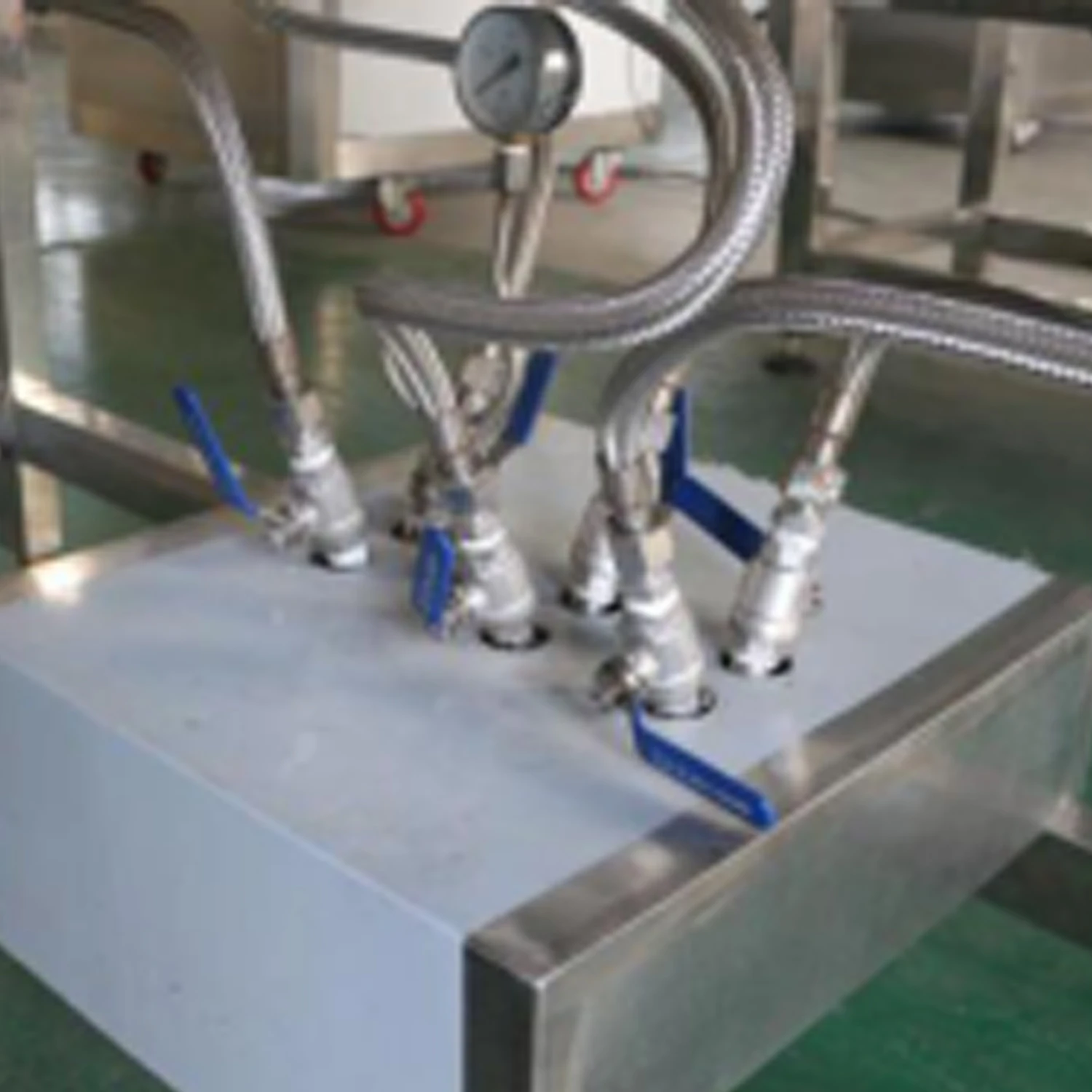

3. The steam nozzle is divided into three adjustable segments; the height, position, and steam output of each segment can be adjusted respectively, this guarantees a perfect shrinking effect.

4.The Whole machine is made of stainless steel with heat preservation, it not only saves the energy but also matches with the international safety standard.

5. The stainless steel defrosting tray collects condensed water. The whole machine adopts the waterproof design with the convenience of operation and maintenance.



Specifications

1.Stainless steel
2.Professionall manufacturer
3.Easy to adjust and maintain
4.International standards.
5.Energy saving



Special Manufacture

Based on the original configuration, double layer holding furnace is manufactured to take effect on energy saving and environmental protection.



Technical Parameter

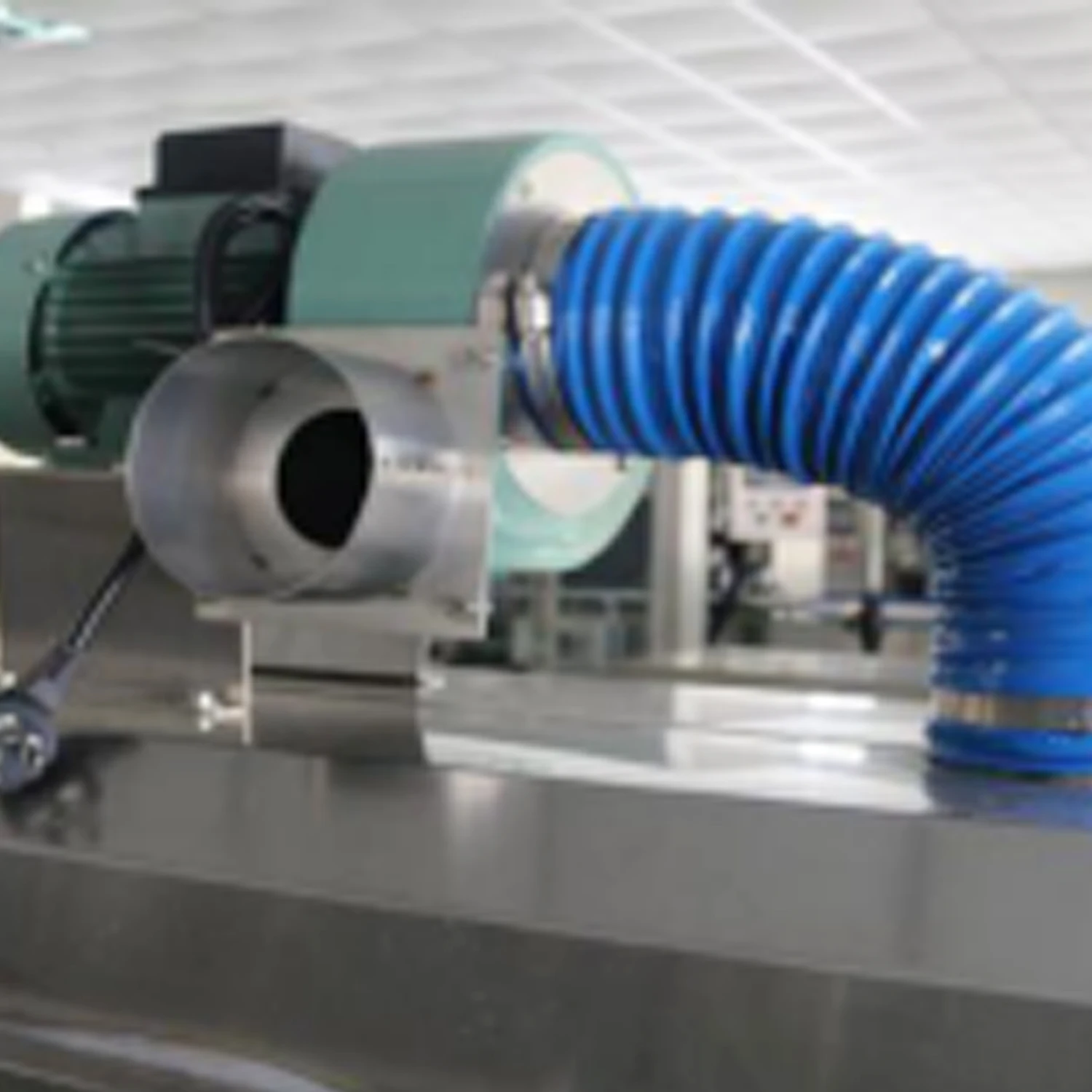

Input Power Supply of Blower	1220VAC 1.1kw
Input power Supply of Steam Generator	380V/50Hz
Working Pressure	≤0.1Mpa
Weight	150Kg
Steam consumption	10-20Kg/h
Size of the Oven	1800L*400W*450H
Transporting Speed	0-35m/min



Details Show











 Features

1) The water is fed into the series of wholly automatic electrical heating generators by high-pressure potential vortex pumps made of copper with short water-supply time and durable service.

2) A floating ball for liquid level is fixed in the water tank to automatically control the water inlet.

3) Working system is all automatically controlled.After connecting the water supply and power supply for 5 minutes or so, it can output the steam continuously with high working efficiency.



Technical Parameter



Input power supply	3380V
Input Power	18KW/36KW
Steam Pressure	0.25~0.4Mpa
Vapor Generator Consumptiom	24Kg/h;48Kg/h
Dimension	600L*550W*1200H
Weignt	96Kg





 Steam Generator
