The Newest Design OGM fuel flowmeter oil oval gear flow

                                                                                                        ---------------As  gold supplier in 9 consecutive years

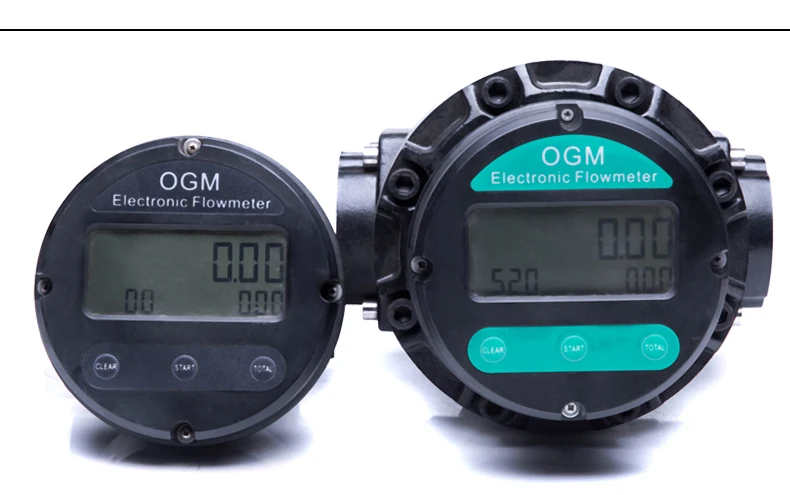

      The OGM oil oval gear flow meter designed of the product control panel, with a full-featured, simple structure, convenient operation. Can be widely used in petroleum, chemical, pharmaceutical, transportation, food to be industrial and commercial. Screen digital LCD monitor, the screen is divided into three rows: the top row as significant units of measurement, the middle row was deemed current measurement data, the next line as significant single cumulative data.

    The Principle

1.  flow meter installed in the oil port side of the pump, if installed in the oil inlet filter pressure damage, so that the negative pressure pump increases, the flowmeter is not accurate, the pump import and export also require completely sealed, otherwise it would not be accurate flowmeter.
2.  At the front end of the meter should be installed filters, not greater than 0.2MM of particles through, in order to prevent the meter because the particles do not go face stuck or blocked. Filters should be cleaned regularly.
3.  The meter should be fitted before the one-way valve to the pipe liquid flow in only one direction, to prevent reverse gear meter, flow meter or idling inaccurate measurement.
4. The flow rate should be properly installed, the meter was up screen should be 90 degrees or installation, you can not install diagonally.

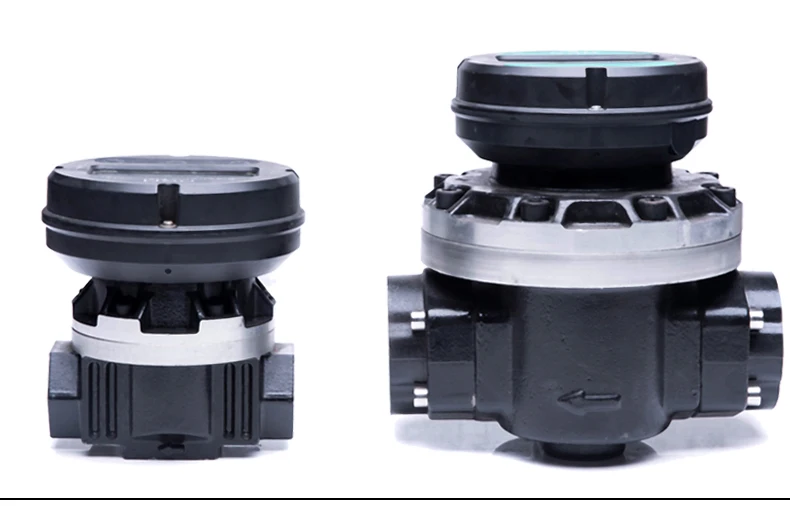

5.  The meter should be installed so that the direction shown by the arrow on the meter housing and the liquid in the same direction, the installation location should be noted that to facilitate reading.
6. The liquid flow meter and the pressure loss is proportional to the viscosity of the liquid increases, the pressure loss is also increased

                                                                                             --------Without quality complaints in 3 consecutive years

                                                                                                    ---------More 30 years’ technology to focus details

                                                                                                                  --------80% instruments is for exporting

1) Five digit total, with floating point from 0.01to 99999.99, 7 digital non-resettable totalizer;
2) 3.6V lithium battery;

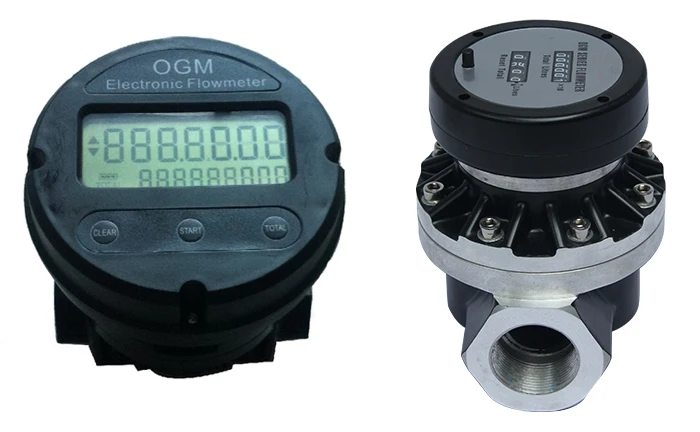

3) Mechanical display and LCD display;
4) Pulse out and low pressure drop.

5)The OGM series  oval gear rotor positive displacement flow meters will measure your high or varying viscosity liquids.

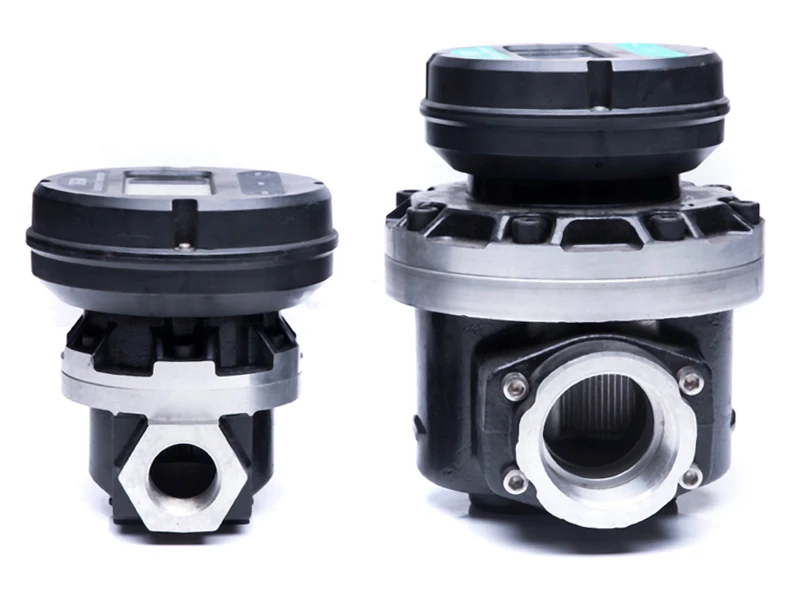

6)The body takes high pressure and is available in either aluminum PPS;

7)The meter can be supplier with a low cost mechanical totaliser or an LCD display mounted on the top of the flow meters.

8)We have a range of instrument to suit all your requirements;

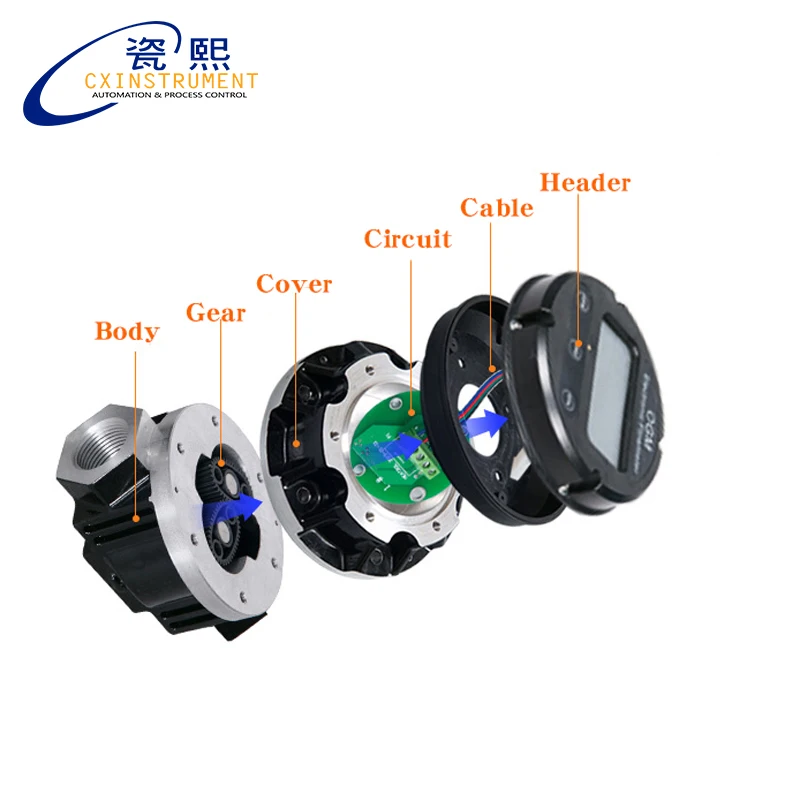

9)The rotors are either  ryton(PPS) or stainless steel making it suitable for a wide range of fuels ,oils,and chemical.
