Rohs High quality 8Pin SMT type smart card reader connector

0131xAAx09A	0011xAAx09x
XNT-0081BAAS06A	XNT-0111AAAS06A
0121AAAA07A	XNT-6S0618GS05AR003

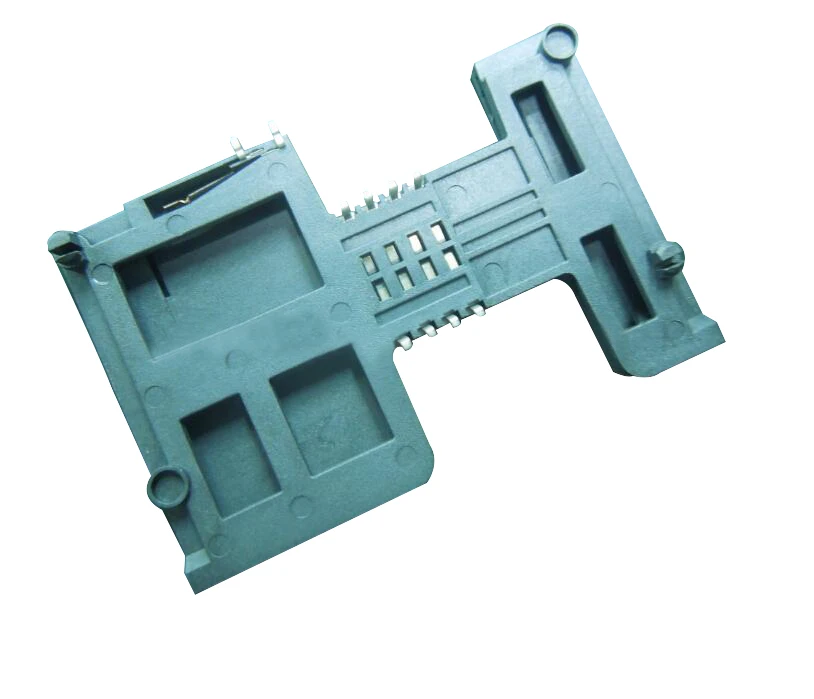

Rohs High quality 8Pin SMT type smart card reader connector

Specification



Item	Rohs High quality 8Pin SMT type smart card reader connector
Model	XNT-SMART-140192
Current Rating	0.5A AC/DC
Voltage Rating	5V AC/DC
Operation Temperature	-55℃ ~ +85℃
Storage Temperature	-55℃ ~ +85℃
Contact Resistance	100m ohms max.
Insulation Resistance	500M ohms min./500 VDC
Durability	5000 cycles
SMT Peak Temperature	260 ± 5℃ 10S
Dielectric Stength	250V AC for 1 minutes
Coplanarity	0.10mm MAX



Material

Insulator: LCP, UL 94V-0

Terminal: copper alloy

Shell: SUS



Note



1.Apply on mobile phone, ipad, GPS Navigator, LCD TV etc.
2.Process :  IQC incoming inspection-->Warehouse-->check material by line leader and IPQC-->IPQC inspection-->FQC inspection-->OQC inspection
3.Process Flow:  Check material by line leader & IPQC-->Assemble terminal-->Fold up carrier-->Assemble CD pin-->Electrical test-->Check Coplanarity-->Check true position-->appearance-->FQC check-->Warehouse

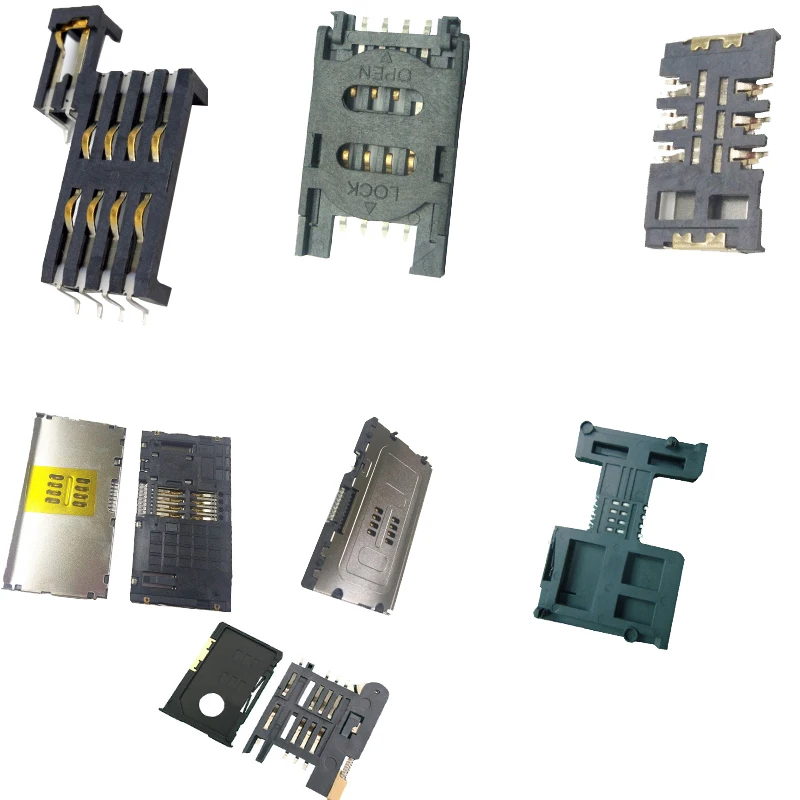

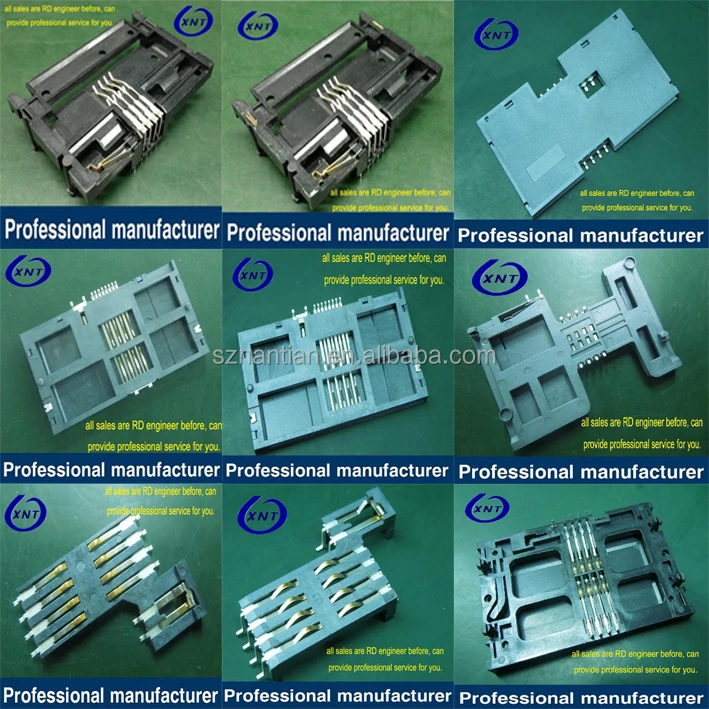

Pictures



Drawing













Trade



MOQ: 1000pcs smart IC card connector 8pin with switch for pos socket connectort

Trade Terms: FOB HK; Ex-work
Payment Terms: T/T, L/C, Western Union;
Delivery Time: Within 7 working days after receiving deposit.
Packing: 1. Tape reel package;

2. Diameter of Reel: 13";

3. Cover Tape: Transparent;

4. Use K=K carton to prevent transport damage
Shipping: By sea, by air delivery or express such as DHL, TNT, UPS etc.



Service

 All of our sales are RD engineer before, can provide professional service for you!

Your inquiry related to our product & price will be replied within 12 hours.
Well-trained & experienced staff are to answer all your inquiries in English of course.
OEM & ODM projects are highly welcomed. We have strong R&D team here to help.
Your business relationship with us will be confidential to any third party.
Good after-sale service offered, please get back if you got question.



Refund & Replacement



1. We provide 30 days warranty.
2. If the item you purchase from our store are not of perfected quality, that is they don't work electronically to manufacturers specifications, simply return them to us for replacement or refund.
3. If the items is defective, please notify us within 3 days of delivery.
4. Any items must be returned in their original condition to qualify for a refund or replacement.
5. The buyer is responsible for all the shipping cost incurred.



Company



1. XNT is a professional manufacturer who is focus on connector all the time, in every department, there are professional engineers (10 years on connector at least);
2. XNT have control plans for each product;
3. XNT have own brand "XNT" and can do OEM.



Why Choose Us?



Reliable quality, Very competitive price, Quick delivery.
--- Technical Support - Both before and after sales, having outstanding professionals.
--- OEM and ODM - Precise mold design & development is our core competence
--- Automation - Introduced latest automatic machines for assembly lines, cut the cost down and keep the quality steady more.
--- One-stop Solution – We manufacture connector. Besides we have a trading company as our another professional team which can help our clients to outsource high cost-effective electronic products in china.
