XSG Model Industrial Spin Flash Dryer Industrial Spin Dryer

1. Industrial flash dryer/Spin Dryer/Industrial Spin Dryer

2. Large capacity

3. Easy to operate, labor intensity is high

4. Easy to clean



XSG Industrial Spin Flash Dryer is widely used for drying materials such as paste, cake shape, powder, granules material, etc. It is a new type high drying efficiency and low energy consumption equipment that researched and developed by our company.

Hot air enters the stirring part of drying chamber from the bottom, material is stirred by stirring device and then the hot air exerts strong shearing, blowing, floating and rotating effect to material. Therefore material is crushed by centrifugal, shearing, impacting and friction effect. It strengthens the heat exchanging process. In the bottom of drying chamber, big and damp granules are crushed by stirring device, the particles with low moisture content and small size are lifted by rotary air stream, and be further dried. Gas and solid two phases rotary flow, inertia of solid phase is bigger than gas phase, the relative velocity between gas phase and solid phase is high, heat exchanging efficiency is strengthened, so the drying intensity of this machine is high.



XSG Industrial Flash Dryer Application

Ceramic industry: Kaolin, bentonite, clay, etc.

Foodstuff industry: Soybean protein, gelatinized starch, vinasse, triticum, wheat starch, etc.

Organics: Atrazine, lauric acid cadmium, benzoic acid, sodium oxalate, acetyl cellulose, etc.

Dyestuff: Anthraquinones, black iron oxide, indigo dye, butyrate, titanium oxide, zinc sulfide, various azo dye intermediates, etc.

Inorganic: Borax, calcium carbonate, hydrogen peroxide, etc.

Substance: Copper suifate, ferrix oxide, three antimony oxide, all kinds of metal salt, synthetic cryolite, etc.



Details of XSG Industrial Flash Drier





XSG Industrial Spin Flash Dryer Features

1. Different kinds of feeding device can be chose, feeding is continuous and stable, there is on bridge phenomenon.


2. There is special cooling device at the bottom of dryer, it can avoid the material deteriorate in the bottom high temperature area.


3. Special air sealing device and bearing cooling device and make the life of transmission device longer effectively.


4. There is special air distributing device, it reduces the resistance of equipment, and make the air speed in drying chamber be balanced.


5. There are classification rings and turbojet plates in the drying chamber, fineness and final moisture of product and be adjusted and controlled.


6. In the drying chamber air speed is fast, drying time is short, it can avoid material stick on the wall and deterioration effectively.

XSG Industrial Flash Dryer Technical parameters

Model	Diameter of chamber (mm)	Size of main machine(mm)	Power of main machine (Kw)	Air volume(m3/h)	Evaporated capacity (kg/h)	Occupied area (mm2)
XSG-2	200	250×800	0.75-2.2	300-800	10-20	3500×2500
XSG-3	300	400×300	3-4	600-1500	20-50	3800×2700
XSG-4	400	500×500	4-7.5	1250-2500	25-70	4000×3000
XSG-5	500	600×000	5.5-11	1500-4000	30-100	4200×3200
XSG-6	600	700×200	7.5-18.5	2500-5000	40-200	4250×3250
XSG-8	800	900×600	11-18.5	3000-8000	60-600	4500×3500
XSG-10	1000	1100×000	15-30	5000-12500	100-1000	4750×3750
XSG-12	1200	1300×200	15-37	10000-20000	150-1300	5000×4000
XSG-14	1400	1500×400	30-55	14000-27000	200-1600	5250×4250
XSG-16	1600	1700×1000	45-75	18700-36000	250-2000	5500×4500



Flow Chart of XSG Industrial Spin Flash Dryer

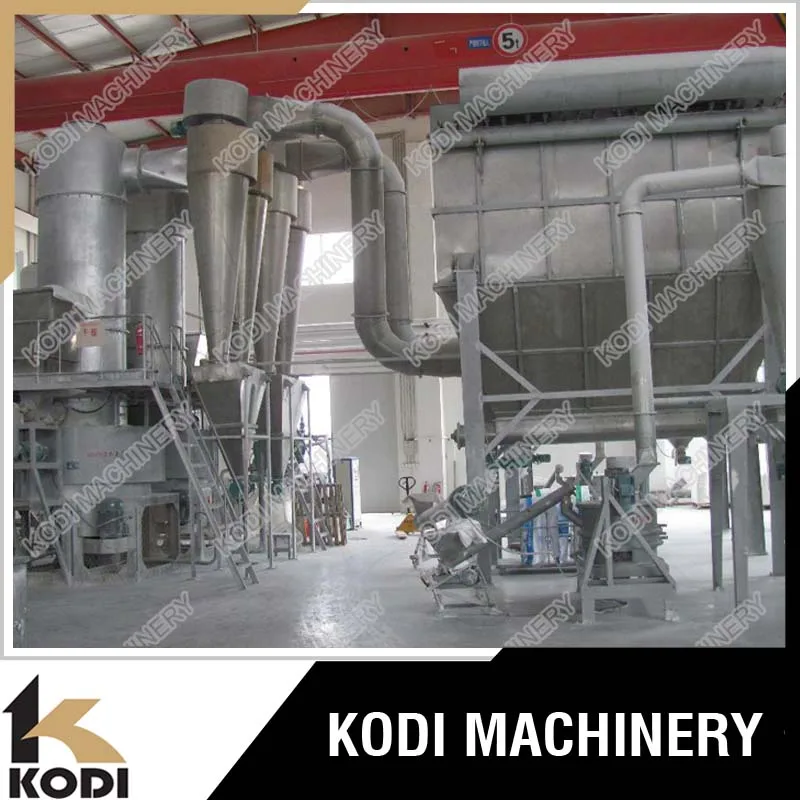

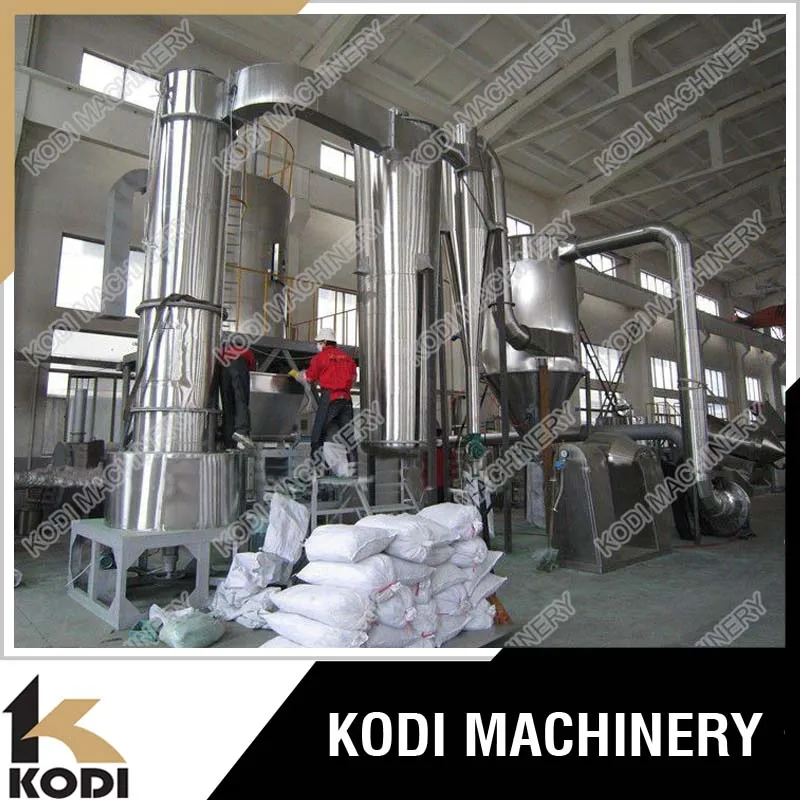

Successful Experience Overseas of KODI XSG Industrial Flash Drier

XSG Industrial flash dryer has a very mature technology and process, and KODI company has rich overseas site installation experience  and good after sale service .





•


  International high quality certification product chain





•


  Manufacturer, more reasonable price





•


  Solid technical support and after-sales service





•


  Uphold the principle of “Customer Supreme”( Balance payment after equipments run normally)





•


  Exports to more than 20 countries and regions, good customers feedback





•


  One-stop service, customized exclusive project feasibility report




Changzhou KODI Machinery Co., Ltd. located in the birthplace of China drying equipment----Zhenglu Industrial Park, Changzhou City, Jiangsu Province which is 150km away from Shanghai city, with a comfortable environment and convenient transportation access.



KODI company is a professional manufacture of drying machine, which include Seaweed processing machine, Seaweed drying machine (Cottonii to carrageenan, Agar agar ), LPG Spray dryer, Food spray dryer, industrial flash dryer/Spin Dryer/ Industrial Spin Dryer, Flavor spray dryer (Cocoa, Maltdextrin,Gum Acacia), Lab Spray dryer, Spray drying equipment,Gelatin processing machinery, Gelatin drying machine (Hide and bone),Gelatin production line. we also deal in high-quality fermentation tank, Bright tank , Extraction tank, concentration tank , evaporator and etc.



We have implemented a strict and complete quality control system, which ensures that each product can meet quality requirements of customers. Besides, all of our products have been strictly inspected before shipment. Our products conform to international standards, such as CE, SGS.



KODI company also has a lot of top talent which have more than 15years of work experience, include research, design, manufacture and after sale service. Our products sell to all of the world (such as China, Australia, Malaysia, Indonesia, Vietnam, Philippines, Korea, Brazil, Chile, Peru, Argentina, Russia, Ukraine, South Africa, Cameroon, Sudan, Syria) and also have the good cooperation with the foreign client and vendor.



We are sure that our high quality products and excellent services will be appreciated by the growing list of satisfied customers. Contacting us is the first step to build a long and successful business relationship with us. Welcome!











Sale service
1. Ensure product with high quality and pre-commissioning before delivery;
2. Delivery on time;
3.Provide full set of documents as customer’s requirements.



After-sale service
Provide considerate services to minimize clients’ worries.
1.Assist clients to prepare for the first construction scheme;
2.Install and debug the equipment;
3.Train the first-line operators;
4. Examine the equipment;
5.Take initiative to eliminate the troubles rapidly;
6.Provide technical support;
7.Establish long-term and friendly relationship.



Service commitment
1. Provide clients one-year warranty to make sure the machine work well;
2.We always keep certain inventory level of spare parts, which means the replacements can be sent to you timely;
3.Send every client a preferential quotation.





           In order to quota you the right XSG industrial flash dryer/Spin Dryer/Industrial Spin Dryer with best price, we would like to get the following information include in your inquiry:

•


  -What is the raw material?  Material related characteristic? Does it corrosive, strong basicity, or highly acid? Please confirm.





•


  -What is the capacity per hour you need (kg/h)?





•


  -What is the initial moisture and final moisture of finished products you require to get?





•


  -What about the maximum heat temperature of raw material?





•


  -What kind of fuel you use to heat the dryer? Natural gas, electricity, fuel oil or steam?





•


  -Which equipment material do you like prefer? SUS304, SUS316L or Carbon steel?





•


  -Provide us your country’s electricity information, such as phases, voltage, HZ?





•


  -How about dust collect requirements?





•


  -Other special requirements?




Frequently Asked Questions

                Q: Can I visit your factory?
                A: Yes. Many domestic and international customers visit our factory every year. Our company is near Shanghai.It only takes you about 1 hour to get Changzhou.Or we can visit you in Shanghai.



                Q: What’s the quality of your products?
                A:Parts of our products come with best quality, and our products passed CE certification, exported to lots countries around the world, such as Australia, Malaysia, Indonesia, Vietnam, Philippines, Korea, Brazil, Argentina, Russia, South Africa, etc. You can rest assured with the quality absolutely.



                Q: What to do if the machine has a problem?
                A:24 hours timely response of mail and phone calls. If the parts broken belong to non-artificial factors within 12 months, we offer free replacement. If beyond 12 months, customers should bear the freight back and forth and accessories cost.



                Q: How long is the warranty of your equipment?
                A: Our warranty period is one year generally.



                Q: What is your payment term?
                A: Our usual payment term is: 30% TT in advance, 70% TT before shipment. Other ways can also be received after we both sides discussion and agreement.



                Q: Does your price include freight?
                A: Our usual price is based on FOB Shanghai, if you request CIF, please give us your delivery port, and we will give you CIF price.
