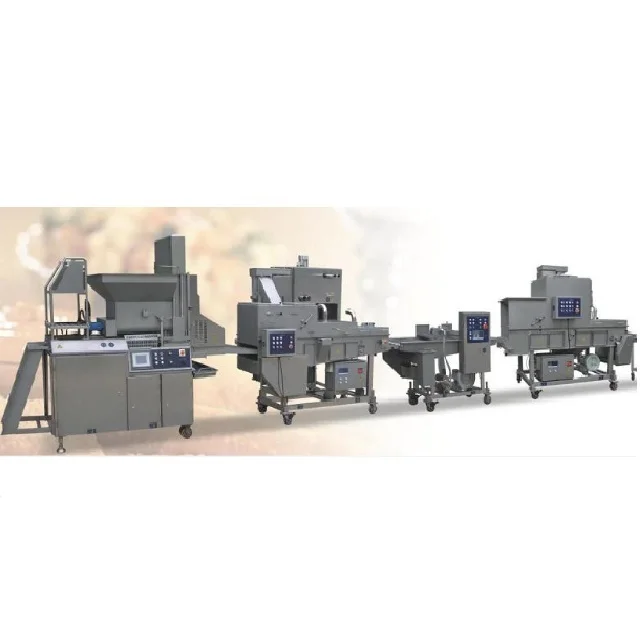

manufacture chicken fish nuggets making machine production line

Description of manufacture chicken fish nuggets making machine production line

* It can automatically perform various procedures such as meat filling, forming and outputting, and combine a fully automatic prepared food line when connecting with the batter, preduster, fryer, cooker, instant freezer and packing machine. It adopts the method of four-screw feeding system, greatly reduces the cutting of the material, and has better features of high production capacity and stable quality.

* Easy and convenient replacement of food and the accurate portion control realize the cost control of the production.

* Widely handles in the forming procedure of meat, poultry, fish, shrimp and the potato, tuber crops. And it can be applied in the fields of all kind of minced/sliced products for premier meat texture taste.





Technical Parameters of manufacture chicken fish nuggets making machine production line

Model	MF200	MF400	MF600
Width of the belt	130mm	400mm	600mm
Power	0.55KW	11KW	15KW
Production capacity	about 200~400kg/h	about 400~800kg/h	About 800~1200kg/h
Strokes Times	35pcs/min	15~55times/min	30~70 times/min
The thickness of product	6-20mm	6~40mm	6~40mm
Weight Error	≤1%	≤1%	≤1%
The maximum diameter	120mm(for hamburger)	135mm(for hamburger)	150mm (for round burger)
Weight	90kg	1300kg	1500kg
Overall dimension	860×600×1400mm	2828×830×2136mm	3170×1176×2636mm



Product Details

Main Components Details

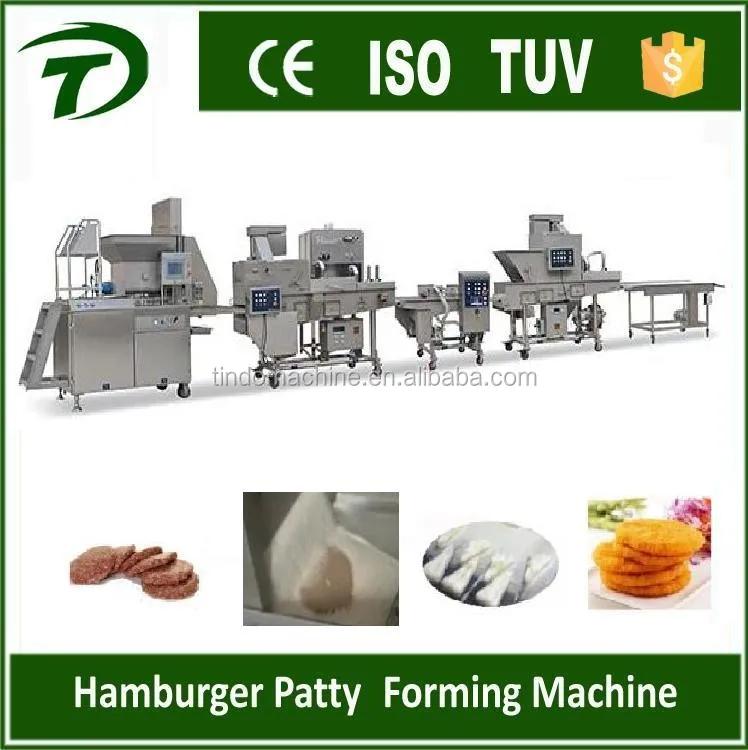

1.  Automatic Hamburger Forming Machine

This Patty machine can automatically perform various procedures such as meat filling, forming and output and form a fully automatic prepared food line when connected with the battering machine, preduster, frying machine, cooking machine, instant freezer and packing machine, sharing the good features of high production capacity and stable quality.







Endless patterns can design for your products: round, square, ellipse, triangle, heart and some other patterns such as cartoon, star…

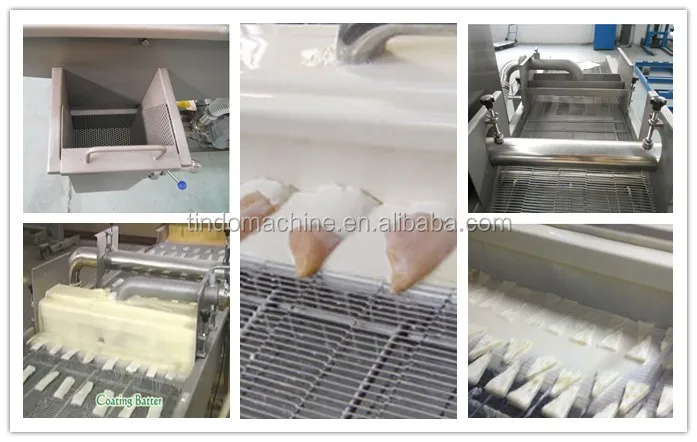

2.  Automatic battering Machine

Battering machine can offer a even coating of the chicken (poultry), beef, meat, seafood etc with a two-layer batter curtain on the top and a batter under-bath. It is suitable for the processing procedure before breading and predusting.

3.  Automatic Crumbs breading Machine

Breading machine coats evenly the chicken, beef, meat and seafood a top layer by outpouring the crumbs from the hopper and a bottom layer while the products are passing the conveyer belt.



Production Flow

Flow Chart of manufacture chicken fish nuggets making machine production line





Clients And Certificate



Successfully exported worldwide:

Since established, TINDO has successfully exported its machines to more than 90 countries. With many practical experiences, TINDO can provide clients with the most effective market information and customer service experience.

Complete market information:

TINDO never stops doing market surveys and attending international exhibitions. With decades of knowledge accumulated about market information and changes in food trends, we can provide the most valuable information to our clients, and assist our clients in industrial upgrading.



Our Team

Timely response and follow-up service:

TINDO will respond to customer phone calls, e-mails or faxes for machinery or production problems within 24 hours to prevent a client's potential loss.

Complete parts safety stock for all machine series:

Except for special parts, we can deliver the components each client needs right away.







Fumigation Free Ploywood in 20'GP 40'HQ

By Sea, By Air, By Rail, By Truck all available
