Характеристики


\t\t\t\t\t\t\t\t\tProduct details \t\t\t\t\t\t\t

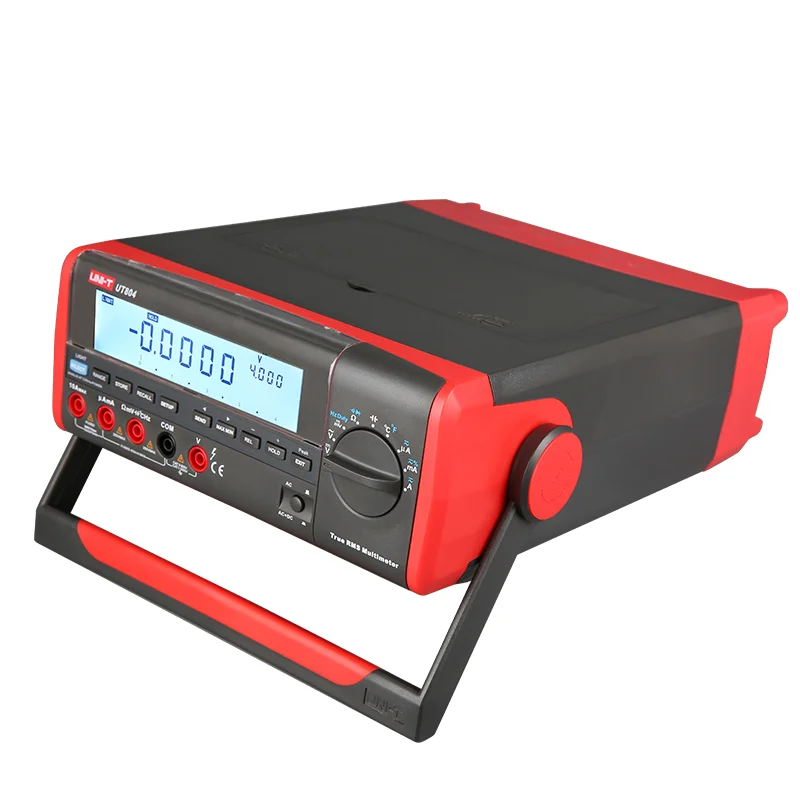

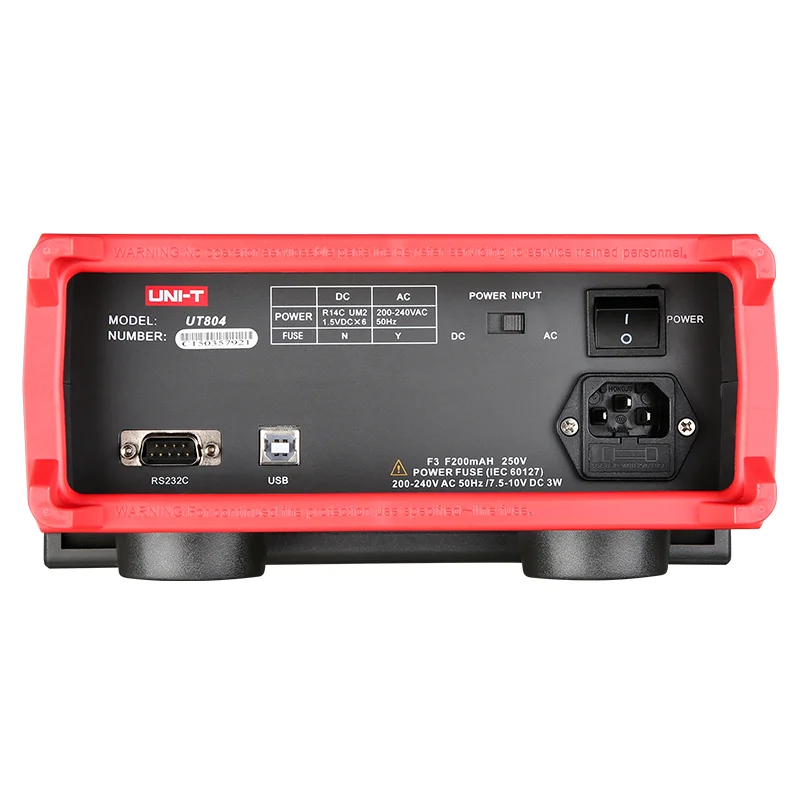

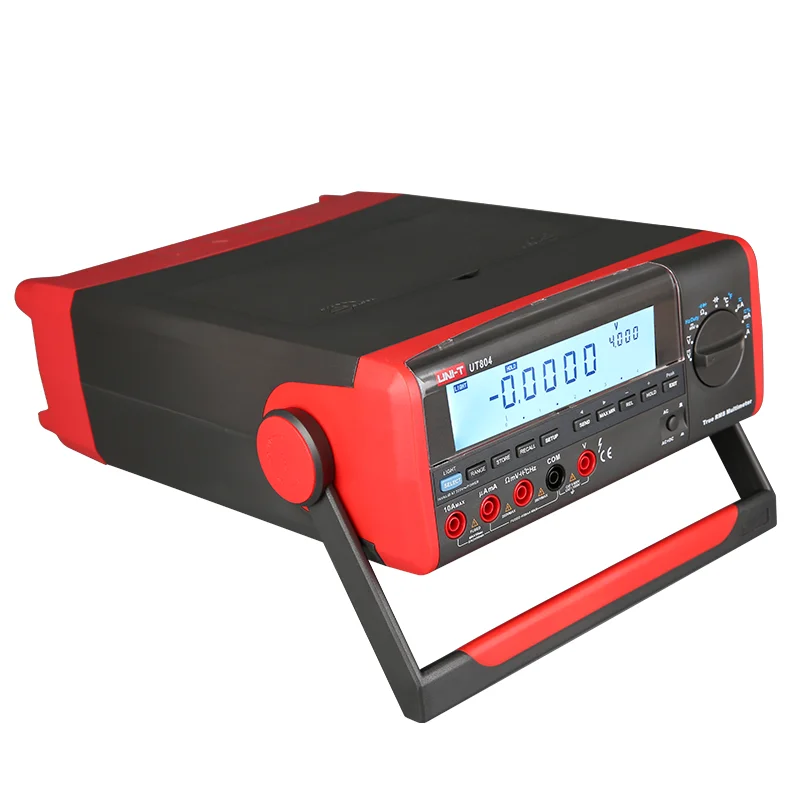

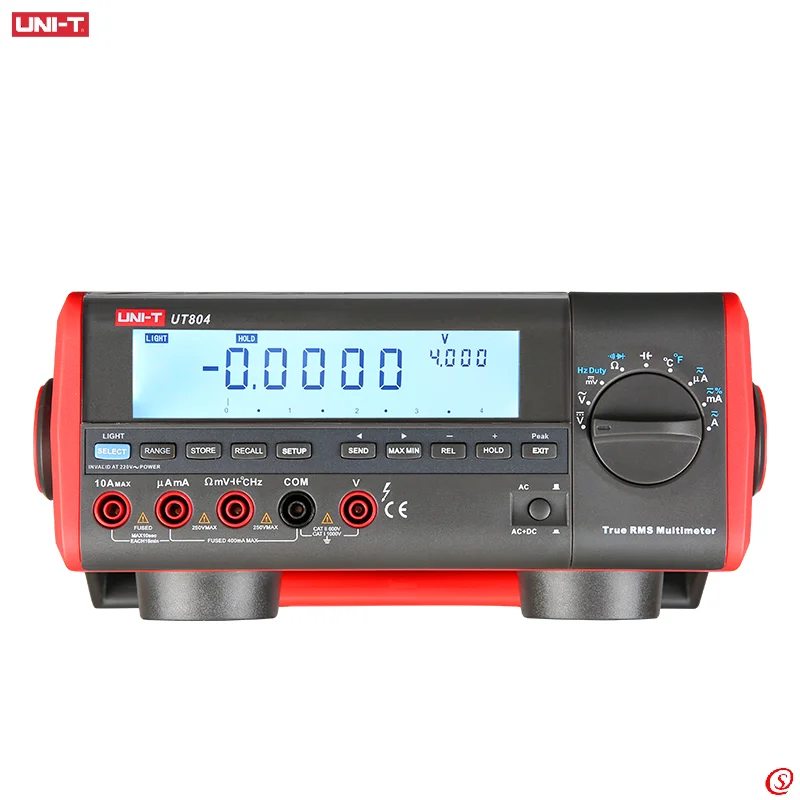

Product picture
Product descri

UT805A 200000 count autoranging True RMS digital multimeter desktop. The basic accuracy of 0.015%, dot-matrix liquid crystal display. Whole circuit design to large-scale integrated analog and digital circuits are combined, using computer technology in 24-bit A / D converter as the core, high-precision op amps, true RMS AC to DC converter, all-electronic calibration technology Fu meter high in reliability and accuracy. This form can be used to measure AC and DC voltage, DC current, resistance, diodes, circuit continuity, capacitance, frequency, and have the data stored in read-back function. And computer applications make RS-232 and USB interface technology constitute a variety of highly reliable two-way communication.

Product parameters
\t
Specifications
\t
Range
\t
Best Accuracy
\t
Model
\t
\t
UT804
\t
DC Voltage (V)
\t
400mV/4V/40V/400V/1000V
\t
±(0.025%+5)
\t
AC Voltage (V)
\t
4V/40V/400V/1000V
\t
±(0.4%+30)
\t
DC Current (A)
\t
400μA/4000μA/40mA/400mA/10A
\t
±(0.1%+15)
\t
AC Current (A)
\t
400μA/4000μA/40mA/400mA/10A
\t
±(0.7%+15)
\t
Resistance (Ω)
\t
400Ω/4kΩ/40kΩ/400kΩ/4MΩ/40MΩ
\t
±(0.3%+40)
\t
Capacitance (F)
\t
40nF/400nF/4μF/40μF/400μF/4mF/40mF
\t
±(1%+20)
\t
Frequency (Hz)
\t
40Hz/400Hz/4kHz/40kHz/400kHz/4MHz/40MHz/400MHz
\t
±(0.01%+8)
\t
Temperature (°C)
\t
Temperature (°F)
\t
-40°F~1832°F
\t
±(1.5%+50)
\t
Features
\t
\t
\t
Display Count
\t
\t
40000
\t
Auto Range
\t
\t
\t
True RMS
\t
\t
\t
Bandwidth (Hz)
\t
100kHz
\t
\t
Duty Cycle
\t
0~100%
\t
±(1.0%+40)
\t
Diode
\t
\t
\t
Auto Power Off
\t
\t
\t
Continuity Buzzer
\t
\t
\t
Low Battery Indication
\t
\t
\t
Data Hold
\t
\t
\t
Relative Mode
\t
\t
\t
MAX/MIN
\t
\t
\t
Peak Hold
\t
\t
\t
Data Logging
\t
\t
9999
\t
Data Recall
\t
\t
\t
RS-232
\t
\t
\t
USB Interface
\t
\t
\t
Double Backlight
\t
Analogue Bar Graph
\t
\t
81
\t
Setup
\t
\t
\t
Input Protection
\t
\t
\t
Input Impedance for DCV
\t
400mV Range: Around 4GΩ, All Other Ranges: Around 10MΩ
\t
\t
Current Measurement Alarm
\t
\t
\t
4 - 20mA Loop
\t
0~100%
\t
±(1%+50)
\t
Voltage &Current: AC+DC Measurement
\t
\t
\t
General Characteristic
\t
\t
\t
Power
\t
AC 220V/50Hz or 1.5V Batteries (R14)×6
\t
\t
LCD Size
\t
128mm X 28mm
\t
\t
Product Color
\t
Red and Grey
\t
\t
Product Net Weight
\t
2.2 Kg
\t
\t
Product Size (W×H×D)
\t
310mm × 240mm × 105mm
\t
\t

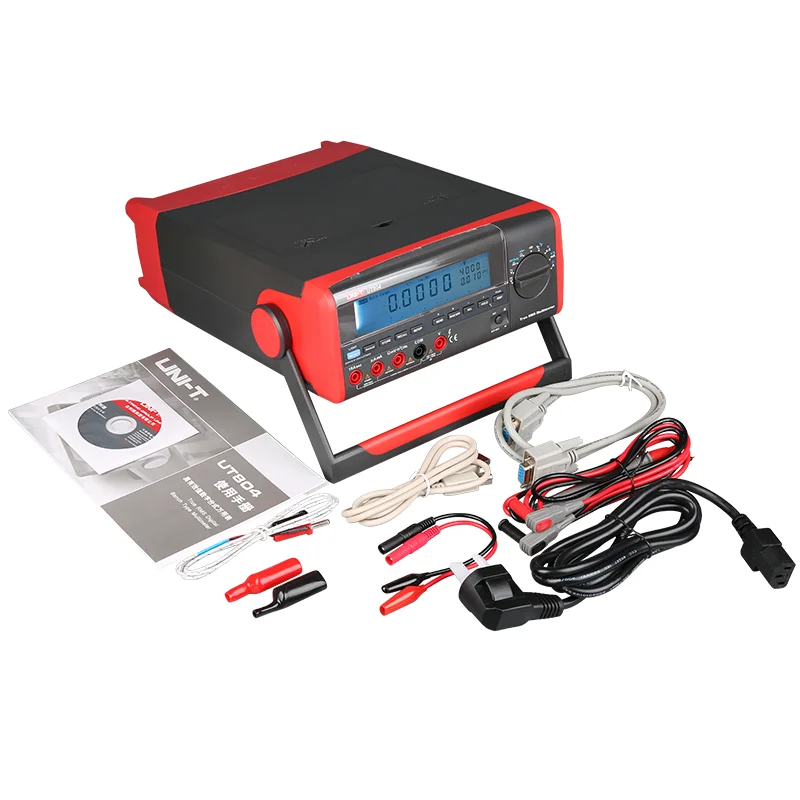

Standard Accessories
\t
Test Lead, AC 220V Power Cord, Software, RS-232 Interface Cable, USB Interface Cable, Alligator Clip, Point Contact Temperature Probe, Test Clip
\t
\t
Standard Individual Packing
\t
Gift Box, English Manual
\t
\t
Standard Quantity Per Carton
\t
4 PCs
\t
\t
Standard Carton Measurement
(L×W×H)
\t
680mm×365mm×320mm(0.0794 CBM Per Standard Carton)
\t
\t
Standard Carton Gross Weight
\t
15 Kg
\t
MOQ

We do not have MOQ, but we have MOV (Min order value) which is USD3000. If your order quantity is big enough, we will give you some discount.
