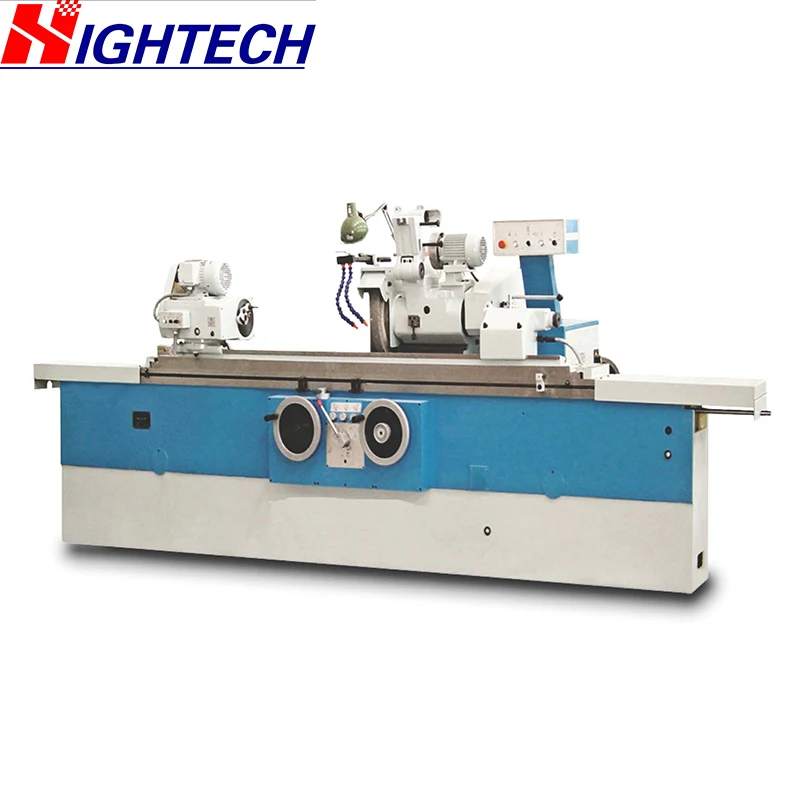

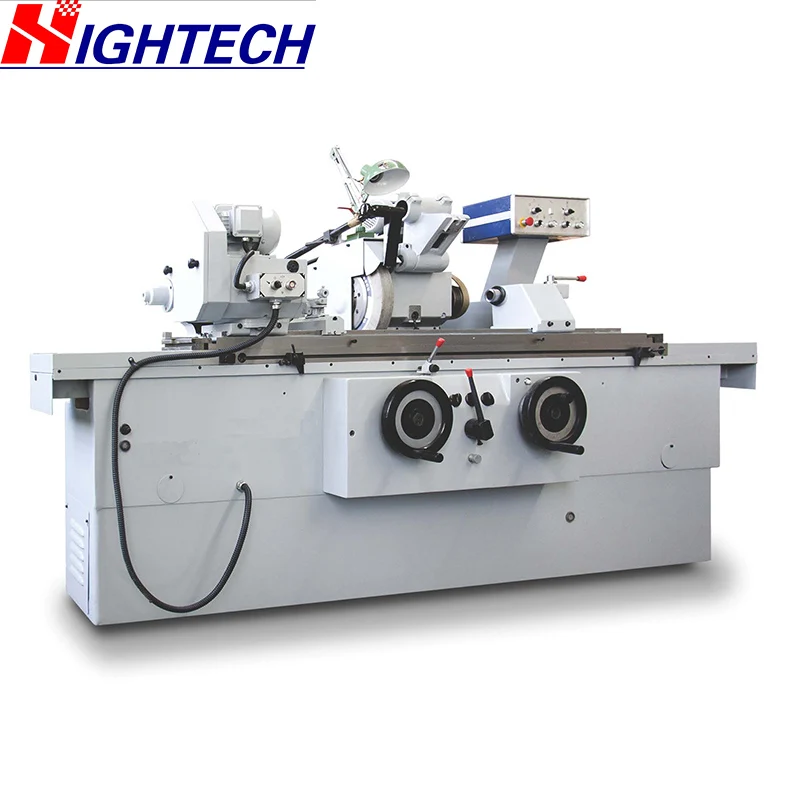

Универсальный цилиндрический шлифовальный станок с высокой круглой

High Surface Roundness Universal Cylindrical Grinding Machine is mainly used for grinding internal and external surface of cylinder and taper. Internal and external universal cylindrical grinding machine is especially suitable for single and small batch parts grinding in machining, tool and repairing workshops.

Main technical parameters

Main Specification	Max. Grinding Diameter x MAX. Grinding Length	Φ200x500mm
Machining Scope	Center Height	125mm
		Distance between Centers	500mm
		Cylindrical Diameter	Min φ5mm, max φ200mm
		Internal Diameter	Min φ13 mm, max φ80mm
		Depth of Internal Grinding	125mm
		Max Loading Capability	50kg
Working Table	Max Longitudinal Movement	500mm
		Table Movement of One Hand Wheel Rotating	10mm
		Max Upper Working Table Rotating Degree	Clockwise	Counterclockwise
				500      9°	500     9°
				750       8°	750     8°
				1000    7°	1000    3°
		Hydraulic Transmission Speed	Max 500 0.1~3m/min
Work Head and Tailstock	Work Head Rotating Capability			Able
		Spindle Rotating Speed	50Hz	63, 125, 250, 500r/min
		Chuck Diameter		φ130(three-jaw) , φ160 (four-jaw)
		Work Head Center(Morse)			#4
		Tailstock Center (Morse)			#4
		Barrel Movement of Tailstock			25mm
Grinding Carriage	Grinding Wheel Dimension			Max.φ400x50xφ203mm
						Max width 50
		Grinding Wheel Linear Speed			35m/s
		Grinding Carriage Spindle Rotating Speed			1316r/min
		Max Movement (including rapid movement)			150mm
		Grinding Carriage Movement of One Turning Hand Wheel			1mm
		Grinding Carriage Rotating Degree			± 3°
		Rapid Feeding Amount of Grinding Carriage			35mm
		Min Manual Feeding Amount			0.002mm
Internal Grinding Device	Grinding Wheel Dimension	Max	50x32x16
				Min	15x20x5
		Internal Grinding Head Speed (four-class)			9245/12250/14848/19600r/min
Hydraulic System	Main Oil Circuit Adjusting Pressure			0.8-1MPa
		Lubricating Oil Circuit Adjusting Pressure			0.1-0.2Mpa
		Oil Pump	Flow	14L/min
				Pressure	2.5MPa
Cooling System	Cooling Pump Flow			22l/min
Machine Motor Power	Cooling Pump Motor Power			0.125kW
		Internal Grinding Device Power			0.55kW
		Oil Pump Motor Power			1.1kW
		Work Head Motor Power			0.75kW
		Grinding Carriage Motor Power			4 kW
Machine Overall Dimension and Net Weight	LengthXWidthXHeight			1800x1415x1420mm
		Net Weight			2100kg

Detailed Pictures

    Cooling water tank

Closed center frame, measuring instrument

and card head dresser

casting

bed pad iron

diamond pen

                        grinding wheel flange

grinding wheel balance frame

sign

Packing & Delivery

Packaging
Size	It depends on High Surface Roundness Universal Cylindrical Grinding Machine size bought by client.
Weight	It depends on High Surface Roundness Universal Cylindrical Grinding Machine bought by client.
Packaging Details	The normal package is wooden box(Size: L*W*H). If export to european countries,the wooden box will be fumigated.If container is too tigher,we will use pe film for packing or pack it according to customers special request.
