Маленький 3-фазный двигатель BLD70 BLDC с номинальным напряжением 24 В 3
- Категория: Motor Controller >>>
- Поставщик: Changzhou,Smart,Automation,Motor,Manufacturing,Co.,Ltd.
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Sep-16-2025 | 0.64 $* | 0.50 $* |
| Aug-16-2025 | 0.26 $* | 0.18 $* |
| Jul-16-2025 | 0.49 $* | 0.8 $* |
| Jun-16-2025 | 0.56 $* | 0.22 $* |
| May-16-2025 | 0.43 $* | 0.49 $* |
| Apr-16-2025 | 0.82 $* | 0.2 $* |
| Mar-16-2025 | 0.65 $* | 0.28 $* |
| Feb-16-2025 | 0.50 $* | 0.95 $* |
| Jan-16-2025 | 0.58 $* | 0.67 $* |
Характеристики

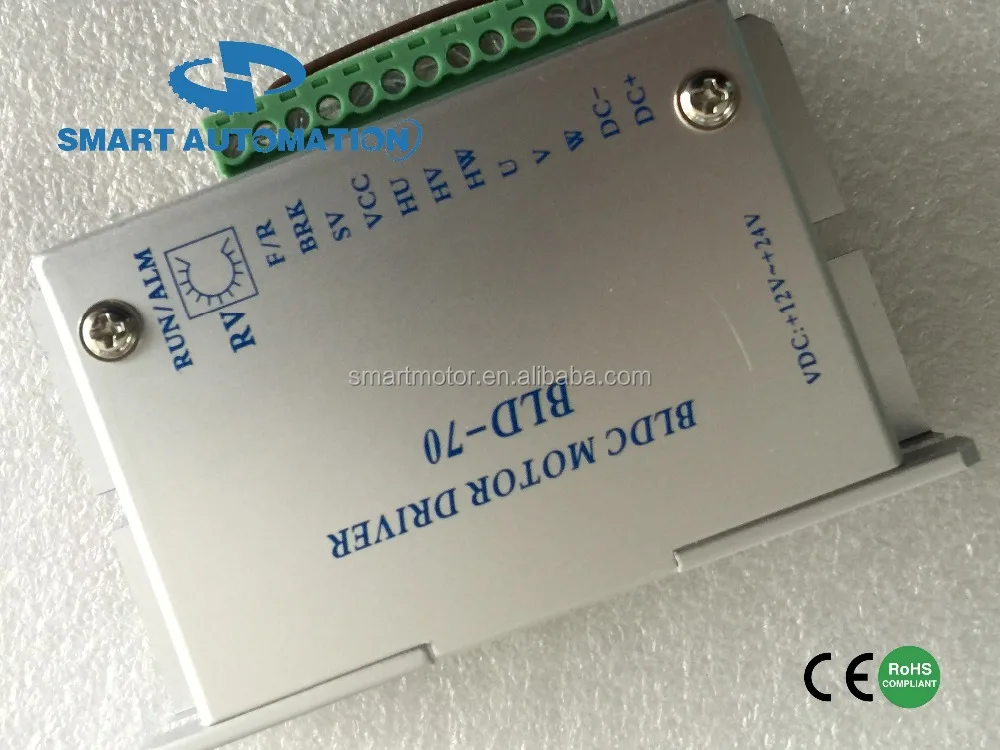

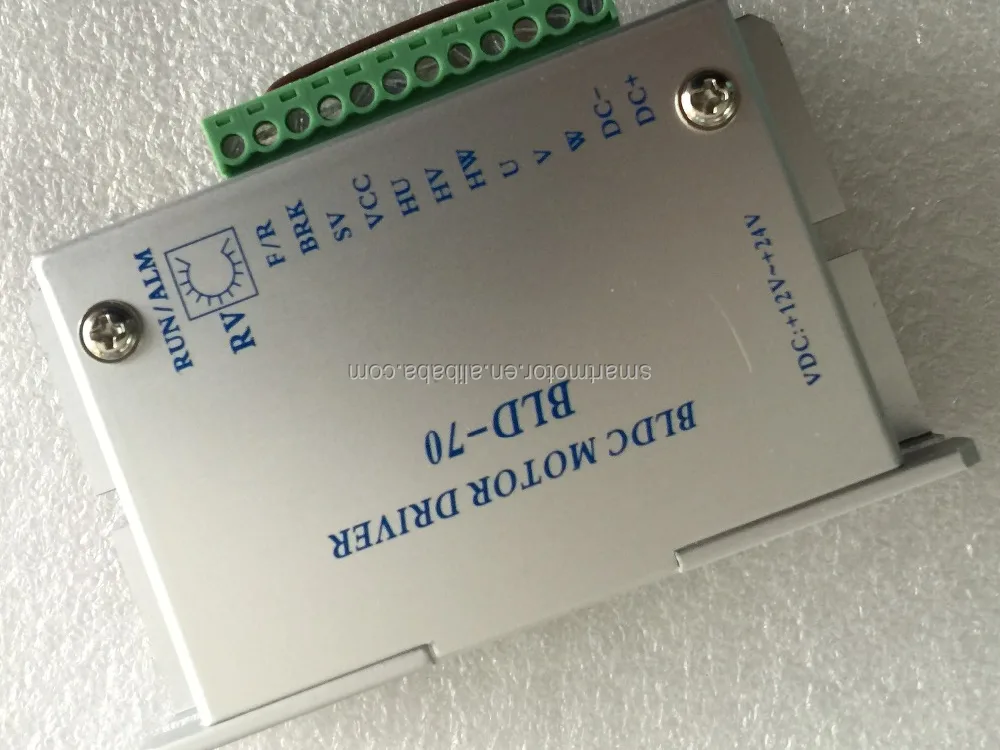

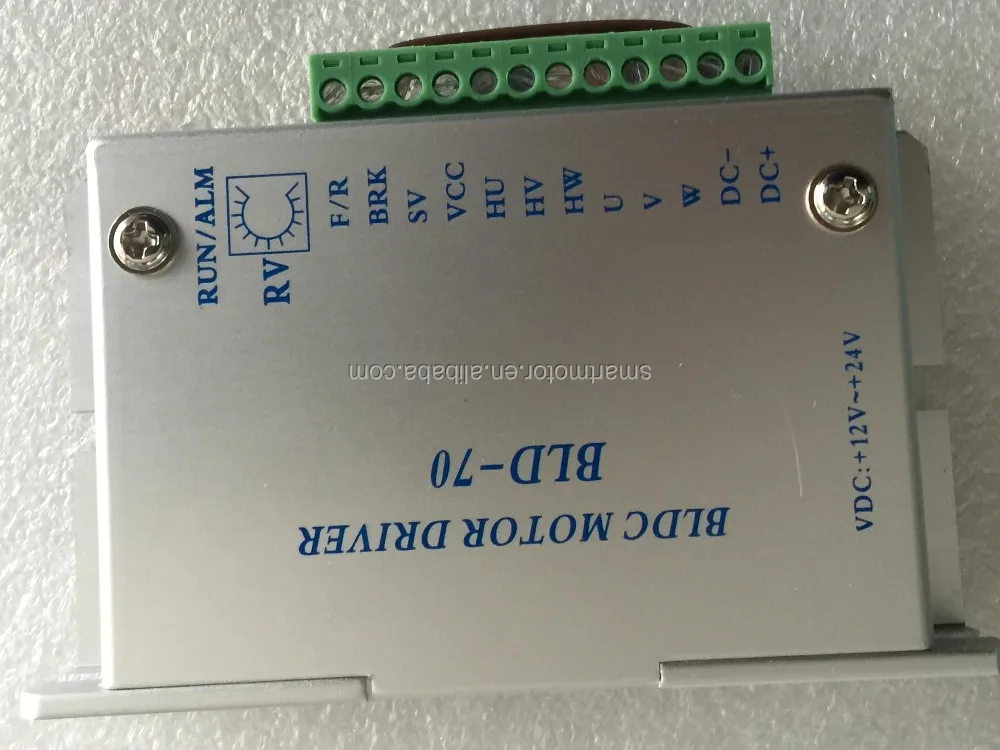

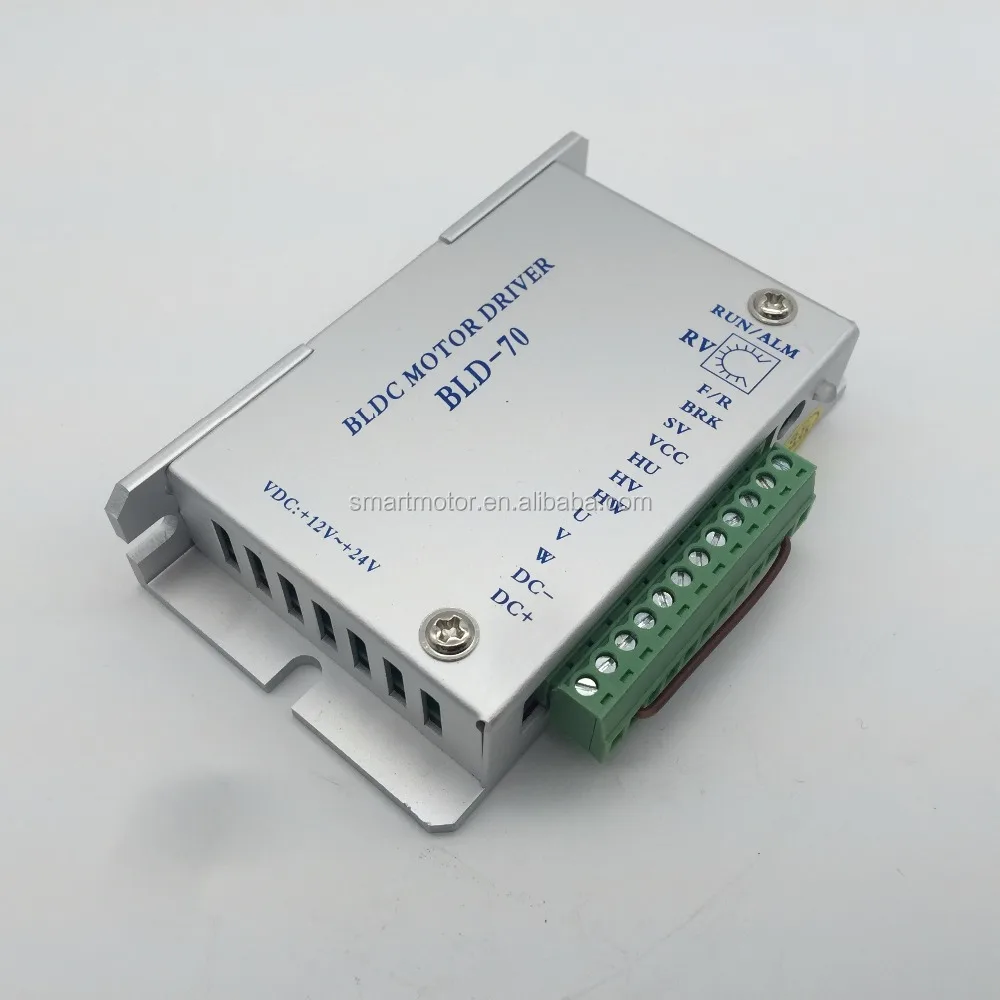

BLD70
Brushless DC Motor Drive
Description
The BLD70 is a high performance, cost-effective 3 phase BLDC motor drive
which can provide power output 70VA max. The design is based on advanced current
control technology and feature high torque, low noise, low vibration, over current
protection, over load protection
Electrical Specifications:
Parameter | Min | Rated | Max | Unit |
Motor Hall Sensor Angle | 120°/240° |
| ||
DC Power Input | 10 | 24 | 30 | V |
Drive Current Output |
| 3 | 5 | A |
Suitable Motor Speed | 0 |
| 20000 | rpm |
Hall Sensor Voltage | 4.5 | 6.25 | 6.5 | V |
Hall Sensor Current |
| 20 |
| mA |
External Potentiometer |
| 10K |
| Ω |
