ML750 автоматическая машина для высечки бумаги обрабатывающая серый 750*520 мм формовочная полуавтоматическая ручная
- Категория: Оборудование для производства бумаги >>>
- Поставщик: Ruian,Mosun,Machinery,Co.,Ltd.
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Sep-19-2025 | 4522.1 $* | 4748.7 $* |
| Aug-19-2025 | 4484.37 $* | 4708.28 $* |
| Jul-19-2025 | 3762.48 $* | 3950.29 $* |
| Jun-19-2025 | 4408.40 $* | 4628.43 $* |
| May-19-2025 | 3838.25 $* | 4030.84 $* |
| Apr-19-2025 | 4332.18 $* | 4549.69 $* |
| Mar-19-2025 | 4294.61 $* | 4509.52 $* |
| Feb-19-2025 | 4256.14 $* | 4469.22 $* |
| Jan-19-2025 | 4218.86 $* | 4429.59 $* |
Характеристики
Product Appearance
Products Description
Die Cutting Machine or Platen Punching & Creasing Press particularly designed for Die Cutting, Scoring and Creasing Work on Paper,Linoleum, Cardboard, Corrugated board, Fireboard, Cork, Leather, Plastic and PVC Materials etc. Most Handsome and compact patronized model requires Minimum Floor-Space. Minimum "Make-Ready" Time and provides sufficient hourly production.
ML750 Auto Die Cutting Machine Paper Processing Machine Grey 750*520mm Moulding Cutting Semi Automatic by Hand Light Grey
Model | Unit | ML750 | ML750 CE | ML750 HEATING | |||
Platen Size | mm | 750*520 | |||||
Inside Chase Size | inch | 29.5*20.5 | |||||
Platen Size | inch | 29.5*20.5 | |||||
Max Cutting rule | m | ≤15m | |||||
Impressions Per Min | times/min | 25±2 | |||||
Motor Power | kw | 2.2 | |||||
Heat Power | kw | / | / | 5 | |||
Heat Group | groups | / | / | 2 | |||
Temperature: C(F) | ℃ | / | / | 0-170c(338F) | |||
Heating speed | Min | / | / | About 20 min | |||
N.T | kg | 1600 | 1700 | 1700 | |||
G.T | kg | 1700 | 1800 | 1800 | |||
Dimension | mm | 1450*1340*1550 | |||||
Voltage | V | 220/380/415V 50/60Hz 3Phase | |||||
Package | Wooden case with free fumigation | ||||||
1.Sliding bearings are made of high quality alloy cooper, thus to get effect of anti-friction and shake reducing.
2.Flywheel is with big moment of force and large pressure.
3.High strength due to one piece casting by using top-ranking material for machine body.
4.Single plate electromagnetic clutch is sensitive and reliable
5.With functions of single, continuous and opening dwell operation, dwell range is adjustable.
6.Operating position is reasonably arranged, moving-bed can be opened to its optimum.
7.Safety system is reliable.
8.Can equip inner and outer movable frame and central lubrication device.
2.Flywheel is with big moment of force and large pressure.
3.High strength due to one piece casting by using top-ranking material for machine body.
4.Single plate electromagnetic clutch is sensitive and reliable
5.With functions of single, continuous and opening dwell operation, dwell range is adjustable.
6.Operating position is reasonably arranged, moving-bed can be opened to its optimum.
7.Safety system is reliable.
8.Can equip inner and outer movable frame and central lubrication device.

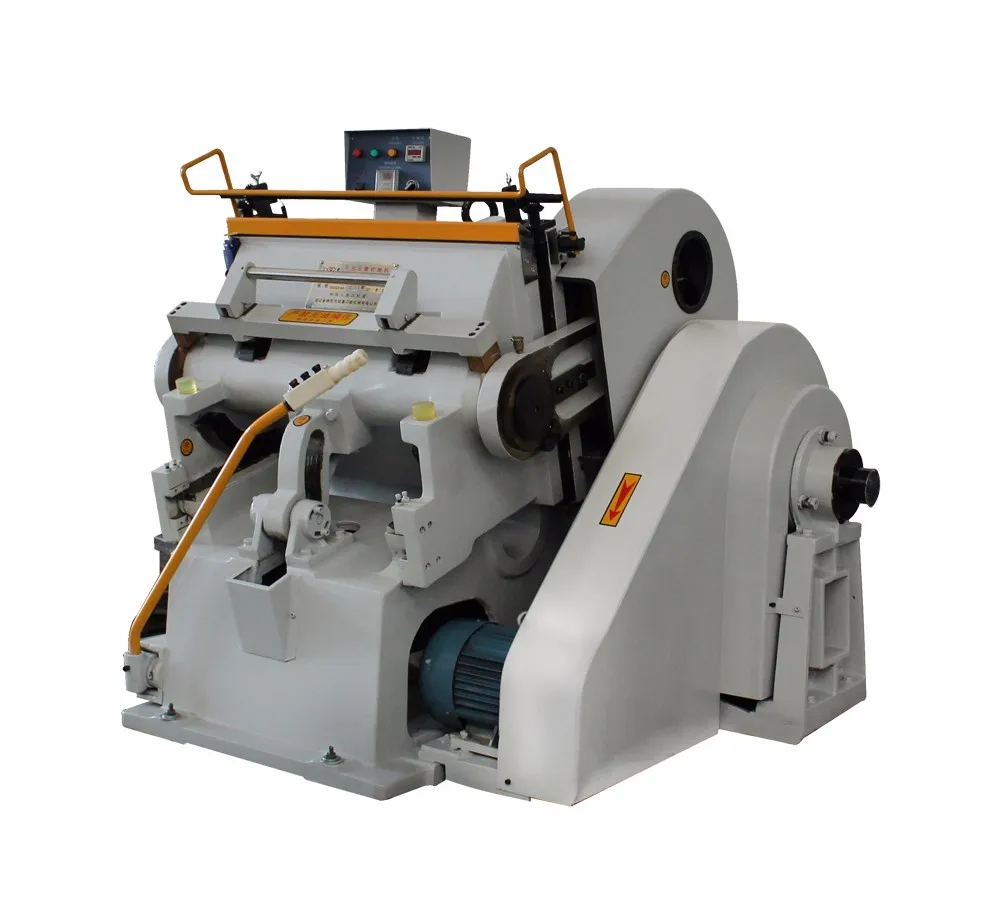

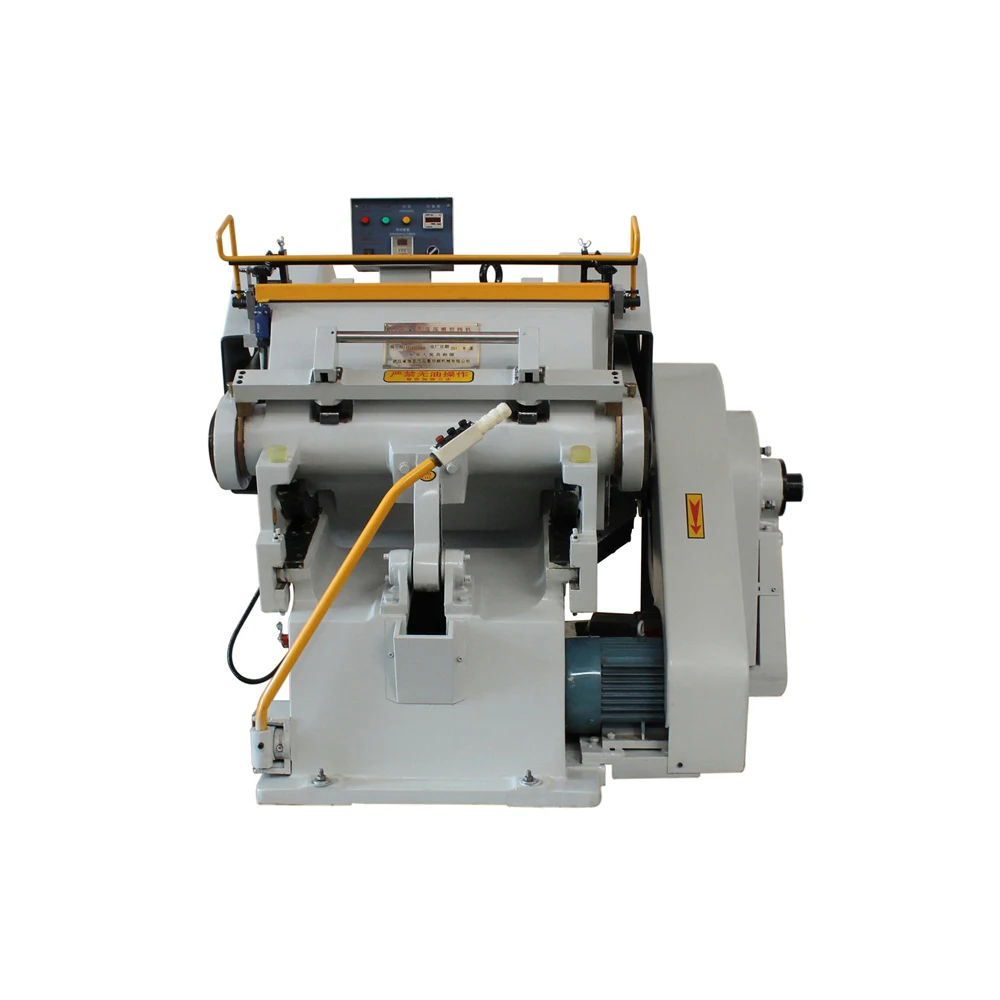

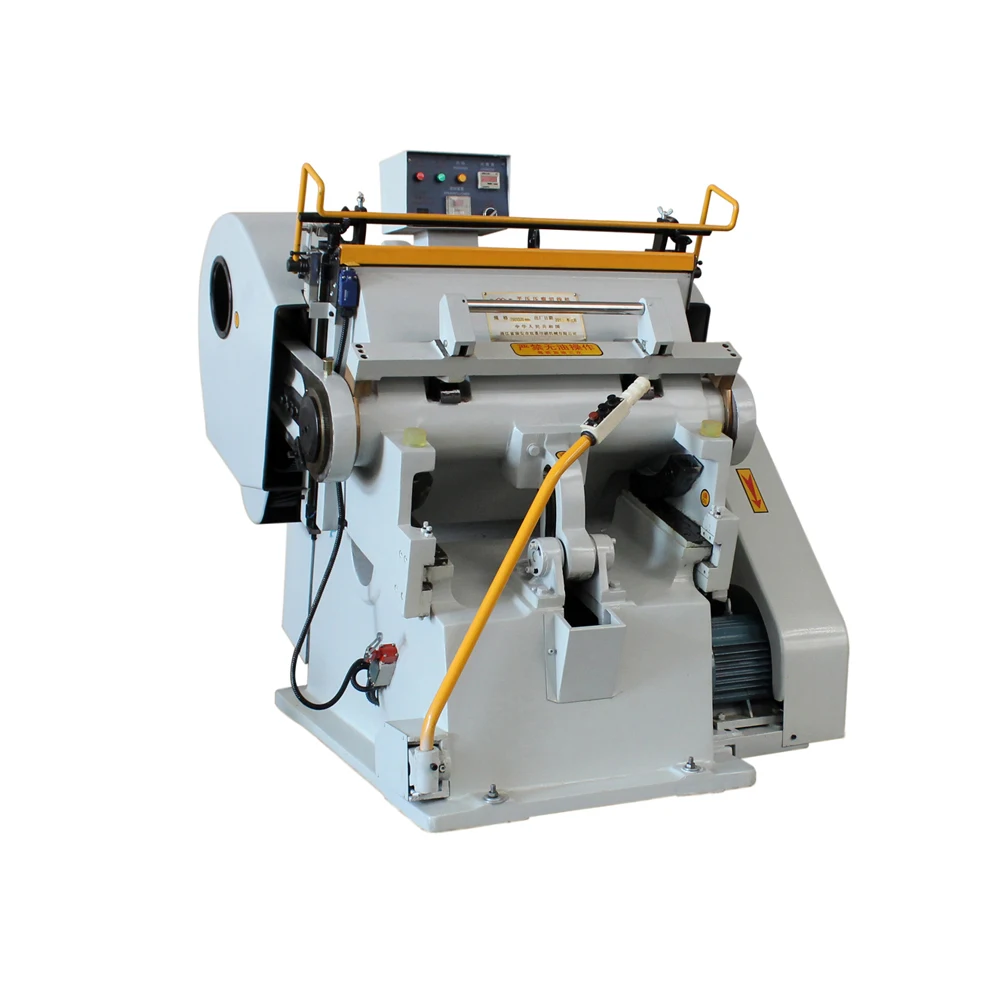

Details Images
Color Choice
Application
Enterprise Display
Product packaging
Contact Information
