WHAT THE SPECIFICATION OF PCB DRILLING MILLING MACHINE?

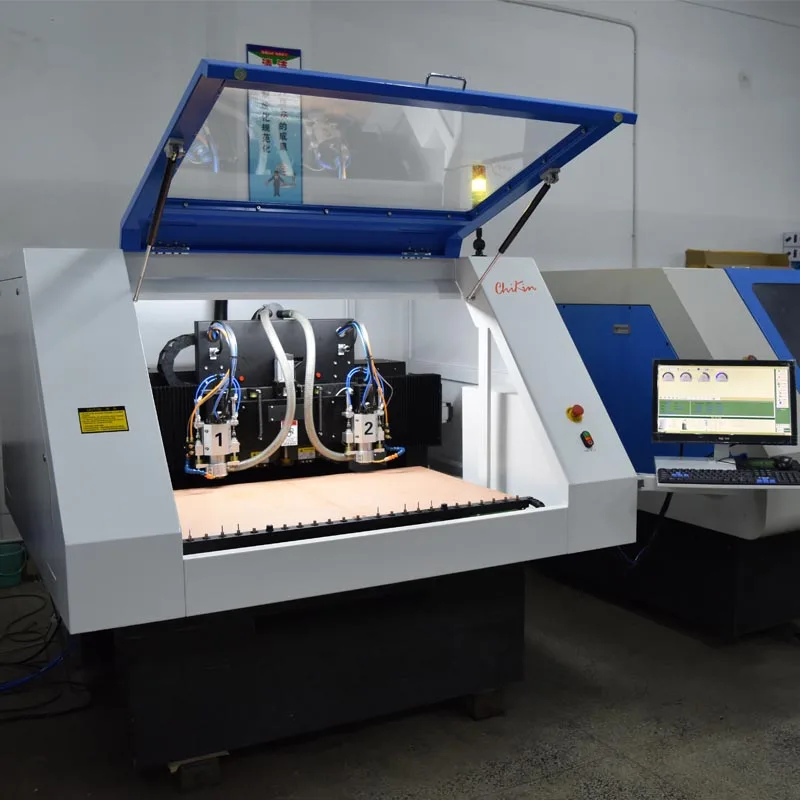

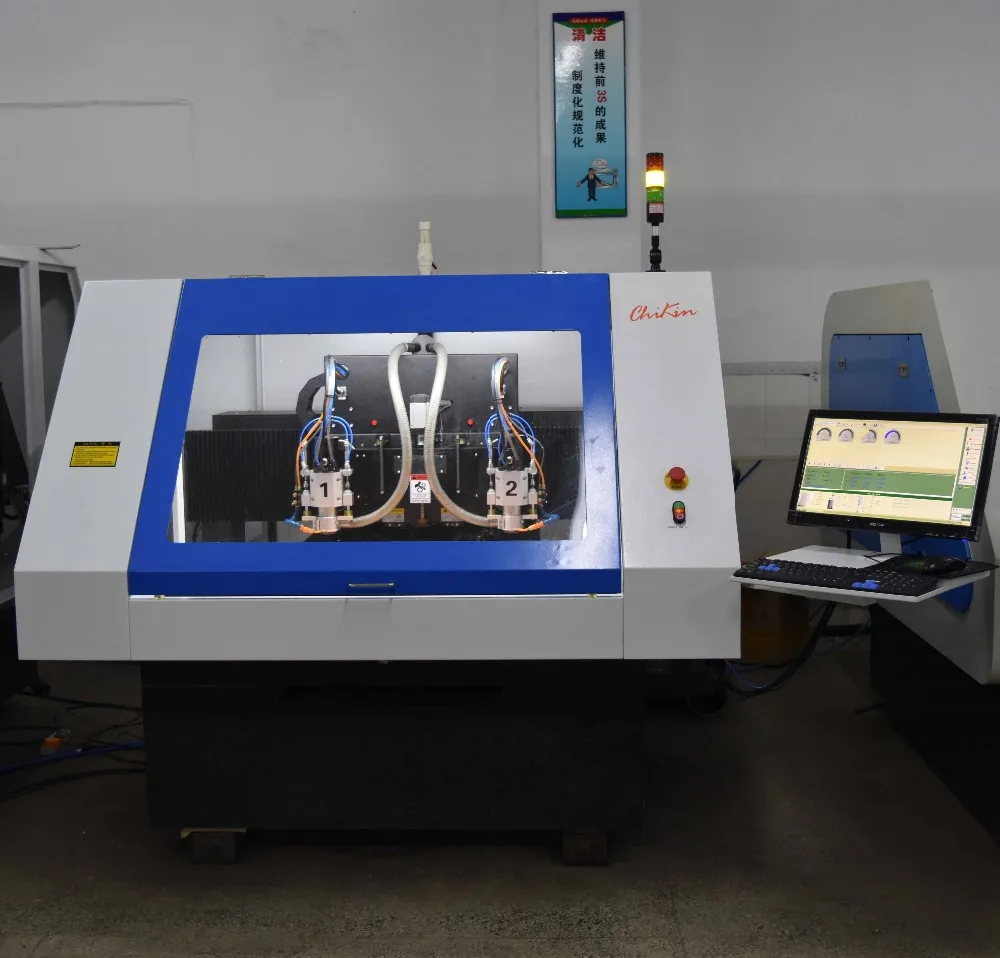

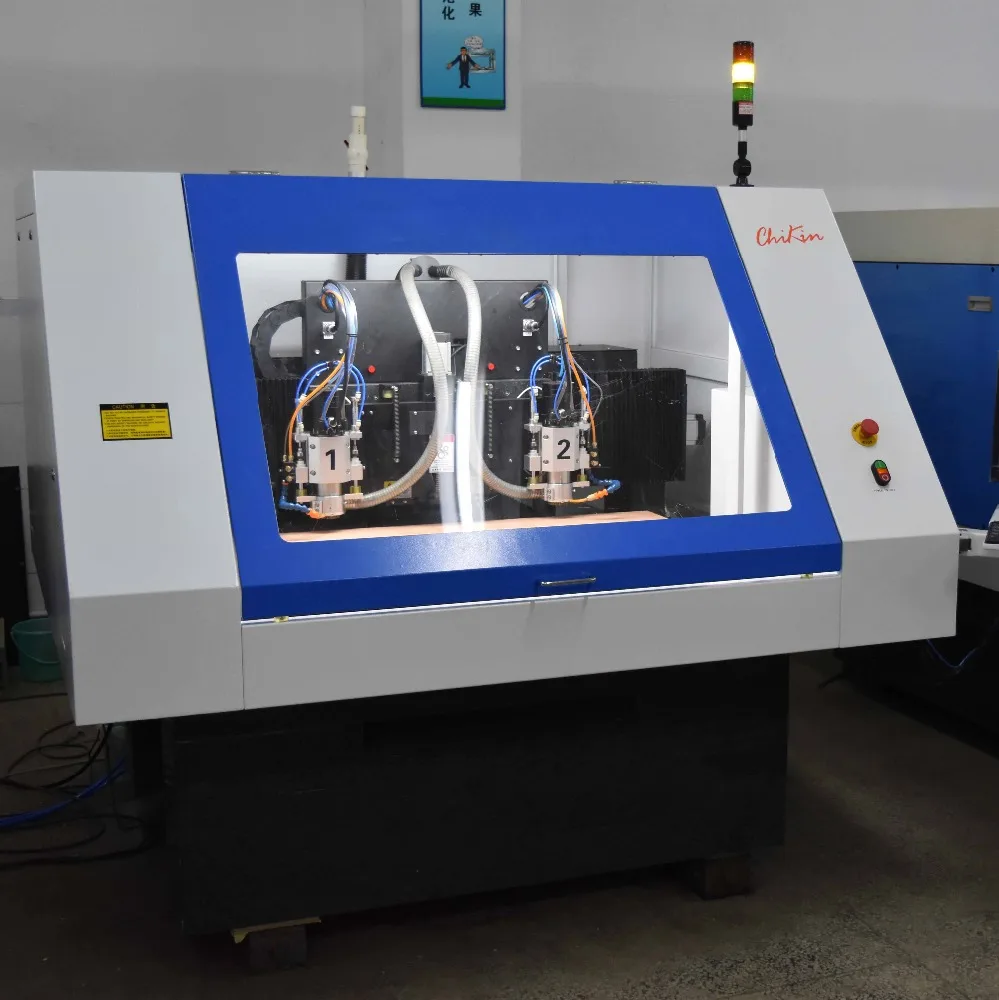

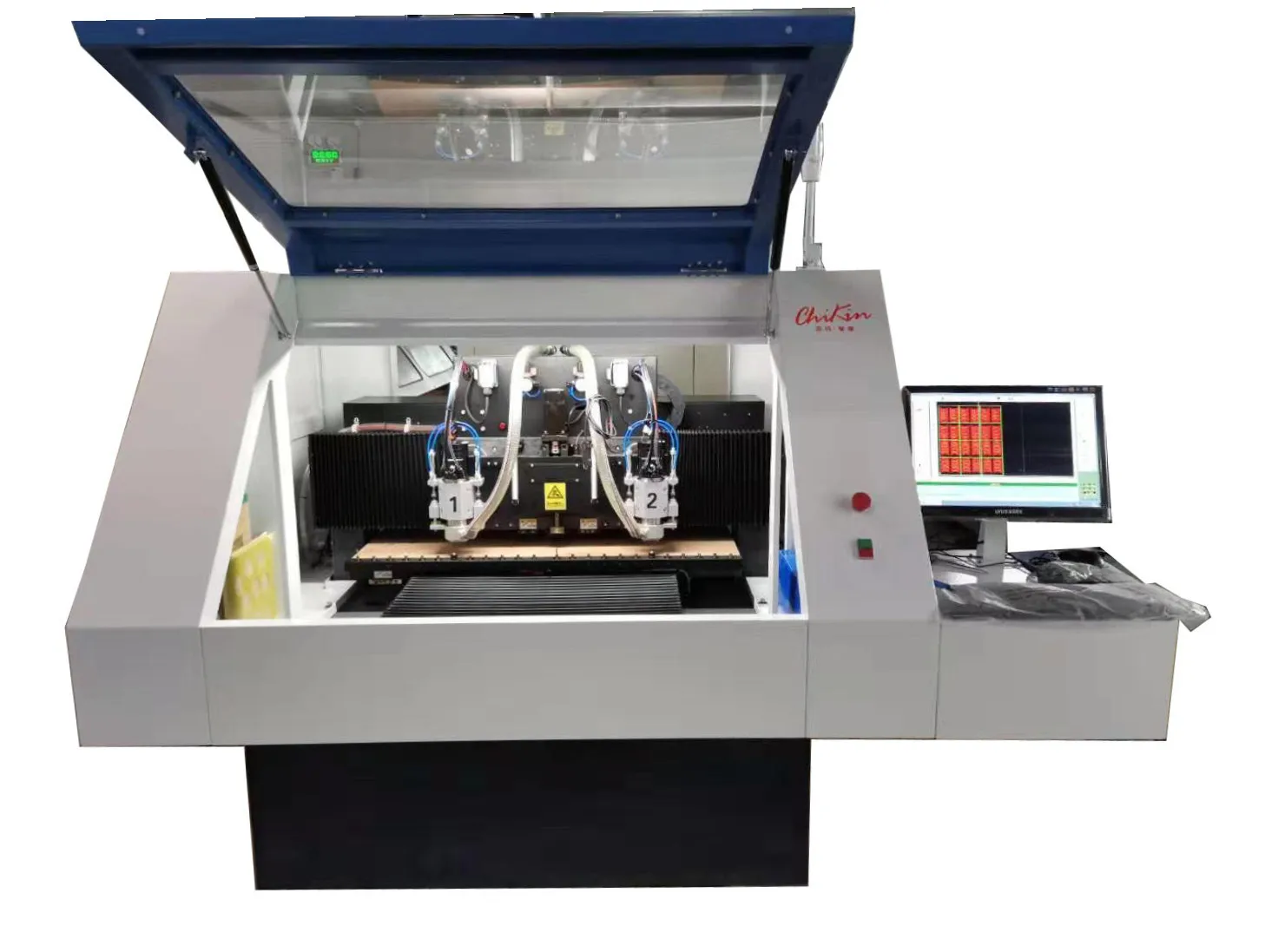

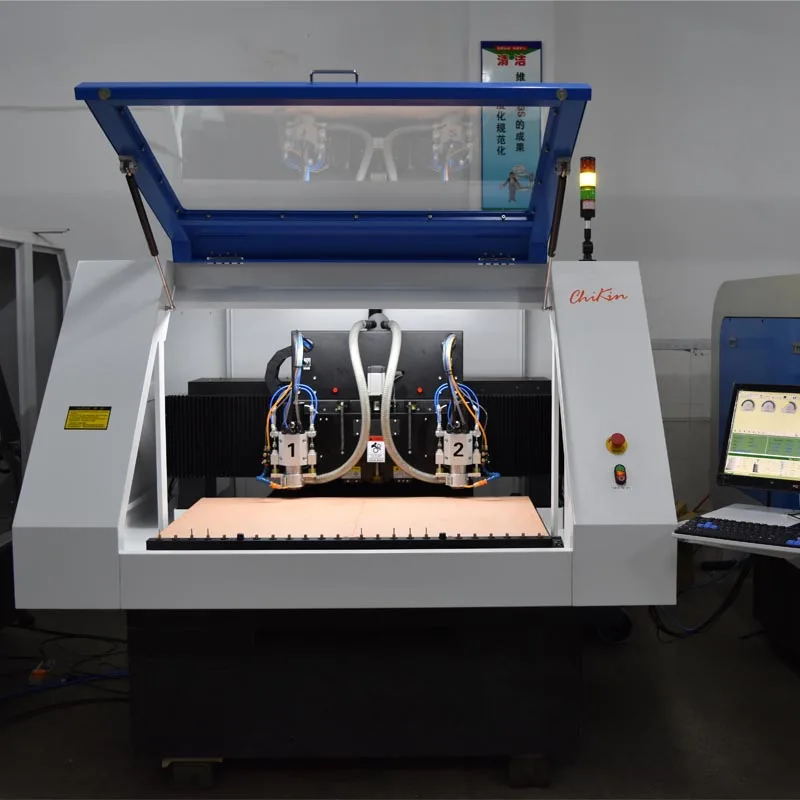

cnc drilling and milling machine for pcb
Model
CK-02R
Spindle
2
Spindle Specification
High Speed Ball Bearing Spindle (60000 rpm)
Drive System
Imported AC Servo Motor
Transmission Mechanism
Imported High Precision Linear Guide with Ballscrew
Moving Speed
15-30m/min
Working Area
480mm x 580mm, 560mm x 680mm
Tool Change
Automatic Tool Change
Tool Detection
Yes, Tool Length Detection
Routing Accuracy
+ / - 0.05mm
Positioning Accuracy
+ / - 0.005mm
Rout Bit Size
Φ0.6mm - 3.175mm
Power
AC 380V 3PH 5KVA
Air Supply
6 - 8 par
Machine Size
2100mm x 1850mm x 1700mm
Machine Weight
2600KG
Machine Controller System
Self-Develop Route System, Also can be updated to Sieb & Meyer System
Standard Accessories
Our Service
1. Specific Designed to meet differents customers's requirements. 2. 24 hours technical support by email and telephone service. 3. Provide English Manual or Installation Video. 4. Free training to help you master your equirement.
Warranty 1 year for free repair.
Important Note: This machine has NO RETURN POLICY as it is heavy and very expensive to ship back, manufacturer will ship any required part immediately to buyer during the warranty period to solve any issue, all machines will be fully assembled and tested to pass QA control before shipping.
We focuses on PCB machine manufacturing for years, to form the industrial chain that takes PCB drilling machine, PCB routing machine as the main products and supplemented by v cutting machine, guide hole drilling machine and other PCB machine spare parts.
Full team of export service to help you know your order processing detail, make any document you needed to pass the custom. we will try our best to give you best products and best service, professional support, hope you are satisfy with us, be our user or partner to grow up together.
Certifications
Packing & Delivery
Packaging
Size
203 (L) * 185 (W) * 170 (D)
Weight
2.2 T
Packaging Details
The normal inside package is plastic bag(Size: L*W*H). We will use vacuum for packing or pack it according to customers special request.
Packaging
Size
210 (L) * 194 (W) * 180 (D)
Weight
2.4 T
Packaging Details
The normal package is wooden box(Size: L*W*H). If required, the wooden box will be fumigated.If container is too tigher,we will use pe film for packing or pack it according to customers special request.
FAQ
Q: How many layers does this machine can process?
A: This machine can process single-sided pcb, double-sided pcb and multi-layer pcb.
Q: What kind of program format can this machine identify?
A: This machine can identify EXCELLON format, Gerber format and NC format.
Q: Is there only 2 spindle machine?
A: Our standard is 2 spindle and 4 spindle machine, also can custom single spindle, 3 spindle machine in accordance with customer requirement.
Q: What is the warranty of this machine?
A: 1 year from the date of machine installation in customer place.
Q: What is the traning way of machine operation?
A: There are 2 options for customer as below
Option 1: Customer pre- buy off the machine and finish the traning in our factory, and we will bare the fee of accomodation for customer's engineer (1-2 person)
Option 2 : Our engineers available to service machinery oversea in customer place, with bare the fee of accomodation by customer side.
