Заводская поставка съемные выхлопные куртки морская

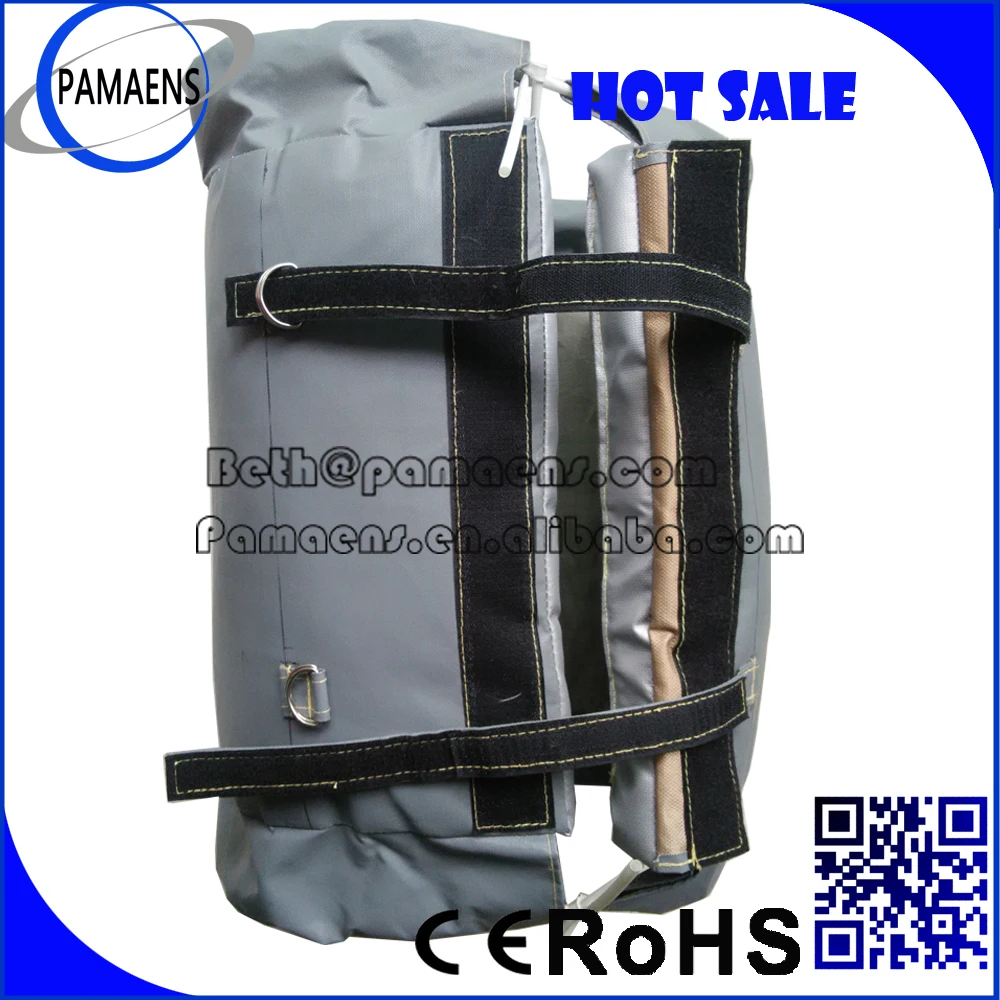

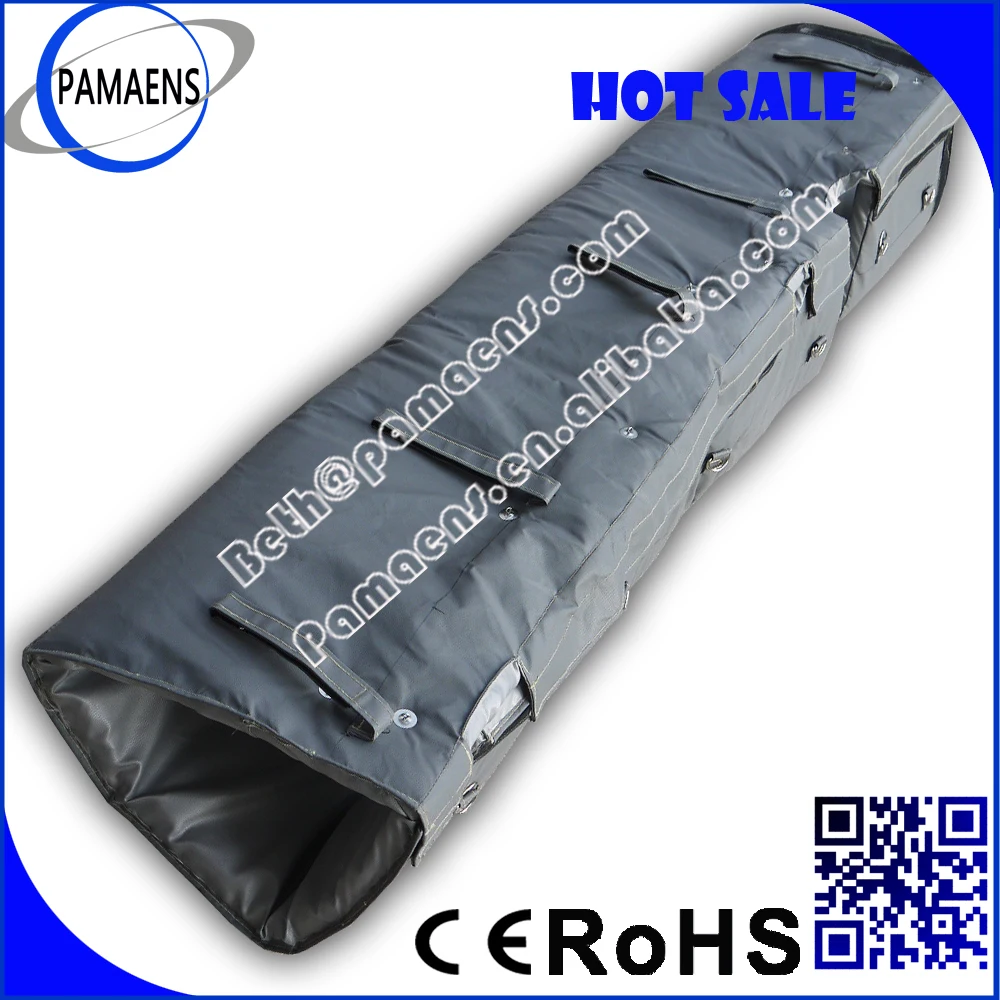

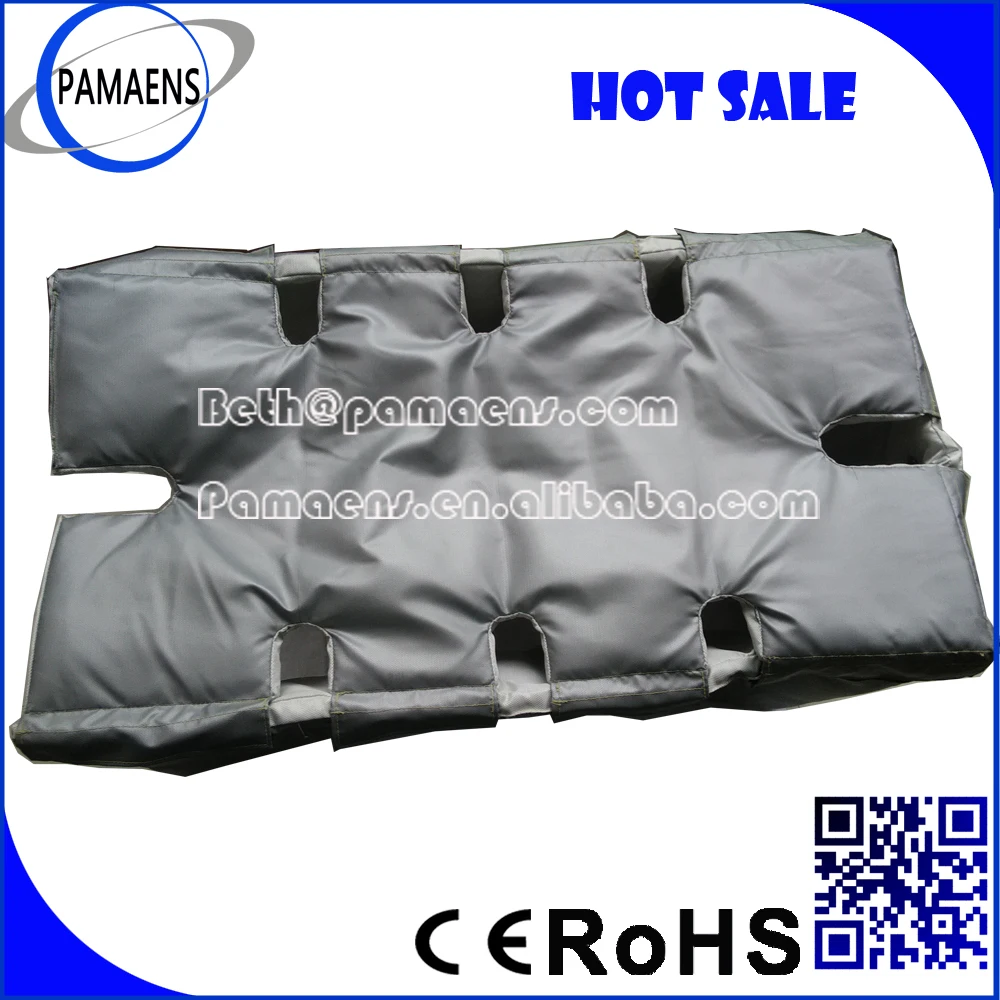

Introduction of Exhaust Jackets Marine Exhaust Insulation:

Exhaust Jackets Marine Exhaust Insulation have three layers, liner is high-SI aluminum cloth, and insulating layer is ceramic or glass fiber, and the protestion layer is ceramic fiber with high temperature resistance paint coat, which is water, oil, acid and alkali proof. The standard thickness is about 25 to 30mm, temperature resistance more than 1200 cent degree. Normal lifetime is 3 years. And the energy saving rate is 25% to 40%.

Types of Exhaust Jackets Marine Exhaust Insulation:

A) Cold insulation type

B) Low temperature insulation type (below 300℃);

C ) Standard type (300---600℃).

D) High temperature insulation type (above 600 C).

Features of Exhaust Jackets Marine Exhaust Insulation:

•Thermal conductivity: 0.035 W/M•K- 0.045 W/M•K±0.005 (Normal temperature)

•Temperature tolerance: high temperature tolerance: 1200℃, low temperature tolerance -30 ℃
to -70℃

•Inflaming retarding: non flammable (Fireproof A class, GB8624-2006, German standard DIN4102,   A1 class)

•Density: 110-220Kg/m

•Thickness: 10-150MM

•Moisture absorption rate: <5%

Applications of Exhaust Jackets Marine Exhaust Insulation:

•Minimize heat loss by 20%-40%

•The surface temperature can be lowered to 40℃, and thus safe to touch by hands

•We support customized design to ensure 100% fit your application.

•Easy to install by buckles

•Water and oil proof, multi-layer protection, anti-corrosion, easy to clean, easy to bend, pollution free and neat out looking.

•Dimension, cut/hole sizes and positions are required for quotation. Drawings and pictures are preferred.



Application of Exhaust Jackets Marine Exhaust Insulation:

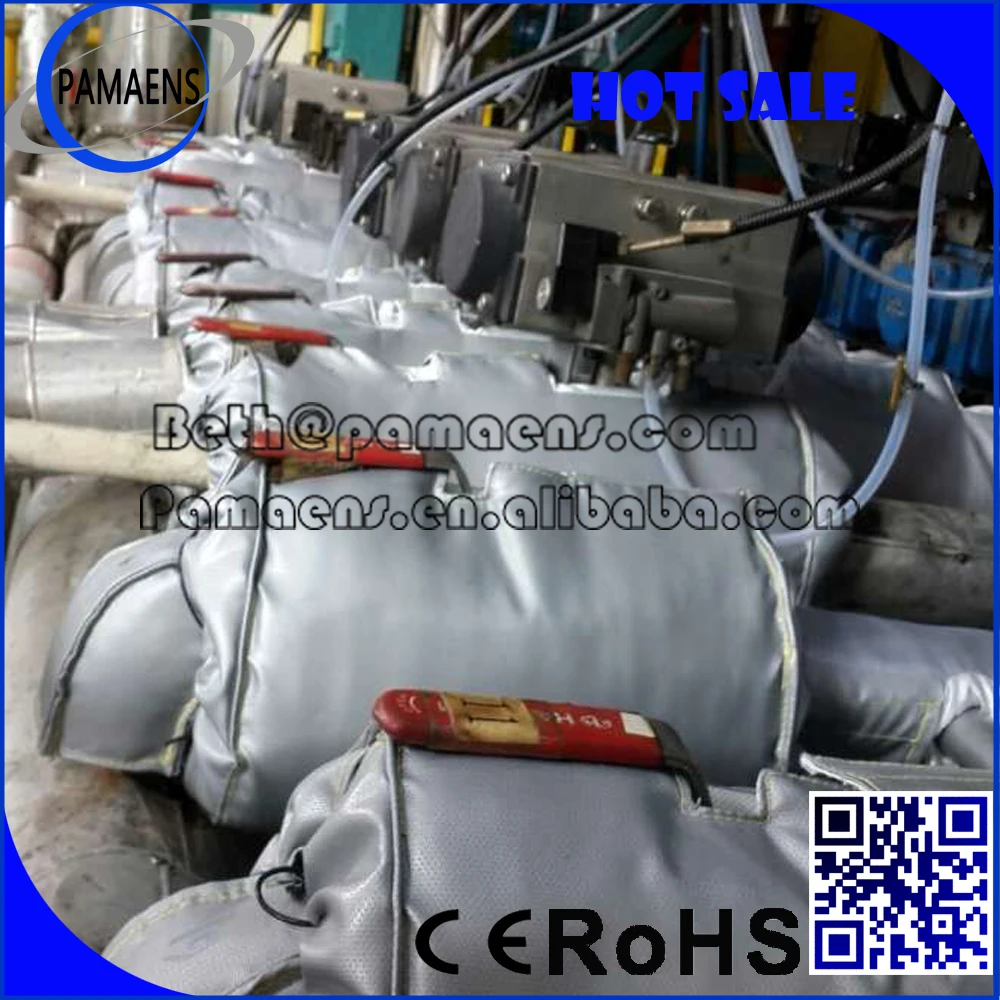

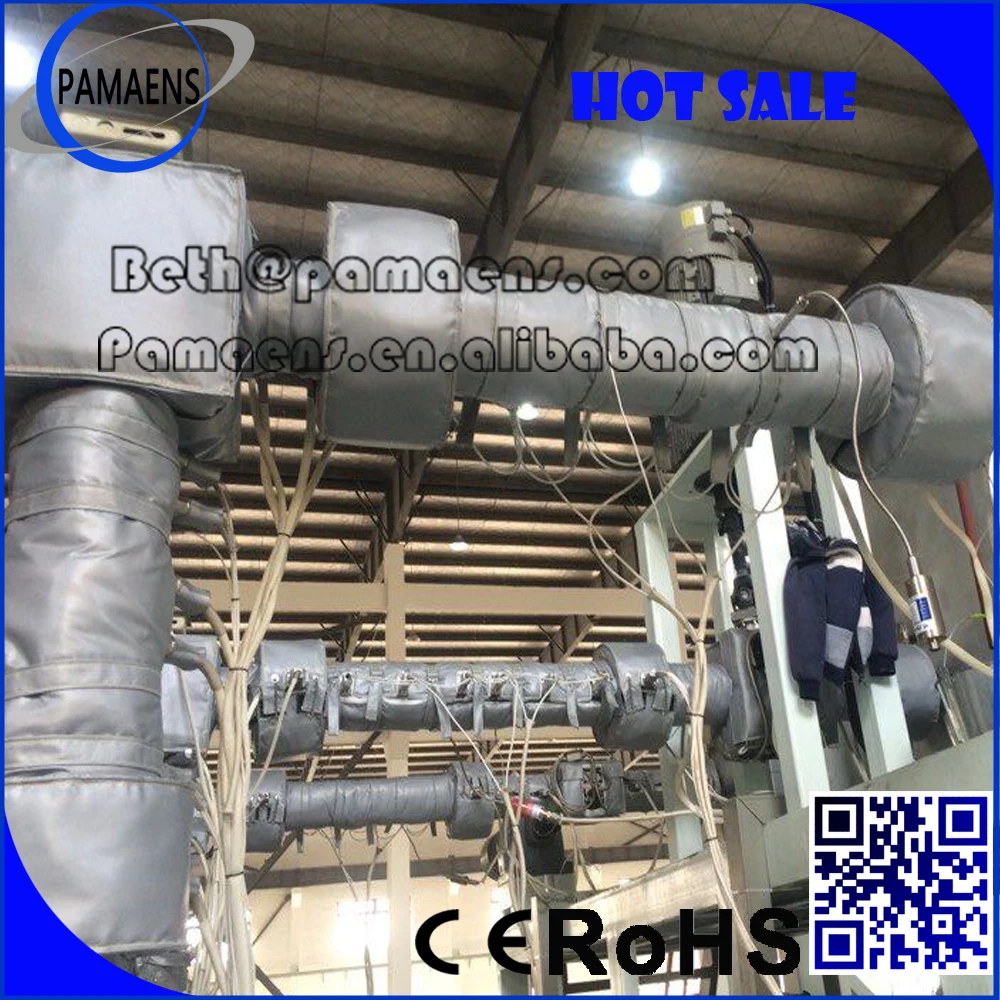

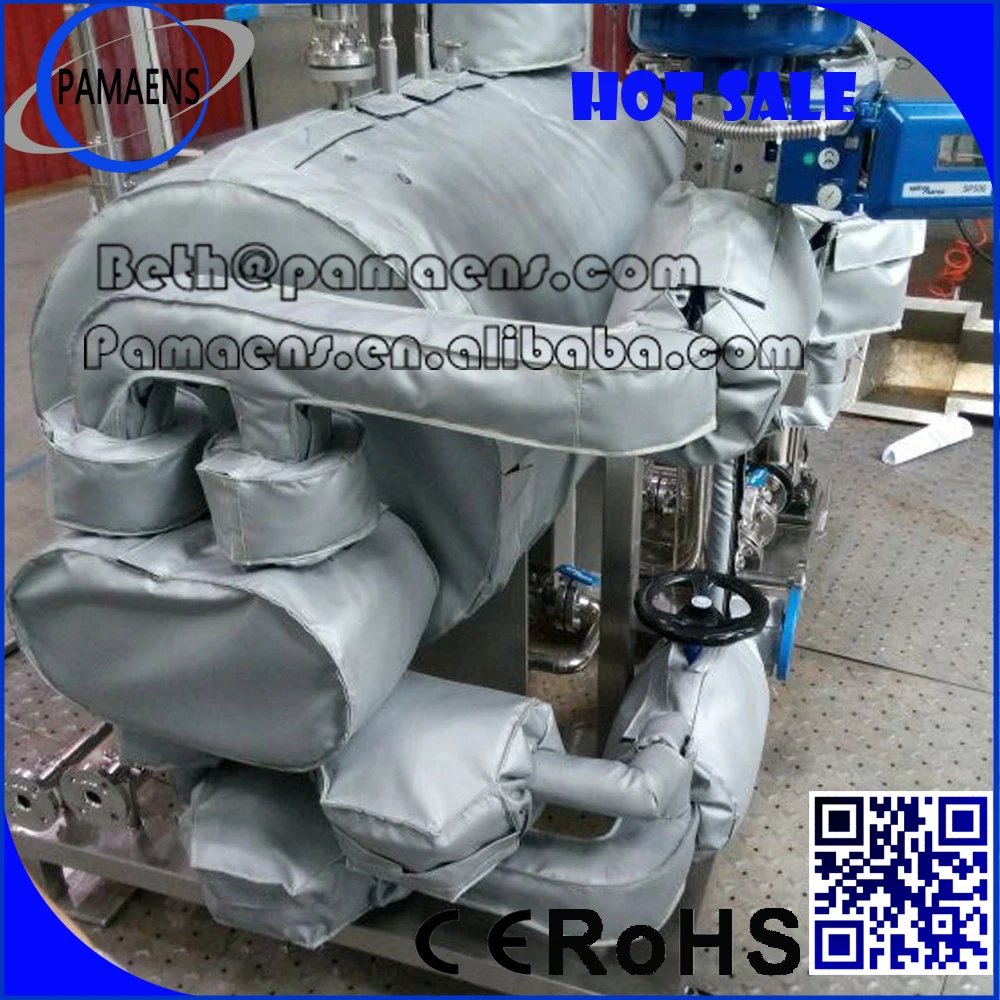

Project show case of Exhaust Jackets Marine Exhaust Insulation:



Shanghai PAMAENS Technology Co., Ltd located in Shanghai, specialized in researching, developping and manufacturing heaters, plastic machinery accessaries and energy saving products. We have strong researching and developping team, many of our engineers have more than ten years experience on manufacturing heaters, and we have stict quality control system, and a team of professional sales people, so no matter manufacturing process, products quality, or prices, we believe few factories could compare with us in China.

Inquiry guide of Exhaust Jackets Marine Exhaust Insulation:

You provide us the sizes, shape, working temperature of object which Exhaust Jackets Marine Exhaust Insulation will be applied.
