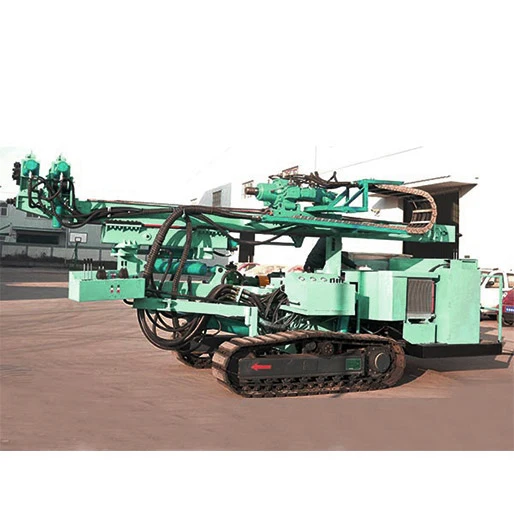

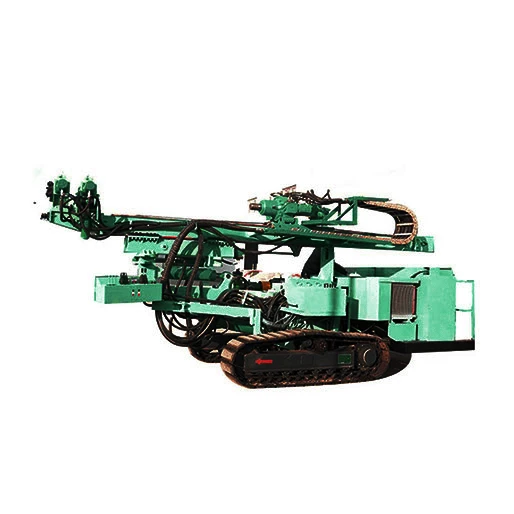

Высокоэффективная гидравлическая буровая установка HFA7500 250 м для бурения
- Категория: Mine Drilling Rig >>>
- Поставщик: Zhengzhou,Hanfa,Imp,&,Exp,Trading,Co.,Ltd.
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Sep-18-2025 | 5355.33 $* | 5623.25 $* |
| Aug-18-2025 | 5310.22 $* | 5576.98 $* |
| Jul-18-2025 | 4455.57 $* | 4678.91 $* |
| Jun-18-2025 | 5220.83 $* | 5481.94 $* |
| May-18-2025 | 4545.77 $* | 4772.44 $* |
| Apr-18-2025 | 5130.81 $* | 5387.63 $* |
| Mar-18-2025 | 5085.41 $* | 5339.70 $* |
| Feb-18-2025 | 5040.60 $* | 5292.18 $* |
| Jan-18-2025 | 4995.28 $* | 5245.53 $* |
Характеристики
Product Description
Drilling Capacity | ||||||||||
drilling angle | drilling diameter | Final hole diameter | drilling depth | Remark | ||||||
0-360º | dia.89 102 114 | dia.150-350mm | 140-250m | Clay layer,sand bed,Pebble bed | ||||||
Drive Rotation Head | ||||||||||
Rotation speed | Forward rotation | 29r/min | 63r/min | 58r/min | 126r/min | |||||
Reverse rotation | 29r/min | 63r/min | 58r/min | 126r/min | ||||||
Strike | Strike pressure | Flow | Frequency | Impact energy | ||||||
15Mpa | 117L/min | 1300 times | 450j | |||||||
Maximum Torque | 10000N.m | |||||||||
Feed Mechanism | ||||||||||
Feed travel | Maximum thrust | Maximum pull | Speed | Pull speed | ||||||
3500mm | 62kn | 94kn | 4/16.8m/min | 6/24m/min | ||||||
Crawler Chassis | ||||||||||
Tractive effort | 100KN | Ground bearing | 0.068Mpa | Traveling speed | 1.5km/h | |||||
Climb ability | 20º | Capacity of bearing | 11t | Crawler specification | 450*135*37 | |||||
Chassis height from the ground | 400mm | Crawler length | 3965mm | Output torque | 1400N.m | |||||
Power Machine | ||||||||||
Diesel engine | CHANHCHAI Diesel | 18kw | 2200r/min | walking and transport | ||||||
Electric Motor | Y160M-4 | 45+45kw | 1480r/min | Normal Construction | ||||||
Diemension And Weight | ||||||||||
Dimensions And Size | 6500*2200*2650mm | |||||||||
Weight | 10.5t | |||||||||
The rig is the overall structure, can be adjusted in three dimensions, achieve 360 ° construction, and is equipped with steel
crawler walking chassis, the machine moving quickly and convenience of construction in different environment, gripper adopts double clamping, can be achieved remove the drill pipe and casing automatically. The device uses high pressure circulating water, and using dynamic impact on double tube rotary drilling construction in sandy pebble formation or unstable fracture formation construction. The efficiency is higher than in the past conventional methods of construction.
crawler walking chassis, the machine moving quickly and convenience of construction in different environment, gripper adopts double clamping, can be achieved remove the drill pipe and casing automatically. The device uses high pressure circulating water, and using dynamic impact on double tube rotary drilling construction in sandy pebble formation or unstable fracture formation construction. The efficiency is higher than in the past conventional methods of construction.
Full hydraulic pressure control, solid fuselage structure. Advanced design concepts, monitoring instrument, convenient to
operation, ensure the practical performance. The equipment adopts motor as the main source of power, And equipped with a 18 kw of small diesel engine as power when walking , getting on and off. Total power of 90 kw motor, power of head rotation is 65 kw, so the drilling rig rotary torque is twice as large as the same type, impact and the lifting force is very strong, high working efficiency, and can be multi-usage, give priority to with slope anchoring engineering construction, can also be widely used in construction of deep foundation pit, subway, tunnel, railway and the anchor construction of highway, geological disaster management and a small pile of construction.
operation, ensure the practical performance. The equipment adopts motor as the main source of power, And equipped with a 18 kw of small diesel engine as power when walking , getting on and off. Total power of 90 kw motor, power of head rotation is 65 kw, so the drilling rig rotary torque is twice as large as the same type, impact and the lifting force is very strong, high working efficiency, and can be multi-usage, give priority to with slope anchoring engineering construction, can also be widely used in construction of deep foundation pit, subway, tunnel, railway and the anchor construction of highway, geological disaster management and a small pile of construction.
The Innovation Points
1. Use chassis of floating structure, can be change Angle of departure of drilling rig and approach angle in a certain range;
2. Using large torque and hydraulic impact rotary power head, can adapt to more than 95% of the formation of construction;
3. The structure of multidimensional connecting rod Angle changed, can make the rig 360 ° in three-dimensional space arbitrarily change the Angle of the borehole;
4. Using electric motor and diesel engine can cope with different construction environment and construction conditions;
5. With double gripper can complete automatic shackle function;
6. Use chain times speed, large hydraulic feed, feed stable and reliable, which can realize double pipe drilling, and following pipe drilling.
2. Using large torque and hydraulic impact rotary power head, can adapt to more than 95% of the formation of construction;
3. The structure of multidimensional connecting rod Angle changed, can make the rig 360 ° in three-dimensional space arbitrarily change the Angle of the borehole;
4. Using electric motor and diesel engine can cope with different construction environment and construction conditions;
5. With double gripper can complete automatic shackle function;
6. Use chain times speed, large hydraulic feed, feed stable and reliable, which can realize double pipe drilling, and following pipe drilling.

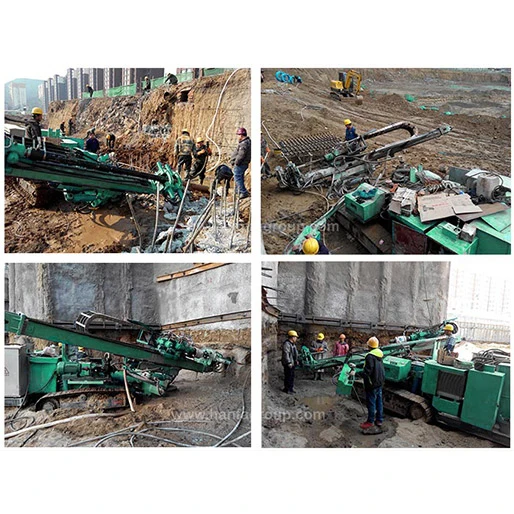

Construction Site
Company Introduction
Hanfa Group established in 1998 is a key enterprise in the industry of geological exploration and water well field, with the ability to research,manufacture and market. Now, the Group pursues high standard manufacturing and qualified products. It has more than 20 species such as water well drilling rig, core drilling rig, engineering drilling rig, DTH drilling rig,
horizontaldirectional drilling rig, etc. These machines are mainly used in geological prospecting, exploration of railway andhighway engineering, mining, SPT, water well, geothermal well etc. Some of them won the Scientific and Technical Advance Prize or the National Scientific Research Achievement Prize. All the products have passed the quality system certification of ISO9001:2000 and are national inspection-free products.
1. More than 20 years of experience
The factory is located in Henan Province, China. We are very welcome to visit our factory. If
you need it, we will arrange a pick-up.
2.Top production team
The transportation and packaging will be packaged in international standards. If you have special packaging requirements, we will give you the most suitable solution.
3.Our Service
- New machine provides technical trair.
- Once anything goes wrong with the machine by normal using, our technical person must appear at the first time no matter where you are.
- When the machine should be maintained, you will receive the reminding from us.
- According to different geological conditions, we will recommend different construction plans for you
- Remind you which are wearing parts, so you can prepare enough.
- 24 hours respond to your quality problem.
you need it, we will arrange a pick-up.
2.Top production team
The transportation and packaging will be packaged in international standards. If you have special packaging requirements, we will give you the most suitable solution.
3.Our Service
- New machine provides technical trair.
- Once anything goes wrong with the machine by normal using, our technical person must appear at the first time no matter where you are.
- When the machine should be maintained, you will receive the reminding from us.
- According to different geological conditions, we will recommend different construction plans for you
- Remind you which are wearing parts, so you can prepare enough.
- 24 hours respond to your quality problem.
Pre-sale services:
1) Selecting equipment type;
2) Designing and fabricating the products in accordance with the special requirements of the clients;
3) Training technical personnel for our clients;
4) Providing construction and technology consultations or working out proper construction schemes for those new, special or difficult projects.
2) Designing and fabricating the products in accordance with the special requirements of the clients;
3) Training technical personnel for our clients;
4) Providing construction and technology consultations or working out proper construction schemes for those new, special or difficult projects.
Services provided during the sale
Respect our clients; present the clients with ease, relaxation and a surprise; devote ourselves to improve the total value of our
clients.
1) Checking products acceptance ahead of delivery;
2) Introducing the service system to our clients;
3)Detailed technical assessment;
4)Design of process and equipment layout.
clients.
1) Checking products acceptance ahead of delivery;
2) Introducing the service system to our clients;
3)Detailed technical assessment;
4)Design of process and equipment layout.
After-sale services
Improve the added value of our products, and let the clients free from the using troubles:
1) Assisting the clients preparing for the first construction scheme;
2) Installing and testing the equipment;
3) Training the first-line operators on site;
4)Supplying spare parts with cost.
1) Assisting the clients preparing for the first construction scheme;
2) Installing and testing the equipment;
3) Training the first-line operators on site;
4)Supplying spare parts with cost.
FAQ
1, Are you trading company or manufacturer?
We are professional manufacturer, and our factory mainly produce water well drilling rig, core drilling rig, DTH drilling rig, piling rig, etc. Our products have been exported to more than 50 countries of Asia, South America, Africa, and get a good reputation in the world.
2, Are your products qualified?
Yes, our products all have gained ISO certificate,and we have specialized quality inspection department for checking every machine before leaving our factory.
3, How about your machine quality?
All of our machines hold the ISO, QC and TUV certificate, and each set of machine must pass a great number of strict testing in order to offer the best quality to our customers.
4, Do you have after service?
Yes, we have special service team which will offer you professional guidance. If you need, we can send our engineer to your worksite and provid the training for your staff.
5, What about the qaulity warranty?
We offer one-year quality warranty for machines' main body.
6, How long can you deliver the machine?
Generally, we can deliver the machine in 7 days.
2, Are your products qualified?
Yes, our products all have gained ISO certificate,and we have specialized quality inspection department for checking every machine before leaving our factory.
3, How about your machine quality?
All of our machines hold the ISO, QC and TUV certificate, and each set of machine must pass a great number of strict testing in order to offer the best quality to our customers.
4, Do you have after service?
Yes, we have special service team which will offer you professional guidance. If you need, we can send our engineer to your worksite and provid the training for your staff.
5, What about the qaulity warranty?
We offer one-year quality warranty for machines' main body.
6, How long can you deliver the machine?
Generally, we can deliver the machine in 7 days.
