Однолучевой мостовой кран
US $5000-$20000
Однобалочный мостовой кран для низких помещений с
- Категория: Мостовые краны >>>
- Поставщик: Guangdong,Yongtong,Crane,Machinery,Co.,Ltd.
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Sep-16-2025 | 71400.25 $* | 74970.53 $* |
| Aug-16-2025 | 70800.63 $* | 74340.67 $* |
| Jul-16-2025 | 59400.32 $* | 62370.31 $* |
| Jun-16-2025 | 69600.22 $* | 73080.80 $* |
| May-16-2025 | 60600.75 $* | 63630.63 $* |
| Apr-16-2025 | 68400.28 $* | 71820.52 $* |
| Mar-16-2025 | 67800.45 $* | 71190.88 $* |
| Feb-16-2025 | 67200.80 $* | 70560.88 $* |
| Jan-16-2025 | 66600.44 $* | 69930.90 $* |
Характеристики
Why Choose Us?
What is the Advantage of our company?
As a famous and leading manufacturer in China, Yongtong has become the OEM partner for DEMAG since September of 2010 after both of the parties signed the agreement at the grand ceremony in Shanghai.
From then on, Yongtong is granted to apply the advanced technologies from DEMAG, such as, DEMAG lifting unit(or electric hoist), drive technology , control technology as well as introducing DEMAG key parts to integrate the parts of the international brands and manufacturing.
Meantime, Yongtong installs the advanced and high quality cranes with European style in the name of DEMAG OEM strategic partner.
What is the description of the cranes?

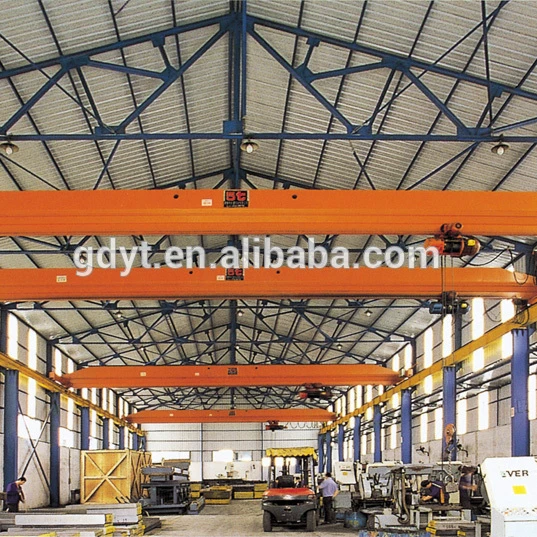

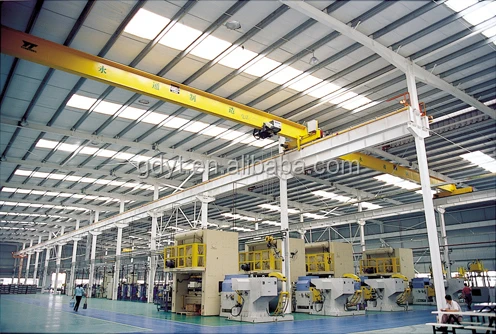

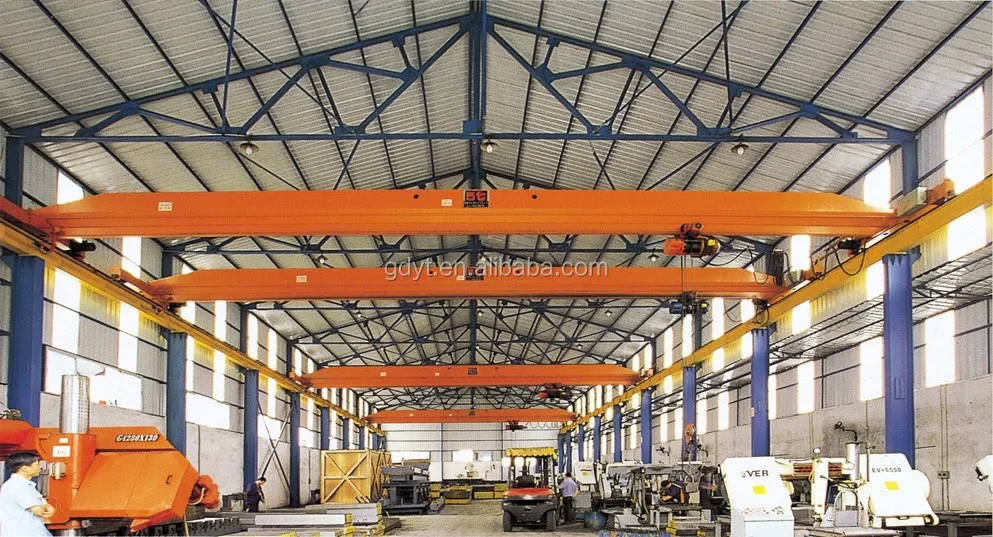

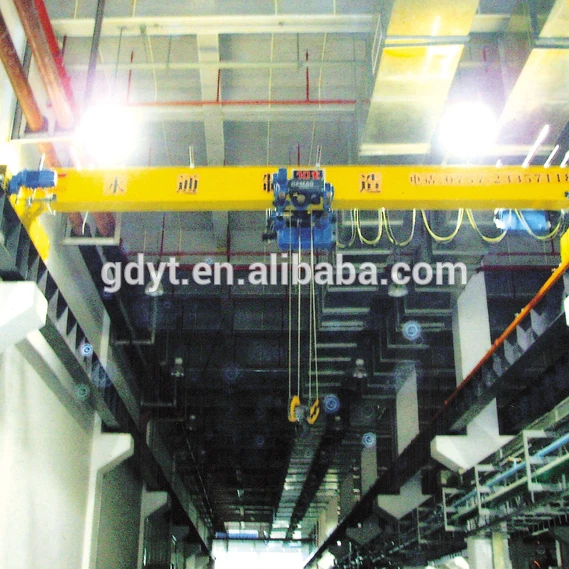

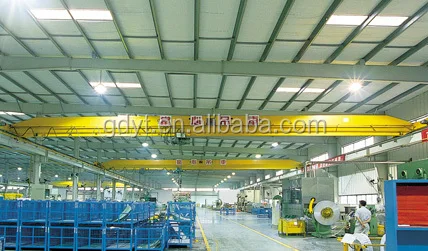

LDA type crane is the most popular crane for workshop. It is designed and manufacturing on the basis of LD type crane which has more reasonable structure and lighter in weight. This crane belongs to light duty crane, can be used with CD1 and MD1 hoist. Lift capacity is from 1 ton to 16 tons, suitable for 7.5m to 28.5m. It works indoor under the temperature -25°C to +40°C, humidity not more than 85% (ambient temp is 25°C). Its working condition is A3-A5.This type crane is commonly used in mechanical production workshops, assembling production line, warehouse and cargo yard, forbid to be used in humidity over 85%,corrosive and explosive places. It cannot be used to handle melting metals and toxic, flammable dangerous materials.Controlling can be ground operation or cabinet operation, the cabinet divided into close one and open one, it can be installed at the left or right side up to different conditions.
Structure Features:
Metal schemes
The main beam is made of U steel rolled by steel plate, and welded with flange beams to form a box design. The end beams are made by the same technique and material as the main beam. In case of heavier load or larger span, the end beams and main beam will be made of welding U shape groove. The main and end beams are connected by intensive bolts for convenient transportation and assembling.
Electric hoist
The LDA model crane of YT adopts CD or MD type hoist. CD type has single speed while MD type has dual speed to satisfy accurate operation.
The travel unit
This crane is driven in two separate ways. The cone shape braking motor or solid rotary motor (with magnetic brake) is the driving part. While the transmission part is “ open-close” gear, and the close gears are LDA or LDH gear box.
Electric devices
The motors are cone-shape cages ZDY, or YSE solid rotary ones. These two types have different electric control system. The hoist and the crane are protected by safety devices, such as lifting limit switch, terminal limit switch, over load limit, wrong phase and over current protection etc.
CCrane Sketch
Technical Parameters for reference: Tech
ical Parameter
Components:
Engineering Projectsring Projects
Certificate
Factory view
Packaging & Delivery
What information should you provide when you inquiry?
(1)Lifting capacity (tons)
(2)Span (meter)
(3)Lifting height (meter)
(4)Travel speed (meter/min)
(5)Working condition: What goods to lift? How often the crane works?
(6)Power supply
(7)Control method ( ground or cabinet)
(8)The cabinet has side doors or back? The side door is designed normally.
(9)Power input method (plane current collector, flexible cords) (steel wheels etc)
(10)The width of tracks for long travel (mm).
(11)The headroom is suitable for the crane or not.
(12)Drawings of workshop
What kinds of cranes does our company produce?
(1) 0.5-20t LX Hang cranes
(2) 1-16t LDA electronic single beam crane
(3) 2-32t LH double beam cranes with hoist
(4) 5-160t QD bridge cranes with hooks
(5) 5-16t QZ bridge cranes with grab
(6) 5-50t QDY bridge cranes with hooks
(7) 5-16t European style single beam cranes
(8) 2-50t European style double beam cranes
(9) 2-20t MH Gantry cranes with hoists
(10)FZQ Special Oxidation cranes for Al materials
(11)Cranes for metallurgy , construction, material feeding, electromagnetic cranes, Hang cranes with hooks, electromagnetic hang cranes, cranes with two lifters or three lifters, cranes with two trolleys or trolleys.
(12) 5-50t single/double gantry cranes
(13)1-45t GQ stationary cranes (port cranes)
(14)5-45t MQ portal cranes (port cranes)
(15)6-35t rail type container gantry cranes(port cranes)
(16)1200t-2200t/h ship unloading cranes with chains
(17)1500t-2500t ship loading cranes for bulk cargo
Agent Wanted
In order to deliver our cranes to the foreign countries, we need oversea partners. We will give you good supports for your market once we start the cooperation.If you have any interests, please kindly contact us for more information.
Contact Us
Contact Person: Sandyhuang
Mob: +86-19977580629
Fax: +86-757-23357378
WhatsApp:+86-19977580629
