10 т/день печь для карбонизации древесного угля в арахисовой

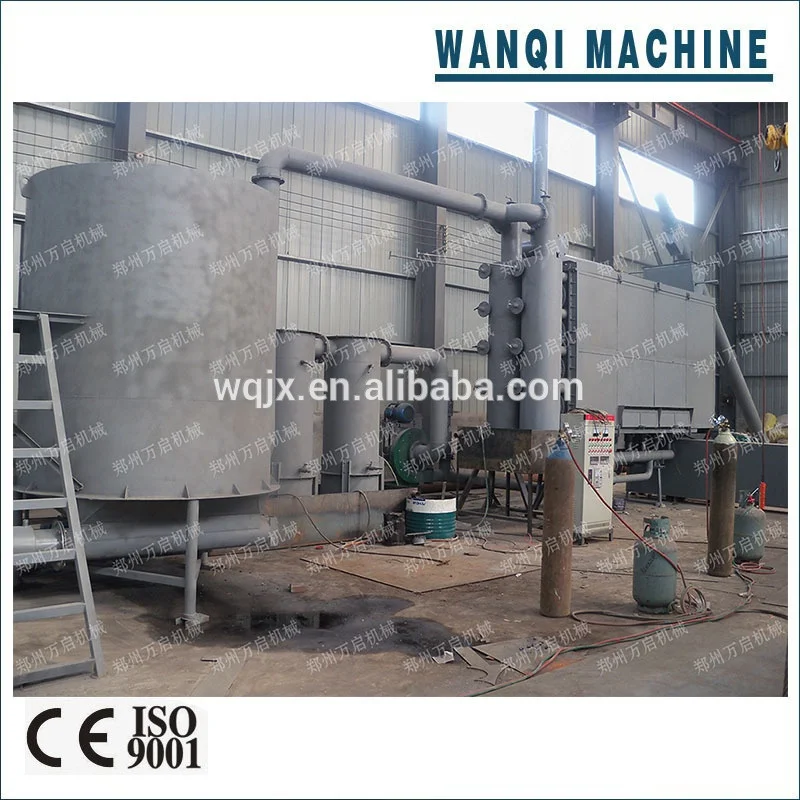

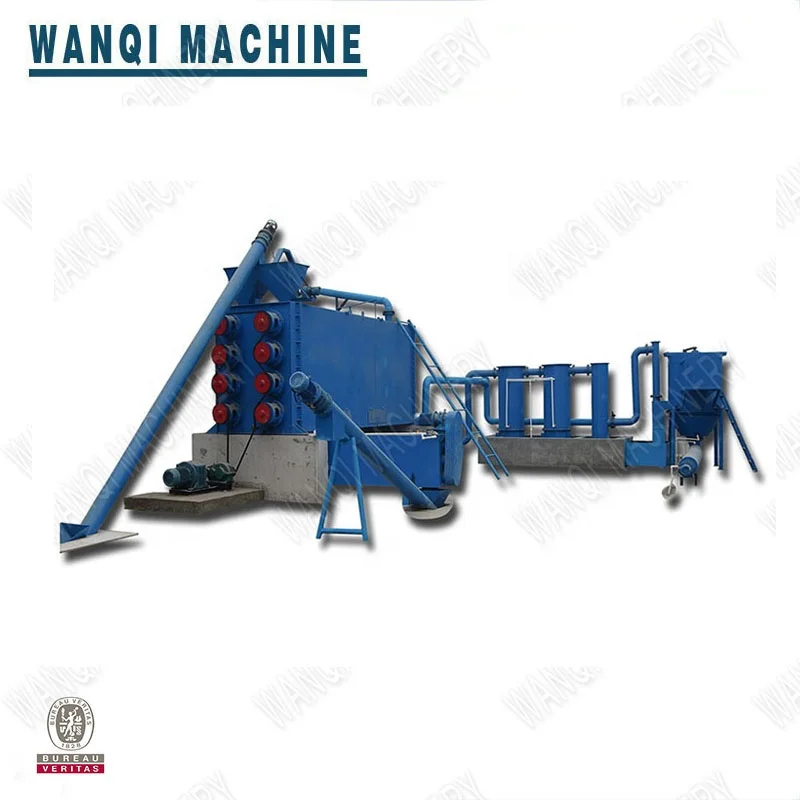

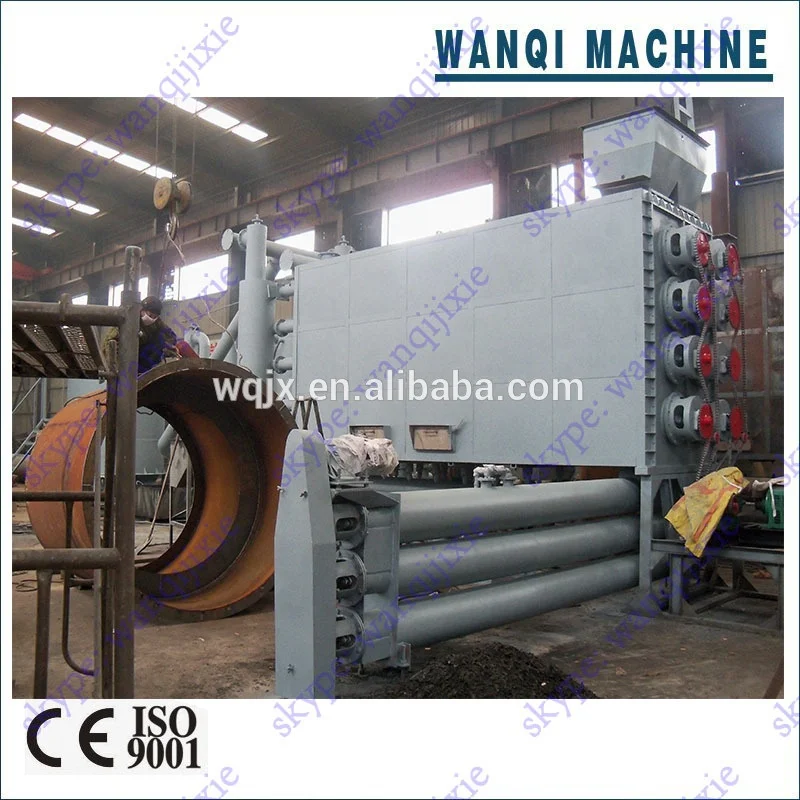

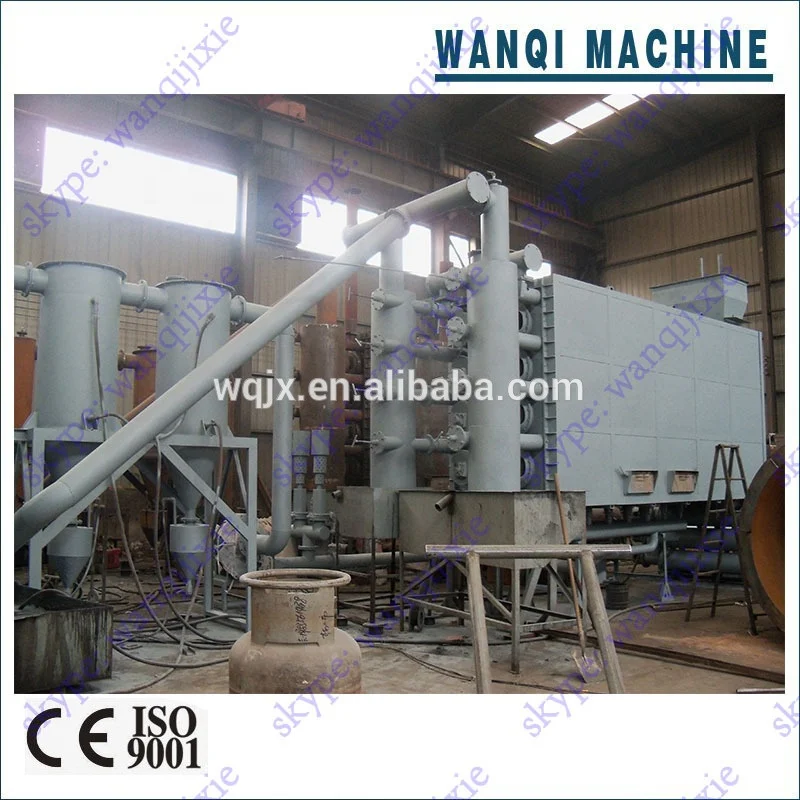

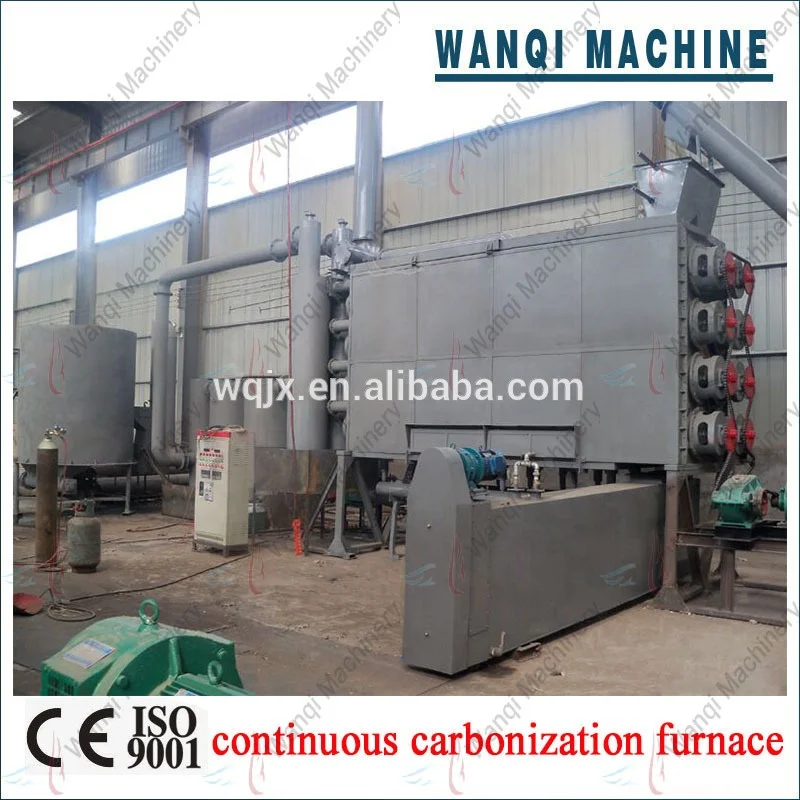

1.Brief introduction of continuous carbonization furnace/carbonization kiln

Raw materials : wood sawdust, rice husk, peanut husk, straw, tree bark, etc ( raw materials size <15mm )
Charcoal powder’s function:
Industrial circle : explosive , rubber’s additive , metallurgy, chemical engineering, medicine, cosmetic,
environmental protection
Agricultural circle : improve ground temperature , improve soil , keep soil moisture , relivers for fertilizer,
Daily Life : hot pot fuel , dehumidizer , ink , mosquito incense, water purifier etc

2. Work Principle of continuous carbonization furnace/carbonization kiln :
1) main part of the whole set machine : biomass gasifier stove , gas cleaner , fan, burner , carbonization
equipment etc
2) principle : this sets equipment use Dry distillation carbonization method , make full use of the flammable
gas,such as Methane, carbon monoxide, hydrogen, which occur during the carbonization . Then through the
gas cleaner to get Wood tar, wood acid to get pure flammable gas , then through the burner to make the gas be
burning to heating the carbonization ( temperature is about 600 ℃ )
3) Four-layer’s pipe : from top to bottom , the 1st & 2rd layer are for pre-heating and drying, ( these 2 layers
with independent vapour exhaust pipe ),3rd layer is for carbonization under low temperature , 4th layer is for
carbonization under high temperature and discharge , 3rd & 4th layer also have independent pipe to collect
flammable gas, which can make the gas be used circulatory
Main motor: speed can be adjusted , 3kw
Fan : frequency control speed , 3kw
Temperature of carbonization : 500-700℃
biomass gasifier stove : 350-500℃

3.Features of continuous carbonization furnace/carbonization kiln

1.The combustible gas made by self generated flue gas can be used recycling, gasifier slag can be used as charcoal powder, direct sales, to achieve the effect of energy saving;

2.The whole process without flue gas emissions, meet the national environmental protection requirements;
3.Carbonizing out the maximum yield of charcoal in the shortest time, each furnace carbonization time only need 4-6 hours;
4.1-2 people can operate the whole production line, each furnace volume 13 cubic meters, high production and efficiency;
5.By-products:wood tar refining diesel oil, wood vinegar liquid can be used as pesticide, will waste to exploit to the greatest extent, no waste.

6. The finished charcoal powder can reach 600Kg/h.

7. None stoping,working for 24 hours

8.Environmental protection,burn the furnace smoke itself,so no smoke go out.

4. Parameters of  continuous carbonization furnace/carbonization kiln

2.All the machines will be checked Ok before delivery
3. We can appoint specialized after-sale service staff to your country for installation and debugging the equipment.
4.Train operating personnel.
5.We provide the video to guide the customer how to operate the machine and provide technical support .
6.You can call us at any time if the machine break down during the operation.If the problem can't be solved, we will send the engineers to your country to repair the machine for you.

A: Who we are

Established in 1980, Zhengzhou Wanqi Machinery is a professional biomass machinery manufacturer based in Henan Province.

B: What we do

We specilized in manufacturing carbonization furnace, charcoal making machine, charcoal machine, briquette machine, wood crusher, rotary dryer etc and other related products.

C: Why us

We use stringent quality control measures to ensure the reliablity of our products. With sound business credit, excellent after-sales service and morden manufacturing facilities.

1.What is the carbonization rate?

This carbonization rate can reach to 99%.

2.Could you offer complete Wood Charcoal machine production line?

Yes, we will allocate suitable production line according to your special requirement, such as crusher, Gasifier Equipment, Dust-Removal Device, Gascleaner, Auto-feeding Conveyor,Cooling and Discharging Conveyor,Manual automatic dual-use electric control cabinet,etc.

3.Where is your factory located? How to get there?

We are located in Zhengzhou city, Henan province, China, you can come here by air.
The nearest airport is Zhengzhou Xinzheng International Airport, and the Airport Code is CGO
We will pick you up at airport.Welcone to visit our factory.

4. Why it is no pollution ?
Smoking purification system are used for purify the smoking (can not burning) and filter the wood tar. The smoking through the purification system will become water vapor, and it will not pollute the air.
When during the process of carbonizing, there will be some smoke.(can be burning) the smoke can return to the furnace through tube for purifying, after purification , the combustible smoking can be flow into the heating room of the main furnace for heating the stove again.

5. How many containers will it load?

One 40 feet container and one 20 feet container.
