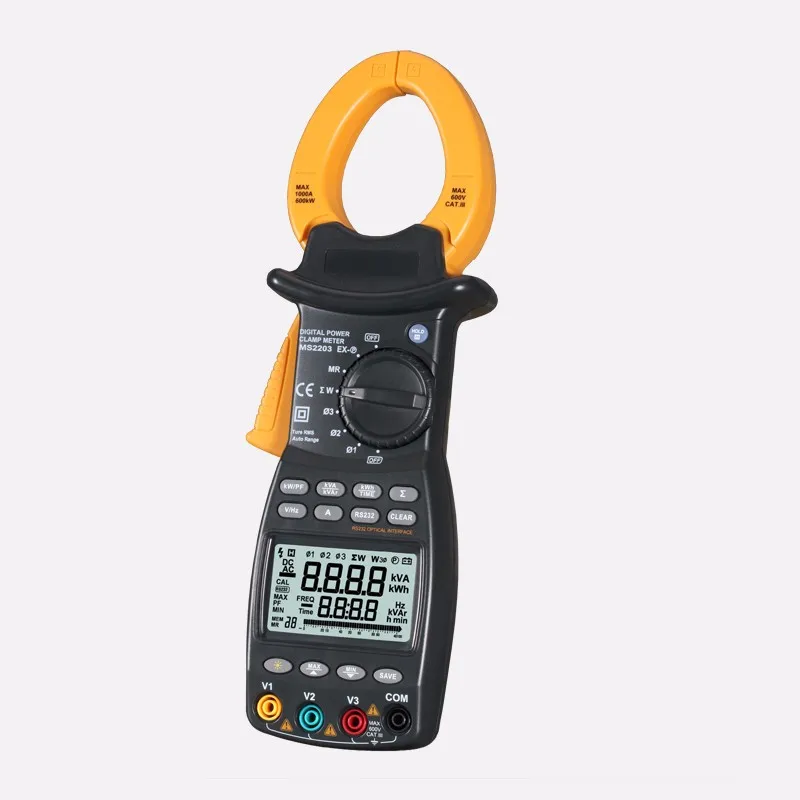

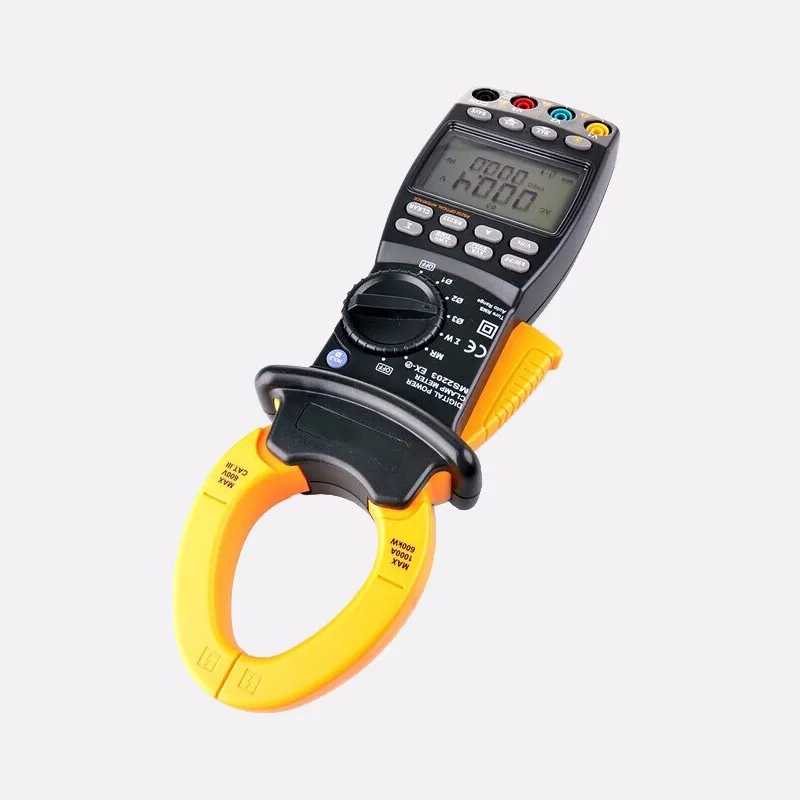

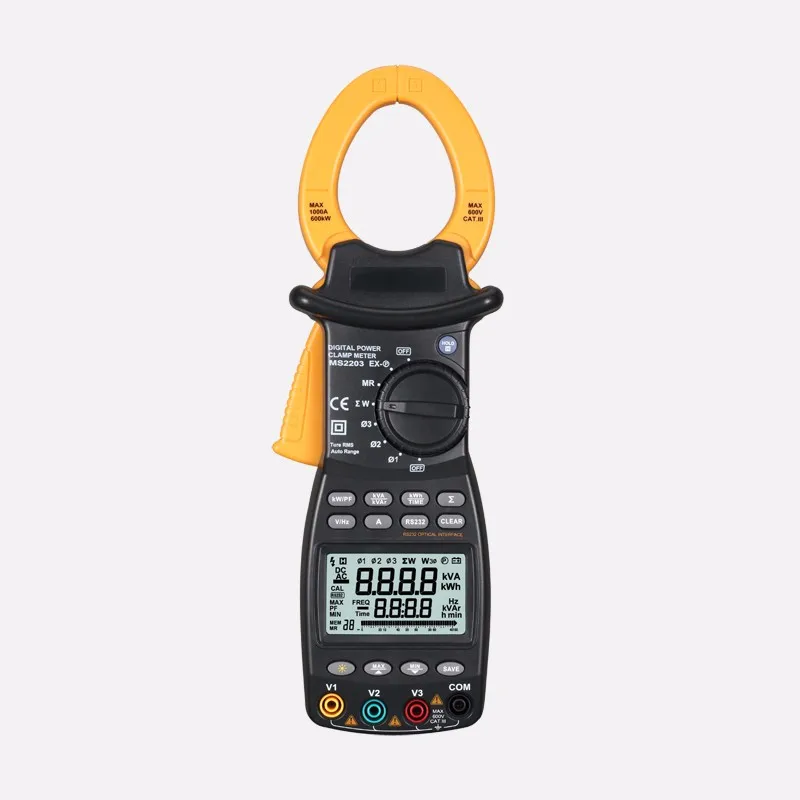

Цифровой измеритель мощности MS2203 9999 отсчетов 600 кВт True

Features(Digital Power Clamp Meter)

Display

9999 counts

Jaw Opening

Φ50mm/2.0”

Auto Ranging

√

Max/Min

Data Logging

28 groups

True RMS

True root mean square measurement

Data Hold

√

Display Backlight

√

Auto Power Off

√

RS232 Interface

Windows OS

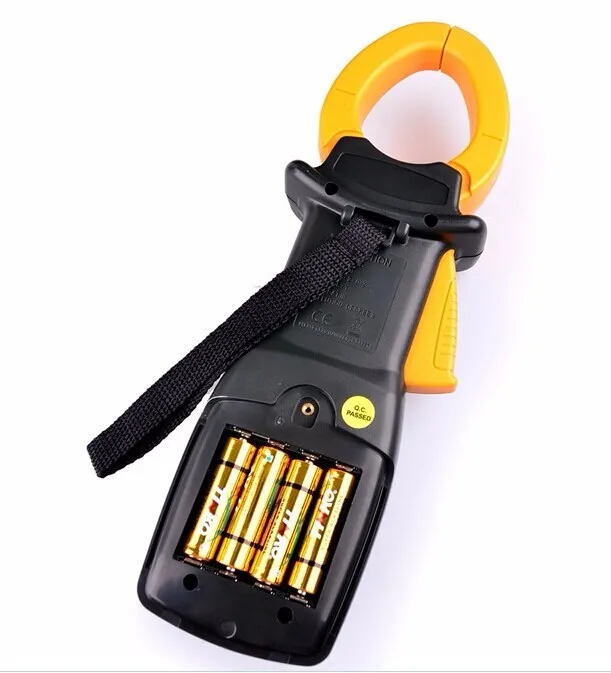

Power Supply

4 x 1.5V AA Batteries

Size

300mm x103mm x51mm(11.8" x4.1" x2.0")

Weight

640g(1.4Ib)

Category

CE CAT .III 600V RoHS

Specifications

Functions

Range

Accuracy

AC Voltage(V)

0.1V ~ 600V

±(1.2% +5)

AC Current(A)

0.1A ~ 1000A

±(2.0%+5)

Active Power(kW)

0.1kW ~ 600kW

±(3.0%+5)

Apparent Power (kVA)

0.1kVA ~   600kVA

±(3.0%+5)

Reactive Power (kVAr)

0.1kVAr ~   600kVAr

±(3.0%+5)

Power Factor

0.3 ~ 1

±(2.0%+2)

Active Energy

0.001kWh~10000kWh

±(3.0%+2)

Frequency

20Hz~1000Hz

±0.5%

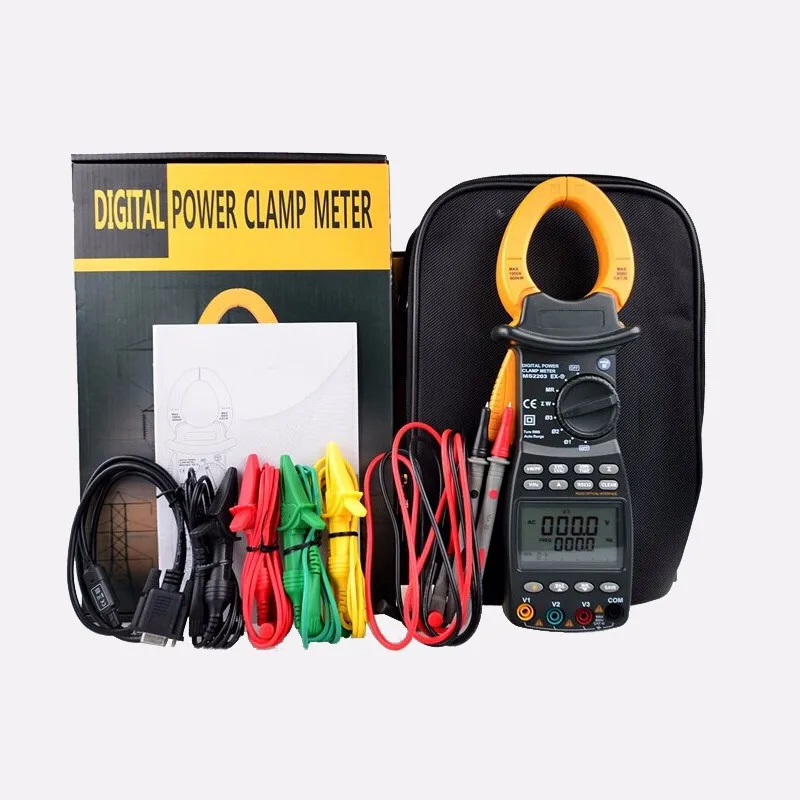

User’s manual

One piece

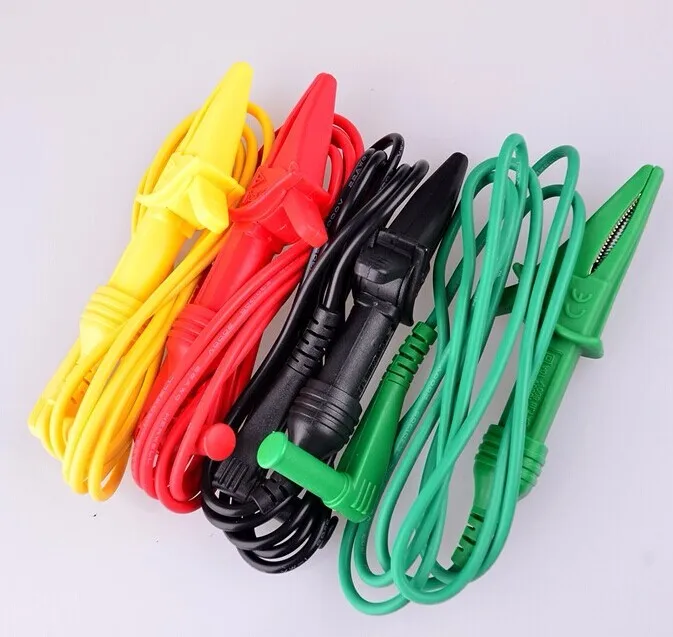

Test lead

One set

Connect test clamp

One piece

 RS232C interface cable

One piece

 PC data record graph software

One piece

 1.5V AA battery

Four pieces

 Carry case

One piece

 Gift box

One piece
