Microfiltration and Ultrafiltration Porous Ceramic Membrane with CE Certificate

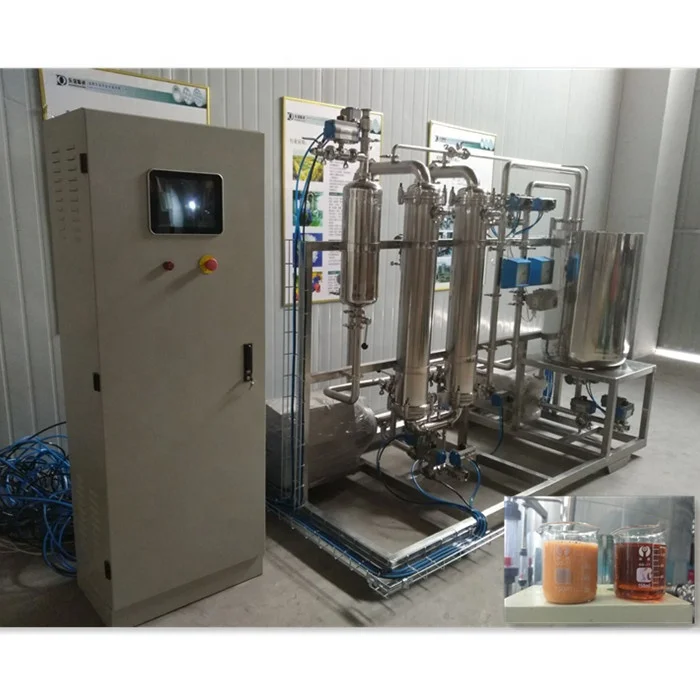

1:System Components:

Membrane module(membrane,ss housing),feed tank,centrifugal pump,flow/pressure /temperature meter,electric control panel,valves and pipes;



 Type of module(number of membranes/housing) : 1,3,7,12,19,37,61,91 pcs

 Length of membrane:                   250-1200mm

 Outer diameter of membrane:            12/25/30/40/52/60mm



 Material of body: SS304,SS316L,Titanium,FRPP,MSRL;

 Material of seals: EPDM;Fluoro Rubber;Silicon;



2: Filtration mode: cross flow filtration;

3:Properties of ceramic membrane:

Support material:	α-alumina
Pore sizes:	UF: 10,20,30,50nm
	MF: 100,200,500,800,1200nm
Membrane material:	Zirconia,Titania,Alumina
Length of membrane:	250-1200mm(special length upon customer's request)
Outer diamater:	12/25/30/40/52/60mm
Working pressure:	Normal: 0.1-0.4MPa  Max.: ≤1.0MPa
Burst pressure:	≥9.0MPa
Working temperature:	5-120℃
PH range:	0-14



4:Specification of membranes:



5: Ceramic Membrane Comparison with traditional filtration system



Compared with such tradition filter like Filter Press, Centrifuge, DE Filter and organic membrane, Ceramic Membrane has many unique advantages.



1.        Excellence resistance to acid, alkaline and oxidation chemicals.

2.        Solvent stability, high thermal stability.

3.        Fine reparability with narrow pore size distribution.

4.        Extremely long work life compared with polymeric membrane.

5:        Easy to be cleaned and sanitized with back flush.



6:Applications:



Separation of liquids and solids;separation of oil and water;separation of liquids and liquids;



(especially for filtration of food and beverage industries,chemcical and petrochemical industries,



pharmaceutical and mining industries.)





 7: Typical Applications:
1) Biochemical and Pharmaceutical Industries: Clarification and purification of the fermentation products

    as well as purification or separation of product slurries;
2) Environmental applications: Waste Water clarification and separation;
3) Food and Beverage Industry: Microfiltration of milk, clarification of fruit juice and separation of soyabean

    protein;
4) Highly useful for various filtration applications in the Petro-Chemical Industry;
5) Other fields: Reclamation of nano powders, filtration of acid/alkali containing liquids.





Zibo Dongqiang Ceramic Filter Co.,Ltd. is a specialized manufacturer of inorganic ceramic membrane and polymeric membrane and equipment and solution provider of membrane filtration,separation,concentration and extraction technology.

We have a R&D center,6 ceramic membrane production line,2 polymeric membrane production line,1 housing fabricating workshop,1 equipment assembly and fabricating workshop.

With the above production capacity and expertized staff,our business ranges from MF,UF,NF,RO membrane and euqipment manufacturing to the complete process development,engineering design,system integration,assembly and commissioning.

We supply our customers with:

1:Membrane module:

  Ceramic membrane,polymeric membrane and housing.

2:Membrane equipment:

  Lab scale pilot,Middle scale pilot,and industrial scale equipment.

3:Membrane technology solution:

  Water treatment,Environmental protection,Food and beverage,

Biochemical,Pharmaceutical,Oil field industries.

4:Membrane technology and service.



 *For more detailed information,pls contact us.
