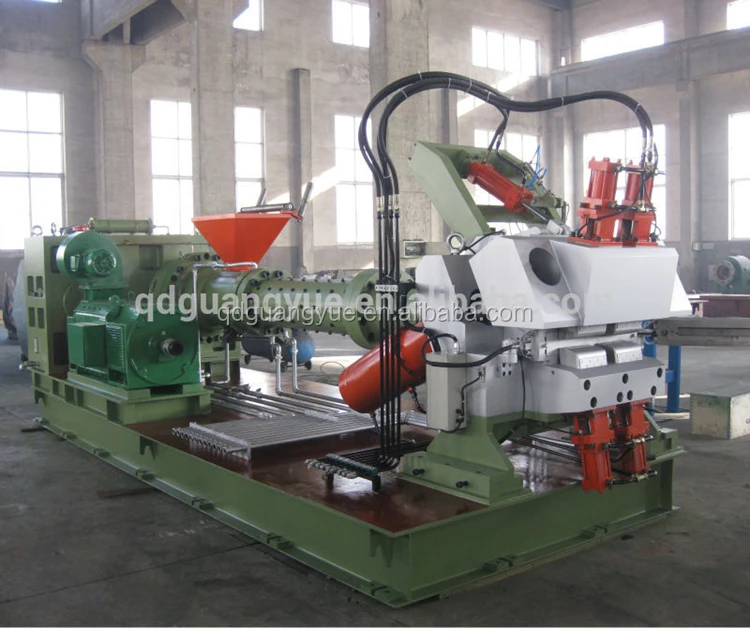

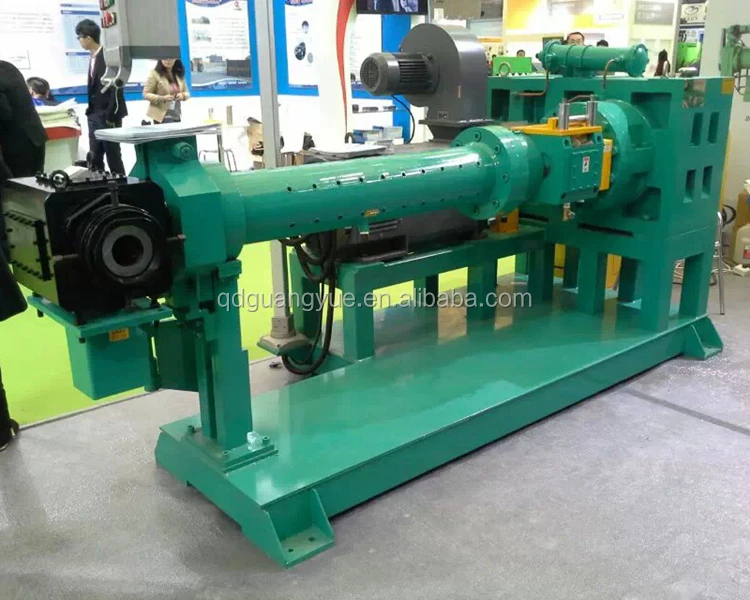

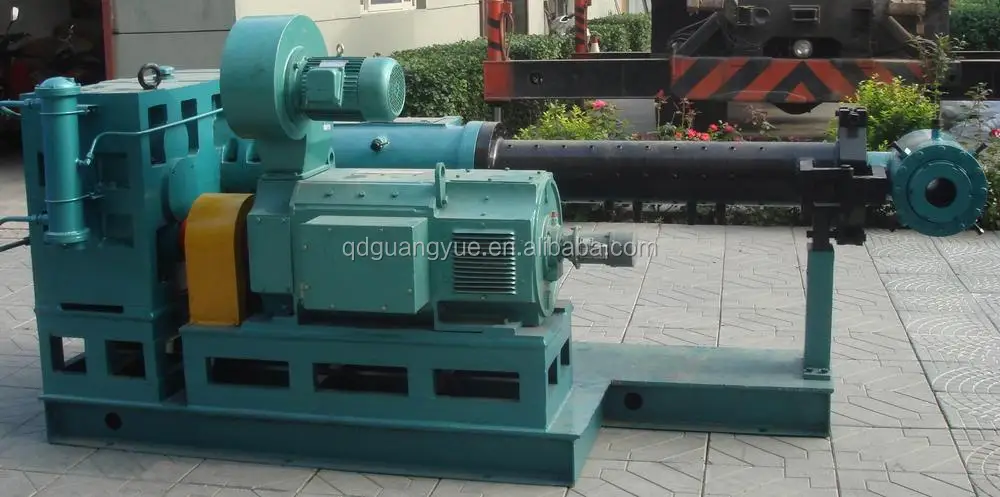

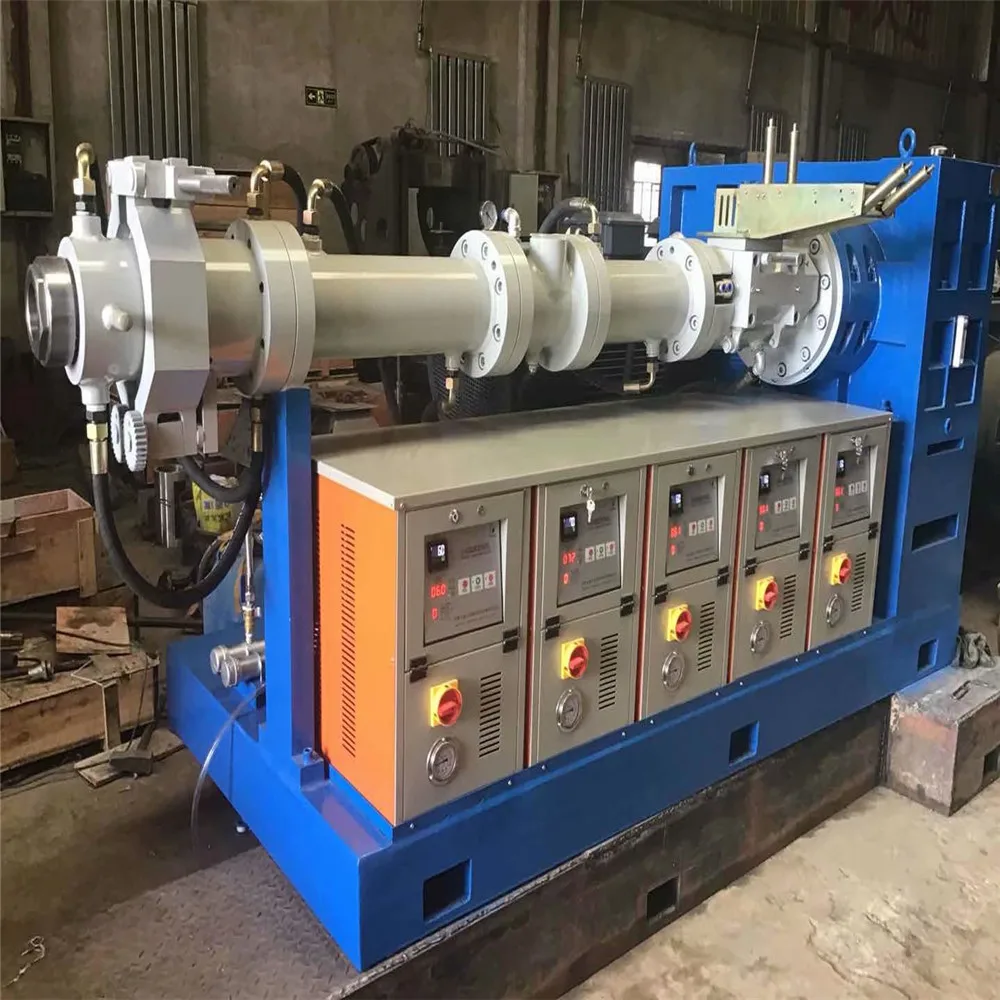

Cold-feed rubber extruder

PVC gasket extruder machine



1. application of machine

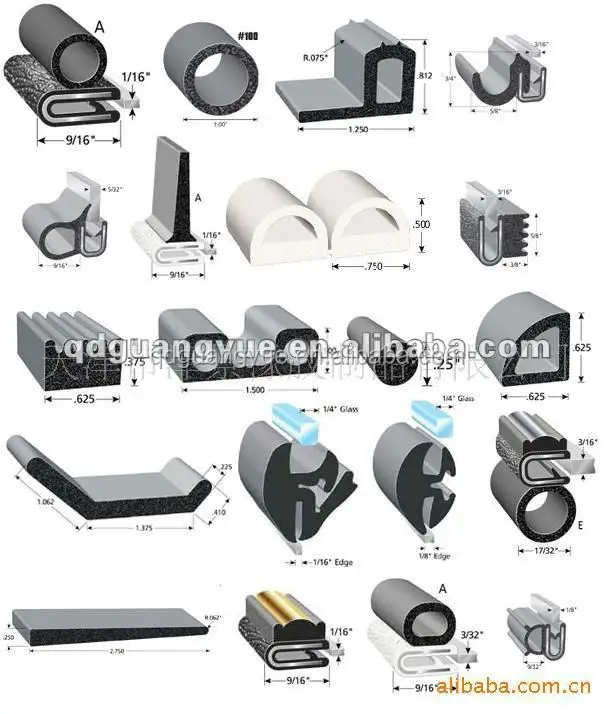

It mainly used for manufacturing soft PVC or EPDM gasket strip. also can process some co-extruded profile,  two or three different material, or different color.  such as  gasket for door/window,  or refrigerator.

2. configuration of machine

a. TS-55 /TS-65 single screw extruder: one set

b. PVC profile mould : one set

c. Profile calibration mould: one set

d. water cooling tank: one set

e. Belt haul-off unit: one set

f. dual-shaft winding unit: one s





1.Structure



 The machine constitude of Charging hopper, barrel, screw, the top group and ect.



2.uses

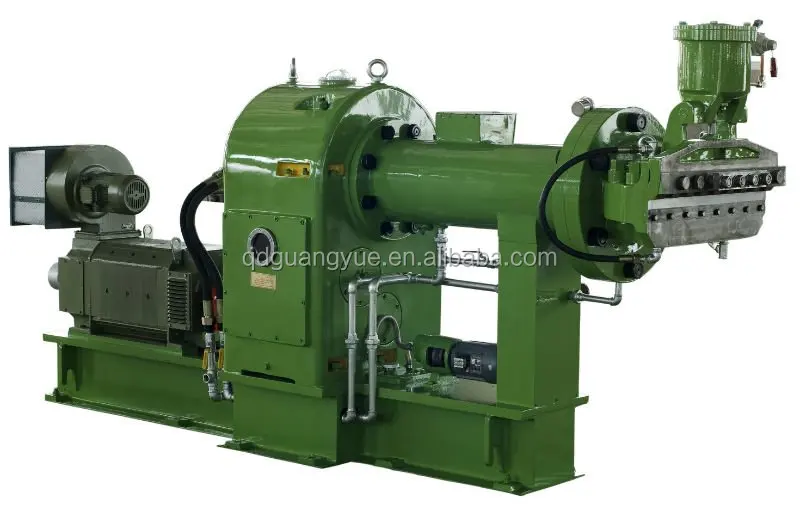

  Pin Cold Feed Rubber Extruder is applicable to extruding types of tread in radial tyre and cross-ply tyre preparation, extruding bead apex,covering rubber of electric wire, electric cable and rubber hose ,extruding rubber board, slab, conveyer belting and rubber core. Also the extruder is widely used for feeding rubber for radial tires airtight seal.



 3.Features



(1.)The extruder uses the technology of room temperature feeding

(2.) high quality, high yield ability, high efficiency and energy conservation.

(3.)extruder can extrude rubber at low temperature, and is highly adaptable to processes of types of rubber sizing material.

(4.)The extruder is the first choice machine while technology innovating, process improving and equipment replacing in rubber industry.



Parameter of cold-feed rubber extruder



Model Item			XJ-65	XJ-85	XJ-115	XJ-150	XJ-200	XJ-250
Screw dia		mm	65	85	115	150	200	250
L/D ratio			4	4.8	4.8	4.4	4.4	4.5
Screw speed		r/min	20,27,35,47	28,40,52,72	20~60	27~81	3~64	3~56.3
Motor power		kW	7.5	15	30	55	90	110
Capacity		kg/h	50~80	62~270	100~420	800	1500~2200	3600
Overall dimensions	L	mm	1594	2065	2770	3411	4549	4950
	W	mm	604	760	655	814	1140	1150
	H	mm	1053	1154	1350	1470	1750	1483
About weight		t	~1.2	~2.6	~4.0	~4.8	~5	~9
