70 Вт 100 250 800 1000 1500 2000 220 в 12 В круглый/кольцевой Электрический трансформатор
- Категория: Transformers >>>
- Поставщик: Ecko,Electrotech,Co.,Ltd.
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Sep-19-2025 | 0.91 $* | 0.31 $* |
| Aug-19-2025 | 0.46 $* | 0.72 $* |
| Jul-19-2025 | 0.64 $* | 0.88 $* |
| Jun-19-2025 | 0.75 $* | 0.76 $* |
| May-19-2025 | 0.34 $* | 0.43 $* |
| Apr-19-2025 | 0.94 $* | 0.33 $* |
| Mar-19-2025 | 0.98 $* | 0.20 $* |
| Feb-19-2025 | 0.92 $* | 0.46 $* |
| Jan-19-2025 | 0.32 $* | 0.94 $* |
Характеристики
Company Introduction
ECKO ELECTROTECH was found in 2000 with a dream
of manufacturing high quality customized transformer to customer across the globe.The beginning was small and challenging. ECKO, in its early days dealt with 2000. In the last 18 years, we have grown by leaps and bounds, all thanks to our esteemed customers,and today we have become quite scaled and powerful, renowned in the industry.
of manufacturing high quality customized transformer to customer across the globe.The beginning was small and challenging. ECKO, in its early days dealt with 2000. In the last 18 years, we have grown by leaps and bounds, all thanks to our esteemed customers,and today we have become quite scaled and powerful, renowned in the industry.
Our workshop covers an area of 5,000 square meters with nearly 100 skilled worker. But the vision has remained unchanged. We insists on supply, source, design and manufacturequality transformer to meet customers requirements.To build good and long relationship with our customers.
Product Description
Product Name | toroidal transformer |
Material | iron core and copper wire |
Function | Voltage conversion |
Package | Cartons |

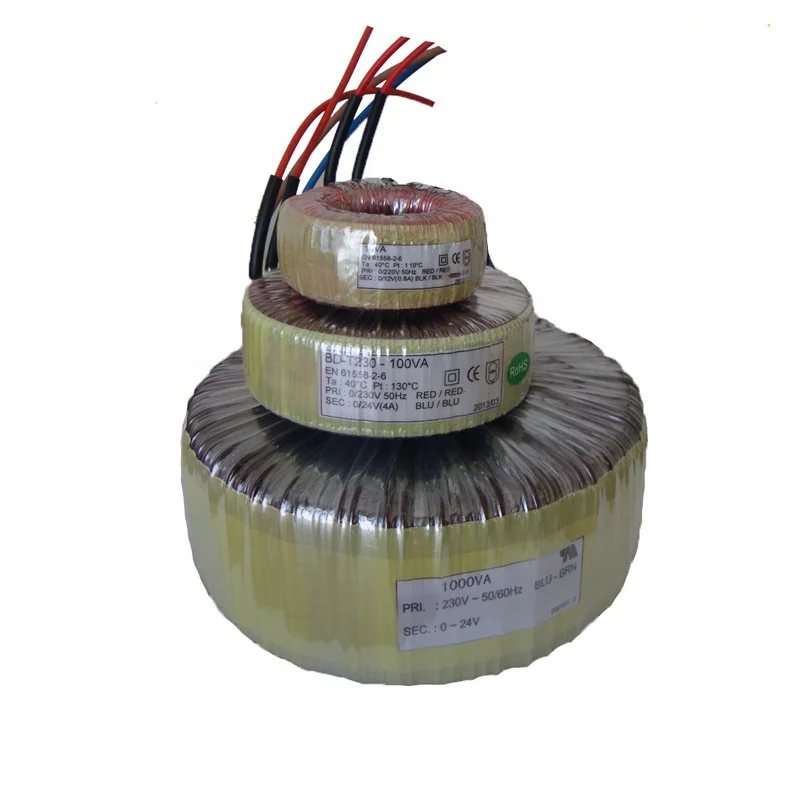

- Toroidal transformer:
Single-phase toroidal transformers, power range
from 20VA to 5000VA. Designed and tested
according to EN61558. Suitable for installation
in electronically equipment.
Designed as a safety isolating transformer with
separate insulated windings and prepared for
class II equipment.
Short circuit and overload protected with
thermal fuse on primary side. Up to 50% less
weight than a similar conventional transformer.
Low magnetisation currents and no-load losses.
from 20VA to 5000VA. Designed and tested
according to EN61558. Suitable for installation
in electronically equipment.
Designed as a safety isolating transformer with
separate insulated windings and prepared for
class II equipment.
Short circuit and overload protected with
thermal fuse on primary side. Up to 50% less
weight than a similar conventional transformer.
Low magnetisation currents and no-load losses.
Details Images
Product Usage
Applications:
Suitable as safety isolating transformer in
constructions where low weight, flexible
dimensions and optimum conditions between
dimensions are preferable.
* Input voltage: Customized
* Frequency: 50-60Hz
* Output voltage: Customized
* According to: EN61558
* Test/insulating voltage: 4kV AC RMS
* Construction class: II
* Insulation class: B (130°C)
* Ambient temp. (ta): 25°C
Mounting (2 kinds)
1.Parts for mounting supplied(rubber mats, screws and nuts)
2.Central proxy resin encapsulation and drilling.
* Frequency: 50-60Hz
* Output voltage: Customized
* According to: EN61558
* Test/insulating voltage: 4kV AC RMS
* Construction class: II
* Insulation class: B (130°C)
* Ambient temp. (ta): 25°C
Mounting (2 kinds)
1.Parts for mounting supplied(rubber mats, screws and nuts)
2.Central proxy resin encapsulation and drilling.
*The parameter is only for reference as typical data, customized are welcomed.
*We are able to provide you 20VA to 25KVA toroidal transformer.
*We are able to provide you 20VA to 25KVA toroidal transformer.
Rated Power (VA) | Voltage Regulation (%) | Efficiency (%) | Dimension(mm) | Weight (Kg) | ||
Height(C) | Diameter(A) | |||||
30 | 16 | 83 | 30 | 80 | 0.60 | |
100 | 11 | 88 | 42 | 100 | 1.30 | |
150 | 7.30 | 90 | 45 | 115 | 1.85 | |
200 | 6.2 | 91 | 53 | 123 | 2.30 | |
250 | 5.60 | 92 | 53 | 128 | 2.60 | |
300 | 5.30 | 93 | 55 | 135 | 3.00 | |
400 | 4.60 | 94 | 60 | 140 | 3.80 | |
500 | 4.30 | 95 | 66 | 146 | 4.50 | |
800 | 4.0 | 95 | 85 | 160 | 7.00 | |
1000 | 3.80 | 96 | 90 | 165 | 8.50 | |
1200 | 3.30 | 96 | 95 | 168 | 9.00 | |
1500 | 3.0 | 96 | 100 | 173 | 9.50 | |
2000 | 2.90 | 96 | 110 | 183 | 13.00 | |
4000 | 2.2 | 97 | 135 | 245 | 23.00 | |
5000 | 2.1 | 98 | 145 | 270 | 28.00 | |
