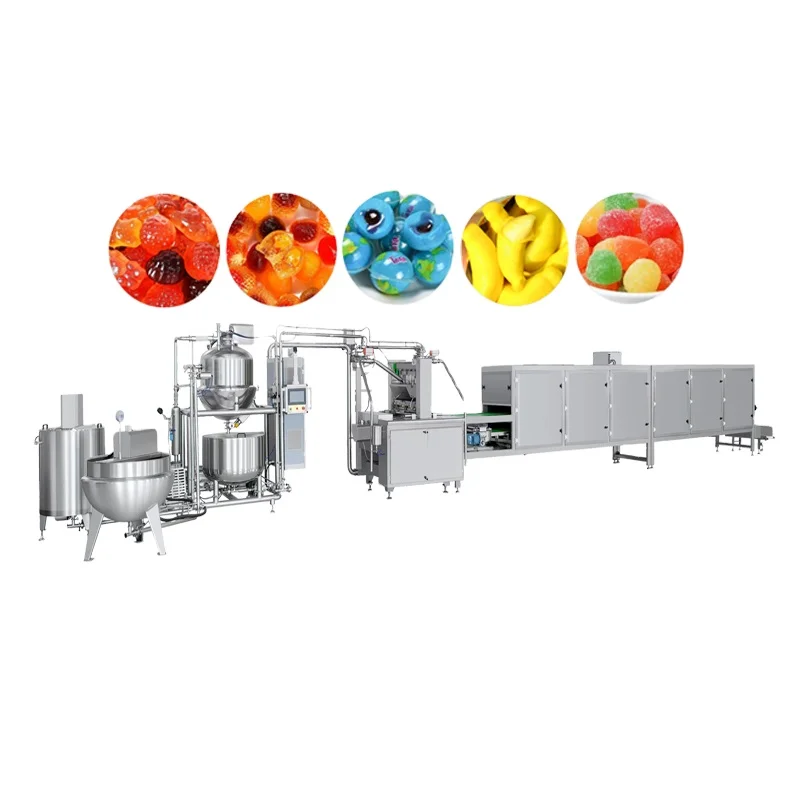

Полностью автоматическая линия по производству жевательных конфет желе
- Категория: Другие автоматы легких закусок >>>
- Поставщик: Jiangsu,Haitel,Machinery,Co.,Ltd.Jiangsu,Ltd.
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Sep-15-2025 | 45220.26 $* | 47481.37 $* |
| Aug-15-2025 | 44840.77 $* | 47082.21 $* |
| Jul-15-2025 | 37620.93 $* | 39501.61 $* |
| Jun-15-2025 | 44080.71 $* | 46284.52 $* |
| May-15-2025 | 38380.77 $* | 40299.90 $* |
| Apr-15-2025 | 43320.0 $* | 45486.24 $* |
| Mar-15-2025 | 42940.45 $* | 45087.24 $* |
| Feb-15-2025 | 42560.66 $* | 44688.69 $* |
| Jan-15-2025 | 42180.14 $* | 44289.44 $* |
Характеристики
Product Details
Main technical and performance:
1、PLC /computer process control available;
2、An LED touch panel for easy operating;
3、The production capacity is 150kg/h,300kg/h,450kg/h,600kg/h or more;
4、The contacting food parts are made of hygienic Stainless Steel SUS304;
5、Optional (mass) flowing controlled by Frequency inverters; 6、In-line injection, dosing and pre-mixing techniques for the proportional addition of liquid;
7、Dosing pumps for the automatic injection of colors, flavors and acids;
8、One set of extra jam paste injection system for making fruit jam-center filled candies（optional）;
9、Use automatic steam control system instead of the manual steam valve which control a stable steam pressure supplying to the cooking;
10、Moulds can be made according to the candies samples provided by the customer.
Model | Output (kg/h) | Power (kW) | Dimension (L*W*H) (mm) | Air compreddion (m³/m) | Weight (kg) |
HTL-T150 | 150 | 8 | 8500*1100*1800 | 0.2 | 3000 |
HTL-T300 | 300 | 12 | 10000*1600*1800 | 0.25 | 3500 |
HTL-T450 | 450 | 16 | 10000*2200*1800 | 0.4 | 4200 |
HTL-T600 | 600 | 20 | 10000*2600*1800 | 0.45 | 5000 |

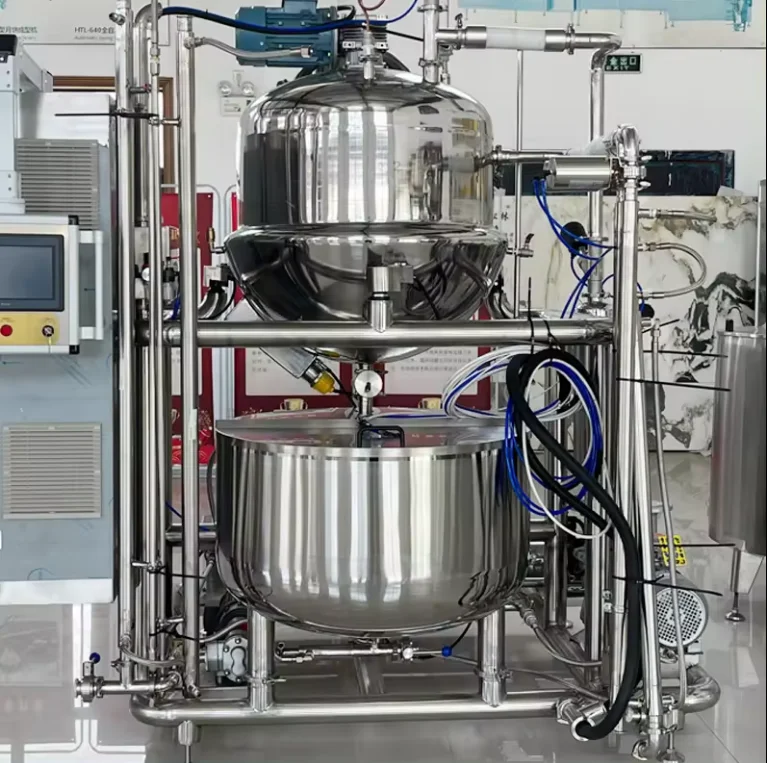

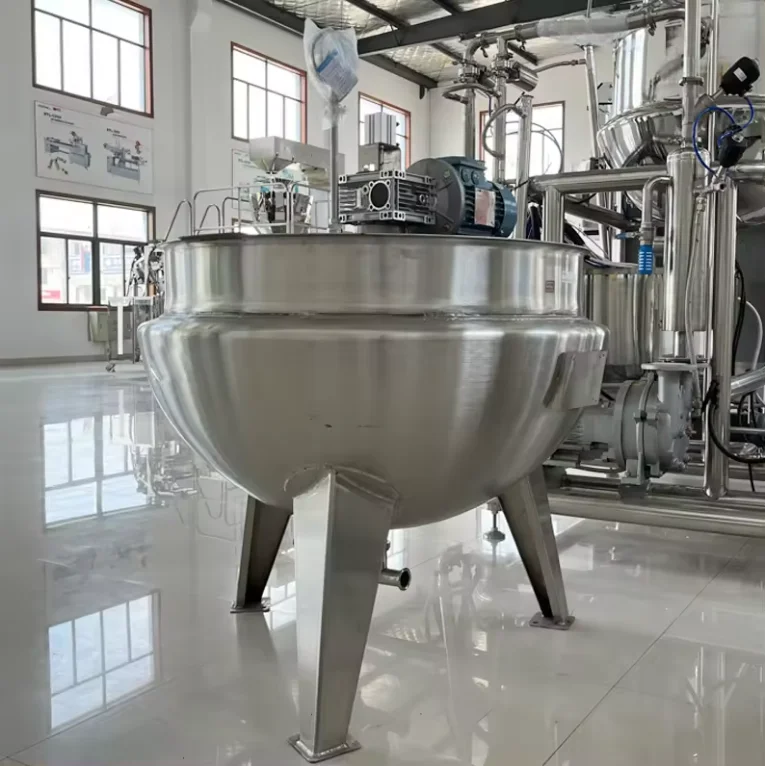

Batch-Wise Jelly Cooking System
Batch wise jelly mass cooking system offers a feeding, cooking and mixing of raw materials for all type of continuous jelly candy
production Full stainless steel SUS304 made
Flexible: Design and construction of the cooking and mixing for preparing all types of jelly mass, such as pectin, galantine,
agar-agar, starch, gum Arabic, etc.
production Full stainless steel SUS304 made
Flexible: Design and construction of the cooking and mixing for preparing all types of jelly mass, such as pectin, galantine,
agar-agar, starch, gum Arabic, etc.

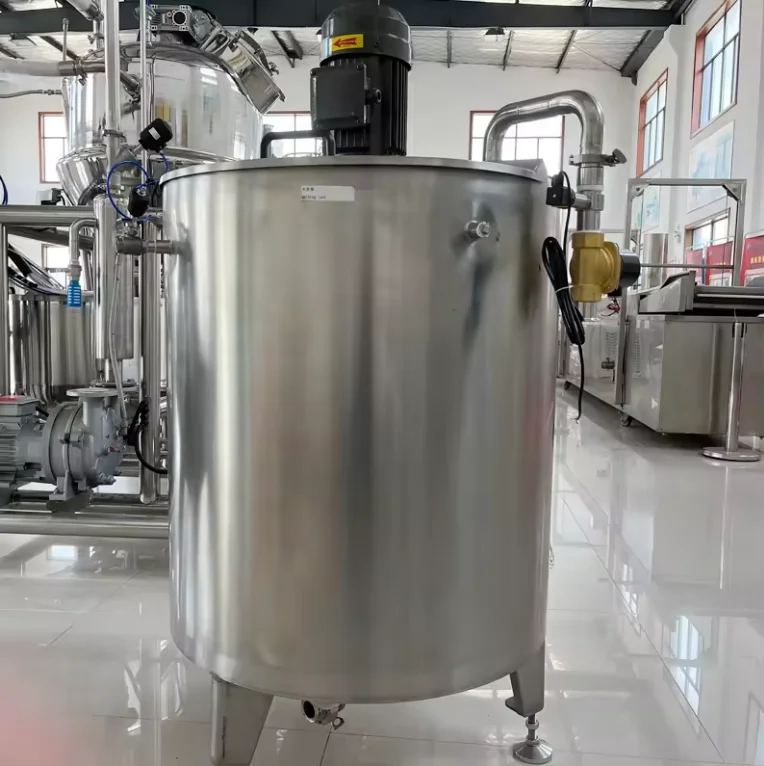

Flavor, Color, Acid Dosing And Mixing System
SAccurate metering system with pluger type pump driven by a common variable speed unital for the injection of the liquid
additives(flavor, color and acid), the additives are thoroughtly mixed into the cooked mass by jacket stainless inline mixer; in
FCA system, it ensures that the end product will always be of a consistent and high quality. Compact design, and fully qutomatic
operation.
additives(flavor, color and acid), the additives are thoroughtly mixed into the cooked mass by jacket stainless inline mixer; in
FCA system, it ensures that the end product will always be of a consistent and high quality. Compact design, and fully qutomatic
operation.

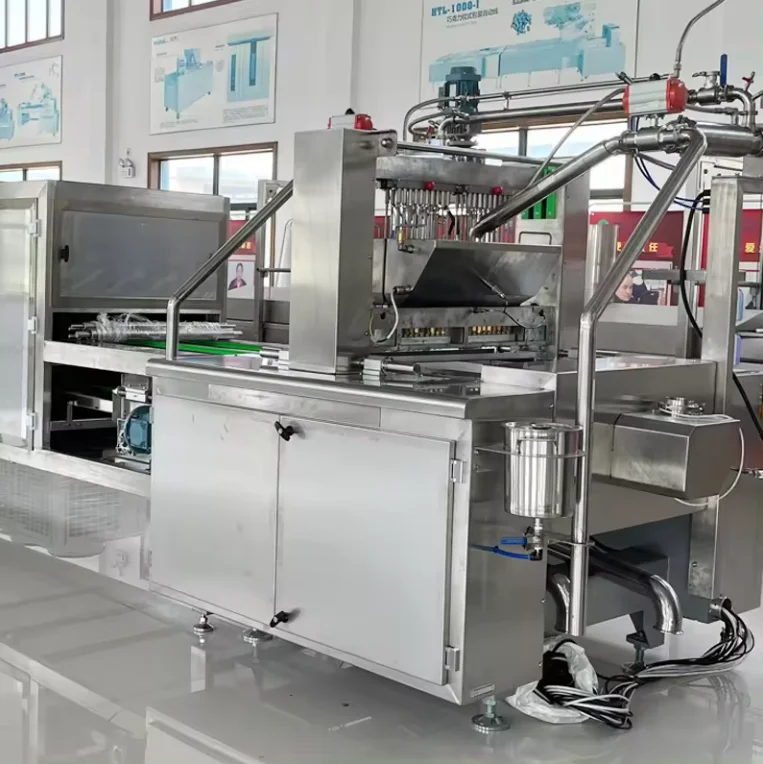

Depositing And Cooling Section
Underband Servo-drive designed deposit: All drive components are mounted on the machine(underband) rather than on the depositing head The unique design is in compact and simple, which can reduce the movement inertia and weight of the depositing head, thus it can achieve higher the depositor’s running speed to maximize output capacity
PLC Controller
Full PLC control and touch screen provide full process operation
Recipe management and alarm handling
Accurate control of the product dimensions and weight
Recipe management and alarm handling
Accurate control of the product dimensions and weight
Moulds
Aluminum with teflon coating /silicon made 2D or 3D moulds are available Customized shape and weight, designed as per the customer’s requirement
Sugar Coating Machine
White sand sugar coating can be applied to candies
Company Introduction
Packaging & Shipping
Q1. Can I try the machine first?
Yes.
Q2. Can I use my own logo or design on the products?
Yes, we offer OEM/ODM service; your logo and design can be made on the products.
Q3. Do you have a factory?
Yes, we have a factory in Jiangsu. Welcome to visit our company and factory. We are a professional manufacturer and offer OEM/ODM service to our customers.
Q4: Is your factory specialised in food machinery and packaging machinery?
Yes.
Q2. Can I use my own logo or design on the products?
Yes, we offer OEM/ODM service; your logo and design can be made on the products.
Q3. Do you have a factory?
Yes, we have a factory in Jiangsu. Welcome to visit our company and factory. We are a professional manufacturer and offer OEM/ODM service to our customers.
Q4: Is your factory specialised in food machinery and packaging machinery?
Yes, we are a professional manufacturer of food processing and packaging lines, producing fully automatic production lines for candy, chocolate, cereal bars, muesli, potato flour, crisps, baked goods and many other leisure food products, so that you can save your time and worry.
Q5. When will the delivery be made?
We will make the delivery within the delivery time determined with you, after the equipment is debugged and run without error.
Q5. When will the delivery be made?
We will make the delivery within the delivery time determined with you, after the equipment is debugged and run without error.
