We can provide complete plant for red chilli processing, chilli washing machine, chilli drying machine, chilli stem cutting machine, chilli powder making machine, chilli packing machine, chilli ring cutting machine, chilli slice cutting machine, chilli chopping machine, chilli sauce making machine, chilli sauce filling machine, etc.

This machine is used to wash the fresh red chilli, take out the sand and dust, also other impurity mixed in the red chilli. The machine is fully autoamtic, we can add the belt conveyor to feed the red chilli into washing machine, material is soaked under the water and go through air bubbles, then clean chilli will come out from another side.

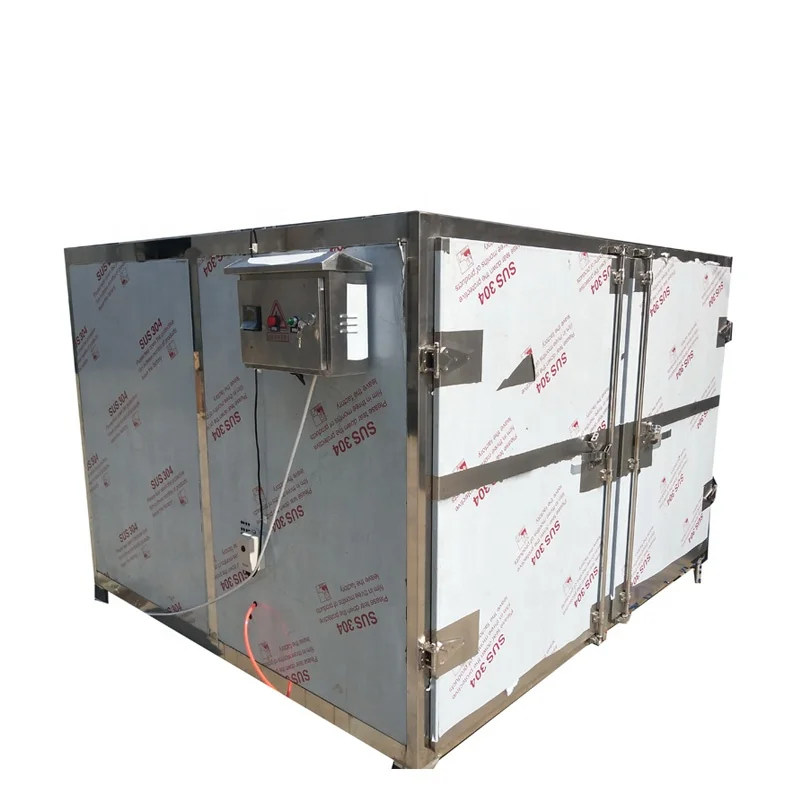

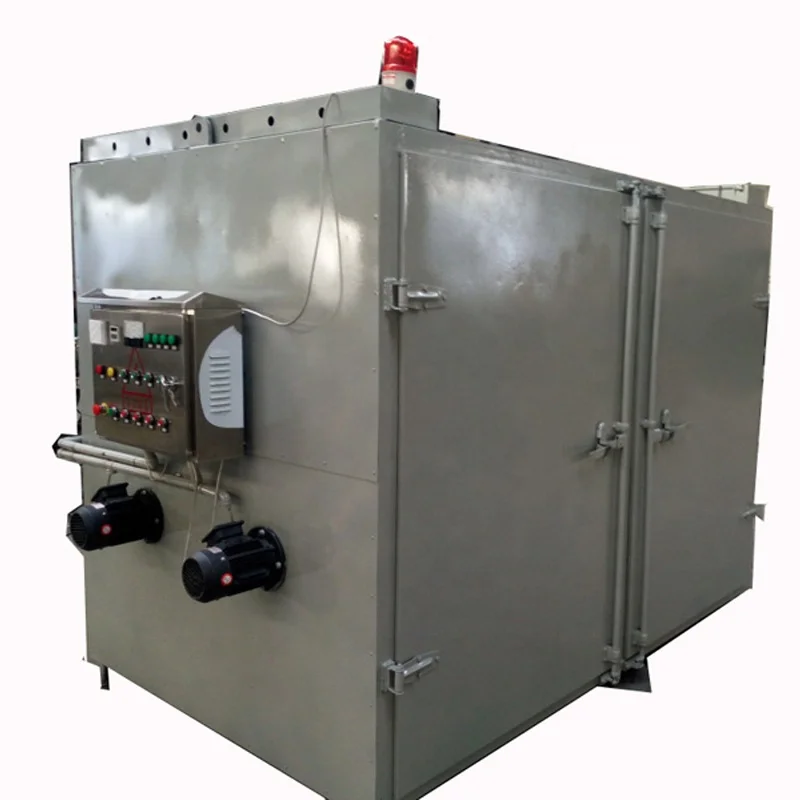

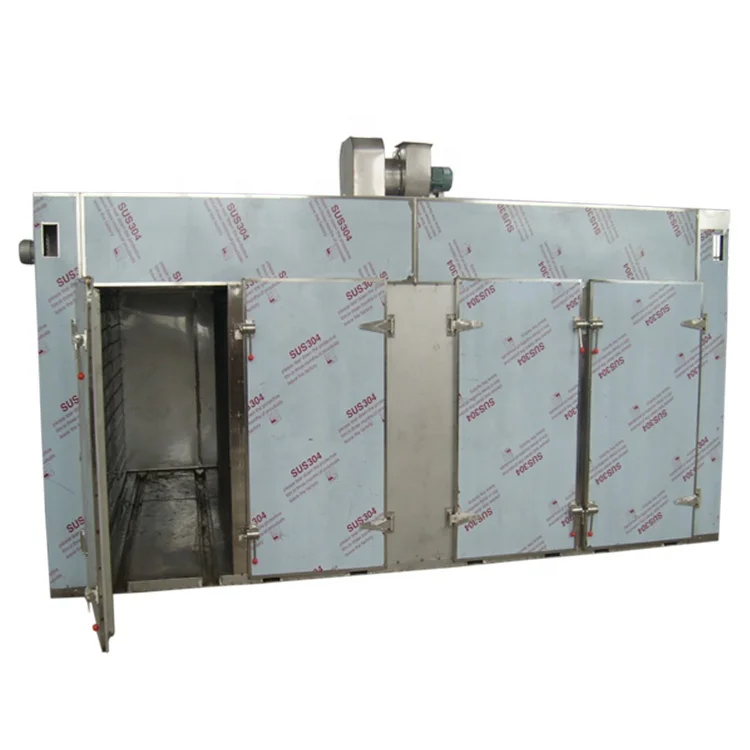

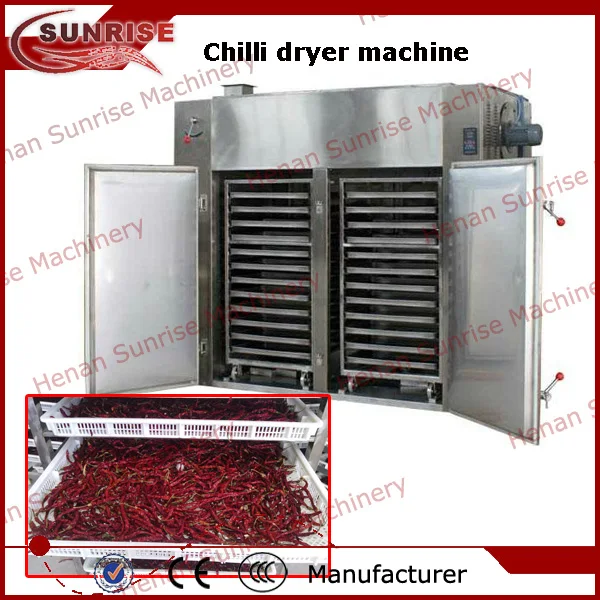

Step 2: red chilli drying machine



We have two types of red chilli drying machine, first is the chain type drying machine, it's suitable for automatic chilli processing line. Second type is the drying stove and rotary dying machine, they are good choice for small processing factory.





Model	No. of dry tray	Drying capacity one time	Power	Cooling area	Dimensions
HG-1	24	50kg	9kw	10m2	1.4*1.2*2m
HG-2	48	100kg	12kw	20m2	2.3*1.2*2m
HG-4	96	200kg	18kw	40m2	2.3*2.2*2m
HG-6	144	300kg	22kw	80m2	3.2*2.2*2m
HG-8	196	400kg	30kw	100m2	4.3*2.2*2m



Step 3: red chilli stem cutting machine



This machine is specially designed for cutting the stems of small chilli, red pepper, fresh and dry red chilli, etc. It will cut the stems, and not break the chilli.



Specifications of chilli stem cutting machine:

Model	SRS-60	SRS-120	SRS-180	SRS-200	SRS-250	SRS-350
Capacity	Dry chili 60kg	Dry chili 120kg	180kg	200kg	250kg	350kg
	Wet chili 100	Wet chili 250kg	330kg	400kg	500kg	700kg
Power	1.5kw
Voltage	220V/9.57A
Dimensions	2.7*0.83*0.59m	2.81*1.3*0.59	3.81*1.3*0.59	3.81*1.38*0.59	2.81*1.1*1.5	4.8*0.68*1.65
Weight	95kg	238kg	357kg	476kg	470kg	450kg
Material of machine can be carbon steel, half-stainless or full stainless steel according to your requirements.



Step 4: Red chilli powder machine:



This machine is a high speed operation machine, with a sharp edge, the other side is the four strike blades, crush the material by high speed rotating blade shear. This machine can also custom made according to your material, and make the screen according to final size that you need.



Specification chilli powder machine



Model no.	PY-20	PY-30	PY-40
Capacity (kg/h)	50-300	100-600	300-800
Spindle speed (RPM)	4000	3600	2500
Main power (kw)	11	15	22
Fan power (kw)	7.5	11	11
Final size (mesh)	12-120	12-120	12-120
Weight (kg)	500	700	900



Step 5: chilli powder packing machine (for chilli powder or chilli sauce)



We also making the chilli sauce grinding machine, chilli sauce packing machine, chilli ring & slice cutting machine, chilli chopping machine, etc.





Plywood case packing for the machine to make sure the safety during the shipping.





Package: our machine are all with plywood case packing, one set machine with one case.

Payment: T/T, Westeran Union, L/C, Paypal, Secure payment of Alibaba.

Delivery time: We will deliver within 7-12 working days after receiving front payment.

Warranty period: All our machine is with one  year warranty. We will provide free parts and techcical support for operation. After one year, we will provide spare parts with manufacturing cost.

After-sales Service:

1. Before deliver the machine, we will test and adjust everything properly.


2. Once all is done, we will make detailed picture for customer to confirm for delivery.


3. Operation video & working manule will be provided with the machine, so that clients can use our machine without difficulty.


4. Any problems occur while using, we will provide profession advice and technical support ASAP.


5. Spare parts of the machien is provide whole serving life with resonable price


Henan Sunrise Machinery Co., limited has been in food processing line for many years, with the advantage of high quality and reasonable price, safe packing and fast delivery, advanced testing equipments as well as perfect follow up service. Our machines have enjoyed great popularity worldwide market, sepcially in Asia and Africa countries such as India, Malaysia, South Africa, Tanzania, etc.



Please be free to contact us for further discussion and working videos!





Q: Can we go and check the machines of your company?

A: Sure, it's always welcomed. We will provide invitation letter for you to get the visa.



Q: Can you custom made the machine according to our requirments?

A: Yes, we can custom made the working voltage, material of the machine, Power source, heating source, etc.



Q: Is it possible to take test of the machine before we buy it?

A: Yes. For common product we can take test and send you working video, for special raw material we suggest you to send us your samples for the test.



Q: How we can make the payment?

We accept T/T, Paypal, Western Union for order which is not have big value. For orders more than 30,000USD we can also do L/C at sight. You can also make payment by Alibaba Secure payment if you prefer it.
