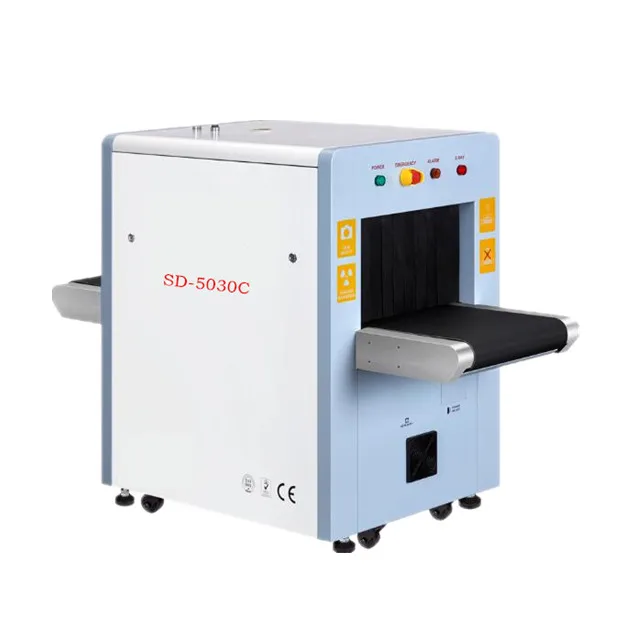

Small Channel 5030C Enhanced X-ray baggage scanners for Metro Station security check









Specifications:

Tunnel Dimension	300mm(H)*500mm(W)
Outer Dimension	1631mm(L)*774 mm(W)*1208 mm(H)
Conveyor Speed	0.2±0.02 m/s
Conveyor Max Load	150 KGS
Single inspection dosage	< 1.32 μGy
Wire Resolution	40 AWG (0.0787mm metal line)
Steel Penetration	38 mm
Film Safety	For ISO 1600
Maximum leakage radiation	<0.2 µGY/H



 X-ray Generator



Orientation	Upward
Tube Current	0.6~1.2 mA(adjustable)
Anode Voltage	100~160 KV(adjustable)
Angle	60°
Cooling:	Sealed oil bath with forced air
Duty Cycle	Rated for 100%Duty Cycle



Operating Environment



Work Temp/Humidity	0℃~ +45℃/20%~95% non-condensing
Storage Temp/Humidity	-20℃~ +60℃/20%~95% non-condensing
Voltage:	220VAC(±10%) 50±3 Hz
Power Loss:	1.0KW(MAX)
Noise	< 55 DB



 Image Processing system



1 X-ray sensor: L-shaped photodiode array detector ( Multi-energy), 24bit depth



2 Display: High-resolution 19 inch color LCD display



3 Color quality: 24-Bit real colors based on materials



4 Edge enhancement: Object contour edge is more distinct



5 Super image enhancement: Image detail is more distinct



6 High penetration display: Increase the contrast of bright area in image to make the area that is easy to penetrate appear more clearly



7 Low penetration display: Increase the contrast of dark area in image to make the area that is difficult to penetrate appear more clearly.



8 Magnifier: Partial magnifying function



9 Brightening/dimming: Increase/Decrease brightness of image



10 Image recurrence: Display all the the previous images and process any one of them



11 Image restoration: Restore image to initial status



12 Image storage: Real-time store any image and process it in operation status



13 Multi-energy: High/low energy: Switch from high energy to low energy

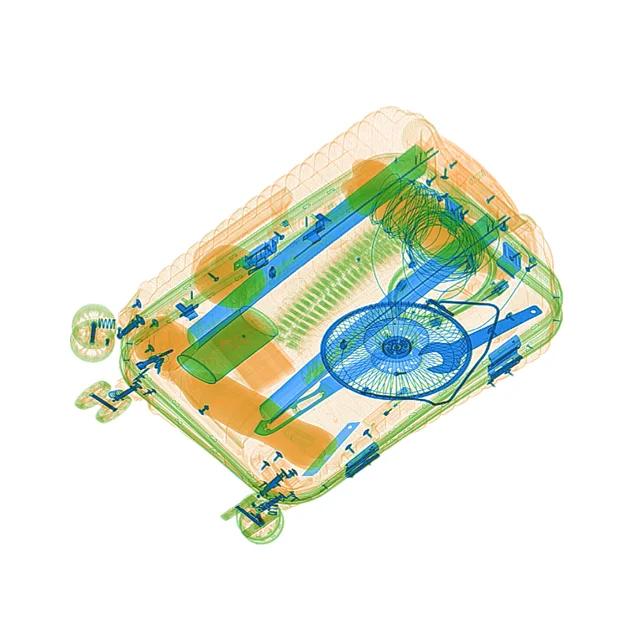

14 Color material identification: Organic objects in orange, inorganic objects in blue, mixture in green



15 Assist to detect drug and explosive powder



Application



1. Airports;

2. Banks;

3. Commercial buildings;

4. Courthouses;

5. Embassies;

6. Government buildings;

7. Military installations;

8. Prisons;

9. Ports;

10.Security checkpoints.
