Новая технология машина для производства пластиковых бутылок pe pp

Новая технология машина для производства пластиковых бутылок pe pp

Категория: Extrusion Blow Molding Machines >>>
Поставщик: Zhangjiagang,Yijiu,Machinery,Co.,Ltd.

Цена:24 000,00 $*

Количество:

Описание и отзывы

Трекер стоимости

Месяц	Минимальная цена	Макс. стоимость
Sep-19-2025	28560.49 $*	29988.42 $*
Aug-19-2025	28320.42 $*	29736.59 $*
Jul-19-2025	23760.13 $*	24948.39 $*
Jun-19-2025	27840.69 $*	29232.87 $*
May-19-2025	24240.61 $*	25452.94 $*
Apr-19-2025	27360.85 $*	28728.80 $*
Mar-19-2025	27120.88 $*	28476.93 $*
Feb-19-2025	26880.55 $*	28224.96 $*
Jan-19-2025	26640.0 $*	27972.84 $*

Характеристики

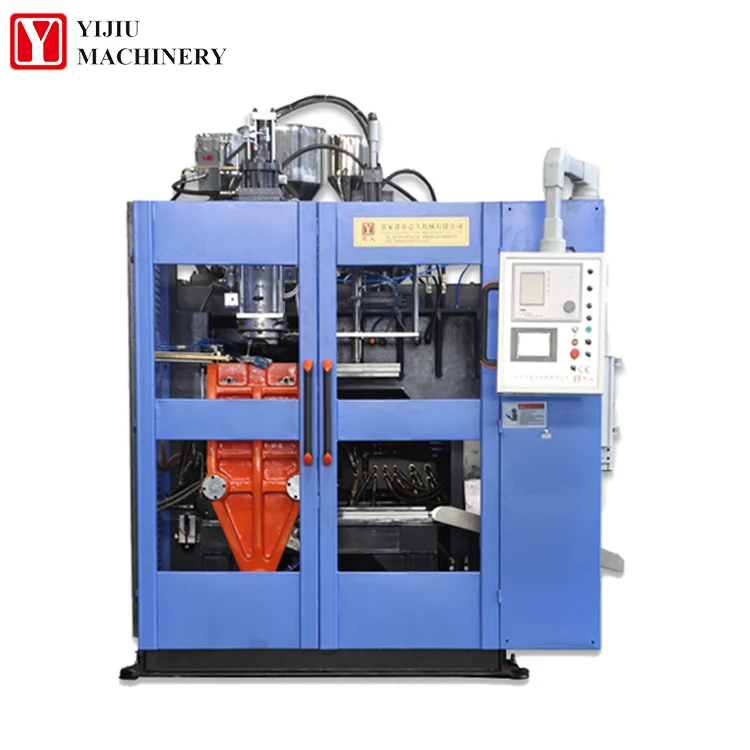

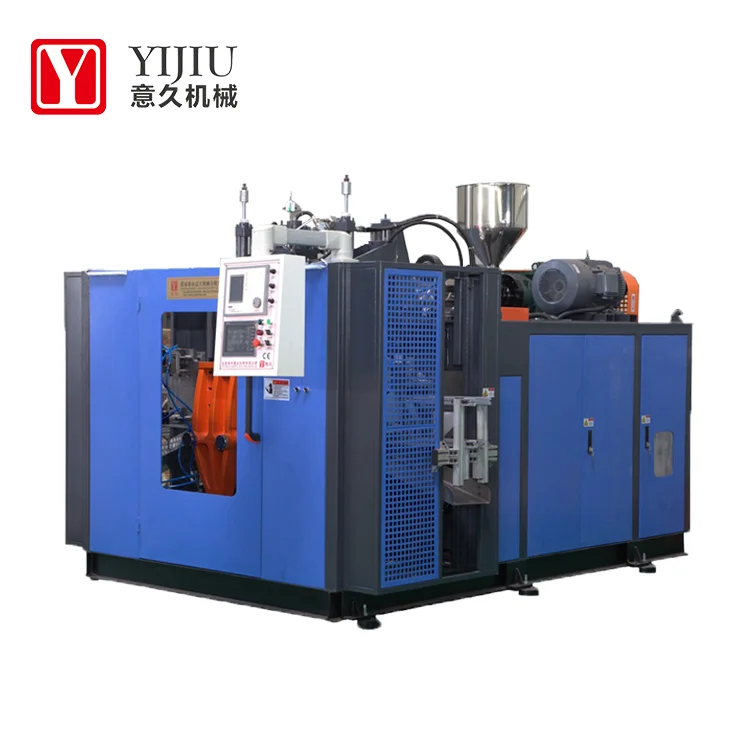

New technology pe pp hdpe plastic bottle making machine

Product Description

*PLC+touch screen: making the operation easy.

*Automatic malfunction alarm: with self-diagnosis, making the malfunction clear at a glance.

*Center input die head: eliminating the knit line completely and making it easy to change the material and color.

*Double linear guide rail: Unique “liner guide” to the clamping structure to ensure mold-lock uniform, knit line smoother, stable and quite working.

*Mould locking system: adopts Crank arm-Center lock design to provide the strong clamping force.

High speed and efficient plasticizing: mixing well and ensuring the produce purity.

Product Details

Main Parameters
Available material	PE,PP,etc.
Max. Product Volume	5	(L)
Dry Cycle	1100	(pcs/h)
Machine Size	3.0x1.7x2.5	(LxWxH)(m)
Machine Weight	5.8	(Ton)
Installed capacity	3	KW
Plasticizing System
Screw Diameter	60	(mm)
Screw L/D Ratio	24	L/D
Plasticizing capacity	70	(kg/h)

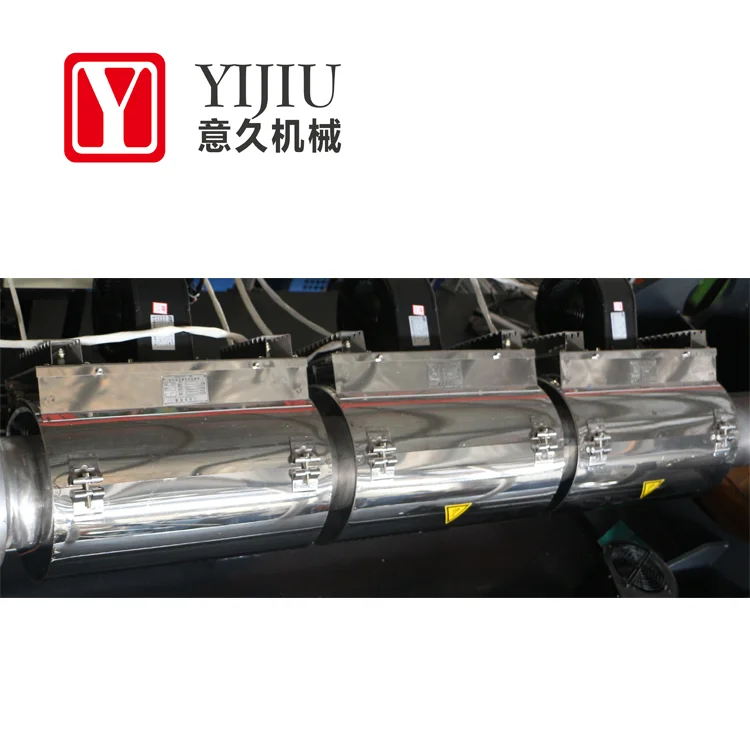

Screw Heating Zone	3	(Zone)
Screw Drive Power	15	(KW)
Extrusion Die Head
Type	Continuous Die Head
NO. of Heating Zone	3	(Zone)
Die Heating Power	2.5	(KW)
Max. Die Diameter	140	(mm)
Opening And Clamping System
Clamping Force	65	(KN)
Mold Stroke	164-524	(mm)
Max. Mold Size	380x390	(WxH)(mm)
Hydraulic System
Oil Pump Power	7.5	(KW)
System pressure	10	(MPa)

5LD

Certifications

Fully Automatic 5L Energy Saving Blow Moulding Machine packing and shipment

Packaging & Shipping

Company Information

FAQ

FAQ For Extrusion Blow Molding Machine

Q1: Are you a trading company or a manufacturer?

A1: We own a factory ourselves, and we can assure the quality we manufactured.

Q2: What’s your guarantee or the warranty of the quality if we buy your machines?

A2: We offer you high quality machines with high quality after-service. Also we have one year warranty of the spare parts, free of charge.

Q3: How can I install my machine when it arrives?

A3: We will send our engineer to your side as soon as you get all your machines ready, for testing and teaching your technicians how to run the machines.

Q4: How about the spare parts?

A4: After we deal down all the things, we will offer you a spare parts list for your reference.

Q5: What after-sales service your company offers?

1, Your inquiry related to our product & price will be replied within 72 hours.

2, Well-trained & experienced staff are to answer all your inquiries in English and Chinese.

3, Working time: 8:00am ~6:30pm, Monday to Saturday.

4, Your business relationship with us will be confidential to any third party.

5, Good after-sales service offered, please get back to us if you got any questions.

Q6:Can I visit your factory and send team for learning and inspect?

A6: Yes, sure. We will do our best to teaching you how to use the machine.welcome to visit our factory!

Q7: What is our advantages?

A7: 1.Competitive price
2. Excellent technical support
3.Best service

Q8: Where is your factory located? How can we visit there?

A8: Our factory is located in Zhang Jia Gang City, Jiang Su Province, China, about 2 hour to Pu Dong airport, from SHANG HAI by air. We offer transportation service from Pu Dong airport to our factory.
